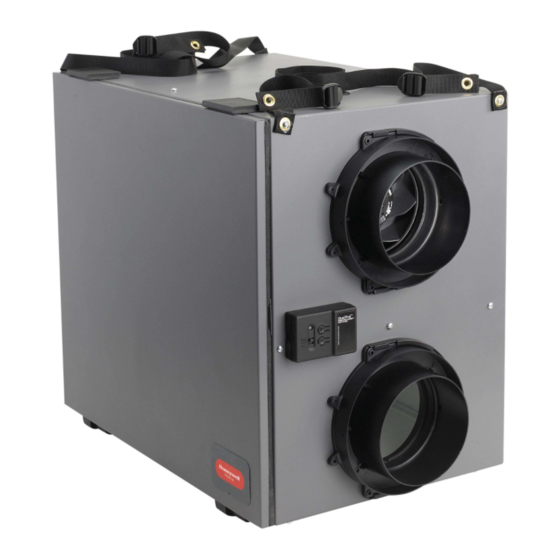

TrueFRESH™ ERV/HRV Ventilation Systems
Systèmes de ventilation VRÉ/VRC TrueFRESH™
INCLUDED IN THIS BOX
A
1
A
3
Tools required to install ERV/HRV
Aluminum foil tape (UL181B)
Standard screwdriver
Crescent wrench
Hex driver (1/4 in.)
Accessories (not included)
6 in. Dia. insulated duct (VNT5150, VNT5200)
6 in. Dia. duct (VNT5150, VNT5200)
Two 6 in. Dia. weather hoods (VNT5150, VNT5200)
5 in. Dia. insulated flex duct (VNT5070)
5 in. Dia. flex duct (VNT5070)
5 in. Dia. matrix hood, 50063805-009 (VNT5070)
A
2
E
F
PROFESSIONAL INSTALLATION
GUIDE D'INSTALLATION
B
G
1
G
4
OPTIONAL CONTROLS SOLD SEPARATELY
ERV/HRV VNT5150H1000 or VNT5150E1000
A
1
ERV/HRV VNT5200H1000 or VNT5200E1000
A
2
ERV/HRV VNT5070H1000 or VNT5070E1000
A
3
Heat/Energy Recovery Core (1)
B
Filter (2)
C
Round Duct Collars (4) (VNT5150 and VNT5200)
D
1
Oval Duct Collars (VNT5070)
D
2
Installation Kit (flex included with 5150 and 5200)
E
Wall Mount Bracket (VNT5070)
F
G
Optional Controls: 1- Vision Pro IAQ, 2 - True IAQ,
3 - Dehumidistat H8908D, 4 - Prestige IAQ,
5 - 20/40/60 Minute Boost Control,
6 - W8150 Ventilation Control
7 - Vent Boost Remote
PROFESSIONNELLE.
C
D
1
D
2
G
G
2
3
G
G
G
5
6
7
GUIDE.
69-2480EF-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TrueFRESH ERV and is the answer not in the manual?

Questions and answers

Related Manuals for Honeywell TrueFRESH ERV

Summary of Contents for Honeywell TrueFRESH ERV

  • Page 1 TrueFRESH™ ERV/HRV Ventilation Systems Systèmes de ventilation VRÉ/VRC TrueFRESH™ PROFESSIONAL INSTALLATION GUIDE. GUIDE D’INSTALLATION PROFESSIONNELLE. INCLUDED IN THIS BOX OPTIONAL CONTROLS SOLD SEPARATELY ERV/HRV VNT5150H1000 or VNT5150E1000 Tools required to install ERV/HRV ERV/HRV VNT5200H1000 or VNT5200E1000 Aluminum foil tape (UL181B) ERV/HRV VNT5070H1000 or VNT5070E1000 Standard screwdriver Heat/Energy Recovery Core (1)
  • Page 2 Installation Checklist Liste de vérification pour l’installation Included in This Box Contenu A1 ERV/HRV VNT5150H1000 or VNT5150E1000 A1 VRE/VRC VNT5150H1000 ou VNT5150E1000 ou A2 ERV/HRV VNT5200H1000 or VNT5200E1000 A2 VRE/VRC VNT5200H1000 ou VNT5200E1000 ou A3 ERV/HRV VNT5070H1000 or VNT5070E1000 A3 ERV/HRV VNT5070H1000 ou VNT5070E1000 B Heat/Energy Recovery Core B Noyau de récupération de chaleur et d’énergie C Filter (2) C Filtre (2)

  • Page 3: Table Of Contents

    NEED HELP? For assistance with this product please visit http://yourhome.honeywell.com or call Honeywell Customer Care toll-free at 1-800-468-1502. Read and save these instructions. ® U.S. Registered Trademark. Patents pending. Copyright © 2012 Honeywell International Inc. All rights reserved. TrueFRESH™ ERV/HRV Ventilation Systems 69-2480EF—09...

  • Page 4: About The Erv/Hrv Ventilation System

    About the ERV/HRV Ventilation System The Honeywell TrueFRESH™ ERV/HRV Balanced Ventilation System provides improved indoor air quality through its high performance and efficiency. Benefits • Ventilation with sensible heat recovery (ERV and HRV) • Ventilation with latent heat recovery (ERV only) • Simplified mounting (hanging) • Optional hanging of VNT5070 with purchase of 50053952-009. • Removable duct collars for easy ducting to the unit • Intuitive balancing via two variable speed motors and a speed control • Fits in tight spaces (VNT5070) CAUTION: Electrical shock and fire hazard.

  • Page 5: Determining Your Ventilation Needs

    Determining Your Ventilation Needs How much fresh air do you need? Good air quality is based in part on the capacity of the home’s ventilation system. Usually, the unit’s capacity is measured in CFM (Cubic Feet per Minute) or L/s (Liters per second) of fresh air being distributed in the living space.

  • Page 6: Specifications

    Specifications Dimensions in inches (mm) of VNT5150 and VNT5200: FRONT CLEARANCE OF 25 INCHES (635 MM) IS REQUIRED FOR SERVICING UNIT. ALL DUCT CONNECTIONS ARE 6 IN. (150 MM). VNT5150H1000 or VNT5150E1000: H = 22 1/2 in. (572 mm), W = 11 1/2 in. (295 mm), L = 29 1/2 in. (749 mm) VNT5200H1000 or VNT5200E1000: H = 22 1/2 in.
  • Page 7 Specifications (continued) VNT5150H1000 Ventilation Performance Gross Air Flow External Static Pressure Net Supply Air Flow Supply Exhaust in. W.C. VNT5150H1000 AIR FLOW (L/S) EXTERNAL EXTERNAL STATIC STATIC PRESSURE PRESSURE (IN. W. C) (PA) NET SUPPLY AIR FLOW M32358A AIR FLOW (CFM) VNT5150H1000 Energy Performance Average Sensible...
  • Page 8 Specifications (continued) VNT5200H1000 Ventilation Performance Gross Air Flow External Static Pressure Net Supply Air Flow Supply Exhaust in. W.C. VNT5200H1000 AIR FLOW (L/S) EXTERNAL EXTERNAL STATIC STATIC PRESSURE PRESSURE (IN. W. C) (PA) NET SUPPLY AIR FLOW AIR FLOW (CFM) M32354 VNT5200H1000 Energy Performance Average Sensible...
  • Page 9 Specifications (continued) VNT5150E1000 Ventilation Performance Gross Air Flow External Static Pressure Net Supply Air Flow Supply Exhaust in. W.C. VNT5150E1000 AIR FLOW (L/S) EXTERNAL EXTERNAL STATIC STATIC PRESSURE PRESSURE (IN. W. C) (PA) NET SUPPLY AIR FLOW M32370A AIR FLOW (CFM) VNT5150E1000 Energy Performance Average Sensible...
  • Page 10 Specifications (continued) VNT5200E1000 Ventilation Performance Gross Air Flow External Static Pressure Net Supply Air Flow Supply Exhaust in. W.C. VNT5200E1000 AIR FLOW (L/S) EXTERNAL EXTERNAL STATIC STATIC PRESSURE PRESSURE (PA) (IN. W. C) NET SUPPLY AIR FLOW M32369A AIR FLOW (CFM) VNT5200E1000 Energy Performance Average Sensible...
  • Page 11 VNT5070H1000 Ventilation Performance Gross Air Flow External Static Pressure Net Supply Air Flow Supply Exhaust in. W.C. VNT5070H1000 AIR FLOW (L/S) EXTERNAL EXTERNAL STATIC STATIC PRESSURE PRESSURE (IN. W. C) (PA) AIR FLOW (CFM) M33685 VNT5070H1000 Energy Performance Average Sensible Apparent Supply Temperature Net Supply Air Flow Power Recovery Sensible...
  • Page 12 VNT5070E1000 Ventilation Performance Gross Air Flow External Static Pressure Net Supply Air Flow Supply Exhaust in. W.C. VNT5070E1000 AIR FLOW (L/S) EXTERNAL EXTERNAL STATIC STATIC PRESSURE PRESSURE (IN. W. C) (PA) AIR FLOW (CFM) M33684 VNT5070E1000 Energy Performance Average Sensible Apparent Supply Temperature Net Supply Air Flow Power Recovery Sensible...

  • Page 13: External Control Options

    External Control Options The ERV/HRV unit may be used with one of the following external controls: Prestige™ (YTHX9321R5079) and Prestige™ IAQ Comfort System (YTHX9421R5069) • Controls both heating/cooling and ventilation. • Wireless sensor for displaying outdoor temperature and humidity. • Advanced ventilation programming includes economizing and extreme condition shutdown. • Maintenance and service reminders. • High definition color display. VisionPRO (TH8321U1097)and VisionPRO IAQ Total Comfort System (YTH9421C1010) • Controls both heating/cooling and ventilation.

  • Page 14: Install To Fit Your Application

    This application uses a devoted duct system for the supply and the exhausting of stale air accumulated in the home. Honeywell recommends installing fresh air grilles in all bedrooms and living areas and to exhaust the stale air from the bathroom, kitchen, and laundry room.
  • Page 15 NOTE: For the minimum distance between the fresh air connection and the forced air system, check with your local building codes and forced air system manufacturer. NOTE: For dwellings with multiple forced air systems, Honeywell recommends one ERV/HRV unit per system.
  • Page 16 Install to Fit Your Application (continued) Exhaust and Supply in the Return TO LIVING SPACE FORCED AIR SYSTEM HRV / ERV M28985 When using this application make sure that there is a minimum of 6 feet between the fresh air and exhaust air connections of the ERV/HRV unit in the return air duct.

  • Page 17: Installation Steps

    Installation Steps Installation Kit Ensure that you have all of the following installation items: 4 Round Duct Collars (VNT5150 and 5200) Installation Kit: • 2 Flexible 6 in. Vinyl Ducts (NVT5150 and VNT5200 only) • 1 Condensation Drain Line (10 in.) • 1 Drain Adapter with Nut • 4 Tie Wraps (30 in.) • 16 Hex-head screws (1/4 x 5/8 in.) • 4 Hex-head screws (1/4 x 1 in.) • 4 Washers • 1 Drain cap (VNT5070E1000, VNT5250E1000 and VNT5200E1000 only) • 1 power cord, 120 Vac (not shown) 4 Oval Duct Collars (VNT5070) Installation Area The ERV/HRV unit should be installed in a mechanical room or as close to an outside wall as possible. The ERV/HRV unit must always be installed in an area where the air is conditioned to avoid freezing the condensate line.
  • Page 18 Installation Steps (continued) Hanging the VNT5150 or VNT5200 The ERV/HRV unit enables you to save time and effort by offering a simplified hanging system. TIP: Removing the core unit makes installation easier since the unit weighs less without the core inside. 1.
  • Page 19 Installation Steps (continued) Mounting the VNT5070 1. Fix the control module bracket to the top of the 2. Slide the control module onto the bracket VNT5070 using the supplied mounting screws. using the key holes. 3. Fix the wall mount bracket to two 2x4s or to 4.
  • Page 20 Installing the flex duct to the ERV/HRV TIP: Honeywell recommends using approximately 16 inches of flexible duct (supplied in kit with VNT5150 and VNT5200) between the unit and the rigid duct for noise dampening. The flex duct is mounted to the unit the same way as the insulated flex.
  • Page 21 Installation Steps (continued) Installing the condensation drain line Insert the threaded drain adapter through the bottom of the unit and hand tighten the plastic nut supplied with the drain kit. Use a wrench to tighten the nut another half turn to ensure a complete seal.
  • Page 22 Do not plug the power cord into the wall receptacle at this time. Electric Wall Outlet Honeywell recommends that the unit has a dedicated receptacle with 120 VAC. Avoid connecting the unit to the wall receptacle with an extension cord.
  • Page 23 Installation Steps (continued) Optional Matrix hood (50063805-009) installation for fresh air and exhaust air NOTE: Only for applications up to 115 CFM maximum speed. Higher airflow rates are limited by higher static pressures and the potential of cross-contamination between the supply and exhaust air streams.

  • Page 24: Automated Defrost

    Automated Defrost The ERV and HRV units are equipped with an automatic defrost feature to eliminate any ice build up on the core. • Automatic defrost is initiated once every hour when the fresh air supply temperature drops to 23°F (-5°C) or colder.

  • Page 25: Wiring With Remote Controls

    Wiring (continued) Wiring with Remote Controls CONT mode - Ventilator runs continuously on low speed. A ventilation call from a control boosts the ventilator into high speed. INT mode - The ventilator is OFF until a ventilation call from a wall control turns it on in high speed.. Controls Wiring THM5421R (24 VAC)
  • Page 26 Wiring (continued) Follow this diagram if using a Prestige™ Thermostat (Interlock PRESTIGE not shown). POWERED THEROMSTAT VENTILATOR USED USED U1/U1 Configurable IAQ relay for humidifier, dehumidifier, or vent U2/U2 Configurable IAQ relay for humidifier, dehumidifier, or vent M28988 TIP: Combine Prestige 2.0 thermostat with wireless vent boost remote to provide ventilation boost control from anywhere in the home.
  • Page 27 Wiring (continued) INTERLOCK TIMER RLY1 Follow this diagram LVC – L1 General Ventilator Wiring (not interlocked with equipment fan) POWERED COM PORT VENTILATOR THERMOSTAT Vectouch CASE GND REMOTES VENTILATION CONTACTS FURNACE 24-VOLT TERMINAL BLOCK ERV/HRV is used in conjunction with a conventional HEAT/COOL thermostat or other wall control. M28990A INTERLOCK TIMER RLY1 Follow this diagram for LVC –...
  • Page 28 Wiring (continued) TrueIAQ VENT Follow this diagram if using a VENT TrueIAQ (DG115EZIQ). DEHUM DEHUM M28993 Follow this diagram if using a Dehumidistat. M28994 EARD-6 AT120 Follow this diagram if using a W8150 Ventilation Control XFMR W8150A FAN TIMER M28995 TrueFRESH™...

  • Page 29: Control Panel

    Wiring (continued) Follow this diagram if using the Honeywell 20/40/60 Minute Boost Control Timer. Note: Multiple timers can be wired in parallel. M28996 Control Panel The control panel has a 3-position selector switch Speed – and “ ” and “ ” buttons for speed control. The color of...

  • Page 30: Balancing Steps

    Control Panel (continued) Speed Control used as a Mode Control When the LED indicator is green, the selector switch functions as a Mode Selector. The selections are: • INTER (Intermittent): When the selector switch is in the intermittent position the unit will run only when there is a call for ventilation by any external control.
  • Page 31 Balancing Steps (continued) a. Use a pitot tube or flow station to measure the air flow in the fresh air duct and exhaust air FRESH AIR DUCT STALE AIR DUCT (LEFT) (RIGHT) duct. (For the VNT5070, make airflow measurements by following the procedure on page 30.) b. Move the mode selector switch to adjust the air flow in the duct with the higher reading. INTER: Exhaust air (right) OFF: Fresh air (left) c. Press the (+) or (–) buttons to adjust the air flow to the desired high speed setting.

  • Page 32: Balancing Reset

    Balancing Reset NOTE: Once balancing is completed, balancing cannot be changed without resetting the unit. To reset: Speed 1. Press the (+) and (–) buttons simultaneously for 10 seconds. Control 2. Indicator light will turn yellow at 5 seconds. 3. Indicator light will turn green at 10 seconds. Open for Instructions 4.
  • Page 33 Airflow Measurements - VNT5070 only (continued) PRESSURE PORT MAGNEHELIC EXHAUST AIR HIGH HIGH FRESH AIR MAGNEHELIC M33131 Pre & Post Balancing Steps a. Install the flexible duct inner liner (vapor barrier) over the collar and seal with tape, mastic, etc. Note-flexible insulation should be pulled back and away from the duct collar to allow access to pressure ports. b. Proceed with balancing steps described below. c. Plug the pressure ports. d. Pull flexible duct insulation over duct collar and stuff inside the double collar; seal insulation to duct collar with tape. Balancing Steps a.

  • Page 34: Maintenance

    Maintenance Quarterly or as Needed Filters. Four times per year or as needed, vacuum the filters. Replace filters as needed. Annually or as Needed Inside the Unit. Once a year or as needed, clean the interior of the unit (walls and drain pan) with a mild and non abrasive soap.

  • Page 35: Cleaning Steps

    Cleaning Steps 2. Open the side door panel by opening the two latches on the top of the side panel and lowering the panel to its fully open position Remove both 1. Disconnect the AC power from the unit or the filters from the top left and right sides of the wall.

  • Page 36: Troubleshooting

    Troubleshooting CAUTION: Servicing the ERV/HRV unit with its electrical circuitry can cause personal injury. Always make sure that power to the unit is disconnected prior to making any connections. Failure to disconnect the power could result in electrical shock. Service should only be performed by a qualified service technician.
  • Page 37 Troubleshooting (continued) Problem Possible Cause or Test Procedure Solution Symptom • HRV/ERV • Dehumidistat of • Disconnect all wall controls • Ensure all wall controls operating the wall controls from unit and Speed Control wire only on high activated. • Ensure all other wall controls connections correspond speed, no • T-3 Timer 20/40/60...
  • Page 38 Troubleshooting (continued) Problem Possible Cause or Test Procedure Solution Symptom • Exhaust Fan • Wiring of fans • Unplug unit, remove access • Ensure wiring activated incorrect on HVC panel from Exhaust Fan (right corresponds to wiring Supply Fan off. Controller motor mount) .

  • Page 39: Honeywell Os And Parts List

    Honeywell OS and Parts List Honeywell OS List Honeywell OS Number Controls Ventilator Type VNT5070H1000 VNT5070E1000 VNT5150H1000 VNT5150E1000 VNT5200H1000 VNT5200E1000 Parts List (see illustration on page 38 or 39 for figure number references) Figure Number Description VNT5070 VNT5150 VNT5200 Polypropylene HRV Core 50063805-001 50053952-001 50053952-002 9” Core 10” Core 15” Core...
  • Page 40 Parts Illustration (VNT5150 and VNT5200) See the Parts List table on page 37 for items referenced by figure numbers 1 through 11 in the exploded illustration below. M28997 TrueFRESH™ ERV/HRV Ventilation Systems 69-2480EF—09...
  • Page 41 Parts Illustration (VNT5070) See the Parts List table on page 37 for items referenced by figure numbers 1 through 11 in the exploded illustration below (VNT5150 and VNT5200). NOT SHOWN M33093 TrueFRESH™ ERV/HRV Ventilation Systems 69-2480EF—09...

  • Page 42: 5-Year Limited Warranty

    (5) years from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option).
