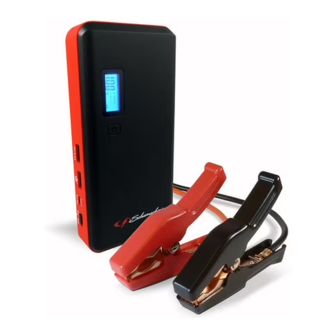

Jump Starter/Power Pack
Arrancador / Pack de energia
OWNER'S MANUAL / MANUAL DEL USUARIO
PLEASE SAVE THIS OWNER'S MANUAL AND READ BEFORE
EACH USE. This manual will explain how to use the unit safely
and effectively. Please read and follow these instructions and
precautions carefully.
POR FAVOR GUARDE ESTE MANUAL DEL PROPIETARIO Y
LEER ANTES DE CADA USO. En este manual se explica cam°
utilizer la unidad segura y efectiva. Por favor, lea y siga las siguientes
instrucciones y precauciones.
MODEL / MODELO:
SL1315
0099001859-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL1315 and is the answer not in the manual?

Questions and answers

Related Manuals for Schumacher SL1315

Summary of Contents for Schumacher SL1315

  • Page 1 MODEL / MODELO: SL1315 Jump Starter/Power Pack Arrancador / Pack de energia OWNER'S MANUAL / MANUAL DEL USUARIO PLEASE SAVE THIS OWNER'S MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the unit safely and effectively. Please read and follow these instructions and precautions carefully.

  • Page 2: Table Of Contents

    CONTENTS IMPORT ANT SAFETY INSTRUCTIONS3 PERSONAL PRECAUTIONS4 PREP ARING TO USE THE UNIT5 FOLLOW THESE STEPS WHEN CONNECTING TO A BA TTERY5 FEA TURES6 CHARGING THE JUMP ST ARTER6 OPERA TING INSTRUCTIONS7 MAINTENANCE INSTRUCTIONS9 STORAGE INSTRUCTIONS9 TROUBLESHOOTING9 BEFORE RETURNING FOR REP AIRS1 SPECIFICA TIONS1 REPLACEMENT P ARTS1 LIMITED WARRANTY1...

  • Page 3: Import Ant Safety Instructions3

    1.5 Use only recommended attachments (Schumacher SA883 jump cable). Use of an attachment not recommended or sold by Schumacher Electric Corporation for the SL1315 may result in a risk of fire, electric shock or injury to persons or damage to property.

  • Page 4: Personal Precautions4

    2. PERSONAL PRECAUTIONS W ARNING! RISK OF EXPLOSIVE GASES. A SP ARK NEAR THE BA TTERY MA Y CAUSE A BA TTERY EXPLOSION. TO REDUCE THE RISK OF A SP ARK NEAR THE BATTERY: 2.1 NEVER smoke or allow a spark or flame i n the vicinity of a battery or engine. 2.2 Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead-acid battery.

  • Page 5: Prep Aring To Use The Unit5

    3. PREPARING TO USE THE UNIT WARNING! RISK OF CONTACT WITH BATTERY ACID. BATTERY ACID IS A HIGHLY CORROSIVE SULFURIC ACID. 3.1 Make sure the area around the battery is well ventilated while the unit is in use. 3.2 Clean the battery terminals before using the jump starter. During cleaning, keep airborne corrosion from coming into contact with your eyes, nose and mouth.

  • Page 6: Fea Tures6

    5. FEATURES 1. ON/OFF switch 6. LCD display 7. LED light 2. Micro USB input port for recharging 8. Jump start output socket 3. Qualcome' Quick Charge' 9. Battery clamps/smart cable 3.0 Technology Not shown: USB output port 10. Micro USB-USB charging cable 4.

  • Page 7: Opera Ting Instructions7

    6.2 CHARGING THE INTERNAL BATTERY NOTE: Use a 2A USB charger (sold separately), or a 2A USB charging port to quickly recharge the jump starter. Using a charger with less than 2A will increase charge time. 1. Plug the Micro USB end of the charging cable into the input port. Next, plug the USB end of the charging cable into a charger's USB port.
  • Page 8 7.2 CHARGING A MOBILE DEVICE, USING THE USB PORTS The SL1315 includes two USB ports. One provides up to 2.4A at 5V DC; the other is Quick Charge 3.0, which provides up to 5V at 3A, 9V at 2A or 12V at 1.5A.

  • Page 9: Maintenance Instructions9

    7.3 USING THE LED LIGHT 1. Slide the ON/OFF switch to the ON position. 2. Hold down the display 0 button for 3 seconds. 3. Once the LED light is on, press and release the display 0 button to cycle through the Wowing modes: •...
  • Page 10 SOLUTION PROBLEM Check connections. The jump starter turns on, but won't jump start my vehicle. Verify the charge level of the jump starter is at least 40%. Do not attempt to jump start your vehicle more than three consecutive times. If the vehide still does not start, consult a qualified service technician.

  • Page 11: Before Returning For Rep Airs1

    Customer Service at Schumacher Electric Corporation. When returning an item, place the original package into a shipping carton. If you received an emailed label from Schumacher, please print the label and tape it to the carton. Only ship via insured ground service with a tracking number.

  • Page 12: Limited Warranty1

    Manufacturer does not provide any warranty for any accessories used with this product that are not manufactured by Schumacher Electric Corporation and approved for use with this product. This Limited...

  • Page 13: W Arranty Card2

    1 YEAR LIMITED WARRANTY PROGRAM REGISTRATION MODEL: DESCRIPTION: This is the only express limited warranty, and the manufacturer neither assumes nor authorizes anyone to assume or make any other obligation. There is no other warranty, other than what is described in the product owner's manual.
