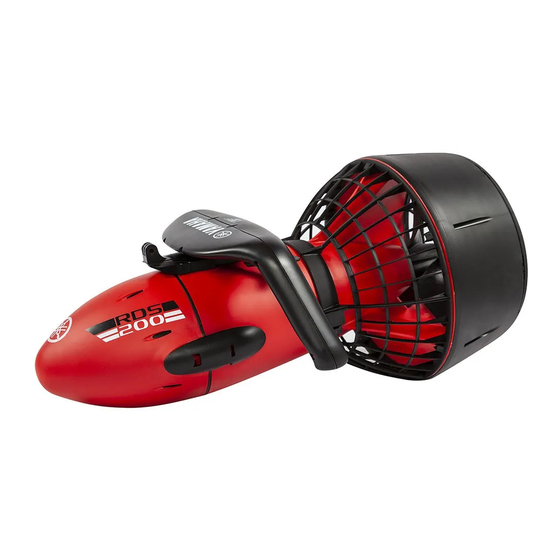

YMEP#18015 - V2
LICENSED PRODUCT
Yamaha, the Crossed Tuning Fork Design, and any likeness thereof are trademarks
of Yamaha Motor Corp. U.S.A. and Yamaha Motor Co., Ltd. ("Yamaha") used
under license by Sport Dimension Inc. www.yamaha-motor.com.
This Product is not manufactured by Yamaha. For consumer purposes,
please contact Sport Dimension Inc. at 1-800-678-7873.
User Manual
English Version
CAUTION
ELECTRICALLY OPERATED PRODUCT
Not recommended for children under 16 years of age. As with all
electrical products, precautions should be observed during handling
to reduce the risk of electric shock.
Advertisement
Table of Contents
Related Manuals for Yamaha RDS 200
Summary of Contents for Yamaha RDS 200
- Page 1 YMEP#18015 - V2 LICENSED PRODUCT Yamaha, the Crossed Tuning Fork Design, and any likeness thereof are trademarks of Yamaha Motor Corp. U.S.A. and Yamaha Motor Co., Ltd. (“Yamaha”) used under license by Sport Dimension Inc. www.yamaha-motor.com. This Product is not manufactured by Yamaha. For consumer purposes, please contact Sport Dimension Inc.
-
Page 2: Table Of Contents
Contents Introduction Thank you for having chosen the SEASCOOTER RDS200 / ™ Introduction RDS250 / RDS280 / RDS300 - with the SEASCOOTER ™ swimming, snorkeling and diving is effortless and fun.(Only use Parts diagram the seascooter for scuba diving if you are a qualified diver) Use appropriate equipment such as wetsuit, buoyancy Warnings control device, fins, mask &... -
Page 3: Parts Diagram
Parts Diagram Parts Diagram -SEASCOOTER RDS200- -SEASCOOTER RDS250 / RDS280 / RDS300- Fig.1 Fig.2 1 Latch 11 Master Switch 1 Latch 12 Battery Leads 2a Nose Cone 13 Battery 2 Nose Cone 12 Battery (RDS250 & RDS300) 14 Vent Hole 3 Inner Nose Cone 13 Vent Hole 2b Nose Cone... -
Page 4: Warnings
Warnings • Always inspect the swimming area to ensure it is free of hazards or obstacles such as boats and swimmers before using the • This is not a life saving device. SEASCOOTER™. DO NOT use it as a buoyancy aid. •... -
Page 5: Getting Started
Getting Started • Never remove the grilles except for maintenance. • Always charge battery to its maximum before using the SEASCOOTER . After charging is complete the battery ™ CRUSHING HAZARD: will continue to emit gas. Wait at least 30 minutes after The following action during assembly, disassembly, and charging before removing the battery from the charger or placing the battery into the battery housing. - Page 6 Shown in "ON" position Rotate to turn "OFF" RDS200 Shown in "ON" position Rotate to turn "OFF" RDS250 / RDS280 / RDS300 Fig.3 Fig.4 5. When ready to set off, turn the Master Switch to the On position shown in figure 3. CAUTION 6.
- Page 7 Using the SEASCOOTER for diving - 5. If the SEASCOOTER™ sinks, remove the weight until it is ™ adjusting the buoyancy. neutrally buoyant. If the SEASCOOTER™ is still positively buoyant repeat Your SEASCOOTER RDS200 can be used for diving up to ™...
-
Page 8: Battery Use
Battery Use Battery Use CAUTION WARNING • Your SEASCOOTER is supplied with a battery that ™ BATTERY SAFETY needs to be treated carefully as it will release RE-CHARGE THE BATTERY potentially explosive gases during its normal cycle of EVERY AT LEAST use (off-gassing). - Page 9 Battery Use Battery Use CAUTION CAUTION • The battery supplied with your SEASCOOTER • Never charge the battery in sealed container. ™ releases a potentially explosive gas during charging. Charging should only take place in a well ventilated • Never charge the battery near water. area, away from children and open flames or other ignition sources (cigarettes, sparks).
-
Page 10: Charging The Battery
Charging the battery Important Notice: Keep the silicone ring permanently (Refer Warning! to Page 2 and 3, Parts Diagram).Removing the inner nose Replace the battery immediately if it is damaged. cone without the silicone ring is dangerous For battery charging follow these instructions. 1. -
Page 11: Rds280
15. Unplug the battery cable from the Charger cable. 20. Screw in the Vent Plug to seal the vent. 21. Replace the Buoyancy Control Chamber. 16. When ready for use, install the battery and reconnect to the housing cable. 22. Replace the Outer Nose Cone making sure the key is aligned correctly and insert the Latches and lock the Silicone Ensure sealing surface is clean and fully lubricated... - Page 12 - SEASCOOTER RDS200 - To replace a flat battery with a fully charged battery. Using the Optional Extended Life Battery. 1. Follow the steps 1 to 7 on page 16, to open the An optional extended life battery is available through your SEASCOOTER ™...
-
Page 13: Camera Assembly
CAMERA ASSEMBLY Care And Maintenance Battery Care ATTACHING YOUR CAMERA TO SEASCOOTER MOUNTS • Please read and understand important Battery Use (Can be used with GoPro® HERO [3, 3+, 4, or 5] cameras, or other camera with using the same mount system) safety information on pages 12 to 15. -
Page 14: Trouble Shooting
Trouble Shooting Unit does not function If the motor does not start when both triggers are pressed, make sure 1. The battery is properly connected 2. The battery is fully charged (see page 16, charging the battery) 3. The master switch is in the "On" position (see fig 3, page 8) 4. - Page 15 Drive Pin In Position Fig.19 Fig.17 9. Replace the washer(s) and nut and tighten with the socket while holding the Propeller making sure it is 4. Unscrew the six rear grille screws as shown in figure 17. securely fastened (See figure 20). While holding the Propeller, use an M6 socket to remove 10.
-
Page 16: Technical Specifications
Technical Specifications SEASCOOTER™ cuts out -RDS200- Unit Dimensions 24 inches x 15.2 inches x 12.3 inches To protect the electronic circuit of your SEASCOOTER ™ (612 x 385 x 312 mm) from damage a safety mechanism has been built in that cuts the power if a wall or rock or other immovable object Unit Weight 13 lb (6 kg) (with rechargeable battery) - Page 17 Distributor for warranty arrangements in your territory. Please visit www.seascooter.net for Distributor / Service Center details. Distributors ONLY warrant Yamaha Seascooter products purchased from an authorized dealer and with an original purchase receipt. All warranties are limited to a single original owner on the purchase of new and current product from an authorized reseller.
