Haier HSU-09HEK03-R2 Operating Manual
Room air conditioner wall mounted type
Hide thumbs
Also See for HSU-09HEK03-R2:
- Operation manual (29 pages) ,
- Operating manual (20 pages) ,
- Installation manual (17 pages)
Related Manuals for Haier HSU-09HEK03-R2
Summary of Contents for Haier HSU-09HEK03-R2
-
Page 1: Operating Manual

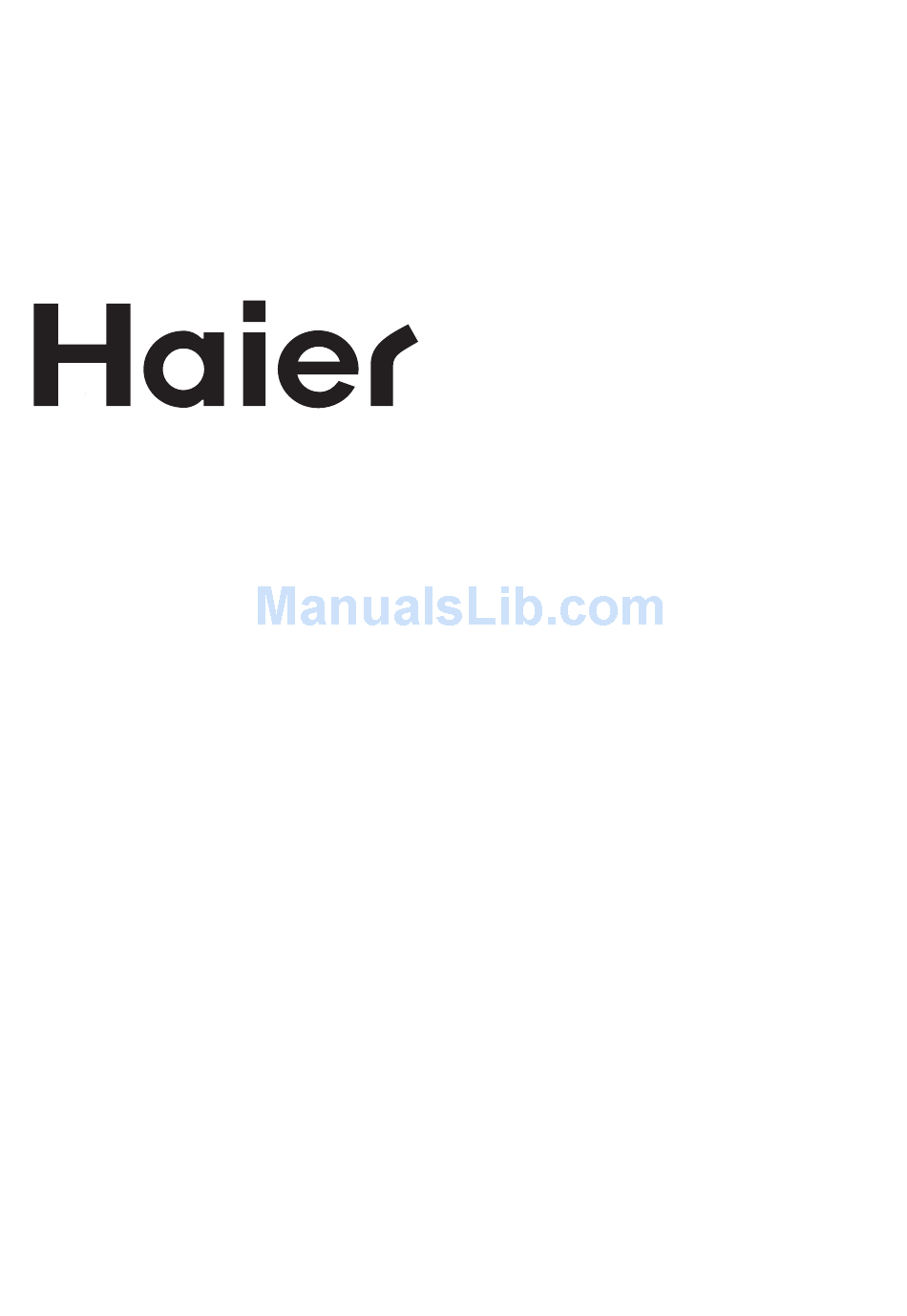

OPERATING MANUAL ROOM AIR CONDITIONER WALL MOUNTED TYPE HSU-09HEK03/R2 HSU-12 HEK03/R2 Please read this operation manual before using the conditioner. Keep this operation manual for future reference. NO.001051... -
Page 2: Safety Instructions And Warnings
Safety Instructions and Warnings Before disposing an old air conditioner that Before starting the air conditioner, read the goes out of use, please make sure it's inop- information given in the User's Guide caref- erative and safe. Unplug the air conditioner ully. -
Page 3: Specifications
3. If the fuse of indoor unit on PC board is broken,please change it with the type of T. 3.15A/ 250V. 4. The wiring method should be in line with the local wiring standard. -
Page 4: Safety Instruction
Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage. lnstallation in a inadequate place may cause accidents. Do not install in the following place. CAUTION Do not install in the... - Page 5 PROHIBITION PROHIBITION CAUTION Take fresh air occasionally especially Do not operate the switch with Do not use for the purpose of storage of food, art work, precise equipment, when gas appliance is running at the wet hand. breeding, or cultivation.
-
Page 6: Parts And Functions
Actual inlet grille may vary from the one shown in the manual according to the product purchased Outdoor Unit... -
Page 7: Clock Set
2. SWING display AUTO 3. FAN SPEED display Clock set When unit is started for the first time and after replacing batteries in remote controller, clock should be adjusted as follows: Press CLOCK button, "AM" or "PM" flashes. Press to set correct time. Each press will increase or decrease 1min. If the button is kept depressed, time will change quickly. -
Page 8: Remote Controller's Operation
When sudden power failure happens during unit operation in power failure resume mode, the air conditioner is not desired for use in a long period, please shut off the power supply in case that the unit automatically resume operation when power is re-supplied,... -
Page 9: Auto,Cool， Dry,Heat And Fan Operation
AUTO is not available in FAN mode.And temp.setting is disabled. In FAN mode,SLEEP operation is not available. In HE AT mode, warm air will blow out after a short period of the time due to cold-draft prevention function.When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature. -
Page 10: Air Flow Direction Adjustment
Do not try to adjust the flap by hand. When adjusting the flap by hand,turn off the unit ,and use the remote controller to restart the unit. When humidity is high,condensate water might occur at air outlet if all vertical louvers are adjusted to left or right. -
Page 11: Timer Operation
TIMER Operation Set Clock correctly before starting Timer operation You can let unit start or stop automatically at following times: Before you wake up in the morning, or get back from outside or after you fall asleep at night. TIMER ON/OFF (1)After unit start, select your desired operation mode. -
Page 12: Timer On/Off
Follow the same procedures in "Time setting for TIMER ON". (6) Time confirming for TIMER OFF After time setting, press SET button to confirm, "OFF" stops flashing Time displayed: Unit stops at X hour X min. To cancel TIMER mode... -
Page 13: Operation Mode
TIMER function, the sleeping function will be cancelled; the machine will be in the state of timing-on,if the two modes are set up at the Operation Mode same time ,either of their operation time is ended first ,the unit will stop automatically,and the other 1. -
Page 14: Emergency Operation
When the emergency operation switch is pressed, the " Pi "sound is heard once, which means the start of this operation. When power switch is turning on for the first time and emergency operation starts, the unit will run automatically in the following modes:... -
Page 15: Maintenance
Use the timer effectively during operation During cooling operation prevent the penetration of direct sunlight with curtain or blind Use the louvers effectively If the unit is not to be used for a long time, turn off the power supply main switch. -
Page 16: Remote Controller
Maintenance For Smart Use of The Air Conditioner WARNING Before maintenance,be sure to turn off the system and the circuit breaker. Remote Controller Indoor Body Wipe the air conditioner by using a soft and dry cloth.For serious stains,use a neutral detergent diluted with water.Wring the water... -
Page 17: Troubleshooting
Should there be a big noise from air flow in unit operation, air filter may be too dirty. This is because the system circulates smells from the interior air such as the smell of Smells are generated.
