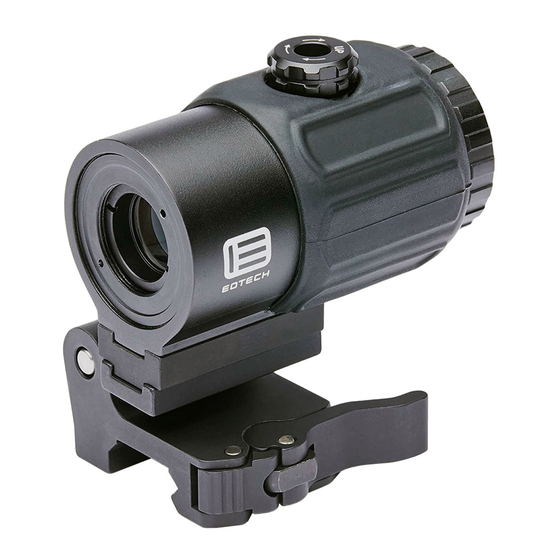

- Page 1 G-Series ™ M AG N I F I E R S...
- Page 2 This product is controlled under the Export Administration Regulations (EAR) ECCN 0A504.a, and may not be exported to a foreign person, either in the U.S. or abroad, without a license or exception from the U.S. Department of Commerce 2 / Magnifiers...
-
Page 3: Table Of Contents
Contents 1 / THE BASICS Introduction ........Anatomy . -
Page 4: The Basics
1 / THE BASICS Introduction Thank you for purchasing a new EOTECH magnifier. These magnifiers offer users of the Holographic Weapon Sight (all models) the additional advantage of vastly improved target recognition and increased lethality at medium range distances. The Switch to Side (STS) mount allows the user the ability to engage the enemy with confidence in a Close Quarters Battle (CQB) situation or at distances out to 600 meters or more. -
Page 5: Anatomy
THE BASICS / 1 Anatomy Vertical Adjustable Adjustment Diopter Locking Quick-Detach Button Lever Horizontal Instant Adjustment Transition EOTECHINC.COM /... -
Page 6: Specifications
1 / THE BASICS Specifications L × W × H 4.4" × 2.2" × 3.3" (113 × 55.9 × 73.7mm) Weight 10.6 oz (300g) BLACK Water Resistant 33 ft (10m) depth Mount 1" Weaver or MIL-STD 1913 rail Operating Temperature -40ºF to 140ºF (-40ºC to 60ºC) Fixed Magnification Eye Relief... -
Page 7: G45
THE BASICS / 1 L × W × H 3.9" × 2.3" × 3.3" (99 × 58.4 × 83.8mm) Weight 12.8 oz (362.9g) BLACK Water Resistant 33 ft (10m) depth Mount 1" Weaver or MIL-STD 1913 rail Operating Temperature -40ºF to 140ºF (-40ºC to 60ºC) Fixed Magnification Eye Relief 2.6"... -
Page 8: Get Started
2 / GET STARTED Operating Instructions The G-Series magnifiers are designed to be used behind an EOTECH Holographic Weapon Sight (HWS). The magnifier can be mounted directly behind the HWS. Simply switch the magnifier out of the way and operate the sight. When used with HWS models that have either quick-detach lever(s) or side buttons, the user can easily operate the sight even with the magnifier in the locked position. - Page 9 GET STARTED / 2 Configuring the Magnifier: To configure your HWS you will need a screwdriver (not included). Use the shorter screws without the riser ( ). The longer screws should be used with the riser FIGURE 1 ). If the riser is being used, place the riser on the optic mounting interface. FIGURE 2 Open the STS mount.
-
Page 10: Adjustable Diopter
2 / GET STARTED Adjustable Diopter The optic includes an adjustable diopter that allows the user to customize the focus to their particular vision. This feature ensures a crisp, clean aiming dot for more precision and shot placement. To adjust, simply grasp the diopter with the thumb and fore finger and turn either clockwise or counter-clockwise until a clear sight picture is achieved. -
Page 11: Installation
GET STARTED / 2 Installation CAUTION: Never make adjustments while the quick detach lever is in the closed position. To install the configured magnifier onto the weapon, open the quick detach lever. To do this, use your thumb to depress the locking button ( ). -
Page 12: Maintenance
Always dampen the glass surfaces prior to cleaning. To avoid damaging the window, never clean the glass surface with a dry cloth. It must be moistened with cleaning fluid, glass cleaner or an EOTECH LensPen. No maintenance is needed on the magnifier’s surface, except to occasionally wipe off with a soft cloth. - Page 13 MAINTENANCE / 3 THIS PAGE WAS LEFT BLANK INTENTIONALLY EOTECHINC.COM /...
-
Page 14: Need Some Help
• If required, fill out a DD Form 1149 to include with the sight(s) you will return. Include a reference to the RA#, and a signature line for EOTECH’s Service Department to sign indicating the receipt of materials. The signed copy will be mailed, faxed, or emailed back to you upon receipt of the sight(s) for the purposes of accountability. -
Page 15: Factory Contacts
NEED SOME HELP? / 4 Contact Information CUSTOMER SERVICE/REPAIR SCAN FOR SCAN FOR 888-368-4656 PRODUCT WARRANTY eotechinc.com/help-center REGISTRATION INFORMATION RA# REQUEST WEB ADDRESS eotechinc.com/help-center SHIPPING ADDRESS EOTECH 46900 Port Street Plymouth, MI 48170 USA EOTECHINC.COM /... - Page 16 Thank you for purchasing an EOTECH Magnifier M1960 Rev C | JANUARY 2022 E OT E C H I N C . C O M Proudly assembled in Michigan, USA...
