Summary of Contents for DeLonghi CF05M
-
Page 2: Table Of Contents
Contents Features Specifications How dehumidifying works Description Control panel Operation Draining the water Moving the dehumidifier Caring for the dehumidifier Storing the dehumidifier Important Safeguards Troubleshooting Before using your dehumidifier, please read this user’s manual carefully, in order to ensure correct and safe use. After reading the manual, make sure it is stored in a safe place for future reference if necessary. -
Page 3: Features
Features Powerful dehumidifying capability Excellent drying laundry function The dehumidifier powerfully removes excess The dehumidifier dries laundry quickly. This can moisture from the air creating a drier,healthier prevent laundry and furniture from becoming damp home environment. and musty in a rainy season. Quiet operation Drainage tank with a large capacity For overnight operation,the QUIET mode may... -
Page 4: Specifications
Specifications Model CF08M CF05M 220 ~240V ~ 50Hz Power Supply 0.8L/h 0.5L/h Dehumidifying Capacity 360W 200W Power Consumption 6.0L Drainage Tank Capacity 14kg 12.5kg Weight 380mm 545mm 261.5mm Dimension(height width depth) The dehumidification capacity is the value obtained after the dehumidifier was continuously run in the room temperature of 30 with the relative humidity 80%. -
Page 5: Description

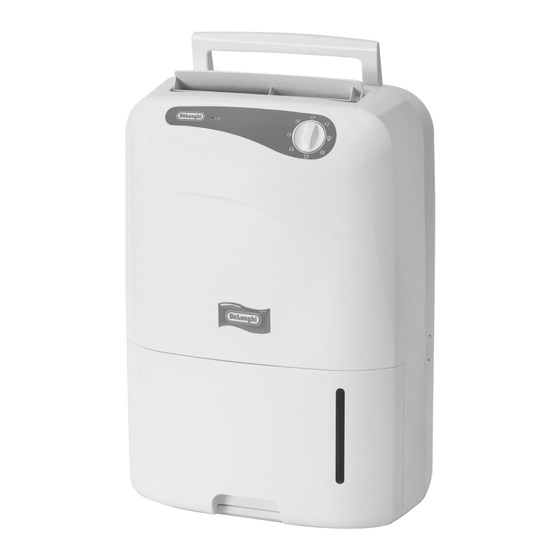

Description Front panel Handle Louvre Control Panel Refer to next page Air Outlet Sensor Do not obstruct! Guard Water Level Float Gauge Drainage Tank When the unit is purchased, there may be some water left in the drainage tank. This is from the dehumidifying test conducted at the factory, and does not indicate a problem. - Page 6 Operation Operation panel Indicator lamp 1.“ ” (Tank full indicator lamp): It will light when the drainage tank is full or positioned incorrectly. Empty the water out of the drainage tank, and make sure the tank is positioned properly. 2. “ ”...
-
Page 7: Operation
Operation 1.Plug the power supply plug into the outlet Use single phase 220V ~ 240V AC power supply. 230-240V AC Wipe dust off of the power supply plug and insert the plug firmly, all the way to the rubber section, if there is a dust on the plug, or the plug is not fully inserted in the outlet, electrical shock and/or fire may result. -
Page 8: Draining The Water
Operation Draining the water The drainage tank is full When the drainage tank becomes full (approx, 6 Litres), the full indicator lights to alert the user, and the unit turns off automatically. Empty the water from the tank and discard it. Drainage steps Notation for drainage 1. -
Page 9: Moving The Dehumidifier
Operation Draining the water Continuous drainage of water The unit has an optional continuous drainage port. Water can be continually drained by connecting a rubber hose (15mm I.D), to this drainage port.When setting up the dehumidifier for continuous drainage, always turn the unit off and unplug the supply plug. -
Page 10: Caring For The Dehumidifier
Maintenance Caring for the dehumidifier Cleaning the Unit Wipe it with a soft cloth Use a soft,clean cloth to wipe the surface. (Do not use volatile chemicals detergents,chemically treated cloths or other cleaning solutions.These could possibly damage the unit.) Cleaning the air filter The air filter should be cleaned approximately once every two weeks. -
Page 11: Storing The Dehumidifier
Maintenance Storing the dehumidifier When the unit is not to be used for a long period of time 1. Fold up the power supply cord. 2. Discard any water left in the drainage tank and wipe away any remaining drops with a cloth. 3. -
Page 12: Troubleshooting
Maintenance Troubleshooting If a condition listed below occurs, please check the following items before seeking advice. Cause Condition What to do Plug the power supply cord into the Has the power supply cord been outlet. disconnected? Refer to page 5 Discard the water in the drainage Is the “Full”... - Page 13 Maintenance Troubleshooting The following symptoms do not indicate a breakdown Reason Symptom The sound level increases when the compressor Noise level increases during use. turns on. Is the room too big for the unit? The humidity does not drop. Are windows or doors opened and closed frequently? Is there any item in the room which produces steam? Very little dehumidifying takes place, or This happens if the temperature and/or humidity of the room...
