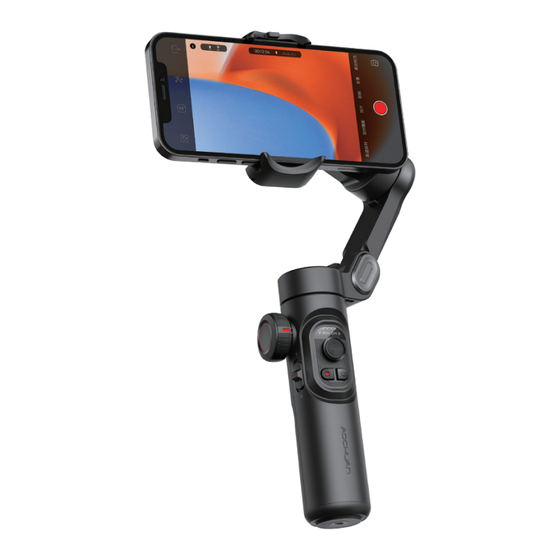

Summary of Contents for AOCHUAN Smart XE
-
Page 2: Product List
Product List Before use, please check carefully if the package contains all the following items. If missing, please contact our customer service or your dealer. Phone Stabilizer Tripod Type-C Cable User Manual... -
Page 3: Download App
APP and Tutorials 1. Download APP Please scan below QR code or search “AOCHUAN” your APP store to download our official APP. Support IOS / Android 2. Watch video tutorials Instgram YouTube For more tutorial videos, please For more exciting events and... - Page 4 Unfolding and Folding Gimbal Unfolding Gimbal Grip the arm of SMART XE gimbal and unfold it without unlocking. Mount your cellphone to the clip then level it up to start using. Folding Gimbal Rotate the gimbal arm until its folding position aligns with the operation panel;...
-
Page 5: Product Information
Product Information Mobile phone clip Tilt axis Mode / Battery life Pan axis / Bluetooth status indicator Focus roller Charging port Gimbal joystick Zoom toggle switch Photo / Video Power button / Switch landscape / Check battery life portrait... - Page 6 Product Information Roll axis Fasten buckle for folding gimbal Lanyard hole 1/4 extension port...
- Page 7 Operation Panel Information Indication of gimbal mode Normal mode Cool mode Rotation mode Go mode Bluetooth connected (indicator on) Bluetooth disconnected (indicator off) Battery life indication 100% F indicator double flashes when battery life is less than 15%. Joystick：move up / down / left / right Single click：switch F / POV Double...
- Page 8 Operation Panel Information Focus roller(need connect APP)： Adjust focus point / virtual and real Zoom toggle(need connect APP)： Adjust focal length / distance Single click：Photo / Video Double click：switch landscape / portrait Long press：power on / off Double click：check battery life...
- Page 9 When ] full bars show, the gimbal battery is fully charged. The battery of SMART XE was already mounted in battery tank ahead of shipment. Before first use, please fully charge SMART XE to activate it for normal use.
-
Page 10: Product Parameters
Product Parameters 273*125*65mm （Unfolded size） Product size 163*108*55mm （Folded size） Product weight 350g±5g Payload ≤250g About 10 hours Battery life Charging time About 3.5 hours Working voltage 3.7V Power Input 5V/1A Working temperature 0℃~55℃ Li-ion battery 3.7V/2600mAh Fit for cellphone width 55-90mm Angle accuracy 0.01°... - Page 11 Warranty Terms 1. Within 15 days from the date of purchase, the product with any functional malfunction or quality problems will be replaced for free, under the premise that the product and packaging are not damaged. We will offer a brand new one after confirming the product problem.
- Page 12 Warranty Card Customer Information Customer Name: Phone Number: Address: Sales Information Sales date: Product Serial Number: Distributor Name: Distributor’s Contact Number: First Maintenance Record Service Date: Repairman Signature: Cause of Problem: Service Result: □ Solved □ Unsolved □ Refunded/Re- placed...
