ADLINK Technology COM Express Express-BASE7 User Manual

Type 7 reference carrier board in atx form factor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Express-BASE7

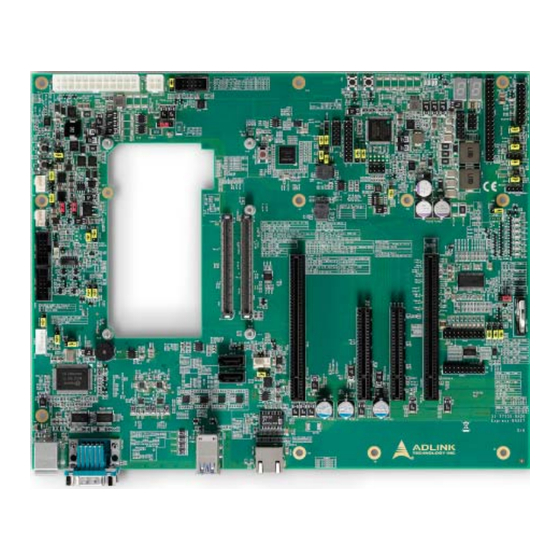

COM Express Type 7 Reference Carrier Board in ATX Form Factor
Leading EDGE COMPUTING
This datasheet has been downloaded from
User's Manual
Manual Rev.:
Revision Date:
Part Number:
http://www.digchip.com
1.1
September 1, 2017
50-1J084-1010
at this
page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COM Express Express-BASE7 and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology COM Express Express-BASE7

Summary of Contents for ADLINK Technology COM Express Express-BASE7

  • Page 1 Express-BASE7 User’s Manual COM Express Type 7 Reference Carrier Board in ATX Form Factor Manual Rev.: Revision Date: September 1, 2017 Part Number: 50-1J084-1010 Leading EDGE COMPUTING This datasheet has been downloaded from http://www.digchip.com at this page...
  • Page 2 Preface Copyright Copyright 2017 ADLINK Technology, Inc. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.

  • Page 3: Table Of Contents

    Express-BASE7 Table of Contents Preface ..........................ii List of Figures ........................v List of Tables........................vi Introduction........................1 Special Features ......................3 2.1. Core System .......................3 2.2. 32x PCI Express Lanes ....................3 2.3. NC-SI and IPMI BMC....................3 2.4. Primary LPC Based Super I/O..................3 2.5. Secondary BIOS ......................3 2.6.

  • Page 4: Preface

    6.18. Other Connectors ....................33 6.19. Other Jumper Settings...................35 Secondary BIOS ......................37 7.1. SPI Secondary BIOS ....................37 Switches, POST and LEDs..................39 8.1. Switches (S1-S5) ......................39 8.2. Module Type Display ....................40 8.3. POST & Indicator LEDs ....................40 8.4. Digital I/O LEDs ......................40 8.5.

  • Page 5: List Of Figures

    Express-BASE7 List of Figures Figure 1: Express-BASE7 Component Locations ..................5 Figure 1: Express-BASE7 Functional Block Diagram ................7 Figure 2: Express-BASE7 Mechanical Drawing ..................9 Preface...

  • Page 6: List Of Tables

    List of Tables Table 1: Express-BASE7 AB/CD Pin Definitions .................. 12 Preface...

  • Page 7: Introduction

    Express-BASE7 1. Introduction The COM Express approach of custom carrier combined with off the shelf system cores is an excellent solution when you need to customize but lack the time or quantity for a complete redesign. It fits most system integration projects with production volumes from 500 to 10,000 pcs per year.
  • Page 8 This page intentionally left blank. Introduction...

  • Page 9: Special Features

    Express-BASE7 2. Special Features 2.1. Core System The Express-BASE7 features a PCI Express x16 slot with propiertary pinout for COM Rev. 3.0 Type 7 modules. This slot can route up to four 10GBASE-KR signals from the COM Express Type 7 module to a 10GbE Ethernet Add-on Card with up to four SFP+ signals or four 10GBASE-T ports.
  • Page 10 This page intentionally left blank. Special Features...

  • Page 11: Component Locations

    Express-BASE7 3. Component Locations CN32 JP20 CN33 JP22 JP21 JP19 JP29 CN34 CN43 JP30 JP31 JP32 LED5 CN36 LED19 LED18 LED17 CN35 LED16 LED15 LED14 LED4 LED13 LED12 LED23 CN41 CN42 LED20 LED3 LED1 PCIEKR JP28 PCIE2 CN39 (PCI2) ON DIP JP26 PCIE1 JP25...
  • Page 12 This page intentionally left blank. Component Locations...

  • Page 13: Functional Diagram

    Express-BASE7 4. Functional Diagram USB0 USB 2.0/3.0 USB1 RJ45 Transformer USB 2.0/3.0 USB2 USB 2.0/3.0 USB3 USB 2.0/3.0 PCIe lanes PCIe x8 8 to 15 PCIe lanes PCIe lanes PCIe x8 0 to 5 6 to 7 SATA0 SATA SATA1 SATA COM 1 COM1...
  • Page 14 This page intentionally left blank. Functional Diagram...

  • Page 15: Mechanical Drawing

    Express-BASE7 5. Mechanical Drawing All dimensions are shown in millimeters. Tolerances should be ± 0.25mm, unless otherwise noted. The tolerances on the module connector locating peg holes (dimensions [16.50, 6.00] and [16.50, 18.00]) should be ± 0.10mm. Figure 3: Express-BASE7 Mechanical Drawing Mechanical Drawing...
  • Page 16 This page intentionally left blank. Mechanical Drawing...

  • Page 17: Connectors, Pinouts And Jumpers

    Express-BASE7 6. Connectors, Pinouts and Jumpers 6.1. Carrier Board Signals – Type 7 AB Connector CD Connector 1 Gigibit Ethernet Port USB 3.0 Support, LPC / eSPI Interface extended signaling on four USB 2.0 ports 2 Serial ATA Channels PCI Express Lanes 6-7 PCI Express Lanes 0-5 4 10GBASE-KR Interfaces PCI Express Lanes 8-15...

  • Page 18: Com Express Board-To-Board Connectors

    6.4. COM Express Board-to-Board Connectors D110 Signals and Pinout for C110 COM Express Type 7 B110 A110 The Express-BASE7 is a Type 7 module supporting up to 32 PCIe lanes and 10G Ethernet on the CD connector and NC-SI on the AB connector. In the table below, all standard pins of the COM Express specification are described, including those not supported on the Express-BASE7.
  • Page 19 Express-BASE7 Row A Row B Row C Row D Name Name Name Name PCIE_TX14- PCIE_RX14- 10G_KR_RX3+ 10G_KR_TX3+ BATLOW# 10G_KR_RX3- 10G_KR_TX3- RSVD (S)ATA_ACT# RSVD RSVD 10G_KR_RX2+ 10G_KR_TX2+ RSVD RSVD 10G_KR_RX2- 10G_KR_TX2- GND (fixed) GND (fixed) GND (fixed) GND (fixed) RSVD SPKR 10G_SFP_SDA3 10G_SFP_SCL3 RSVD...
  • Page 20 Row A Row B Row C Row D Name Name Name Name PCIE_TX8+ PCIE_RX8+ PCIE_RX22+ PCIE_TX22+ PCIE_TX8- PCIE_RX8- PCIE_RX22- PCIE_TX22- PCIE_TX9+ PCIE_RX9+ PCIE_RX23+ PCIE_TX23+ PCIE_TX9- PCIE_RX9- PCIE_RX23- PCIE_TX23- PCIE_TX10+ PCIE_RX10+ RSVD RSVD PCIE_TX10- PCIE_RX10- PCIE_RX24+ PCIE_TX24+ PCIE_RX24- PCIE_TX24- GND (fixed) GND (fixed) GND (fixed) GND (fixed)

  • Page 21: 10Gbe Slot

    Express-BASE7 6.5. 10GbE Slot PCIEKR: Insert the 10GbE Add-on Card into PCI Express x16 slot (proprietary pinout) Two available 10GbE Add-on Cards: • SFP+ Card (10GBASE-KR to 10G SFP+ signal, optical fiber type) • BASE-T Card (10GBASE-KR to 10GBASE-T signal, copper type) Signal Signal + 12V...
  • Page 22 Signal Signal 10G_KR_RX2_P 10G_KR_RX2_N 10G_KR_TX2_P 10G_PHY_RST_23 10G_KR_TX2_N 10G_PHY_RST_01 10G_LED_SDA 10G_KR_RX1_P 10G_LED_SCL 10G_KR_RX1_N 10G_KR_TX1_P 10G_KR_TX1_N 10G_PHY_MDIO_SDA1 10G_PHY_MDC_SCL1 10G_PHY_MDIO_SDA0 10G_PHY_MDC_SCL0 10G_KR_RX0_P 10G_KR_RX0_N 10G_KR_TX0_P 10G_KR_TX0_N 10G_SDP3 10G_SDP2 10G_PHY_CAP_23 10G_SDP1 10G_PHY_CAP_01 10G_SDP0 Connectors, Pinouts and Jumpers...

  • Page 23: Gbe

    Express-BASE7 Signal Signal 6.6. CN18: RJ-45 GbE Signal BI_DA+ BI_DA- BI_DB+ BI_DC+ BI_DC- BI_DB- BI_DD+ BI_DD- Connectors, Pinouts and Jumpers...

  • Page 24: Minibmc

    6.7. MiniBMC CN46/47/48: MiniBMC Mode Selection Jumper Status Normal Mode <<<< Debug Mode CN49: MiniBMC Mode Selection Enable Debug Mode of MiniBMC for FW Development through CN46/47/48/49 selection Jumper Status Debug Mode Normal Mode <<<< Note: <<<< indicates default setting CN1001: Communication Port Send out debug message for FW development Signal...

  • Page 25: Pci Express Slots

    Express-BASE7 6.8. PCI Express Slots PCI Express x8 PCIE 1: from PCIe 0-7 Signal Signal + 12V + 12V + 12V + 12V SMB_CLK SMB_DAT + 3.3V TRST# + 3.3V B10 + 3.3VSB A10 + 3.3V B11 WAKE0# A11 RST_PCIE B12 NC A12 GND B13 GND...
  • Page 26 Signal Signal B32 GND A32 NC B33 PCIE4_TXP A33 NC B34 PCIE4_TXN A34 GND B35 GND A35 PCIE4_RXP B36 GND A36 PCIE4_RXN B37 PCIE5_TXP A37 GND B38 PCIE5_TXN A38 GND B39 GND A39 PCIE5_RXP B40 GND A40 PCIE5_RXN B41 PCIE6_TXP A41 GND B42 PCIE6_TXN A42 GND...
  • Page 27 Express-BASE7 Signal Signal B15 PCIE8_TXN A15 GND B16 GND A16 PCIE8_RXP B17 NC A17 PCIE8_RXN B18 GND A18 GND B19 PCIE9_TXP A19 NC B20 PCIE9_TXN A20 GND B21 GND A21 PCIE9_RXP B22 GND A22 PCIE9_RXN B23 PCIE10_TXP A23 GND B24 PCIE10_TXN A24 GND B25 GND A25 PCIE10_RXP...
  • Page 28 PCI Express x16 PCIE 16: from PCIe 15-31 Signal Signal + 12V + 12V + 12V + 12V SMB_CLK SMB_DAT TRST# + 3.3V B10 + 3.3VSB A10 + 3.3V B11 WAKE0# A11 RST_PCIE B12 NC A12 GND B13 GND A13 REFCLKP B14 PCIE16_TXP A14 REFCLKN B15 PCIE16_TXN...
  • Page 29 Express-BASE7 Signal Signal B34 PCIE20_TXN A34 GND B35 GND A35 PCIE20_RXP B36 GND A36 PCIE20_RXN B37 PCIE21_TXP A37 GND B38 PCIE21_TXN A38 GND B39 GND A39 PCIE21_RXP B40 GND A40 PCIE21_RXN B41 PCIE22_TXP A41 GND B42 PCIE22_TXN A42 GND B43 GND A43 PCIE20_RXP B44 GND A44 PCIE20_RXN...

  • Page 30: Lpc Debug

    Signal Signal B70 PCIE29_TXP A70 GND B71 PCIE29_TXN A71 GND B72 GND A72 PCIE29_RXP B73 GND A73 PCIE29_RXN B74 PCIE30_TXP A74 GND B75 PCIE30_TXN A75 GND B76 GND A76 PCIE30_RXP B77 GND A77 PCIE30_RXN B78 PCIE31_TXP A78 GND B79 PCIE31_TXN A79 GND B80 GND A80 PCIE31_RXP...

  • Page 31: C And Smb Bus (For User Access)

    Express-BASE7 CN40: LPC Test Connector Signal Signal LPC_DRQ0# LPC_AD0 LPC_DRQ1# LPC_AD1 LPC_SERIRQ LPC_AD2 LPC_FRAME# LPC_AD3 LPC_RST# LPC_CLK JP26/25: External LPC EEPROM Address Selection JP25 & JP26 configure the address of the external EEPROM connected to the LPC Debug Header (CN37) JP26: EEPROM Address A0 Selection JP25: EEPROM Address A1 Selection Jumper...

  • Page 32: Usb

    JP19-21: I2C/SMBus Buffers These buffers settings are for isolation of the I2C and SMBus – test feature only ON: I2C/SMBus passes through LTC4300A-2 Buffer OFF: Bypass Buffer JP19: I C BUFFER [data] JP20: I C BUFFER [clock] JP21: SMB Bus BUFFER [data] JP22: SMB Bus BUFFER [clock] Jumper Status...

  • Page 33: Keyboard & Mouse

    Express-BASE7 6.12. Keyboard & Mouse CN19: Mouse [top] Signal MSDAT KB5V MSCLK Keyboard [bottom] Signal KBDAT KB5V KBCLK 6.13. SATA CN12/13: SATA Signal Signal Connectors, Pinouts and Jumpers...

  • Page 34: Serial Ports

    6.14. Serial Ports CN1002: Serial Ports from Super I/O COM 3 [DB9] [top] COM4 [DB9] [bottom] Signal Signal DCD# RTS# CTS# DTR# CN22: IrDA Connector Signal + 5V IrRXD IrTXD JP18: Super I/O Enable/Disable the Super I/O. By default, the Express-BASE7 enables the onboard W83627DHG-PT Super I/O. To disable the onboard Super I/O, short pins 2-3 of jumper JP18 Jumper Status...
  • Page 35 Express-BASE7 CN1003/1004: Enable of Serial Over LAN Enable Serial Over LAN through CN1003, CN1004 Connect serial signals from Super I/O (on carrier) to MiniBMC. By default, the serial signals from Super I/O connect to CN1002 connector. CN1003: TX setting CN1004: RX setting Jumper Status RS232...

  • Page 36: Fan Connectors

    6.15. Fan Connectors JP35, JP36, JP37 Jumper Status 4-pin <<<< 3-pin Note: <<<< indicates default setting FAN1-3: 12V Fan Power Signal Fan Power 12V Fan Speed Sense Fan Speed Control (PWM) Note: FAN3 PWM is controlled by the module (B101: FAN_PWMOUT, B102: FAN_TACHIN). The “sense” and “speed”...

  • Page 37: Power Jumper Settings

    Express-BASE7 CN5: ATX 12V 4-pin Connector Connect the ATX 12V 4-pin connector to supply power to the COM Express module. Signal + 12V + 12V Note: All 12V power for the COM Express module is provided by the ATX 12V 4-pin connector. Note: To avoid damage to the carrier board and installed components, be sure to connect the ATX power supply to the correctly connectors.
  • Page 38 JP2: PS_ON# Signal Source For modules that connect the S3 signal, PS_ON# should always be set to SUS_S3# as source (even when S3 mode is disable in BIOS) For modules that do not bring out the S3 signal, PS_ON# should be set to SUS_S5# as source.

  • Page 39: Other Connectors

    Express-BASE7 6.18. Other Connectors CN36/CN39: GPIO Headers GPIOs of CN36 come from the COM Express module. GPIOs to CN39 come from Express-BASE7. Signal Signal GPI0 GPO1 GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 CN32: Miscellaneous Connector Signal Signal Power_LED BUZZER WDT_LED + 5V SYS_RESET ATA_ACT...
  • Page 40 CN43: Feature Connector Signal Signal + 5V + 5VSB + 5V Hard Disk Activity I2C_DAT SMBCLK_SB I2C_CK SMBDAT_SB Internal Use GPO0 Internal Use GPO1 PS_ON# GPO2 SUS_S3# GPO3 THRMTRIP# SMBALRT# GPI1 SUS_S4# SUS_STAT# GPI0 GPI2 SUS_S5# WDTRIG THRM# GPI3 PCI_M66EN BATLOW# WAKE1# PEF_ENABLE#...

  • Page 41: Other Jumper Settings

    Express-BASE7 6.19. Other Jumper Settings JP4: Clear CMOS To clear CMOS, shut down the power and short pins 2 and 3 (short VBAT to ground) Jumper Status Normal <<<< Clear CMOS JP23/24: BIOS Selection See 7.1 SPI Secondary BIOS for a detailed description. JP23 JP24 Status...
  • Page 42 This page intentionally left blank. Connectors, Pinouts and Jumpers...

  • Page 43: Secondary Bios

    Express-BASE7 7. Secondary BIOS The Express-BASE7 supports Secondary BIOS using Serial Peripheral Interface (SPI) for COM.0 Rev. 3.0 modules. Secondary BIOS solutions can be used as an alternative to the on-module BIOS and provide support for the following: • Testing new BIOS versions •...
  • Page 44 This page intentionally left blank. Secondary BIOS...

  • Page 45: Switches, Post And Leds

    Express-BASE7 8. Switches, POST and LEDs 8.1. Switches (S1-S5) There are two mini switches at the top left corner of the carrier. The S1 switch is the ATX Power Button. The S2 switch is the Reset Button. SW3 SW4 SW3 SW4 At the top edge of the carrier are two more switches.

  • Page 46: Module Type Display

    8.2. Module Type Display At the right edge of the Express-BASE7, 7 mini LEDs (LED 6-11, LED24) indicate the type of COM Express module installed on the Express-BASE7. COM Express Type: 1-2, 3, 4, 5, 6, 7 or wrong pinout COM Express Type: 1-2, 3, 4, 5, 6, 7 or wrong pinout 8.3.

  • Page 47: Atx Power Connectors

    Express-BASE7 8.5. ATX Power Connectors The Express-BASE7 has one ATX 24-pin connector to supply power to the carrier board and one ATX 12V 4-pin connector to supply power to the COM Express module. The system will not power on unless an ATX 12V 4-pin connector is connected.

  • Page 48: At Power Mode

    8.6. AT Power Mode To operate the system in AT Mode with an ATX power supply, use the AT mode PSU converter cable (no 5VSB) to connect the ATX 20/24-pin power connector to the carrier board as shown. Set the ATX/AT Mode jumper JP1 to AT Mode as described in 6.17 Power Jumper Settings.

  • Page 49: Safety Instructions

    Express-BASE7 Safety Instructions Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. • Please read these safety instructions carefully. • Please keep this User‘s Manual for later reference. •...

  • Page 50: Getting Service

    5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com...
