Rating when used as a weight distributing hitch with spring bars:
Part Number
48051 600 lb Hitch
48052 800 lb Hitch
48053 1000 lb Hitch
48059 1200 lb Hitch
Hitch Kit
Part Number
48056 600 lb Hitch
with Sway Control
48057 1000 lb Hitch
with Sway Control
48058 1000 lb Hitch
with Sway Control
48069 1200 lb Hitch
with Sway Control
READ ALL INSTRUCTIONS AND CHECK PACKAGE CONTENTS BEFORE BEGINNING INSTALLATION
™
ROUND BAR
Max Tongue Weight
800 Ib
1,000 Ib
1,200 Ib
1,400 Ib
Max Tongue Weight
800 Ib
1,000 Ib
1,200 Ib
1,400 Ib
Do NOT exceed the towing vehicle manufacturer's load rating.

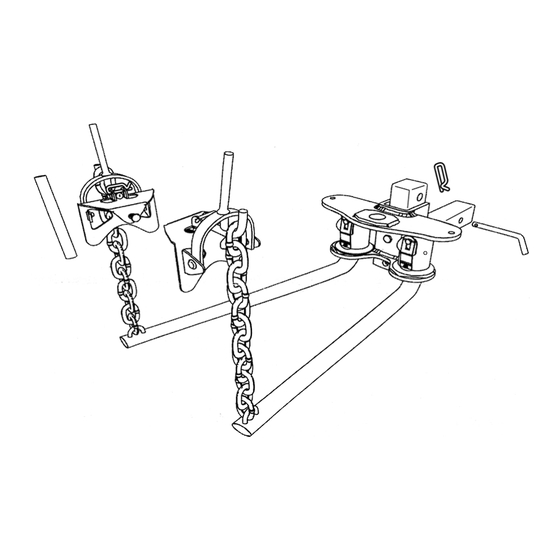

INSTALLATION INSTRUCTIONS
BOLT-TOGETHER
WEIGHT DISTRIBUTING
HITCH SYSTEM
Max Gross Trailer Weight
8,000 Ib
10,000 Ib
12,000 Ib
14,000 Ib
Max Gross Trailer Weight
8,000 Ib
10,000 Ib
12,000 Ib
14,000 Ib
www.eaz-lift.com
CAUTION: The tongue weight rating
of the spring bars represents the
capacity of a pair of bars, not an
individual bar. Always use a pair of
spring bars and be sure they are of
the same weight rating. Spring bars
must be greased daily when in use.
Dealer / Installer: Be sure customer
receives installation instructions after
hitch has been installed.
PAGE 1
Advertisement
Related Manuals for Camco eaz lift elite 48051
Summary of Contents for Camco eaz lift elite 48051
- Page 1 INSTALLATION INSTRUCTIONS ™ BOLT-TOGETHER WEIGHT DISTRIBUTING HITCH SYSTEM ROUND BAR ™ ™ Rating when used as a weight distributing hitch with spring bars: Part Number Max Tongue Weight Max Gross Trailer Weight CAUTION: The tongue weight rating of the spring bars represents the 48051 600 lb Hitch 800 Ib 8,000 Ib...
- Page 2 INSTALLATION INSTRUCTIONS ™ PARTS LIST ROUND BAR ™ ™ TOLL FREE SERVICE NUMBER 800-334-2004 Specifications subject to change without notice. All replacement hardware must be of a type approved by this manufacturer. 13 12 DESCRIPTION PART NO. DESCRIPTION PART NO. CHAIN PACKAGE (600-800-1,000-1,200) 48106 BALL MOUNT for 2'' sq.
- Page 3 INSTALLATION INSTRUCTIONS ™ FOR BALL MOUNT ROUND BAR ™ ™ The height of the ball must be determined before any assembly Slide shank into sleeve receiver; insert hitch pin (48021) and work can be started. spring clip (48028). With ball attached to ball mount, slide ball mount up or down shank (shank may be used in the up or down To measure ball height, measure trailer from ground level to top position) until nearest dimension is obtained and holes line up...
- Page 4 INSTALLATION INSTRUCTIONS ™ QUICK HOOK-UP ROUND BAR ™ ™ WARNING: By towing a trailer you change the handling characteristics of the tow To determine whether or not a particular tow vehicle and trailer combination vehicle. Conditions you may encounter can cause sudden trailer sway. When is suitable, you should always refer to the driver's manual or user's used properly, the Eaz-Lift Adjustable Weight Distributing Hitch and Sway Control manual provided by the vehicle and trailer manufacturers and seek the...
- Page 5 INSTALLATION INSTRUCTIONS ™ WEIGHT DISTRIBUTING HITCH HOOK-UP FOR DIFFERENT ROUND BAR TYPES OF TOWING VEHICLES ™ ™ PROPER METHOD OF HOOKING UP WEIGHT DISTRIBUTING PROPER METHOD OF HOOKING UP WEIGHT DISTRIBUTING HITCH WITH LOAD IN TOWING VEHICLE HITCH WITH AIR SHOCKS OR AIR BAGS A.
-
Page 6: Limited Warranty
“Purchaser”) that the Product will be free of defects in manufacture and workmanship for a period of 5 Years from the date of consumer purchase or Camco will replace the Product free of charge (the "Warranty"). This Warranty is non-transferrable and applies only to the original vehicle on which the Product was installed.
Need help?
Do you have a question about the eaz lift elite 48051 and is the answer not in the manual?
Questions and answers

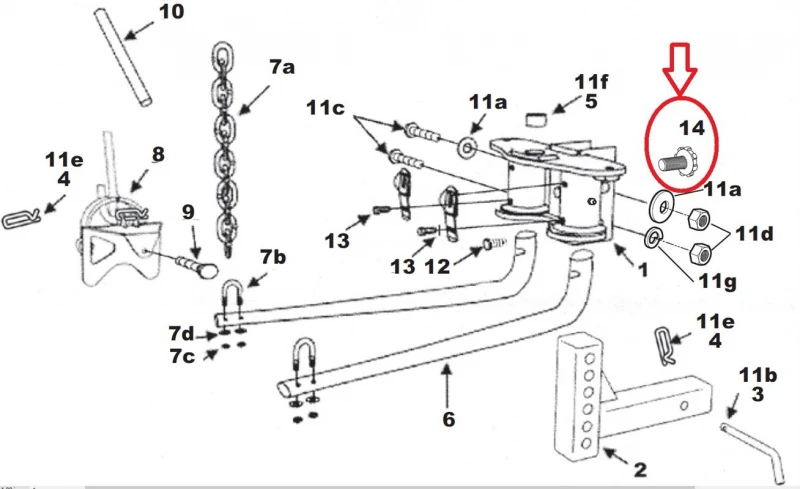

I need the tilt thumb screw for eaz-lift 48057, part number 48037
