Summary of Contents for BRASS MONKEY GH2030

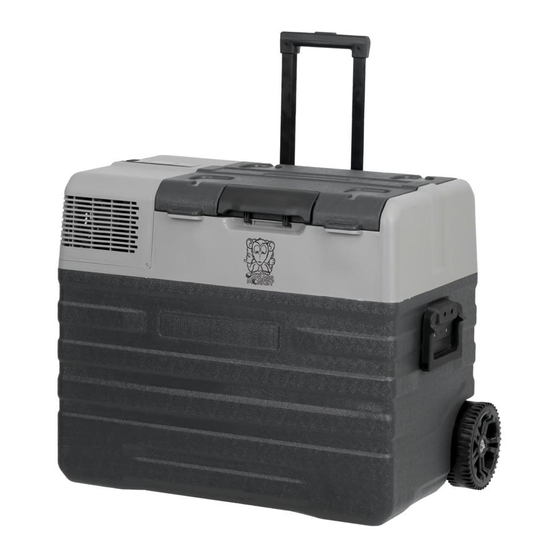

- Page 1 GH2030 42L PORTABLE FRIDGE/FREEZER INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS Warnings & Safety Information ................ 3 Before First Use ....................4 Features ........................ 5 Box Contents ......................5 Product Dimensions ................... 5 Operation ......................6 Optional Removable Battery ................7 Battery Usage ....................11 Food Storage ......................11 Troubleshooting ....................12 Cleaning, Care, Storage & Maintenance ............13 Smart Control - Fridge App Instructions ............14 Specifications ....................15 Warranty Information ..................16... -
Page 3: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION WARNING: The manufacturer is not responsible for any potential injury from misuse Warnings • Do not operate the appliance if it is visibly damaged. • Do not block the gaps of the fridge with things like pins or wires, etc. •... -
Page 4: Before First Use
Notice • Disconnect the power supply before each cleaning and maintenance and after every use. • Do not use sharp tools to defrost; Do not damage the refrigerant circuit. • Risk of child entrapment. Before you throw away your old refrigerator or freezer: take off the doors: leave the shelves in place so that children may not easily climb inside. -
Page 5: Features
FEATURES • Optional removable 15.6AH or 7.8AH • Dual mode operation (Max & Economy) battery • Digital temperature display with • Solar charging interface adjustable control • DC power connections • 3 Year Warranty • Powered by AC using the AC to DC •... -
Page 6: Operation
OPERATION How to Turn on the Fridge 1. Connect to power 2. Press button 3. The internal temperature will display and the compressor will start SET: Press button , to enter different modes, ECO (Energy Saving Mode), and MAX (Fast Cooling Mode). Factory setting is MAX Press button + or - and set the temperature to 20°C ~ -20°C... -
Page 7: Optional Removable Battery
OPTIONAL REMOVABLE BATTERY WARNING: Do not open or disassemble the battery. Only use approved chargers with the fridge battery, incorrect chargers may result in fire, damage, a shortened battery life. Do not disassemble, impact, squeeze, crush, or throw or misuse the fridge battery, do not dispose of in fire, any of which may result in short circuit and fire or explosion. - Page 8 Battery Charging (for reference only)
- Page 9 NOTE: It is suggested to switch off the refrigerator when charging the battery (the power supply may mainly power the compressor when the refrigerator is running). When connect to a solar panel, please place the refrigerator in a cool place to dissipate heat.
- Page 10 H should be set when the product is connected to car power, and M or L should be set when it is connected to a portable battery or other back-up battery. Because of the different output voltages between vehicles, the battery protection level can be set from H to M or from M to L if there is a voltage protection code F1 shown on the panel.
-
Page 11: Battery Usage
BATTERY USAGE Optional Removable Battery: The lithium battery is back up power to keep the refrigerator working for short periods while off grid. Notice: When not using the battery power or fridge for a long time, please turn off the battery output. -
Page 12: Troubleshooting
TROUBLESHOOTING ISSUE SUGGESTED REMEDY Refrigerator does not work • Check if the switch is on. • Check if the plug and socket are connected well. • Check if the fuse has been burnt. • Check if the power supply is malfunctioned. •... -
Page 13: Cleaning, Care, Storage & Maintenance
CLEANING, CARE, STORAGE & MAINTENANCE WARNING: Never use hard or sharp tools to remove ice or to loosen objects frozen in place. Cleaning • Unplug the device first to avoid electric shock. • Use wet cloth to clean the device and dry it. •... -
Page 14: Smart Control - Fridge App Instructions
SMART CONTROL - FRIDGE APP INSTRUCTIONS... -
Page 15: Specifications
SPECIFICATIONS Input Voltage 12/24V DC, (To power from mains use the included 240V AC to 12V DC power adapter) Average Power Consumption Power Consumption 0.25kw.h / 24hr Rated Current 3.8A / 1.9A Temperature Range -20 to +20ºC (ambient temp. 25ºC) Refrigerant R134A Insulation... -
Page 16: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 3 years. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose. This warranty will not cover modified product;...
