EGT Roulette Center Automated
User Manual
USER MANUAL
The manufacturer retains its right to make changes
on the product and the documentation without prior notice.
www.egt-multiplayer.com
www.egt-multiplayer.com
©2020, EGT Multiplayer Ltd.
©2020, EGT Multiplayer Ltd.
Rev.1.0
21.09.2020
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Roulette Center Automated and is the answer not in the manual?

Questions and answers

Related Manuals for EGT Roulette Center Automated

Summary of Contents for EGT Roulette Center Automated

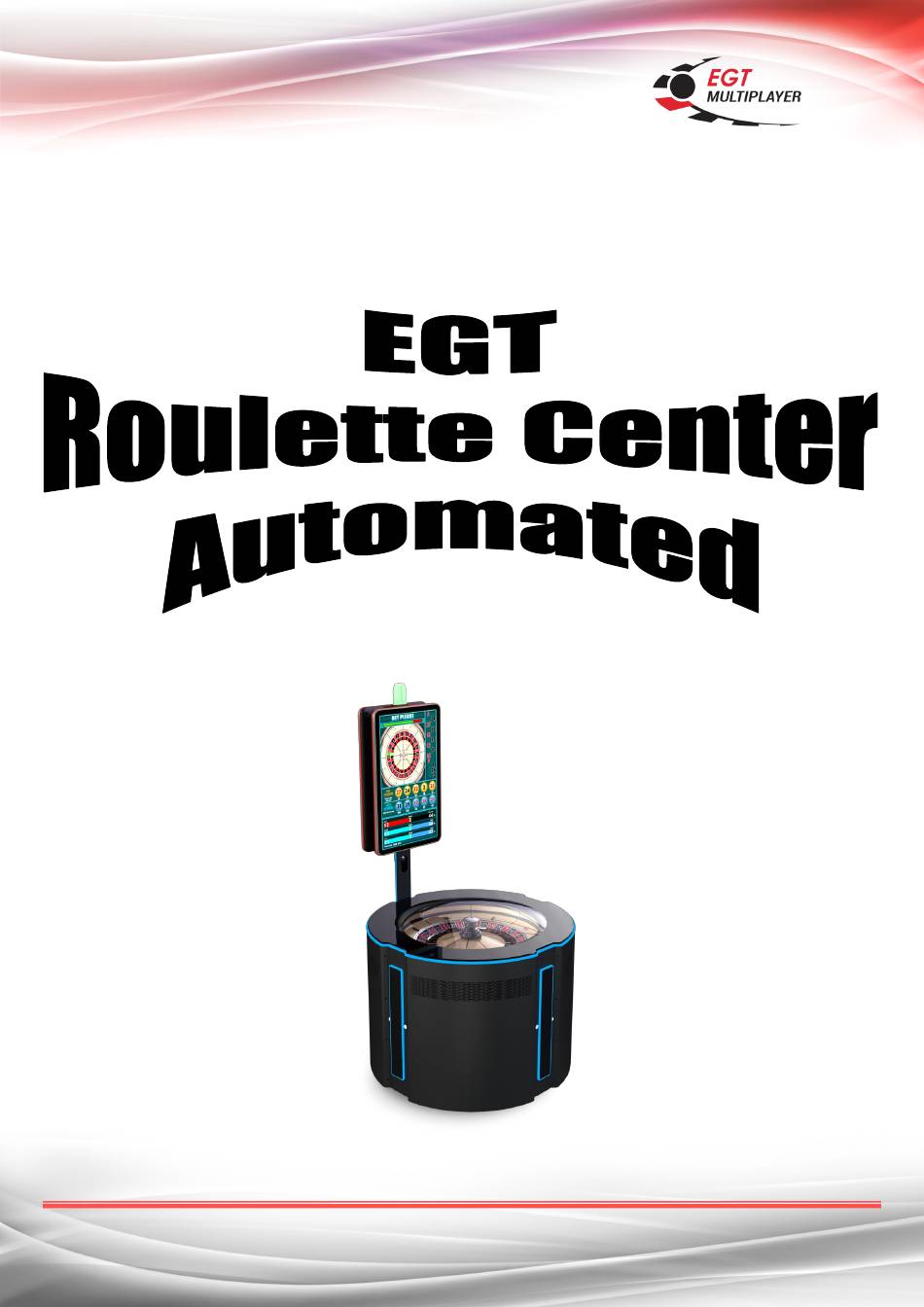

  • Page 1 EGT Roulette Center Automated User Manual USER MANUAL Rev.1.0 21.09.2020 The manufacturer retains its right to make changes on the product and the documentation without prior notice. www.egt-multiplayer.com www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd. ©2020, EGT Multiplayer Ltd.
  • Page 2 EGT Roulette Center Automated User Manual Revision History: Rev.1.0. Initial version of document. www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 3: Table Of Contents

    IV. Configuration of EGT Roulette Center Automated IV.1 Introduction ......................... 28 IV.2 Resetting the Memory of the Control Platform ..............29 IV.3 EGT Roulette Center Automated Configuration ..............30 IV.4 IV.3 EGT Roulette Center Automated Behaviors ............... 40 V. Contacts V.1 Contacts ..........................42 www.egt-multiplayer.com...
  • Page 4 Basic information The current user manual provides all the necessary information for proper and safe usage of the presented hardware and/or software product. The following document refers to EGT ROULETTE CENTER AUTOMATED with m-Core control  platform. The table of contents at the beginning of the user manual indicates where the respective ...

  • Page 5: Introduction

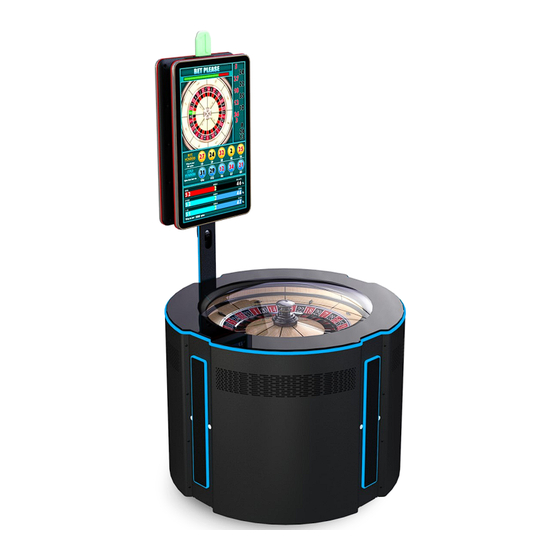

    EGT ROULETTE CENTER AUTOMATED (Fig.I.1.1.) is a modular fully automated system for EGT Multiplayer’s Roulette game - Single Zero (37 numbers) or Double Zero (38 numbers). The center is characterized by a stylish design combined with modern technology. The system consists of a roulette center and separate multiplayer terminals for electronic betting connected to it.

  • Page 6: I.2.1. Technical Data

    EGT Roulette Center Automated User Manual I. 2. TECHNICAL DATA I.2.1. Technical Data Manufacturer: EGT Multiplayer Ltd, Bulgaria Type: EGT - RC 3 Voltage: 240 , +/- 10%, 50 Hz Current: 1.7 А Frequency : 50 - 60 Hz Fuses: F1 T6.3 А...
  • Page 7 EGT Roulette Center Automated User Manual I.2.2. Roulette Center Dimensions The EGT ROULETTE CENTER AUTOMATED has the following dimensions (Fig.I.2.2.): Fig.І.2.2 Dimensions of EGT ROULETTE CENTER AUTOMATED Height: 2017 mm Width: 1042 mm Depth: 1042 mm www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 8: General Conditions Of Use

    EGT Roulette Center Automated User Manual I. 3. GENERAL CONDITIONS OF USE EGT ROULETTE CENTER AUTOMATED is designed and constructed in a way that keeps its efficiency under the following conditions: Temperature of the environment from 0С° to +30С°; ...

  • Page 9: Installation And Exploitation

    EGT Roulette Center Automated User Manual CHAPTER ІІ.INSTALLATION AND EXPLOITATION II. 1. VISUAL INSPECTION Before installation the Roulette Center must be checked for damages caused by transportation. NOTE! The manufacturer is not responsible for:  any damages caused during transportation;...

  • Page 10: Ii.3. Safety Precautions

    User Manual II. 3. SAFETY PRECAUTIONS  EGT ROULETTE CENTER AUTOMATED has a class I protection against electrical damages according to the requirements, defined in EN 60335-1.  The Roulette Center can only be plugged in a bipolar plug with protection grounding of the electrical installation.
  • Page 11 EGT Roulette Center Automated User Manual IMPORTANT:  The protective earth conductor is intended for installation by only by EGT technicians Connect to earth before connecting to supply.  The following symbols are added to the jackpot server box: ...

  • Page 12: Ii.4. Cleaning And Maintenance

     surface of the new ball has to be checked. If the new ball has defects, please contact a representative of EGT Multiplayer Ltd. before the new ball is condemned as defective. ATTENTION! It is inadmissible to use a defected ball!

  • Page 13: Hardware

    EGT Roulette Center Automated User Manual CHAPTER ІІІ. HARDWARE III.1. GENERAL DESCRIPTION OF COMPONENTS Fig.III.1.1. EGT ROULETTE CENTER AUTOMATED - overview at closed doors DESCRIPTION OF COMPONENTS ( Fig.III.1.1) 1 Roulette number 5 Electromechanical Counters 2 SVS III 32’’ 6 Doors...
  • Page 14 EGT Roulette Center Automated User Manual Fig.III.1.2. EGT ROULETTE CENTER AUTOMATED - overview at opened doors DESCRIPTION OF COMPONENTS ( Fig.III.1.2) 9 Fan 16 mCORE 10 Axis Main Unit 17 Power Supply Unit (PSU) 11 Pushbutton Interlock Switch - Cherry...
  • Page 15 EGT Roulette Center Automated User Manual Fig.III.1.3. EGT ROULETTE CENTER AUTOMATED - overview at opened doors DESCRIPTION OF COMPONENTS ( Fig.III.1.3) 23 Key Lock 28 Boost 24 Power Supply Unit (PSU) 29 Power Distribution Box 25 Power Supply Unit (PSU)
  • Page 16 EGT Roulette Center Automated User Manual Fig.III.1.4. EGT ROULETTE CENTER AUTOMATED - overview at opened doors DESCRIPTION OF COMPONENTS ( Fig.III.1.4) 33 Audio Amp Low 35 Audio Amp High 34 Bass Box 36 RGB Controller www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 17: Iii.2 Power Distributor Box And Power Supply

    User Manual III. 2. POWER DISTRIBUTION BOX AND POWER SUPPLY III.2.1. EGT Distribution Box The EGT Distribution Box (Fig. III.2.1.) distributes the power supply voltage of 240 V between the machine components. There are two outputs at the distribution box - Out 1 and Out 2 - 115/ 230 V, 2.0 A, which are supplied even...
  • Page 18 EGT Roulette Center Automated User Manual III.2.3. Mean Well UHP-350-12 The Power Supply Unit Mean Well UHP-350-12 (Fig. III.2.3.) operates at 12 V, supplies other machine components including the control platform. Producer: Mean Well Model: UHP-350-12 (Fig. III.2.3) Fig. III.2.3. Mean Well UHP-350-12...

  • Page 19: Iii.3 Roulette Wheel

    EGT Roulette Center Automated User Manual ІІІ.3. ROULETTE WHEEL Producer of the Wheel: Böhm Function: The Roulette Wheel (Fig. III.3.1.) is a main component of the roulette. It generates the winning number in the following way: A sensor detects that the ball is in a starting position outside the Roulette Wheel.

  • Page 20: Iii.4 Control Platform

    – Player terminals, Game (Roulette) centers, Jackpot Servers, etc. EGT Multiplayer uses Linux OS in all of its equipment. mCore is assembled by EGT Multiplayer and has four main components (III.4.): Mini-ITX motherboard;...

  • Page 21: Iii.5 Backplane Connectors Board

    Fig. III.6.1. Roulette Center Controller III. 7. STATISTICS SCREEN EGT SVS III 32” (Fig. III.7.1.) complements any roulette table by displaying results, statistics and promotional material in pin-sharp high definition. The screen can be either one-sided or double-sided (both sides display the same information).

  • Page 22: Iii.8 Counters Module

    Maintains communication with the Game platform; Tests the counters to detect if interruption or short circuit exist. Characteristics of the mechanical counters module: Specially designed by EGT Multiplayer Ltd.  specialists (Fig. III.8.2); Fig. III.8.2. Mechanical counters module Supports 6 mechanical counters;...

  • Page 23: Iii.9 Motors

    The Blowing (Shooting) Motor is managed with a power supply of 13,5 V. After the sensors detect that the ball is in a starting position and the EGT Roulette Center Automated sends the appropriate command, the motor blows the ball. (Fig. ІІІ.9.2.1.) Fig.

  • Page 24: Iii.10 Frequency Voltage Converter

    EGT Roulette Center Automated User Manual ІІІ. 10. FREQUESNCY VOLTAGE CONVERTER Type: Commander C200 (Fig. ІІІ.10.1.) specializing frequency convector with microprocessor control. It provides the smooth spinning and stopping of the disc, as well as precise rotation calculations. Fig. ІІІ.10.1. Main induction motor controller ІІІ.11.

  • Page 25: Iii.13 Network Switch

    EGT Roulette Center Automated User Manual ІІІ.13. NETWORK SWITCH The Network Switch (Fig. ІІІ.13.1.) provides high-speed distribution of the information between the terminals and the central computer of the roulette center. Producer: ZyXEL Model: GS1100-16 Fig. ІІІ.13.1. Network Switch ІІІ.14. UPS The Uninterruptible Power Supply Unit (UPS, Fig.

  • Page 26: Iii.16 Pushbutton Interlock Switch - Cherry

    EGT Roulette Center Automated User Manual III. 16. PUSHBUTTON INTERLOCK SWITCH - CHERRY The Pushbutton Interlock Switch - Cherry (Fig. ІІІ.16.1.) detects all the openings and closings of the doors. Model: Е75-30А Fig.III.16.1. Cherry ІІІ.17. VIDEO CONTROL SYSTEM Аxis F41 Main Unit (Fig. III.17.2.) and the Axis Camera (Fig. III.17.1.) allows a real-time visualization of the ball displayed on the statistic’s...

  • Page 27: Iii.19 Router

    EGT Roulette Center Automated User Manual III. 19. ROUTER The MikroTik Router (Fig. ІІІ.19.1.) has five Ethernet ports, one USB 2.0 port and a high power 802.11b/g/n wireless AP with antennas built in. Model: RB751 Input: 8-30V DC Fig.III.19.1. Router ІІІ.20.

  • Page 28: Configuration Of Egt Roulette Center Automated

    (Fig. IV.1.1). There is no limit for the number of terminals that can be connected to the configuration. Fig. IV.1.1 Connection between the Center and the gaming places Fig. IV.1.2 represents an exemplary configuration Fig. IV.1.2 Exemplary configuration of EGT Roulette Center Automated with 10 S-Line S32 terminals www.egt-multiplayer.com ©2020, EGT Multiplayer Ltd.

  • Page 29: Iv.2 Resetting The Memory Of The Control Platform

    EGT Roulette Center Automated User Manual IV.2. RESETTING THE MEMORY OF THE CONTROL PLATFORM To reset the memory (NVRAM) of the control platform a NVRAM Clear Cfast Card is needed. It is necessary to perform the following operations: a) Turn off the power of the gaming device;...

  • Page 30: Iv.3 Egt Roulette Center Automated Configuration

    EGT Roulette Center Automated User Manual ІV. 3 EGT ROULETTE CENTER AUTOMATED CONFIGURATION In order to function properly the Roulette Center must be configured. To receive the proper settings it must be connected to a gaming place or, in case of a T-Line, it is integrated in the table. The software of the gaming devices, which it is connected to, allows the access to all the settings of the roulette center.
  • Page 31 EGT Roulette Center Automated User Manual IV. 3.1 Network Settings To set up the center: From the System Menu go to Servers/Game Server/Network Settings/Roulette 1 (or the roulette, that was used in the previous step) Detailed description of the settings: Require MCS - Forces the center to work only while there is connection with the MCS.
  • Page 32 EGT Roulette Center Automated User Manual IV. 3.2 Game Settings From the System Menu go to Servers/Games/Settings/Roulette 1 (or the roulette, that was used in the previous step) Detailed description of the settings: Description of the Servers/Games/Settings/Roulette, page 1: Roulette Type - this setting is intended for telling the program what wheel is connected to the sys- tem - with one or with two zeroes (European or American Roulette).
  • Page 33 EGT Roulette Center Automated User Manual Dynamic Payout - The parameters of the function are: [Disabled / Enabled]. This means that the “Dynamic Paytable” function will either be available to players or not. The “Dynamic Paytable” is a functionality in the Roulette game, which allows players to choose a payout method for their bets that is different from the standard one.
  • Page 34 EGT Roulette Center Automated User Manual Description of the Servers/Games/ Settings /Roulette, page 2: Currency Code - Currency code to be displayed on center's visualizations (Statistics and Diamond Number). The parameters are: [A-Z] 3 symbols maximum. Bet Time - this settings represents the time in seconds, during which it is possible to place bets pri- or to the beginning of a game.
  • Page 35 EGT Roulette Center Automated User Manual Statistics Layout - sets the layout of the statistics. Possible values: [Legacy Vertical, Legacy Horizontal, FullHD Vertical, FullHD Horizontal]. Note: that the value should correspond to required layout and statistics monitor resolution: Legacy Vertical - Vertical, resolution 1680x1050...
  • Page 36 EGT Roulette Center Automated User Manual Description of the Servers/Games/ Settings /Roulette, page 3: It is an attractive and drawing attention JACKPOT system, which aims to keep the interest and en- joyment of the players while placing bets on roulette. With fascinating animation and sound, this jackpot system consists of two levels - DIAMOND and SAPPHIRE.
  • Page 37 EGT Roulette Center Automated User Manual Level propability It is randomly selected what level will be triggered with the setting “Level Probability”. A number P is set between 60.00 % and 90.00 %, corresponding to the percentage of probability for Sapphire (with lower deductions) level to be triggered.
  • Page 38 EGT Roulette Center Automated User Manual Description:  The parameters described earlier are set in the jackpot server.  From each bet deductions are made for both levels according to the set percentages.  The deductions include all the inner bets. The 1:1 bets do not participate (red/black. 1- 18, 19-36, odd/even.
  • Page 39 User Manual Description of the Servers/Games/ Settings /Roulette, page 4: ATTENTION! Since the described device is EGT Roulette Center Automated the Live Wheel Connection Unit (LWCU) MUST be disabled and the whole forth page of the settings should not be used!

  • Page 40: Iv.4 Iv.3 Egt Roulette Center Automated Behaviors

    Without the Jackpot Diamond Number – the players’ bet is locally returned, an or-  ange splash appears. The players can cashout or change the game. The Center is awaiting for a problem solution. In such case the EGT Multiplayer Technical Support is needed. V. 5.2 When the Roulette Center reports an error: When an error is reported (e.g.
  • Page 41 EGT Roulette Center Automated User Manual 1. If the error is announced during the game: 1.1 if the error does not refer to an open door, then the game continues 1.2 if the error refers to an open door: 1.2.1 if the setting “Intrusion Behavior” is configurated to “Do Nothing”, then the game continues.

  • Page 42: Contacts

    CHAPTER VI. CONTACTS VI. 1. CONTACTS www.egt-multiplayer.com For more information visit the WEB address: For other areas visit the WEB address to locate EGT www.egt-multiplayer.com/contacts Multiplayer’s local office, distributer or licensee: EGT Multiplayer’s 24/7 Support is available at the www.egt-multiplayer.com/support WEB address: www.egt-multiplayer.com...
