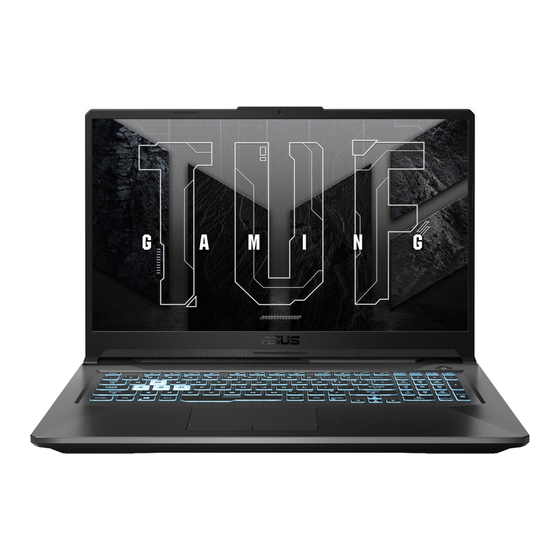

- Page 1 ASUS TUF Gaming F17 (FX706H) series Service Guide...
- Page 2 LIMITATION OF LIABILITY Circumstances may arise where because of a default on ASUS’ part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property;...
- Page 3 Disclaimer ASUS is not responsible for direct, indirect, intentional or unintentional damages resulting from improper installation and operation. Safety precautions • Keep liquids or moisture away from your Notebook PC before installing or removing any components. • Ensure to place your Notebook PC on a stable surface before installing or removing any components.
-
Page 4: Table Of Contents
Table of Contents ⚫ Service Overview ⚫ ASUS TUF Gaming F17 (FX706H) series Overview ⚫ Components Top View ⚫ Components Bottom View ⚫ Repair Overview ⚫ Appropriate Tools ⚫ Keyparts and Related Parts ⚫ Disassembly steps : • BOTTOM CASE •... -
Page 5: Service Overview
Service Overview • Carefully read through this Service Guide for a look at various components of the device before performing any service and repairs. • To provide the best service, we have provided the below information for technicians from distributors and resellers to perform the complete device disassembly and assembly. -
Page 6: Asus Tuf Gaming F17 (Fx706H) Series Overview
ASUS TUF Gaming F17 (FX706H) series Overview Top View Bottom View ❶ Array microphones ❶ Air vents (on selected models) ❷ Compartment cover ❷ Microphone ❸ Camera indicator ❹ Camera ❺ Display panel ❻ Air vents ❼ Keyboard ❽ Capital lock indicator ❾... -
Page 7: Components Top View
Components Top View LCD COVER MODULE KEYBOARD MODULE MAIN BOARD TP-MB FFC BATTERY AL FOIL HIHGE SSD MYLAR MB RAM ABSORBER (R IMR) (L IMR) BASE BATTERY GASKET LCD BEZEL WIFI CARD CAMERA SSD AL FOIL BATTERY THERMAL MODULE ASSY LED-MB FFC MIC RUBBER GPU FAN... -
Page 8: Components Bottom View
Components Bottom View LCD COVER MODULE KEYBOARD MODULE BASE CASE COVER TAPE 1*2PCS WIFI ANTENNA EDP CABLE USB BOARD THERMAL MODULE ASSY LCD BEZEL LED BD LCD BEZEL ADHESIVE MAIN BOARD Back... -
Page 9: Repair Overview
Repair Overview This chapter describes disassembly and assembly (Assemble document please look up from the last page), please follow the information provided in this section to perform the complete disassembly procedure. Precautions: Before you perform any service or repair on the notebook, please pay special attention to the cautions prevent any damages to the notebook. 1. -
Page 10: Appropriate Tools
Appropriate Tools Please prepare and select the appropriate tools to disassemble/assemble for the ASUS TUF Gaming F17 (FX706H) series notebook. ⧫ Alcohol 95 ⧫ Glove ⧫ Dust-free Cloth Screwdriver Please accord to different screw specification to choose different screwdriver and head. -
Page 11: Bottom Case
BOTTOM CASE Disassembly Notice Step 1 : Remove screws *10pcs. Step 2 : Use plastic blade to pry the bottom case. Screws Spec Torque (kgf-cm) M2.5*12L(4.5,0.8) (K) #1 M2.5*5.5L(4.5,0.8) (K)#1 M2.5*2.5L+3.5 Start Please follow above arrow direction To avoid the bottom case hook, The screw is unable to remove with using plastic blade to pry bottom don't insert plastic blade in each... -
Page 12: Battery
BATTERY Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Before disassembly battery connector, please be sure to pull out adapter and disconnect the battery more than ten seconds in order to IC damage. Screws Spec Torque(kgf-cm) Step 1 : Disconnect the battery connector. -
Page 13: Ssd
Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove the screws *2pcs. Assembly Notice Step 2 : Remove SSD MYLAR, AL Foil at left side, and remove SSD. Step 3 : Remove SSD at right side. Step 4 : Remove ABSORBER on SSD. -
Page 14: Ddr
Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Tear off the SODIMM ABSORBER MYLAR. Assembly Notice Step 2 : Unlock DDR. Step 3 : Remove DDR. First, please paste ABSORBER on the front and backside of DDR before inserting it into the slot. -
Page 15: Wifi Card
WIFI CARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the RF CABLE connector *2pcs. Step 2 : Remove the screw *1pcs. Step 3 : Remove WIFI CARD. Assembly Notice Screws Spec Torque (kgf-cm) M2*3L (5.6,0.8) (K) #1... -
Page 16: Speaker
SPEAKER Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Release the tape. Step 2 : Release the tape. Step 3 : Disconnect the SPEAKER connector. Step 4 : Remove SPEAKER. Disconnect Assembly Notice For Speaker assembly, please follow the mark below to tidy cable. -
Page 17: Usb Board
USB BOARD Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect the FFC connector. Screws Spec Torque (kgf-cm) Step 2 : Remove screw *1pcs and remove USB BOARD. M2*3L (5.6,0.8) (K) #1 Assembly Notice If FFC is damage during disassembly, please replace new one. -
Page 18: Fan (With Thermal Module And Main Board)
FAN (with THERMAL MODULE and MAIN BOARD) Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect (yellow mark) connectors *9pcs then remove TP-MB FFC*1pcs. Screws Spec Torque (kgf-cm) Step 2 : Remove(Red and blue mark) screws *9pcs. M2*3L (5.6,0.8) (K) #1 Step 3 : Remove MB with Thermal and FAN module. -
Page 19: Thermal Module
THERMAL MODULE Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Please follow the reverse screws numbers to remove screws *8pcs. Torque Screws Spec Step 2 : Remove the THERMAL MODULE from MB. (kgf-cm) Recommend that the force point is at green block, and pull up thermal module to take M2*4L (4.3,0.5) (K) W-NI... -
Page 20: Fx706Hf Thermal Module
FX706HF THERMAL MODULE Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Please follow the reverse screws numbers to remove screws *8pcs. Torque Screws Spec Step 2 : Remove the THERMAL MODULE from MB. (kgf-cm) Recommend that the force point is at green block, and pull up thermal module to take M2*4L (4.3,0.5) (K) W-NI... -
Page 21: Main Board
MAIN BOARD Mainboard connector placement LED/MB FFC BATTERY VGA FAN USB/MB FFC CPU FAN TP/MB FFC K/B FPC Supports using JIG BOARD to refresh F1 BIOS. BL FPC EDP CABLE SPEAKER Back... - Page 22 MAIN BOARD Parts marked in yellow can be ordered/replaced Materials on mainboard Choose by GPU/VGA CHIP Model separately at L2 repair level. When L3/L4 repair finished, no need to paste new one if shortage of FX706HM NVIDIA GN20-E3 FA506IV N18E GPU ABSORBER this material on the MB.
- Page 23 FX706HF MAIN BOARD Parts marked in yellow can be ordered/replaced Materials on mainboard separately at L2 repair level. When L3/L4 repair finished, no need to paste new one if shortage of this material on the MB. FA506IV N18E GPU ABSORBER FA506IV N18P GPU MYLAR FA506IV MB TOP MYLAR FX506HM GPU BKT ASSY...
-
Page 24: Keyboard Module
KEYBOARD MODULE Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Assembly Notice Step 1 : Remove the LED BD and FFC. Screws Spec Torque (kgf-cm) Step 2 : Remove screws *6pcs. Please refer below picture to organize EDP cable while Step 3 : Remove the KEYBOARD MODULE. -
Page 25: Lcd Bezel
LCD BEZEL Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Remove BEZEL COSMETIC MYLAR *2pcs. Screws Spec Torque (kgf-cm) Step 2 : Remove screws *2pcs. M2.5*4.5L (4.5,0.5)(K)#1 Step 3 : Remove LCD BEZEL. Step 3-4 Due to some tapes behind the lower edge of bezel, please using plastic blade to teardown the bezel. -
Page 26: Lcd Panel
LCD PANEL Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Screws Spec Torque (kgf-cm) Step 1 : Pull out LCD adhesive *2pcs. Step 2 : Remove LCD PANEL. M2.5*3.5L(4.5,0.5) (K)#1 Step 3 : Remove screws *8pcs, and remove hinges *2pcs. M2*4L (4.3,0.5) (K) #1 Flip up the panel, and disconnect the EDP cable. -
Page 27: Lcd Cover
LCD COVER Disassembly Notice Please be sure to pull out adapter and disconnect the battery. Step 1 : Disconnect Camera connector. Assembly Notice Step 2 : Remove the CAMERA. Step 3 : Remove MIC RUBBER *2pcs. Please follow the yellow mark to tidy EDP cable. Disconnect MIC RUBBER Back... - Page 28 LCD PANEL and LCD Cover Assembly Notice Assembly Notice Please be sure to pull out adapter and disconnect the battery. Please ensure to check the upper side of the left/right hinge. It is necessary to adhere the sponge to the hinge before assembling the panel. Please refer to the illustration below to paste sponge. Back...
- Page 29 LCD PANEL and LCD Cover Assembly Notice Assembly Notice Please be sure to pull out adapter and disconnect the battery. When assembly the LCD PANEL: (The following is an operation example) When reuse the LCD PANEL: Please use the fingertip to clean the residual glue on PANEL or BEZEL. Step 1 : Remove release paper of LCD Adhesive *2pcs.
