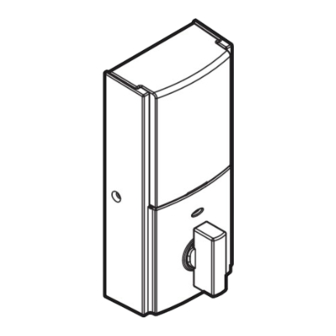

Kwikset HomeConnect 918 Installation And User Manual

54471
Rev 01
®
Z-Wave Plus
Installation and User Guide
Required tools
Ruler
Phillips head screwdriver
1
Prepare the door and check dimensions
A
Make sure your door is compatible. If you have a standard deadbolt mounted
separately from the handle below it, your door is compatible.
Compatible
C
Note: Additional door preparation
may be required for doors with
54 mm
deadbolt drilling instructions at
or
www.kwikset.com/doorprep
38 mm
2
Install the latch and strike
A
Is the door edge chiseled?
YES
or
chiseled
Use latch "A". If the
latch bolt is not already
extended, extend the
latch bolt as shown.
A
Kwikset
Technical Support
1-866-863-6584
www.kwikset.com
Not Compatible Not Compatible
Rim Mortise
Lock Lock
D
60 or 70 mm
(2x)
For Latch /
Strike Bag
03809
B
Hold the latch in front of the door hole, with the latch
face flush against the door edge.
NO
not
chiseled
Use latch "B." If the
latch bolt is not already
extended, extend the
latch bolt as shown.
C
Is the D-shaped hole centered in the door hole?
B
D-shaped hole
No adjustment is required.
Proceed to next step.
Parts in the Box
Latch A
Latch B
"B" is not included. If needed,
please contact Kwikset to order
a drive-in latch for your lock.
Mounting Adapter
Plate Ring
Keys
Batteries
Not Compatible
Integrated
Interior
E
in the door edge is 1" (25 mm).
b a
c k
s e
t
(2x)
46780
actual size
A
B
YES NO
or
D-shaped hole
Rotate latch face as
shown to extend latch.
A
B
1 / 4
Exterior Assembly Interior Assembly
r T d a i t i n o l a C n o e t m o p a r y r
For Latch / Strike F r o o L
Strikes
03809
SmartKey
46780
48654
If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.kwikset.com/doorprep
B
Remove your existing deadbolt
and strike from your door.
F
1"
25 mm
(2x)
(2x)
D
Which latch are you installing?
Latch "A" or
UP is
on top.
or
A
or
03809*
(2x)
(For Latch/
Strike Bag)
*Use longer
screws if holes
are worn out.
You will have two
extra screws.
E
Install the strike on the door frame.
Make sure the hole in the door frame is drilled a
minimum of 1" (25 mm) deep.
Longer screws install
closest to the door jamb.
46780
(4x)
(For Latch/Strike Bag)
Note: there will be extra screws and a strike.
r T d a i t i n o l a C n o e t m o p a r y r
k c
69316
Tool
68611
35 – 51 mm
actual size
Latch "B"
B
UP is
on top.
wood
block
door frame
