LOWES W100-23KD-GW Assembly / Care & Use Instructions

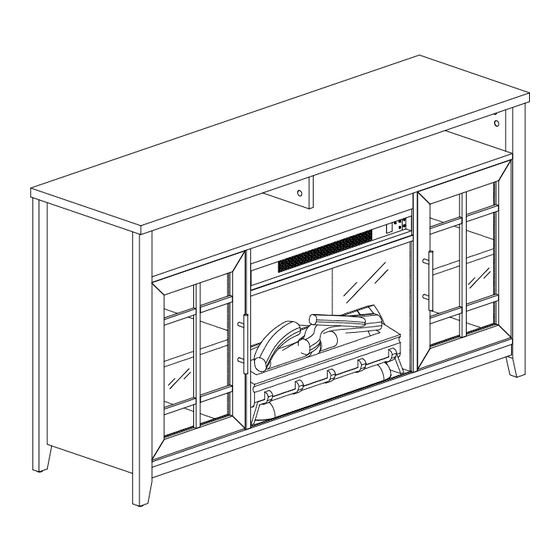

55" tv media stand with electic fireplace kd inserts heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
55" TV MEDIA STAND WITH ELECTIC FIREPLACE
ASSEMBLY, CARE & USE INSTRUCTIONS
We appreciate the trust to purchase our electric fireplace media mantel. We strive to
continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing us!
KD INSERTS HEATER
W100-23KD-GW Gray Wash Color
W100-23KD-RB Reclaimed Barnwood Color
THANK YOU
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W100-23KD-GW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LOWES W100-23KD-GW

Summary of Contents for LOWES W100-23KD-GW

  • Page 1 55" TV MEDIA STAND WITH ELECTIC FIREPLACE KD INSERTS HEATER ASSEMBLY, CARE & USE INSTRUCTIONS W100-23KD-GW Gray Wash Color W100-23KD-RB Reclaimed Barnwood Color THANK YOU We appreciate the trust to purchase our electric fireplace media mantel. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Assembly Tips

    ASSEMBLY TIPS Before you begin, locate the instructions and hardware. Take out all the parts and compare them to the diagramsbelow. Be sure you have all the parts and can identify them. Two people are required to assemble this product. Assembly time will take approximately 30-90 minutes.

  • Page 3: Parts List

    PARTS LIST...
  • Page 4 Assembly steps(EN) 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 1 PC 2 PCS 2 PCS 1 PC 1 PC 1 PC 1 PC 1 PC 2 PCS 1 PC 2 PCS 1 PC...

  • Page 5: Hardware List

    HARDWARE LIST: ø15*12 32 PCS 32 PCS Ø8*30mm 40 PCS 2 PCS M4*23mm 4 PCS 4 PCS 8 PCS 1 PCS 20 PCS ø3.5*14mm 48 PCS ø3.5*14mm 24 PCS 32 PCS ø7*40 ø4*35mm 6 PCS 4 PCS 4 PCS ø4*16mm 10 PCS ø4*35mm 2 PCS...
  • Page 6 Assembly steps(EN) STEP 1 Ø8*30MM...
  • Page 7 Assembly steps(EN) STEP 2 Ø4*35MM STEP 3 Ø3.5*12MM...
  • Page 8 Assembly steps(EN) STEP 4 Ø3.5*12MM STEP 5 Ø7*40MM...
  • Page 9 Assembly steps(EN) STEP 6 Ø7*40MM STEP 7 Tighten...
  • Page 10 Assembly steps(EN) STEP 8 STEP 9 The power cord passes through the gap Ø7*40MM...
  • Page 11 Assembly steps(EN) STEP 10 Peel off the protective paper of the self-adhesive and stick it to the position specified in the figure. Ø4*35MM -10-...
  • Page 12 Assembly steps(EN) STEP 11 Ø8*30MM -11-...
  • Page 13 Assembly steps(EN) STEP 12 Tighten STEP 13 Tighten -12-...
  • Page 14 Assembly steps(EN) STEP 14 Tighten STEP 15 With assistant carefully stand unit up. -13-...
  • Page 15 Assembly steps(EN) STEP 16 Ø8*30MM STEP 17 Tighten -14-...
  • Page 16 Assembly steps(EN) STEP 18 STEP 19 Tighten An assistant is required. -15-...
  • Page 17 Assembly steps(EN) STEP 20 STEP 21 -16-...
  • Page 18 Assembly steps(EN) STEP 22 STEP 23 Ø4*14MM M4*23MM -17-...
  • Page 19 Assembly steps(EN) STEP 24 First install the screws into the two long holes on the hinge Adjust the door properly (parallel up and down) Install the hinge round hole with screws Ø4*14MM STEP 25 First install the screws into the two long holes on the hinge Adjust the door properly (parallel up and down)
  • Page 20 Assembly steps(EN) STEP 26 Ø3.5*14MM Align and insert the latch Ø4*16MM STEP 27 Ø3.5*14MM -19-...
  • Page 21 Assembly steps(EN) STEP 28 1. Place unit in desired location. 2. Locate wall stud nearest unit center. 3. On wall, mark the center of the hole. 4. If a wall stud cannot be located mark hollow wall at unit center. STEP 29 1.
  • Page 22 Assembly steps(EN) STEP 30 CAUTION: This unit is intended for use only with the products and maximum weights indicated. use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury. Note: Flat Panel TVs with base support should be placed squarely in the center of the stand with no overhang on any side.

  • Page 23: Important Safety Information

    ELECTRIC FIREPLACE OPERATING MANUAL The actual appearance should be subject to the purchase model MODELS: KD100-23 KD100-26 KD100-30 261046 CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.

  • Page 24: Important Instructions

    IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, curtains etc., at least 3 feet (0.9 m) from the front of the heater and keep them away from the sides and rear.

  • Page 25: Package Contents

    PACKAGE CONTENTS ITEM # KD100-23-A Heater Remote Control Manual ITEM # KD100-23-B Logset ELECTRICAL SPECIFICATIONS Voltage: 120VAC 60Hz Watts: 1500 Watts...

  • Page 26: Installation Instructions

    INSTALLATION INSTRUCTIONS GROUNDING INSTRUCTIONS: Figure 2 This heater is for use on 120 volts. The cord has a plug as shown at (A) in figure 2. An adapter as shown at (C) is available for connecting three-blade grounding-type plugs to two-slot receptacles.
  • Page 27 Do not share a socket with other appliances when using the electric fireplace. Please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...
  • Page 28 OPERATING INSTRUCTIONS On the top-right of the heater is the mechanical control panel. This panel contains the buttons to properly operate the electric fireplace. The functions of buttons on the remote control are the same as the control panel. The remote control has an effective range of up to 19 ft.. Digital Display POWER The POWER button turns the appliance on or off.

  • Page 29: Batteries Replacement

    Temperature Unit Convert Function: The heater includes Celsius and Fahrenheit temperature scales. To change the temperature unit, turn the heater on, and then press and hold the Power Button for 5 seconds. The current temperature unit display will flash 3 times and convert to the other temperature unit.

  • Page 30: Maintenance

    MAINTENANCE Clean the metal trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean soft cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim. Citrus oil based products can be obtained at supermarkets or hardware stores. The motors used on the fan and the flame generator assembly are pre-lubricated for extended bearing life and require no further lubrication.

  • Page 31: Fcc Statement

    FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful interference, and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 32: Year Limited Warranty

    1 YEAR LIMITED WARRANTY Our electrical fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. This electric fireplace must be installed and operated at all times in accordance with the installa- tion and operating instructions furnished with the product.

This manual is also suitable for:

W100-23kd-rb
