Summary of Contents for Avantree Ensemble

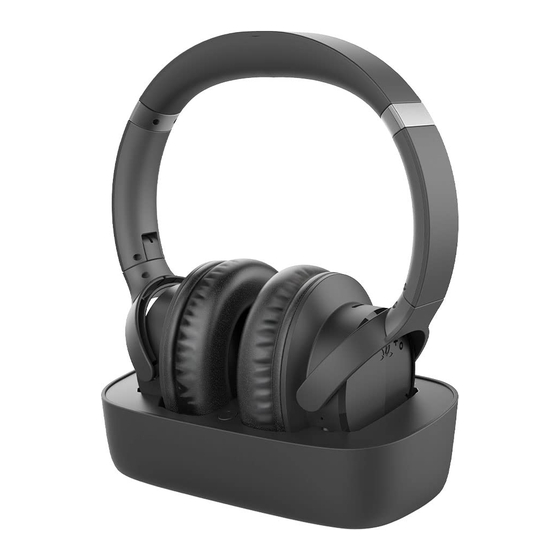

- Page 1 Ensemble User Manual Model No.: BTHT-5150P...
-
Page 2: Table Of Contents
User Manual ENSEMBLE Table of Contents Box Contents 5... -
Page 3: Box Contents
User Manual ENSEMBLE Box Contents Headphones Transmitter / Charging Dock Power Cable fo Optical Audio Aux 3.5mm Transmitter Cable Audio Cable USB Adapter To view and purchase Ensemble accessories, please visit avantree.com/ensemble/accessories. -
Page 4: Product Introduction
User Manual ENSEMBLE Product Introduction Product Overview OFF / ON Charging Points PLAY / PAUSE / RECONNECT / PAIR Charging Port LED Indicator AUX Input From TV Power Port OFF / ON Optical Input From TV... -
Page 5: Button Functions
User Manual ENSEMBLE LED Indicator Multifunctional button(MFB) Button Functions Button Function Switch to turn the headphones on / off Press or hold to adjust volume If headphones fail to auto-connect to transmitter, press once to activate reconnection Press & hold for 5 seconds to place the headphones... -
Page 6: Led Indicators
User Manual ENSEMBLE LED Indicators Indicator Status Flashing blue Power on Solid blue Connected Flashing red & blue Pairing mode Flashing red Low battery Solid red Charging Charging complete Flashing blue Power on Solid blue Connected Flashing red & blue... -
Page 7: Setup
User Manual ENSEMBLE Setup Connecting the Transmitter to Your TV The transmitter must be connected to a power source in order to function. Connect it to a nearby wall outlet via the provided USB adapter and power cable. Once the transmitter is connected to its power source, you can connect it to your TV’s audio ports. - Page 8 User Manual ENSEMBLE AUX 3.5mm port OPTION 2 Plug the provided AUX 3.5mm audio cable into the TV’s AUX 3.5mm output port, then plug the other end into the transmitter’s AUX 3.5mm port. AUX 3.5mm RCA port OPTION 3 Connect the RCA adapter(not included) to the AUX 3.5mm audio cable.
-
Page 9: Connecting The Headphones To Transmitter
User Manual ENSEMBLE Connecting the Headphones to Transmitter STEP 1 On your headphones, slide the switch to the ON position. The LED indicator should start flashing blue. STEP 2 The transmitter is ON by default. If not, slide its switch to the ON position. -
Page 10: Setting Up Your Tv (For Optical Connections Only)
Set Audio Output format to “PCM / STEREO” ON or “DOLBY” OFF. If you’re having trouble finding these settings, you can scan the QR code correlating to your TV’s brand OR visit avantree.com/ensemble/tv-audio-settings for a more detailed guide. SONY SAMSUNG NOTE1: Some smart TVs automatically reset their settings after system updates. -
Page 11: Advanced Features
User Manual ENSEMBLE Advanced Features Adding a Second Pair of Headphones You can add a second pair of Ensemble headphones (AS50) to your setup while maintaining low latency. STEP 1 Make sure your original Ensemble headphones & transmitter have connected. -
Page 12: Using The Headphones With Your Phone/Tablet
Once connected, the headphones’ & transmitter’s LED indicators will turn solid blue. For subsequent use, please turn the original pair of Ensemble headphones on first. Once that’s connected to the transmitter, you can turn on your second pair of AS50 headphones and wait for a few seconds. If it fails to reconnect, press the button once to activate reconnection. -
Page 13: Charging The Headphones
User Manual ENSEMBLE Charging the Headphones Place the headphones on the charging dock in order to charge. The charging dock’s LED will turn red while charging and off once charging is complete. (5V/1A-2A) DC IN You can also charge the headphones through its power port using a charging cable. -
Page 14: Specifications
User Manual ENSEMBLE Specifications Transmitter Bluetooth version v5.0 Frequency response 20Hz - 20KHz Operating range Up to 100ft / 30m Bluetooth profiles HFP v1.7, AVRCP v1.5, A2DP v1.3 Supported audio codecs aptX-LL, aptX, FastStream, SBC Headphones Bluetooth version v5.0 Frequency response... -
Page 15: Faq
Samsung / LG smart TVs tend to pair with any Bluetooth devices they can find, which blocks the Avantree headphones from reconnecting to its transmitter. Try following the steps below in order to fix this: DENY the Device - If a popup appears on your TV asking you to Allow or Deny / Block the device to connect to the TV, you MUST DENY / BLOCK the device from connecting. - Page 16 Why aren’t I getting sound when watching Netflix / Amazon Prime? Why aren’t my headphones connecting to the transmitter? …… For answers to questions like these and for a full FAQ list, you can visit avantree.com/support/ensemble, or you can contact us directly for additional assistance.
-
Page 17: Contact Us
FR +33 17 634 0312 11am-9pm CET Mon-Sat +39 069 4803 330 9am-6pm CET Mon-Sat +34 93 1786 261 9am-6pm CET Mon-Sat AU +61 2 8310 9897 11am-7pm AEST Mon-Fri avantree.com/support/ensemble Video Guide avantree.com/ensemble/video Product Registration See QR code on the product. - Page 18 Manufacturer: Avantronics Limited Luohu District, Shenzhen 518000 China + 86 755 8228 5022 support@avantree.com US Importer: Avantree Corporation San Jose, California 95119 USA +1 800 232 2078 support@avantree.com UK Importer: Avantree Limited Watford, WD180 0HQ UK +44 20 8068 2023 support@avantree.com Servicer in Europe: Gizmex GmbH,...
