Summary of Contents for Zehnder Rittling HX-2400 TC

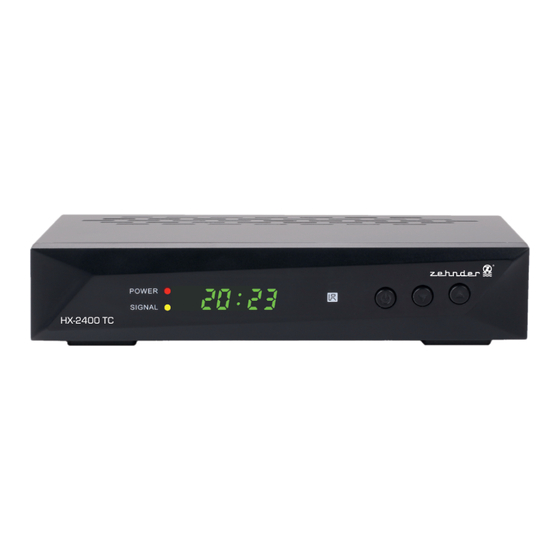

- Page 1 HX-2400 TC DIGITAL FHD HYBRID RECEIVER USER MANUAL...
-
Page 4: Main Features
Main Features DVB-T2 H.265/C tuner - Full HD 1080p - MPEG 1/2/4, H.265/HEVC - Video Output: SD/HD HDMI 1.4, SCART (CVBS, RGB) - Multilanguage OSD - 2000 TV and radio channels capacity - 7 Days EPG (Electronic Program Guide) - Channel list editor - PVR/Timeshift - 27 Timer settings - Parental lock for channels and menu... -
Page 5: Remote Control Unit (Rcu)
Remote Control Unit (RCU) 1. POWER: Switch between operation and standby modes. 2. I◄◄: Previous. 3. ►► I: Next 4.◄◄: Back Backward. 5. ►►: Fast Forward. 6.►I I: Pause/time shift. 7. ■/ USB: Stop the Music or Movie/ Enter the USB. 8. - Page 6 TV Control: Power: AV / TV: Select an input source on TV VOL +/-: Volume louder, lower SET: remote control PROGRAMMING TV BUTTONS ON RCU The remote control of the receiver can also be programmed to perform the basic func ons of the TV remote control. This way, you can avoid using two remote controls when opera ng this receiver.
- Page 7 1. STB You should installation the receiver when powering on your product for the first time after purchase. Note: The default password is 0000. Main menu: Press the MENU button to enter the main menu.
- Page 13 Tuner & Channel No. of Tuners Frequency Range 114 M Hz to 858M Hz DVB C Signal 37 to 110dbuV Level DVB T2 Signal <-82dbm Level ANT Power 5V, Imax = 300mA MPEG Transport Stream M PEG-2 Profile Level Single-chip HEVC/H.264/H.263/M PEG4/M PEG-2/AVS/AVS+/VC1 Aspect Ratio 4:3, 16:9 Video Resolution...
-
Page 14: Power Supply
Power Supply Input Voltage 5V 1.5A Power M ax. 7.5W Consumption Separate internal fuse. Input shall have lightening Protection Protection Physical Specification Operating Temp to + 40 Storage Temp to + 65...
