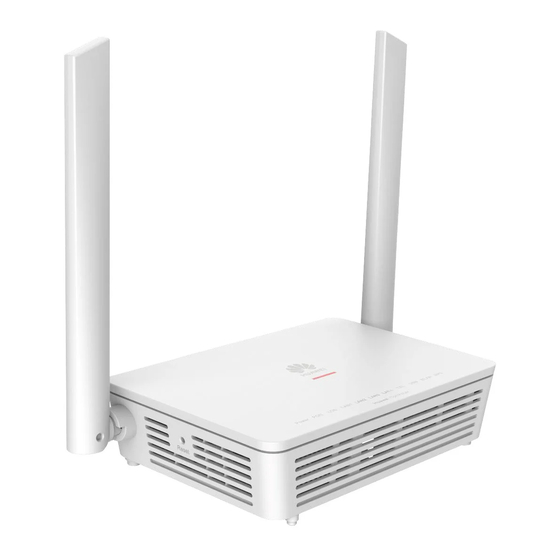

- Page 1 Huawei OptiXstar EG8145X6-10 Quick Start for QR code Issue Date 2024-03-14 HUAWEI TECHNOLOGIES CO., LTD.
- Page 2 Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS"...
- Page 3 Security Declaration Vulnerability Vul. Response Process. For Huawei's regulations on product vulnerability management are subject to the details about this process, visit the following web page: https://www.huawei.com/en/psirt/vul-response-process For vulnerability information, enterprise customers can visit the following web page: https://securitybulletin.huawei.com/enterprise/en/security-advisory Issue 02 (2024-03-14)
-
Page 4: Table Of Contents
Huawei OptiXstar EG8145X6-10 Quick Start for QR code Contents Contents 1 Placing the Device........................1 2 Connecting Cables........................4 3 Indicator Description......................7 4 Technical Specifications......................9 5 FAQs............................10 Issue 02 (2024-03-14) Copyright © Huawei Technologies Co., Ltd. -
Page 5: Placing The Device
● It is recommended that the computer and ONT be put far away from electric appliances that generate strong magnetic or electric fields, such as microwave ovens. Mounting an ONT on the desk The figure below shows an ONT that is horizontally placed on a desk. Issue 02 (2024-03-14) Copyright © Huawei Technologies Co., Ltd. - Page 6 Use a screwdriver to fasten the screws into the expansion bolts, reserving 5 mm ends out of the wall, and mount the ONT onto the screws. Issue 02 (2024-03-14) Copyright © Huawei Technologies Co., Ltd.
- Page 7 NO TE It is recommended that the screw be about 4 mm in diameter and longer than 20 mm. The screw head should be between 6 mm and 9 mm in diameter. Issue 02 (2024-03-14) Copyright © Huawei Technologies Co., Ltd.
-
Page 8: Connecting Cables
Huawei OptiXstar EG8145X6-10 Quick Start for QR code 2 Connecting Cables Connecting Cables Issue 02 (2024-03-14) Copyright © Huawei Technologies Co., Ltd. - Page 9 ● To ensure normal use of fibers, make sure that the fiber bending radius is larger than 30 Item Description On/Off Powers the ONT on or off. Power Connects to a power adapter. Connects to USB storage devices. Issue 02 (2024-03-14) Copyright © Huawei Technologies Co., Ltd.
- Page 10 NOTE Reset Huawei ONTs with caution. Otherwise, the ONTs may fail to access the Internet. If an ONT cannot access the Internet after a reset, contact your Internet service provider.
-
Page 11: Indicator Description
Data is being transmitted on the USB port. The system is not powered on or the USB port is not connected. WLAN Steady on The WLAN function is enabled. Blinking Data is being transmitted on the WLAN port. Issue 02 (2024-03-14) Copyright © Huawei Technologies Co., Ltd. - Page 12 Blinks once The hardware is faulty. every 2 every 2 seconds seconds NO TE If the ONT is not powered on or the power switch is turned off, all indicators are off. Issue 02 (2024-03-14) Copyright © Huawei Technologies Co., Ltd.
-
Page 13: Technical Specifications
Ambient humidity: 5%–95% (non-condensing) ● Dimensions (H x W x D): 35 mm x 155 mm x 105 mm ● Weight: About 246 g ● Maximum system power consumption: 12 W Issue 02 (2024-03-14) Copyright © Huawei Technologies Co., Ltd. -
Page 14: Faqs
● Wireless login Connect your mobile phone, pad, or PC to the Wi-Fi network of the Huawei ONT. Enter the IP address in the address box of a browser and press Enter. On the displayed login page, enter the username and password. - Page 15 ● Change the initial password after logging in to the web page for the first time. How do I change the Wi-Fi password? Log in to the Huawei ONT web page using your mobile phone, pad, or PC. For details, see "How do I log in to the Huawei ONT web page?"...
- Page 16 5 FAQs What can I do if I cannot connect to the Wi-Fi network? How to improve the Wi-Fi speed of a Huawei ONT? 1. Wi-Fi speed relies on the bandwidth provided by the ISP, so the simplest way is to upgrade to faster broadband.
- Page 17 How do I restore the Huawei ONT to factory setting? Press Reset by using a needle-type object for longer than 10s to restore factory defaults and reset the Huawei ONT. If the indicator is off and then is lit, the system restarts successfully.
