Kortel Design KUIK III User Manual page 52

Preparing your harness
Installation of the reserve parachute

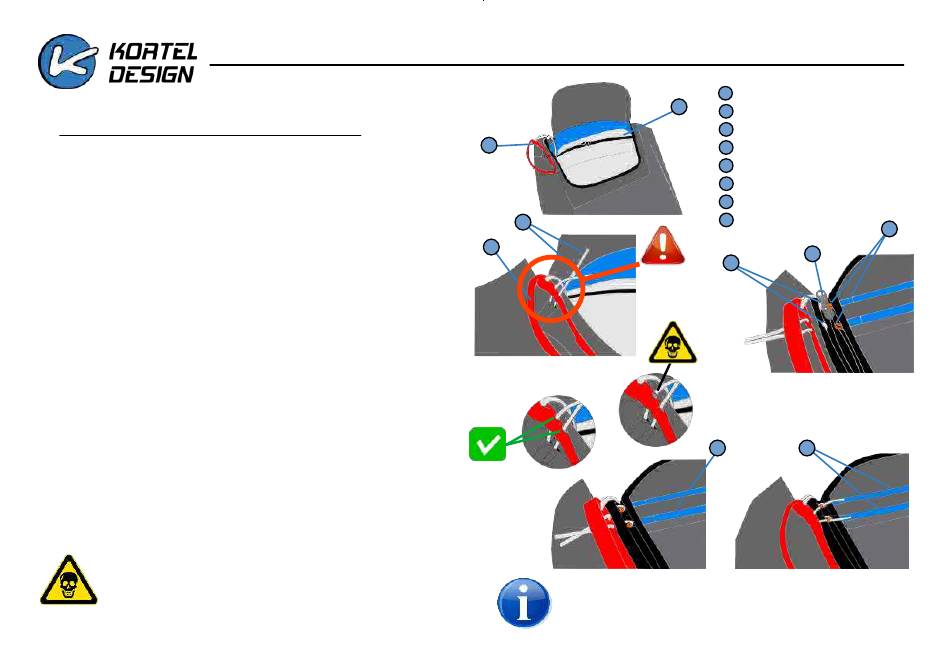

5 Place the parachute, and the rest of the risers, in the
container. Place the parachute so that the connection with the
handle is below and as close as possible to the location of the
handle (see drawing).
6 Insert the handle into its housing.
7 Insert the 2 needles on the container through the 2 holes on
the rescue handle. (Step 1)
8 Engage the zip closure. (Step 2)
9 Insert the 2 loops located on the handle side through the 2
loops located on the mobile flap of the container. It is
recommended to use a plastic rod for this operation. (Step 3)
10 Pass the 2 needles of the handle through the loops, and
insert them into their respective sheaths located on the
mobile flap of the container. The closing zip can now be fully
closed. (Step 4)
At the end of assembly, it is imperative to check scrupulously that At the end of assembly, it is imperative to check scrupulously that
no assembly tools are left in place (rod, hanger). This would no assembly tools are left in place (rod, hanger). This would
make it impossible to extract the parachute if necessary.
make it impossible to extract the parachute if necessary.
1
3
1
Step 1
Step 3
More detailed information is available at www.korteldesign.com. More detailed information is available at www.korteldesign.com.
52
KUIK III
Emergency handle
1
2 Emergency parachute
2
Closing needles
3
Slider of the closing zip
4
Loops "handle side".
5
"moving shutter" loops
6
Needle sleeves
7
Movable shutter
8
4
5
Step 2
8 7
Step 4
6
