SUSPENSION

General info

The compressed air is used to control the following:
1. The suspension of the machine
2. Ace pump

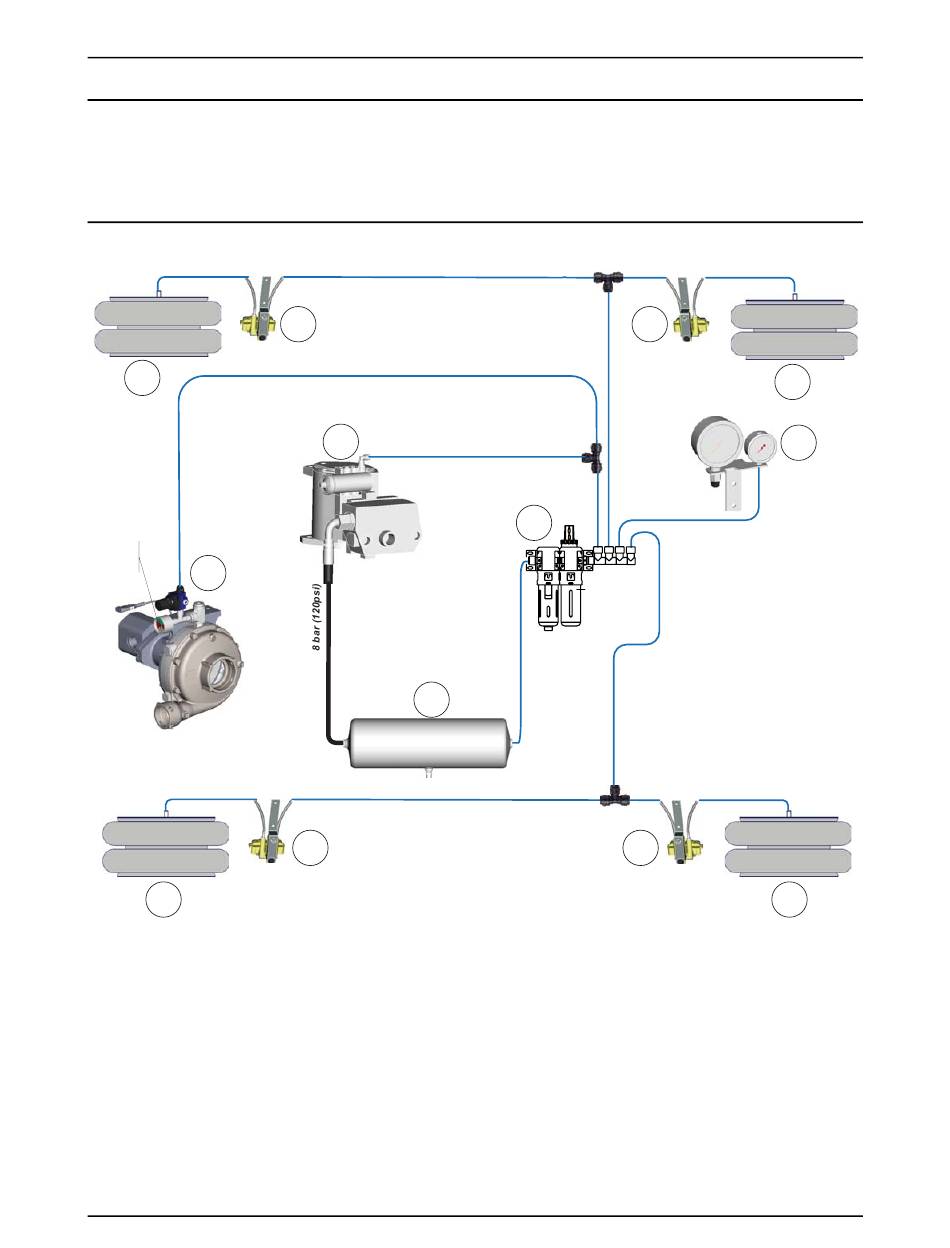

Air circuit diagram

5
2 bar
(30psi)
3
6
1 Air pressure limiting valve
2 Air tank
3 Air regulator
4 Air filter and lubricator
7
1
2
7
5 Front airbag suspension
6 Rear airbag suspension
7 Air height control leveling valve
8 Air pressure gauge
CHASSIS AND SUSPENSION
7
4
7
5
8
6
