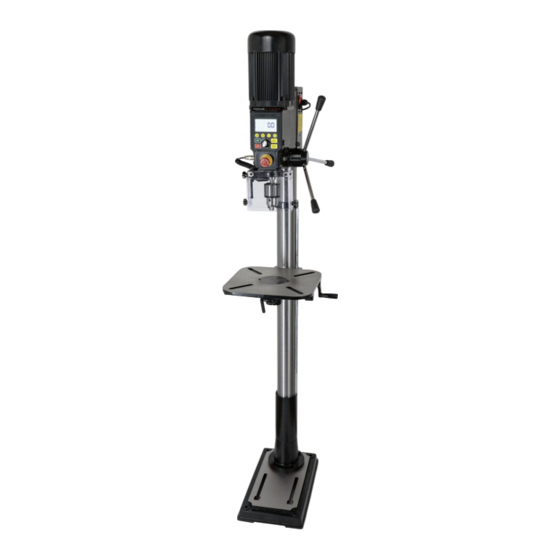

- Page 1 Viking DVR 16” Pillar drill (Bench and Floor Model) USER MANUAL Model: 83703 (EU bench model) Model: 83707 (EU-Floor model) 500-15-901, ENG Original user manual All rights reserved.
- Page 2 CONTACT Worldwide (except USA) Teknatool International Ltd. Telephone: (+64) 9 477 5600 E-Mail: service@teknatool.com Website: www.teknatool.com Europe Felder KG KR-Felder-Straße 1 A-6060 Hall in Tirol Austria Telefon: +43 (0) 5223 5850 0 E-Mail: info@felder-group.com Website: www.felder-group.com Original user manual...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 | Symbol legend .......................... 4 2 | Introduction ..........................4 3 | Copyright ..........................4 4 | Warranty............................ 4 5 | Intended use ..........................4 6 | Making changes and modifications to the machine ..............4 7 | Basic health and safety instructions for power tools .............. -
Page 4: Symbol Legend
2 | Introduction This manual contains instructions on safety, assembly, operation and maintenance, and spare parts lists. If you follow the recommendations in this manual, the NOVA VIKING DVR will provide you with years of trouble-free operation. 3 | Copyright This instruction manual is to be treated as confidential. -
Page 5: Basic Health And Safety Instructions For Power Tools
7 | Basic health and safety instructions for power tools Note: Failure to read and observe these operating instructions may result in serious injury. As with all machinery, operating a pillar drill can lead to dangerous situations. Careful use and handling can significantly reduce the risk of injury. -
Page 6: Health And Safety Instructions For Pillar Drills
g. If dust extractors and collectors can be attached, ensure these are connected and used properly. Using a dust extractor can reduce dust-related hazards. h. Do not let familiarity gained from frequent use of the power tool allow you to become careless and ignore tool safety principles. - Page 7 Inform yourself about the pillar drill before using it for the first time. If you are unfamiliar with the function of a pillar drill, get professional support. An instruction by an experienced and trained person is strongly recommended. Minimum age. The minimum age requirement of the operator of the machine is 16 years. Residual risks.
-
Page 8: Safety Devices
9 | Safety devices Safety devices serve to protect persons and material. Without intact safety devices serious injuries can occur. Danger! The pillar drill may only be operated with functioning safety devices. Switch off the machine immediately if you discover that a safety device is faulty or disassembled. All additional systems installed by the operator must be equipped with the prescribed safety devices. -
Page 9: Technical Data Of The Pillar Drill
Large, easy to read display. Switchable between inches and Display millimetres. Easy change of modes. Forward and reverse Suitable for left-handed drill bits. rotation For maximum flexibility. Electronic depth stop Automatically stops at the precise depth you have programmed. Self Start Enables one-handed drilling by automatically turning on and off. -
Page 10: Operation And Storage Conditions
12 | Operation and storage conditions Operating/room temperature +5° to +40°C Storage / transport temperature -25° to +55°C Humidity (non-wetting) 30 - 90 % 13 | Noise emissions Measurement in accordance with EN ISO 19085-1:2021 annex F: Measurement conditions / additional information according to EN ISO 19085-1:2021, appendix F with ISO 11202 for the emission noise pressure with accuracy level 3 and ISO 3744 for the acoustic power with accuracy level 3 Idle... -
Page 11: Pictograms, Signs And Labels
14 | Pictograms, signs and labels Number Description Fuse protection Warning instruction Control panel sticker Machine data plate Version 2024... -
Page 12: Transport Package Content
15 | Transport package content Number Description Order number Viking pillar drill body 8379001 ~ 8379008 Plinth 8379025 Work table 8379022 Table insert 8379024 Taper drift 8379067 Chuck key 8379069 Drill chuck 8379068 Chuck arbour (MT2 / B16) 8379078 Quill driving handle (3x) 8379044 Table arm clamping lever (2x) 8379064... -
Page 13: Assembling The Pillar Drill
16 | Assembling the pillar drill The NOVA Viking pillar drill comes with most parts pre-assembled. Power cable ATTENTION! The headstock is heavy and tends to tip over. The assembly should be carried out by two persons. Headstock Assembling the pillar drill to the base 1. - Page 14 Handles Screw the quill driving handles into the holes on the pinion shaft. Mounting the drill chuck and chuck arbour Insert the chuck arbour into the pillar drill quill. Attention: Make sure the arbour tongue is facing the correct direction. If the chuck arbour is installed correctly, it will remain in the pillar drill.
- Page 15 Attaching the table Take the pillar drill table out of the packaging and inspect all surfaces for damage (e.g. stains, rust, fractures and scratches). Insert the table into the table arm. Loosen the clamping lever if necessary. This lever is used to lock the table. Loosen this lever if the table cannot be inserted easily.
- Page 16 Tighten the main bolt first and then the grub screw to fix the position. After setting the table tilt, tighten the main bolt first. Then, tighten the grub screw. Attaching the chuck guard Take the chuck guard out of the packaging, peel off the protective film and inspect the component for defects. Slide the guard over the quill and lock it into Loosen the guard locking screw by place by tightening the guard locking screw...
-
Page 17: Connection To The Power
17 | Connection to the power Attention! • An improper power connection may result in an electric shock. • The unit must only be used in TN-Systems (neutral connected to earth). • To protect against electric shock, the operator must ensure that the machine is equipped with a protective device (residual current circuit breaker). -
Page 18: Installation Of The Pillar Drill
18 | Installation of the pillar drill Please note the following factors when selecting a location for your pillar drill in order to be able to use it in the best possible way: 1. Place the pillar drill near a power source and make sure that there is good lighting. Leave enough space around the machine in order to be able to swivel the table around. -
Page 19: Control Panel
19 | Control panel Controls Self Start Light Depth Setting Quick adjustment Automatic start Switching between Depth stop on / off forward and reverse Light (hold) rotation on / off Zero Confirmation Set new zero Start motor position Reset values in Accept selection selected menu Display / Cancel... - Page 20 Icon Description Number of spindle revolutions Power output percentage Light ON Display of the set depth Automatic drilling start Spindle in reverse direction Power output in % Revolutions per minute Display in millimetres Display in inches – whole number Display in inches - fraction Display of drilling progress with activated depth stop (optical and acoustic) Error warning Original user manual...
-
Page 21: Operating The Pillar Drill
20 | Operating the pillar drill Switching on This switch will light Connect to power source. up when the main power is turned on. Insert the plug into the socket and then turn on the pillar drill by switching the rocker switch to “I”. - Page 22 Stop Press the <OFF> button to stop the pillar drill. Emergency stop Press / hit the emergency stop button on the control panel to bring the pillar drill immediately to a complete halt. Emergency stop Switch Note: As long as the emergency stop button is pressed, the pillar drill cannot be restarted.
- Page 23 Adjusting the speed Turn the dial to adjust the pillar drill speed at any time. Turn the dial in the clockwise direction to increase the speed. Turn the dial in the anti-clockwise direction to decrease the speed. You can change the speed at any time. When the dial is turned, the screen will automatically Adjustment wheel display the current speed set.
- Page 24 Change of the measuring unit Three different measurement units can be displayed on the NOVA Viking screen: 1. Inches decimal value - rounded to 0.005” (default) 2. Inches fraction - 1/16 increments 3. Metric display - in millimetres Hold down the <Display / Cancel> button for 3 seconds until you hear a beep. After the beep, the displayed measurement unit will change.
- Page 25 Note: Switching between forward and reverse rotation is not possible while the motor of the pillar drill is running. The machine must be completely stationary to switch the direction. Zeroing / Referencing the depth stop This function will let the machine know where to start counting the depth from.
- Page 26 Lighting ON Lighting OFF Intermediate functions Depth stop Press the <Set Depth> button to activate the depth stop function. The depth stop icon will be blinking. Turn the dial to set the desired depth (in the currently selected unit). Turn the adjustment dial clockwise in order to set a deeper depth.
- Page 27 Note: Turn the dial for a fine adjustment. Press and turn the dial for a coarse adjustment. Confirm the drilling depth setting Cancel and return Once the desired depth is set, press the <Zero / Press the <Display / Cancel> button to cancel the Confirm>...
- Page 28 Quick set depth function This function provides a fast and precise method for setting the depth stop value. For this, extend the quill to the point at which you have reached the desired depth. Press and hold the <Set Depth> button for three seconds while holding the sleeve in position.
- Page 29 Electronic depth stop function Once the depth stop value is specified and saved, the electronic depth stop function is activated. This is also indicated by the highlighted depth stop icon on the screen. As the drill bit approaches the set value, the screen will start to blink and the machine will start to beep. The closer the drill bit gets to the set depth, the faster the beeping and the blinking.
- Page 30 Note: The self-start begins at approx. 7 mm from the top. This value is based on the absolute sensor readout value; therefore this threshold will not be affected by any depth value offset made by the user. With the self-start function activated, the pillar drill stops automatically when the quill extension is less than 6 mm.
- Page 31 Advanced functions Performing a factory reset Press and hold the <Self Start> button and briefly press the <OFF> button. Note: Do not release the <Self Start> button. Hold down the <Self Start> button for another 1-2 seconds and then release it. Press and Hold hold.
- Page 32 Changing the display bar settings Press and hold the < Light > button and briefly press the <OFF> button. Note: Do not release the <Light> button. Hold down the <Light> button for another 1-2 seconds and then release it. Press and Hold hold.
- Page 33 Extend the quill to the depth that is being displayed on the screen. Press the <Set Depth> button to calibrate the sensor at the specified depth. Unlocking the speed range to 5,000 revolutions per minute A maximum speed of 5,000 rpm can be selected for the NOVA Viking pillar drill (the default setting is 3,000 rpm). This speed is ideal for metal working purposes that require very high rotational speeds.
-
Page 34: Care And Maintenance
Hold down for another 1- 2 seconds. 22 | Care and maintenance Regular care and maintenance are essential for the long-term use of your pillar drill. Attention! Always disconnect the pillar drill from the power source before carrying out any maintenance procedure. -
Page 35: Putting Out Of Service
23 | Putting out of service Please observe the following notes when preparing for final decommissioning: • When decommissioning • Dispose of all parts of the machine in such machine, adhere to the applicable a way that health and environmental laws and regulations for disposal. -
Page 36: Recommended Speeds
24 | Recommended speeds The values in the table below are reference values. Depending on the material, tool and experience of the user, the actually needed speeds may vary. *Fields highlighted in red are not recommended areas* Material Hardwoo Glass / Tool diameter Softwood Acrylic... -
Page 37: Firmware Update
25 | Firmware update The HMI software plays an important role in the control and functionality of the NOVA Viking pillar drill. The firmware installed is responsible for controlling the features and performance of the pillar drill. A firmware upgrade is usually not necessary and should only be carried out in consultation with the manufacturer or dealer. - Page 38 USB mode In order to be able to update the firmware, the control panel must be in USB mode. 1. Turn off the pillar drill. 2. Download and install the software you received from the manufacturer or dealer on your computer. If you get an error message, make sure your anti-virus software is disabled.
-
Page 39: Troubleshooting
26 | Troubleshooting Mechanical issues Symptom Where to check? How to resolve? The attached tool 1. Inside of the spindle taper The solution depends on where the run-out is does not run true. 2. Tool, arbour tapers detected: 3. Chuck 4. - Page 40 Excessive vibration 1. Workpiece mounting: 1. Make sure that the workpiece is securely and during operation Check if the workpiece is firmly mounted to avoid vibrations. securely mounted. 2. Tighten all connecting screws. 2. Fixing the pillar drill to the base: Check if the column is 3.
-
Page 41: Guarantee Conditions
English). 27 | Guarantee conditions Teknatool grants an additional manufacturer's warranty on this product from the date of purchase: 5 years on mechanical parts (excluding labour hours after 2 years) and 2 years on electrical parts. If defects in material or workmanship occur during the intended use of the product, please contact your dealer. -
Page 42: Nova Viking Pillar Drill Parts List
28 | NOVA Viking pillar drill parts list Item Description Article No. Qty. Drive assembly 8379001 Machine housing for 16” 8379011 pillar drill 8379013 Machine housing cover Motor rubber seal 8379051 Stop pin TP0515 Spring base locking 8379035 screw Quill pin 8379045 NH10 Quill pin nut... - Page 43 Depth sensor 8379002 assembly Depth sensor 8379072 Depth sensor gear 8379048 Depth sensor mounting 8379049 block Depth sensor mounting C05016 screw Depth sensor cover 8379012 Flat cross head screw MPB0408 M4x8 Power supply 8379003 assembly Power supply cover 8379017 Main switch 8379060 Thermal circuit breaker 5668006...
- Page 44 Quill and spindle 8379005 assembly Quill 8379016 Spindle 8379015 Quill O-ring RW45 Deep groove ball 6205LLB bearing 6205, sealed Deep groove ball 6004LLB bearing 6004, sealed Retaining ring EC15 Chuck 8379068 Chuck arbour 8379019 Note: Items “7” and “8” are not part of the assembly. Control panel assembly 8379006 Control panel plastic...
- Page 45 Table assembly 8379007 Work table 8379022 Table arm 8379023 Table arm clamping lever 8379064 Elevation mechanism 8379079 clamping lever Hexagon screw M16 x 30 BNMZ16030 Table insert 8379024 Table arm locking screw SZ0820 Table arm locking nut M8 NH08 Aluminium scale, set 8379107 Column bracket handle SZ0608...
- Page 46 Base assembly (floor 8379110 model) Plinth 8379025 Column 8379054 Gear rack 8379052 Rack ring 8379038 Ring grub screw SZ0810 Washer 10 mm FW10 Spring washer 10mm SW10 Hexagon screw M10 x 35 BNMZ10035 Chuck key holder 8379102 Chuck key holder screw MPB0406 Original user manual...
- Page 47 Chuck guard assembly 8379010 Chuck guard mount 8379096 Polycarbonate (PC) guard 8339055 Guide for height 8339052 adjustment Chuck guard slide mount 8339053 Star knob screw 8339054 Mounting bracket 8339081 Locknut M4 NN04 Locknut M10 NN10 Washer 10 mm FW10 Fastening screw M4x8 MPB0412 Pivoting bolt 8379111...
-
Page 48: Nova Viking Wiring Diagram
29 | NOVA Viking wiring diagram Power supply 110-240V / 50-60Hz L brown (230V) or black (115V) N blue (230V) or white (115V) E green/yellow (230V) or green (115V) 6 pin connector to motor DVR control board 55448 12 pin connector 5 pin connector Control panel 8379009... -
Page 49: Using The Included Accessories
30 | Using the included accessories Taper drift Use the taper drift to knock out Morse tapered tools of the quill taper. Insert the taper drift into the hole (angled Extend the quill and turn it side facing down). by hand until the holes align. -
Page 50: Declaration Of Conformity
Distributor Felder KG KR-Felder-Straße 1 6060 Hall in Tirol Product designation NOVA VIKING DVR pillar drill Technical description model 15“ / 16“ / 18“ / 20“ / 22“ DVR Pillar drill Manufacturer Teknatool International Ltd. The following EC guidelines were applied:... - Page 51 Distributor Felder KG KR-Felder-Straße 1 6060 Hall in Tirol Product designation NOVA VIKING DVR pillar drill Technical description model 15“ / 16“ / 18“ / 20“ / 22“ DVR Pillar drill Manufacturer Teknatool International Ltd. The following EC guidelines were applied: S.I.
