CSI Controls CS1000 Installation Instructions

CS1000 Indoor Tank Alarm Installation Instructions
This alarm system monitors liquid levels in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural, and other
non-potable water applications.

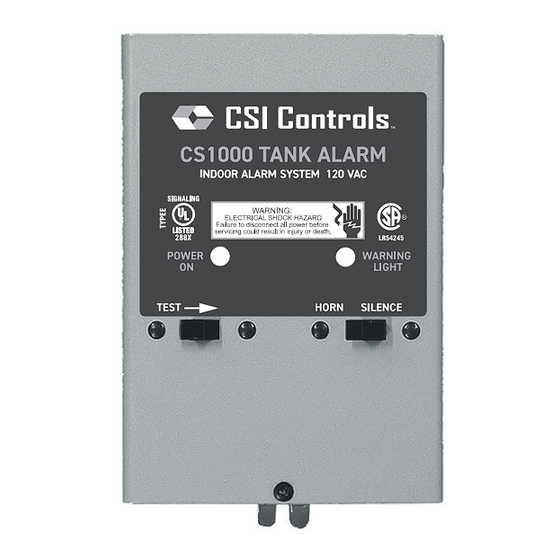

The CS1000 indoor tank alarm system can serve as a high or low level alarm depending on the float switch model used. The alarm
horn sounds when a potentially threatening liquid level condition occurs. The horn can be turned off, but the warning light remains on
until the condition is remedied. A green "power on" light indicates power to the alarm panel.
TANK ALARM
TEST
OPTIONS
When ordered with the alarm, this system is available with:
•
alternate float switch models for high or low level warning.
•
120 VAC primary voltage or 230 VAC primary voltage.
•
splice kit.
•
Periodically inspect the product. Check that the cable has not become worn or that the housing has not been damaged so as to impair the protection of the product. Replace
the product immediately if any damage is found or suspected.
•
Periodically check to see that the float is free to move and operate the switch.
•
®
Use only CSI Controls replacement parts.
•
120 VAC Model Voltage - (circuits not supervised) Primary: 120 VAC,
50/60 Hz, 5 watts maximum (alarm condition) Secondary: 12 VAC
230 VAC Model Voltage - (circuits not supervised) Primary: 230 VAC, 50/60 Hz, 5 watts
maximum (alarm condition) Secondary: 12 VAC
•
NEMA 1 enclosure rated for indoor use.
•
Red "warning light", green "power on" light, alarm test switch, and horn silence switch.
•
Alarm horn sounds at 86 decibels at 10 feet (3 meters).
•
6 foot (1.8 meter) power cord.
•
Can be used with any switching mechanism rated to include 1 amp, 12 VAC load.
•
Maximum line impedance for initiating device: 5 ohms.
•
Alarm system (when installed on separate circuit) operatates even if the pump circuit fails.
•
Complete package includes standard Sensor Float
cable (other lengths available) and mounting clamp.
•
Switching mechanism operates on low voltage and is isolated from the power line to reduce the
possibility of shock.
•
Five-year limited warranty.
PREVENTATIVE MAINTENANCE
CSI CONTROLS
Five-Year Limited Warranty.
For complete terms and conditions, please visit www.csicontrols.com.
® control switch with 15 feet (4.57 meters) of
FIVE-YEAR LIMITED WARRANTY
®
