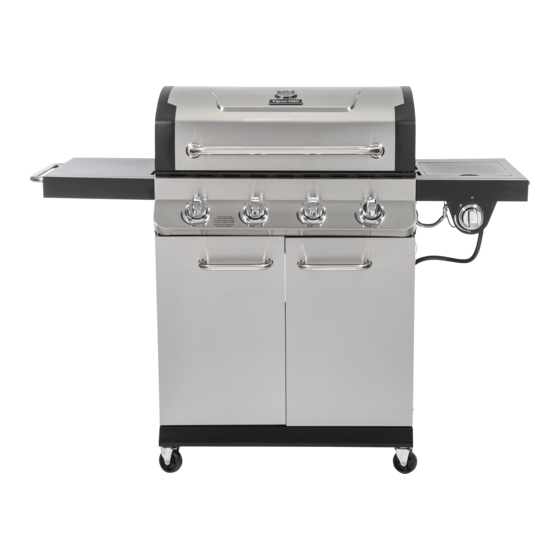

4 BURNER PREMIER GAS
GRILL WITH SIDE BURNER
Model #DGP483SSP / DGP483SSP-D /
DGP483CSP / DGP483CSP-D / DGP483GSP /
DGP483GSP-D / DGP483MSP / DGP483MSP-D
Purchase Date
1
Français p. 32
XX
Español p. 63
XX
Rev. 07/22/2021
Advertisement
Table of Contents
Related Manuals for Dyna-Glo DGP483SSP
Summary of Contents for Dyna-Glo DGP483SSP
- Page 1 4 BURNER PREMIER GAS GRILL WITH SIDE BURNER Model #DGP483SSP / DGP483SSP-D / DGP483CSP / DGP483CSP-D / DGP483GSP / DGP483GSP-D / DGP483MSP / DGP483MSP-D Français p. 32 Español p. 63 ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-447-4768, 8:00 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information..........................3 Package Contents ..........................5 Hardware Contents ........................... 6 Preparation ............................6 Assembly Instructions ........................7 Operation Instructions ........................18 Care and Maintenance ........................23 Troubleshooting ..........................26 Warranty ............................28 Replacement Parts List ........................29 Assembler/Installer: This manual contains important information necessary for the proper assembly and safe use of this appliance. -
Page 3: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at: 1-877-447-4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday. DANGER Do not use in an explosive atmosphere. - Page 4 SAFETY INFORMATION WARNING Do not place the grill under overhead combustible construction or awnings. Minimum clearance from sides and 36in back of unit to combustible construction, 36in 914.4mm 36 inches (914.4mm) from sides and 914.4mm back. NOTE: The installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural...
-
Page 5: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Hood Handle Bottom Panel Skirt Assembly Temp Gauge Cart Left Side Panel Assembly Grill Body Assembly Left Door Assembly Side Burner Rack Cylinder Blocking Bar Right Side Burner Body Assembly Heat Tent Side Burner Cooking Grate Right Side Burner Control Panel... -
Page 6: Hardware Contents
HARDWARE CONTENTS M6x16 M4x10 M6 Plain M6 Spring Bolt Bolt Washer Washer Wingnut Qty. 37 Qty. 2 Qty. 2 Qty. 2 Qty. 2 Wrench Qty. 1 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list on previous page and hardware contents above. -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Attach the two locking swivel casters (M) and the two non-locking swivel casters (N) to the cart left side panel assembly (P) and the cart right side panel assembly (L) with wrench (FF). Hardware Used Wrench Attach the cart left side panel assembly (P) and the cart right side panel assembly (L) to the cart bottom panel shelf (A1) with four M6x16 bolts (AA). - Page 8 ASSEMBLY INSTRUCTIONS Attach the upper front door brace (Y) to the cart left side panel assembly (P) and the cart right side panel assembly (L) with four M6x16 bolts (AA). Hardware Used M6x16 Bolt Attach the cart rear panel (Z) to the cart left side panel assembly (P) and the cart right side panel assembly (L) with the four M6x16 bolts (AA).
- Page 9 ASSEMBLY INSTRUCTIONS Insert the hook on the bottom panel skirt assembly (O) into the slot on the cart left side panel assembly (P) and the cart right side panel assembly (L) as shown. Attach the bottom panel skirt assembly (O) to the cart bottom shelf (A1), cart left side panel assembly (P) and the cart right side panel assembly (L) with four M6x16 bolts (AA).
- Page 10 ASSEMBLY INSTRUCTIONS Attach the door handle (J) to the left door as- sembly (Q) and the right door assembly (K) with four M6x16 bolts (AA). Hardware Used M6x16 Bolt Insert the bottom hinge pin of the cart bottom panel skirt(O) into the lower hole on the left door assembly (Q), then press the upper door spring hinge pin into the hole on the cart left side panel assembly (P) as shown.
- Page 11 ASSEMBLY INSTRUCTIONS Attach the hood handle (A) to the grill body assembly (C) with two M6 wing nuts (EE), two M6 spring washers (DD) and two M6 plain washers (CC). Hardware Used M6 Plain Washer M6 Spring Washer M6 Wingnut Remove pre-assembled wing nut and plain washer from the temp gauge (B), then attach the temp gauge (B) to the grill body assembly...
- Page 12 ASSEMBLY INSTRUCTIONS Carefully place the grill body (C) onto cart left side panel assembly (P) and cart right side panel assembly (L). Adjust the grill body (C) so that the holes in the grill body (C) are aligned with holes in the tabs of cart left side panel assembly (P) and cart right side panel assembly (L).
- Page 13 ASSEMBLY INSTRUCTIONS Attach the right side burner control panel (G) to the right side burner body assembly (E) with three M6x16 bolts (AA). Hardware Used M6x16 Bolt Insert two M6x16 bolts (AA) in right side of grill body (C) as shown, leaving 5mm of threads exposed.
- Page 14 ASSEMBLY INSTRUCTIONS Use two M4x10 bolts (BB) to assemble the side burner valve and the side burner control knob bezel (H) to the right side burner control panel (G). Assemble the ignition wire to the side burner electrode. Hardware Used M4x10 Bolt Disassemble two M4x10 bolts and two M4 washers that are pre-assembled on the side...
- Page 15 ASSEMBLY INSTRUCTIONS Put four heat tents (S) in place over each burner. Put two cooking grates (T) and one warming rack (U) in place.
- Page 16 ASSEMBLY INSTRUCTIONS Put the grease pan (W) and grease cup (X) into place. Assemble the five control knobs (I) to the valve stems.
- Page 17 ASSEMBLY INSTRUCTIONS Open the left door assembly (Q) and the right door assembly (K), insert the hose/regulator assembly into the cart assembly through the hole on the cart right side panel assembly (L). Place LP gas cylinder (sold separately) into the nesting hole located on the cart bottom shelf (A1).
-
Page 18: Operation Instructions
OPERATION INSTRUCTIONS CHECKING FOR LEAKS After all connections are made, check all connections and fittings on the LP gas tank valve, gas hose and regulator for leaks with a water and soap solution. To prevent fire or explosion while testing for a leak: •... - Page 19 OPERATION INSTRUCTIONS CONNECTING GAS CYLINDER The propane gas supply cylinder to be used must be constructed and marked in accordance with the Specifications for LP Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;...
- Page 20 OPERATION INSTRUCTIONS NOTE: Other cylinders may be acceptable for use with this appliance provided they are compatible with the appliance nesting hole and retention means. Refer to Step 19 of the Assembly Instructions for correct cylinder to cylinder holder connection. WARNING ALL INSTRUCTIONS AND SAFEGUARDS ON THIS PAGE MUST BE FOLLOWED TO PREVENT FIRE, DAMAGE AND/OR INJURY.
- Page 21 OPERATION INSTRUCTIONS Lighting The Grill Before first use: Remove all hangings or plastic straps, if present. Before you cook on your new gas grill, it is important to clean your grill with heat. To do this, operate the grill for approximately 15 minutes with the lid closed and the control knob in the highest position.
- Page 22 OPERATION INSTRUCTIONS LIGHTING THE GRILL WITH A MATCH 1. Open the lid. 2. Insert a match in the end of the match holder that is installed on the inside of the cabinet door. 3. Light the match. 4. Immediately place the lit match through the spaces in the grill gates near the ports of the burner between the heat tents as shown.
-
Page 23: Care And Maintenance
CARE AND MAINTENANCE Cooking Grates The best time to ‘burn-off’ the cooking grates is after every use (approx. 15 minutes). The grill is already hot from cooking thus requiring less fuel to obtain necessary temperature for ‘burn-off’. To ‘burn off’ or heat clean your grill, turn the burners to highest position and run for 15 minutes with the lid closed. - Page 24 CARE AND MAINTENANCE Burner Assembly Removing The Burner Assembly Warming Rack 1. Make sure all control knobs are in the OFF Cooking Grates position, gas supply valve is closed, and the gas hose is disconnected from the gas supply. Heat Tents 2.
- Page 25 CARE AND MAINTENANCE Cleaning the Burner Assembly – Make sure the grill is cool 1. Ensure all burner ports are clear of clogs. Use of a pin or paper clip works well. 2. Ensure burner is free of any damage. If damage is found, replace with new burner. 3.
-
Page 26: Troubleshooting
TROUBLESHOOTING If you have any questions regarding the product, please call customer service at 1-877-447-4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The burner will 1. The igniter electrode may be 1. Clean the ignitor electrode. not light using the covered with grease or residue. - Page 27 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The burner will not 1. Match not reaching burners 1. Use match holder found in light with a match. (when holding match with cabinet door. hand). 2. Empty tank. 2. Check fuel level and refill tank if necessary.
-
Page 28: Warranty
Niles, IL, USA 60714-3302 Item Name: 4 Burner Premier Gas Grill with Side Burner Model #: DGP483SSP / DGP483SSP-D / DGP483CSP/DGP483CSP-D / DGP483GSP / DGP483GSP-D / DGP483MSP / DGP483MSP-D Main burner total rated BTU: 48,000 BTU/Hr Side burner rated BTU: 12,000 BTU/Hr... -
Page 29: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday. PART DESCRIPTION PART # Temp gauge assembly 70-01-786 Badge 70-10-540 Hood handle 70-01-788 Warming rack 70-02-315 Cooking grate 70-02-316 Heat tent 70-01-791... - Page 30 Left side table front panel 70-01-796 Door handle 70-01-797 Cylinder blocking bar 70-02-317 Left door assembly - DGP483SSP-D / DGP483SSP - Stainless 70-02-318 Left door assembly - DGP483CSP-D / DGP483CSP - Black 70-02-319 Left door assembly - DGP483GSP-D / DGP483GSP - Gunmetal 70-02-320...
- Page 31 For replacement parts, call our customer service department at 1-877-447-4768, 8:00 a.m. – 4:30 p.m., CST, Monday – Friday. PART DESCRIPTION PART # Control Panel - DGP483SSP-D / DGP483SSP, DGP483GSP-D / DGP483GSP, DGP483MSP-D / 70-02-333 DGP483MSP - Stainless Control Panel - DGP483CSP-D / DGP483CSP - Black 70-02-334...
