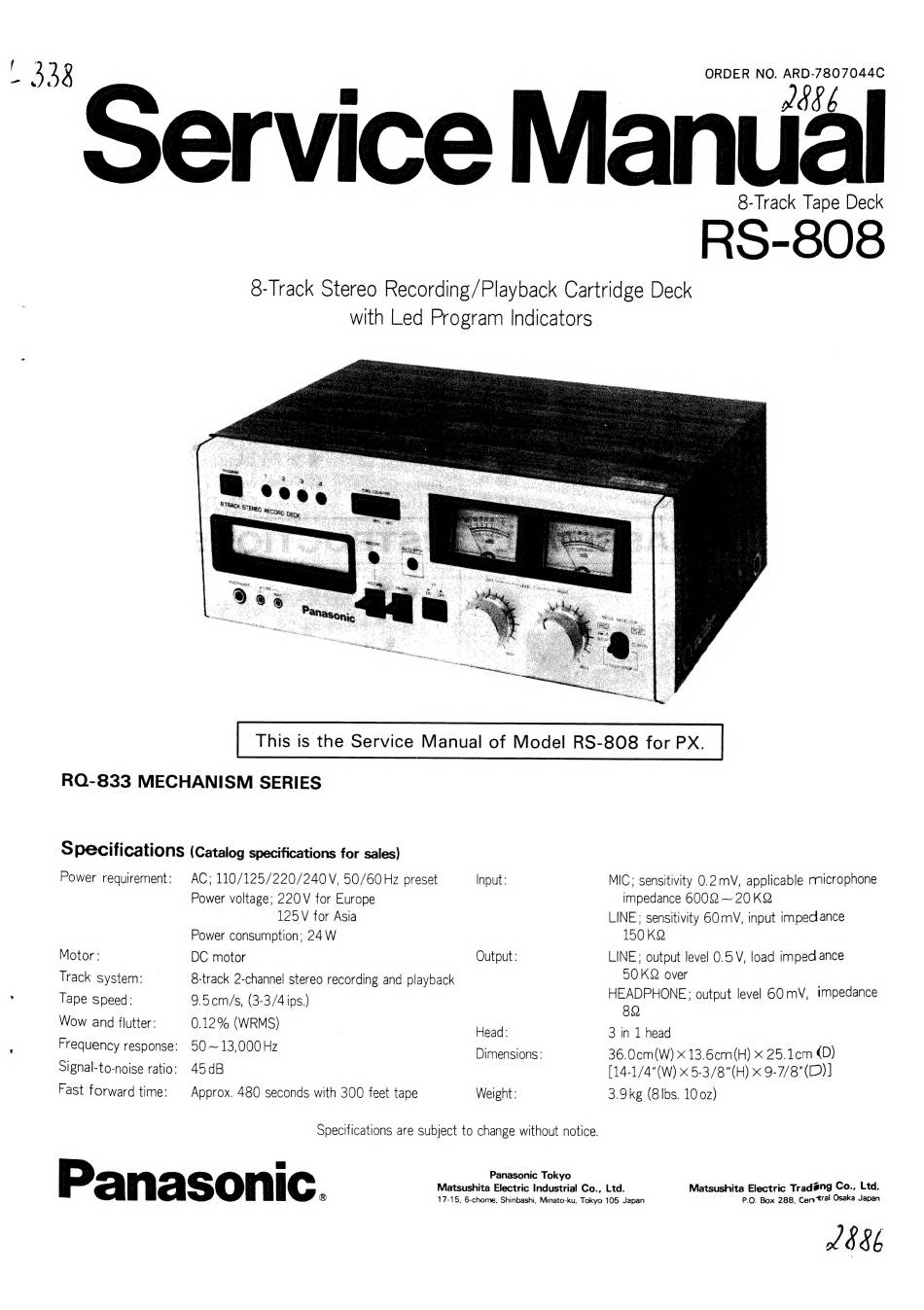

Panasonic RS-808 Service Manual

- 338
Service Manua
ORDER NO. ARD-7807044C
L886 :
8-Track Tape Deck
RS-808
8-Track Stereo Recording/Playback Cartridge Deck
with Led Program Indicators
This is the Service Manual of Model RS-808 for PX.
RQ-833 MECHANISM SERIES
Power requirement: AC; 110/125/220/240V, 50/60Hz preset Input:
Power voltage; 220 V for Europe
125V for Asia
Power consumption; 24 W
Motor: DC motor Output:
Track system:
8-track 2-channel stereo recording and playback
Tape speed: 9.5cm/s, (3-3/4 ips.)
Head:
; Frequency response:
50~13,000Hz
imensions:
Signal-to-noise ratio: 45dB
Fast forward time:
| Approx. 480 seconds with 300 feet tape
Weight:
Specifications are subject to change without notice.
MIC; sensitivity 0.2 mV, applicable microphone
impedance 6002 ~ 20 KQ
LINE; sensitivity 60 mV, input impedance
150 KQ
LINE; output level 0.5 V, load imped ance
50 KQ over
HEADPHONE; output level 60 mV, impedance
8Q
3 in 1 head
36.0cm(W) x 13.6cm(H) x 25.1¢em (D)
[14-1/4"(W) x 5-3/8"(H) x 9-7/8"(D)]
3.9kg (8lbs. 10 0z)
&
Panasonic Tokyo
anasoconic
Matsushita Electric Industrial Co., Ltd.
Matsushita Electric Trad#ng Co., Ltd.
® 17-15, 6-chome, Shinbashi, Minato-ku, Tokyo 105 Japan P.O. Box 288, Central Osaka Japan
L886
