Midea MAW Series User Manual

Midea MAW Series User Manual

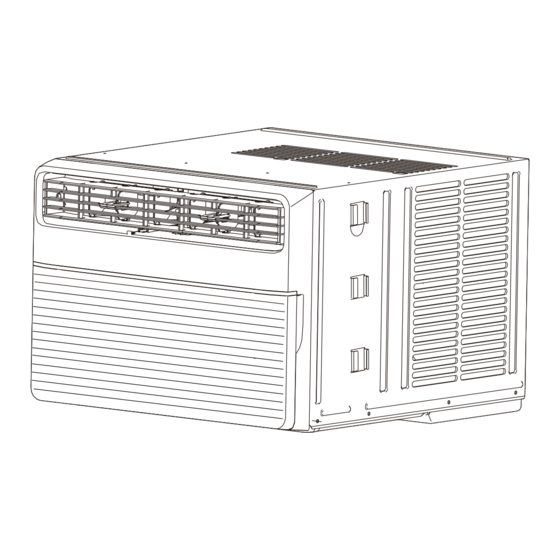

Window air conditioner
Hide thumbs Also See for MAW Series:
Table of Contents

Advertisement

Quick Links

Window Air Conditioner
MAW
USER MANUAL
MAW05M1YWT/MAW06R1YWT-S/
MAW08S1YWT/MAW10S1YWT
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAW Series and is the answer not in the manual?

Questions and answers

Related Manuals for Midea MAW Series

Summary of Contents for Midea MAW Series

  • Page 1 Window Air Conditioner USER MANUAL MAW05M1YWT/MAW06R1YWT-S/ MAW08S1YWT/MAW10S1YWT Warning notices: Before using this product, please read this manual carefully and keep it for future reference.

  • Page 2: Table Of Contents

    THANK YOU LETTER Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new air conditioner offers in a safe way.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Read Safety Precautions Before Operation and Installation To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage. CAUTION WARNING This symbol indicates the possibility...
  • Page 4 All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit. The unit's circuit board(PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.
  • Page 5 Electronic Work WARNING: BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE MAIN POWER TO THE SYSTEM. NOTE: The cographs are for DISPLAY explanation purpose only. Your machine may be slightly different. POWER MAIN The actual shape shall prevail. SUPPLY CONTROL CORD...
  • Page 6 CAUTION: Risk of re ammable materials Explanation of symbols displayed on the unit This symbol shows that the operation manual should be CAUTION read carefully. This symbol shows that a service personnel should be CAUTION handling this equipment with reference to the installation manual.
  • Page 7 1.Transport of equipment containing flammable refrigerants See transport regulations. 2.Marking of equipment using signs See local regulations. 3.Disposal of equipment using flammable refrigerants See national regulations. 4.Storage of equipment/appliances The storage of equipment should be in accordance with the manufacturer's instructions.
  • Page 8 8)Checks to the refrigerating equipment Where electrical components are being changed, they shall be fit for the purpose and to the correct specifications. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.
  • Page 9 9. Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans. 10.Detection of flammable refrigerants Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks.
  • Page 10 13.Decommissioning Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant.

  • Page 12: Product Installation

    PRODUCT INSTALLATION WARNING - Before You Begin Read these instructions completely and carefully. • IMPORTANT - Save these instructions. • IMPORTANT - Observe all governing codes and ordinances. We recommend that two people install this product. Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Limited Warranty.
  • Page 13 Tools You Will Need Phillips Screwdriver Level Flathead Screwdriver Pencil Ruler or tape measure Scissors or knife Drill and 1/8” drill bit Proper PPE Installation Hardware Mounting Hardware Top Rail Hardware 3/4” (1/2”) Screws 3/8” Screws Window Sash Seal Foam Top Rail Lock Frame NOTE...
  • Page 14 1. Prepare the Window Lower sash must open suffi ciently to allow a clear vertical opening (see dimension H in Table 1). Side louvers and the rear of the AC must have clear air space to allow enough airfl ow through the condenser for heat removal.
  • Page 15 3. Install Accordion Panels on Air Conditioner NOTE The Top rail and Sliding Panels on each side are offset to provide the proper pitch to the rear of the unit (5/16”). This is necessary for proper condensate management and drainage. If you are not using the Side Panels for any reason, this pitch to the rear must be maintained.
  • Page 16 4. Install Air Conditioner A. Keep a fi rm grip on the air conditioner, Fig. 5 Measure from the cabinet edge carefully place the unit into the window opening so the bottom of the air conditioner frame is against the window sill (Fig.
  • Page 17 B1: For wooden windows: Fig. 8A Drive 1/2” (12.7 mm) locking screws through the top rail and into the window sash (Fig. 8A). NOTE To prevent window sill from splitting, drill 1/8” (3mm) pilot holes before driving screws. Drive 1/2” (12.7mm) locking screws through frame holes into window sash (Fig.
  • Page 18 C. Secure lower sash in place by FOAM SEAL FOAM SEAL attaching the sash lock with the 3/4” (19 mm) or 1/2” (12.7 mm) screw as shown (Fig. 9). D. Cut Window sash seal foam and insert it in the space between the upper and lower sashes (Fig.

  • Page 19: Operation Instructions

    OPERATION INSTRUCTIONS Normal Sounds MAW05 Models Sound of Rushing Air High Pitched Chatter Trickling Sound In front of the unit, you may High effi ciency compressors may have a hear the sound of rushing high pitched sound during cooling cycle. Droplets of water air being moved by the fan.
  • Page 20 MAW08/10 Models High Pitched Chatter High effi ciency compressors may have a high pitched sound during cooling cycle. Sound of Rushing Air Trickling Sound In front of the unit, you may Droplets of water hear the sound of rushing hitting condenser air being moved by the fan.
  • Page 21 Air Conditioner Features (general) WARNING To reduce the risk of fi re, electrical shock, or injury to people or property, read the SAFETY PRECAUTIONS before operating this appliance. This air conditioner is designed to be operated under the following conditions: Outdoor temperature: 64°F ~ 109°F / 18°C ~ 43°C Cooling Operation Indoor temperature: 62°F ~ 90°F / 17°C ~ 32°C...
  • Page 22 Air Conditioner Features (MAW05M1YWT only) THERMOSTAT The thermostat is used to set the desired room temperature when the unit is being operated in the COOL MODE. To set the desired room temperature, rotate the thermostat switch to the desired setting. After the set temperature is achieved the thermostat will TEMP automatically start and stop the compressor in order to maintain the desired set temperature.
  • Page 23 Air Conditioner Features (MAW08S1YWT/MAW10S1YWT) ELECTRONIC CONTROL OPERATING INSTRUCTIONS Before you begin, thoroughly familiarize yourself with the control panel as shown below and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit control alone or with the remote.
  • Page 24 5. CHECK FILTER FEATURE: 9. TIMER: AUTO START/STOP FEATURE: The Clean Filter indicator light is a reminder to clean • When the unit is on, press the Timer button. The the air fi lter for more effi cient operation. The light “Timer off ”...

  • Page 25: Remote Control And App Instructions

    REMOTE CONTROL AND APP INSTRUCTIONS Handling the Remote Control Location of the remote control Use the remote controller within a distance of 26.2 ft (8 meters) from the air conditioner, pointing it towards the receiver. Reception is confirmed by a beep. CAUTION The air conditioner will not operate if curtains, •...
  • Page 26 Function Buttons TEMP  Decreases temperate TEMP  in1°F (1°C) increments. Increases temperate Min. temperature is in1°F (1°C) increments. 62°F(17°C). Max. temperature is ON/OFF 86°F(30°C). Turns the unit on or MODE Scrolls through operation modes as follows: AN SPEED AUTO COOL ...
  • Page 27 Remote Screen Indicators Information are displayed when the remote controller is power up. Mode display COOL AUTO AUTO HEAT COOL HIGH Displayed when data transmitted. Appears when the remote is enabled HEAT and can send a signal to the unit. If remote away from the unit and press the ON/OFF button.
  • Page 28 How to Use the Buttons TIMER OPERATION Press the TIMER button to initiate the Auto-start and Auto-stop setting program of the unit. AUTO HIGH COOL To set the Auto-start/stop time. Press the TIMER button, when the TIMER ON indicator is displayed on the LED window of the air conditioner, it indicates the Auto Start setting program is initiated.
  • Page 29 COMBINED TIMER (Setting both ON and OFF timers simultaneously) AUTO AUTO STOP >AUTO START HIGH COOL (On > Stop > Start operation) This feature is useful when you want to stop the air conditioner after you go to bed, and start it again in the morning when you wake up or when you return home.
  • Page 30 300 Kimball Dr Parsippany NJ 07054 Telephone number or internet contact information: Midea.com/us FCC Compliance Statement ( products subject to Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 31 OS may or may not be supported until a new version is released. Your specific mobile phone or problems in your network may prevent the system from working and Midea will not be responsible for any problems that could be caused by incompatibility or network issues.
  • Page 32 How to use SmartHome App (MAW08S1YWT and MAW10S1YWT only) Ensure that your mobile phone is connected to the wireless network. Bluetooth must be turned on. The device must also be powered up. Step 1: Download the SmartHome app Scan the QR code below to download the SmartHome app from app store or search for it directly on the Google Play Store or Apple's App Store.
  • Page 33 Step 3: Connecting the device 1) When you log in, you may see the message "Smart devices discovered nearby". Tap to add your device. 2) If no such message appears, proceed as follows: Tap on "+" and select your device in the list of nearby available devices.
  • Page 34 3) Follow the steps in the app to connect your device to the wireless network. If your device fails to connect, follow the additional instructions in the app. Add device Add device For Window AC For Portable AC Step 4: Controlling the device After pairing successfully, a card will be created for the device in the SmartHome app.
  • Page 35 How to use Matter (MAW08S1YWT and MAW10S1YWT only) Matter is a connectivity technology that unifies the smart home by allowing devices and ecosystems (such as Alexa, Google Home and Apple Home) to speak the same language thus creating exciting new features and use cases.
  • Page 36 Step 2: Turn on Bluetooth Turn on Bluetooth on your mobile device. Settings Bluetooth Bluetooth Step 3: Enter AP mode Window AC: Hold down the CONNECT / Power button for 3 seconds to begin the pairing process (“AP” will appear on the AC’s display). Portable AC: Hold down the SWING / Power button for 3 seconds to begin the pairing process (“AP”...
  • Page 37 Step 4: Open app Open the Alexa, Google Home, Apple Home app on your mobile device. Apple Home Google Home Alexa Step 5: Scan matter QR code Tap the “+” and “Add Device/Accessory” or tap "+Add" in your app and then select Matter device and scan the Matter QR code found on the side of the AC device.
  • Page 38 Step 6: Control device After pairing is successful, you can control your AC’s temperature and mode settings, etc. through the respective ecosystem app and smart speaker. Due to a compatibility issue, the temperature value shown in the Alexa, Google Home or Apple Home impact the device's ability to cool the room.
  • Page 39 App & Smart Speakers can support Matter only when using these versions or above. Device Version iPhone iOS 16.5 Apple Home 16.5 Google Play services min version: 22.36.15 Android Google Home app (GHA) min version: 2.58.24.1-dogfood Google Google Hub firmware min version: 1.56.324896 Home Hub (appears on hub as Chromecast firmware version) Alexa App...
  • Page 40 Declaration of conformity FCC ID: 2ADQOMDNA23 IC: 12575A-MDNA23 This device complies with Part 15 of the FCC Rules and Industry Canada’s licenceexempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference;and (2) This device must acceptany interference,including interference that may cause undesired operation of the device.

  • Page 41: Cleaning And Maintenance

    CLEANING AND MAINTENANCE CAUTION Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or  re hazards. Air Filter Cleaning MAW05 Models Only The air  lter should be checked at least once every two weeks to see if cleaning is necessary.

  • Page 42: Troubleshooting Tips

    TROUBLESHOOTING TIPS Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Solution Wall plug disconnected. Push plug  rmly into wall outlet. Circuit breaker tripped.
  • Page 43 Problem Solution Dirty air  lter - air restricted. Clean air  lter. Air conditioner turns on and off Outside temperature extremely hot. Set FAN speed to a higher setting to rapidly. bring air past cooling coils more frequently. Check for potential obstructions blocking the outdoor intake/exhaust. Clear any obstructions.
  • Page 48 CWS002IU-TYN8(GF) 16120300A31764 20231221...
