Summary of Contents for Roma Medical Shoprider Sovereign S-888NR

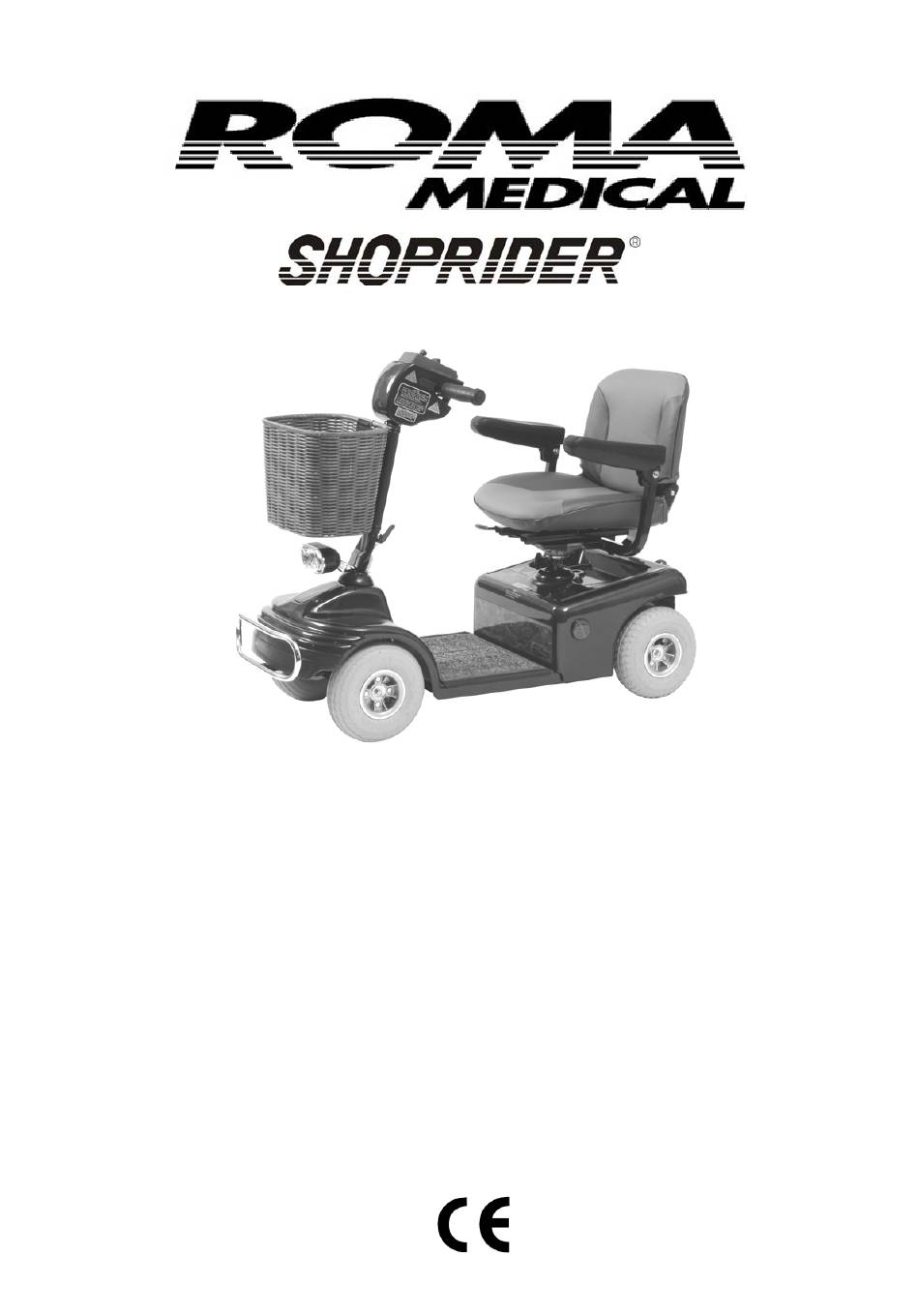

- Page 1 Sovereign Model: S-888NR & S-778NR USER MANUAL Please ensure that this manual is read and understood before using the scooter. May 2010...
-
Page 2: Table Of Contents
Contents Page Introduction Intended Use Technical Specification Feature Guide Safety Advice Adjustments • Tiller angle • Seat swivel / removal • Arm width adjustment • Arm angle adjustment • Seat height adjustment Tiller Controls Brake Release / Freewheel Operation Starting to Drive •... -
Page 3: Introduction

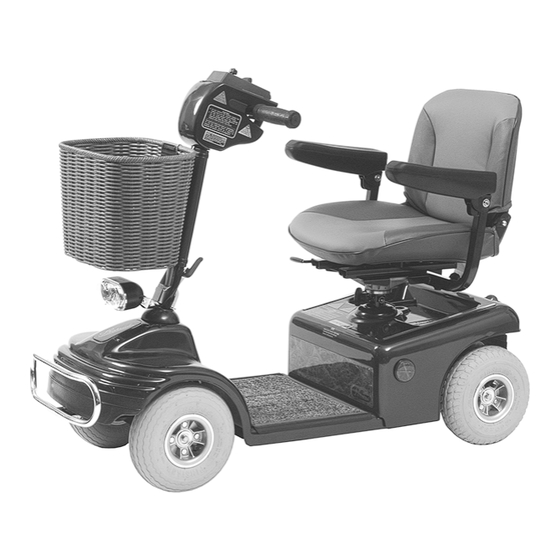

Introduction Congratulations on your purchase of the RMA Sovereign scooter. This scooter incorporates comfort and style with the latest in technology. The RMA Sovereign can be used in confined spaces both indoors and out. Direct drive rear transaxles and electromagnetic brakes give a safe and efficient ride. The scooter can be easily disassembled without tools and will fit into the boot of most vehicles for easy transport. - Page 4 Feature Guide Sovereign 4 1. Tiller control head 2. Detachable padded swivel seat with fold down back 3. Head light 4. Tiller angle adjustment lever (5 position) 5. Chrome front bumper 6. Pneumatic wheels with non-marking tyres 7. Anti-tip wheels...
-
Page 5: Feature Guide
Feature Guide Sovereign 3 1. Tiller control head 2. Detachable padded swivel seat with fold down back 3. Head light 4. Tiller angle adjustment lever (5 position) 5. Pneumatic wheels with non-marking tyres 6. Anti-tip wheels Specifications as Sovereign 4 except:- Overall Length 1150mm Maximum Height... -
Page 6: Safety Advice
Safety Advice • Read this manual carefully before using your scooter • Turn the power off when transferring to and from the scooter • Select a slow speed when going down gradients (max 8°) or over uneven ground • Keep your feet on the scooter whilst driving •... -
Page 7: Adjustments
Adjustments Fig 1 Tiller Angle Adjustment (Fig. 1) On the left hand side at the base of the tiller is a red adjustment lever. Push the lever in to release the pin and select the required tiller angle. Release the lever to re-locate the pin into one of the five angle positions. -
Page 8: Arm Angle Adjustment
Continued….. Armrest Angle Adjustment (Fig. 3) Flip up the armrests to allow access to the adjustment screw and locknut. Unscrew the locknut and screw the bolt in or out to achieve the desired angle and re-tighten the locknut. The scooter will be delivered with the arms parallel to the floor. -
Page 9: Tiller Controls
Tiller Controls (Fig. 5) Fig 5 Speed Control Charging Socket Battery Level Indicator On/Off Key Switch Horn Button Light Switch Thumb Lever Controls Thumb Lever Controls The thumb lever controls the reverse and forward motion of the scooter. Pressing the right lever will drive the scooter forward, pushing the left lever will reverse the scooter. -
Page 10: Brake Release / Freewheel Operation
Continued….. On/Off Key Switch Insert the key supplied with the scooter and turn clockwise. The battery gauge needle will move. There may be a slight delay before the thumb levers operate as the controller checks the scooters circuits. Never leave the key in the switch unattended to prevent unauthorised use. -
Page 11: Starting To Drive
Continued….. Caution! Never leave the scooter unattended whilst in freewheel mode as it will roll away down an incline. ‘Freewheel’ mode should only be used in an emergency to move the scooter due to power failure. NEVER move the scooter in this mode whilst it is occupied. Starting to Drive Getting Started Note: You must fully charge the batteries prior to first use (see ‘Batteries... -
Page 12: Ramps / Slopes
Continued… Ramps / Slopes The stability of your scooter depends on several factors such as seat height, angle of gradient and the users height and weight. When approaching an incline, do so directly (Fig. 8) and not at an angle (Fig. 9) and avoid making turns where possible. -
Page 13: Batteries And Battery Charger
Continued….. The RMA Sovereign is now separated into components for easy transportation or storage. Assembly is the reverse of the procedure. Batteries and Battery Chargers Batteries The Sovereign is supplied with two maintenance free, sealed lead acid AGM batteries. These are fitted under the seat on the scooter. Low temperatures, rough terrain and the weight of the user can affect Battery performance. -
Page 14: Maintenance 13
Continued….. Disposing and recycling of used batteries Batteries must always be recycled correctly. Do not dispose of them with your domestic refuge. For further information regarding your nearest recycling facility please contact your local authority. Maintenance Cleaning the Scooter When cleaning the scooter please pay attention to the following points: •... -
Page 15: Troubleshooting
Continued….. Wheels and Tyres The wheels of your scooter have split rims. This allows any punctures to be repaired easily. To change the wheels, remove the centre bolt and slide the wheel off its axle. Ensure that when refitting the wheel the retaining nut is fitted with a locking washer or the screw threads are treated with ‘Loc-tite’... -
Page 16: Check List
Continued….. Check List If your scooter fails to operate, please check the following: • The unit is switched on. • All plugs and connections are firmly fixed. • Battery level shows full charge. • Freewheeling device is in the drive position (See Fig. 7). •... - Page 17 Continued….. Product Stability Scooters and powered wheelchairs are designed to allow the user flexibility of movement in restricted areas. Driving at maximum speed and attempting sharp turns can create a situation where the product becomes unstable. Therefore it is essential that the user pay attention the guidance set out in this manual.
- Page 18 Continued….. Emergency Procedures Should your scooter behave erratically or become unresponsive whilst driving, release the wig-wag lever so it may return to it’s neutral position and switch off the power at the key / switch. These procedures will stop the scooter and activate the braking system, preventing any further uncontrolled manoeuvres.
- Page 19 Notes...
- Page 20 The Dealer from where the product was purchased is responsible for any warranty repairs. Roma Medical warrants that if a fault occurs within this period due to faulty workmanship or materials that the product will be repaired (or replaced at the Companys discretion) free of charge.
