Installation I.S 813 Current Edition Section 7-
Permitted Locations of Appliance.
3.3 Gas Connection
WARNING!
Any gas installation must be carried out
by a GAS SAFE REGISTER installer.
Make sure that, once the hob is installed, it is
easily accessible for the engineer in the event
of a breakdown.
The manufacturer will not accept liability,
should the above instructions or any of the
other safety instructions incorporated in this
instruction booklet be ignored.

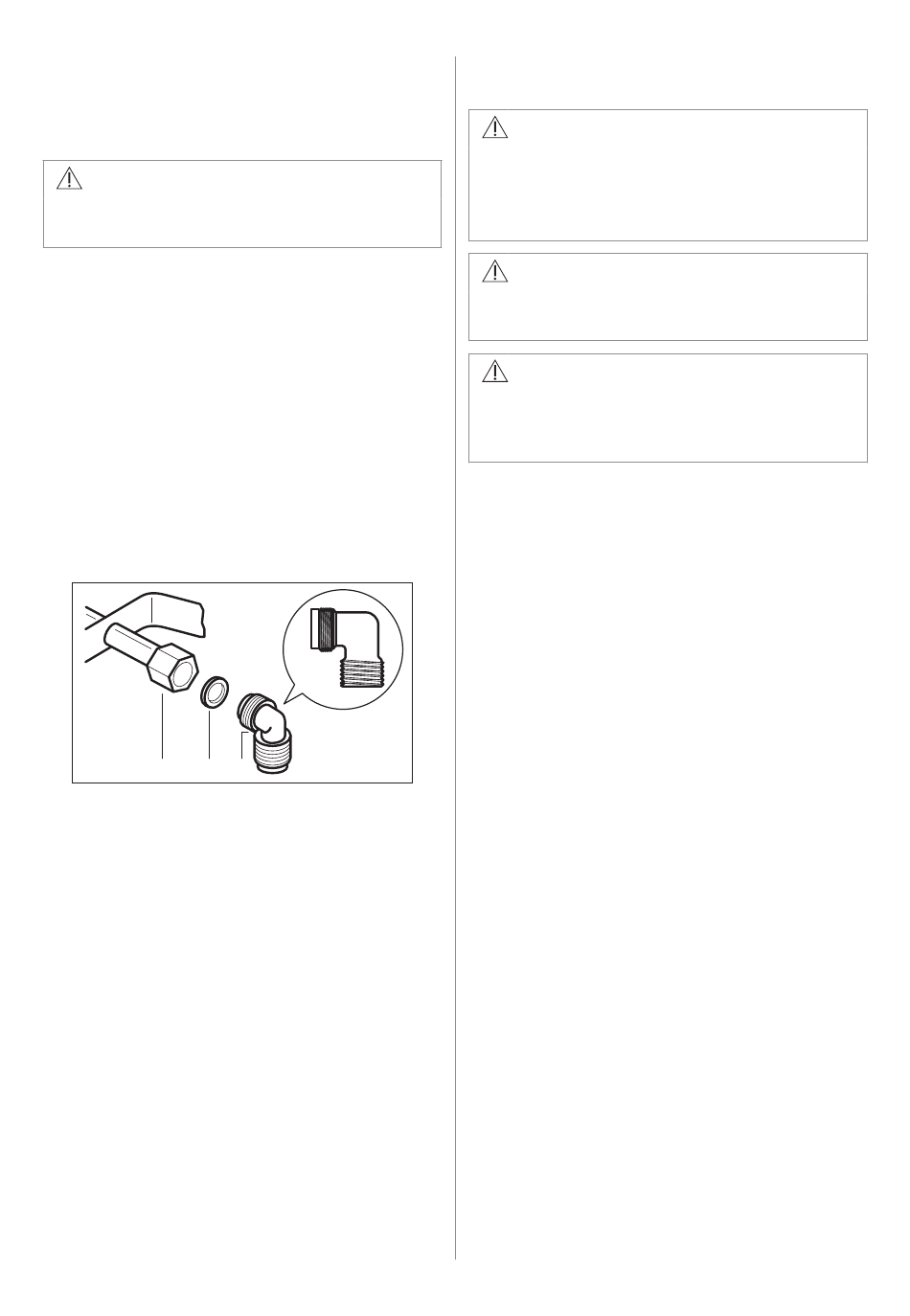

On the end of the shaft, which includes the G
1/2" threaded elbow, adjustment is fixed so
that the washer is fitted between the
components as shown in the diagram. Screw
the parts together without using excessive
force.
A B C
A. End of shaft with nut
B. Washer supplied with the appliance
C. Elbow supplied with the appliance
Connection to the gas supply should be with
either rigid or semi-rigid pipe, i.e. steel or
copper.
The connection should be suitable for
connecting to R 1/2 (1/2 BSP male thread).
When the final connection has been made, it
is essential that a thorough leak test is carried
out on the hob and installation.
Make sure that the main connection pipe
does not exert any strain on the hob.
If you use flexible metal pipes make sure that
they agree to ISO 10380 and ISO 10807
standards. Be careful they do not come in
touch with mobile parts or they are not
8 ENGLISH
1/2
1/2
squeezed. Also be careful when the hob is
put together with an oven.
CAUTION!
It is important to install the elbow
correctly, with the shoulder on the end of
the thread, fitted to the hob connecting
pipe.
CAUTION!
Failure to ensure the correct assembly
will cause leakage of gas.
CAUTION!
Make sure that the gas supply pressure
of the appliance obeys the recommended
values.
Rigid connection:
Carry out connection by using metal rigid
pipes (copper with mechanical end).
3.4 Injectors replacement
1. Remove the pan supports.
2. Remove the caps and crowns of the
burner.
3. With a socket spanner 7 remove the
injectors and replace them with the ones
which are necessary for the type of gas
you use (see table in "Technical Data"
chapter).
4. Assemble the parts, follow the same
procedure backwards.
5. Attach the label with the new type of gas
supply near the gas supply pipe. You can
find this label in the package supplied
with the appliance.
If the supply gas pressure is changeable or
different from the necessary pressure, you
must fit an applicable pressure adjuster on
the gas supply pipe.
3.5 Adjustment of minimum level
To adjust the minimum level of the burners:
1. Light the burner.
2. Turn the knob on the minimum position.
3. Remove the knob, the washer and the
gasket.
