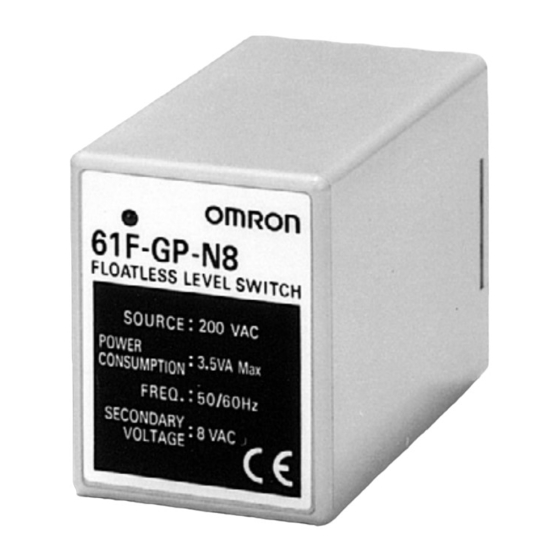

Conductive Level Controller
61F-GP-N8
Compact Plug-in Level Controllers for Single
or Two-point Level Control of Conductive
Materials (Liquids and Solids)
• Wide range of models: long-distance, high and low-sensitivity,
and two-wired types available.
• 24/100/110/120/200/220/230/240 VAC operation possible.
• Easy installation on DIN track.
• Low-voltage (AC) electrodes.
• Red LED operation indicator provided.
• Conforms to EMC and LVD Directives.
• UL/CSA approved.
Model Number Structure
■ Model Number Legend
61F-GP-N8@
1
2
3
1. Plug-in Type
2. Compact 8-pin Type
Ordering Information
■ List of Models
Application
General-purpose type
Long-distance type
2 km
4 km
High-sensitivity type
Low-sensitivity type
Two-wired type
3. Applications
Model number
61F-GP-N8
61F-GP-N8L 2KM
61F-GP-N8L 4KM
61F-GP-N8H
61F-GP-N8D
61F-GP-N8R
Conductive Level Controller
None: General-purpose type
L:
Long-distance type
H:
High-sensitivity type (reverse acting)
HY:
High-sensitivity type (standard acting)
D:
Low-sensitivity type
R:
Two-wired type
61F-GP-N8
E-5
