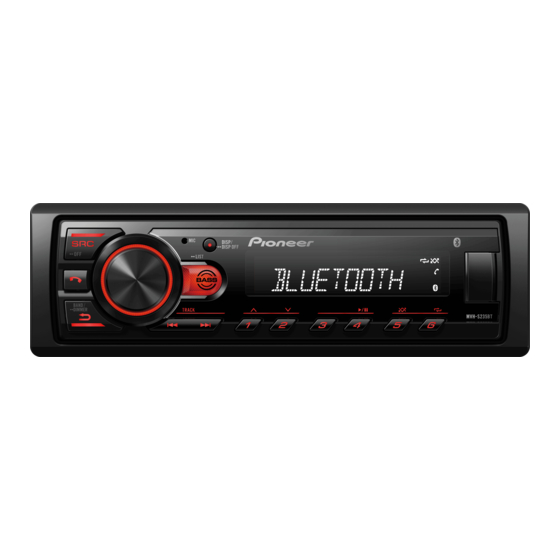

- Page 1 DIGITAL MEDIA RECEIVER MVH-S235BT Operation Manual...
-
Page 2: Table Of Contents
Table of Contents Getting Started ..................3 Radio ......................6 USB ......................7 Bluetooth® ....................9 Settings ....................12 FUNCTION settings ................12 AUDIO settings ..................13 SYSTEM settings ..................14 Additional Information ............... 16 About this manual: • In the following instructions, a USB memory or USB audio player are referred to as “USB device”. -
Page 3: Getting Started
Getting Started Basic operation M.C. (multi-control) dial DISP (display)/DISP OFF USB port SRC (source)/OFF Microphone BASS BAND/DIMMER Display window Frequently used operations Purpose Operation Turn on the power* Press SRC/OFF. Turn off the power* Press and hold SRC/OFF. Adjust the volume Turn the M.C. - Page 4 Purpose Operation Boost the bass level Press BASS. • You can select the bass level in [BASS BOOST] (page 14). Search for a file from the list Press and hold BASS to display a list. * When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on.
- Page 5 Menu Item Description AM STEP Select the AM tuning step from 10 kHz or 9 kHz. [10], [9] [QUIT :YES] appears when all the settings have been made. To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm.
-
Page 6: Radio
Menu Item Description SP-P/O MODE Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the [REAR/SUB.W] RCA output. [SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output. -
Page 7: Usb
To store stations manually While receiving the station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing. Receiving preset stations Press SRC/OFF to select [RADIO]. Press BAND/DIMMER to select the band from [FM1], [FM2], [FM3] or [AM]. Press a number button (1/ to 6/ buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the... - Page 8 Listening to music on Android This function is compatible with devices that have Android OS 5.0 or later (up to Android 7.x)* installed and also support AOA (Android Open Accessory) 2.0. * AOA 2.0 does not support Android OS 8.0 or later. Press SRC/OFF to select [USB].
-
Page 9: Bluetooth
Bluetooth® Bluetooth connection Turn on the Bluetooth function of the device. If you make a Bluetooth connection from the device, proceed to step 6. Press to display the phone menu. Turn the M.C. dial to select [BLUETOOTH:SET], then press to confirm. Turn the M.C. - Page 10 Menu Item Description BLUETOOTH:CON Display the paired Bluetooth devices. “*” appears on the device name when the Bluetooth connection is established. [ON], [OFF] ADD DEVICE Register a new device. A.CONN Select [ON] to connect to a Bluetooth device automatically. [ON], [OFF] VISIBLE Select [ON] so that a Bluetooth device can detect the unit.
- Page 11 Purpose Operation Cancel a caller on hold Press and hold Adjust the volume of the caller’s Turn the M.C. dial during the call. voice (When private mode is on, this function is not available.) Turn the private mode on or off Press BAND/DIMMER/ during the call.
-
Page 12: Settings
Purpose Operation Fast forward or reverse Press and hold Select a track Press Repeat play* Press 6/ Random play* Press 5/ Pause/resume playback Press 4/ 1 Press and hold BASS to display a list. Search for a file from a list* 2 Turn the M.C. -
Page 13: Audio Settings
Menu Item Description SEEK [MAN], [PCH] Assign buttons to seek the stations one by one (manual tuning) or select a station from the preset channels. BLUETOOTH AUDIO PLAY Start playback. BLUETOOTH AUDIO STOP Stop playback. AUDIO settings Menu Item Description FADER*1 Adjust the front and rear speaker balance. -
Page 14: System Settings
Menu Item Description SUB.W CTRL*2*3 Cut-off frequency: [50HZ], Only frequencies lower than those in the [63HZ], [80HZ], [100HZ], [125HZ], selected range are output from the subwoofer. [160HZ], [200HZ] Output level: [–24] to [+6] Slope level: [–12], [–24] BASS BOOST [0] to [+6] Select the bass boost level. - Page 15 Select [WITH ADAPTER] or [LEARNING] according [WITH ADAPTER], [LEARNING], to your wired remote control. [ALL CLEAR] Please use a PIONEER wiring harness for each car model when [WITH ADAPTER] mode is engaged, otherwise select [LEARNING]. By using the [LEARNING] function, you can select and register a function to each key on the car’s steering...
-
Page 16: Additional Information
ON again. If the message remains, – Select the repeat play range again. contact your dealer or an authorized Pioneer Service Station for assistance. A subfolder is not played back. → Subfolders cannot be played when NO XXXX (NO TITLE, for example) [FLD] (folder repeat) is selected. - Page 17 – Format the USB device with FAT12, SKIPPED FAT16 or FAT32. → The connected USB device contains DRM protected files. Bluetooth device – The protected files are skipped. ERROR-10 PROTECT → The power failed for the Bluetooth → All the files on the connected USB module of the unit.
- Page 18 16 kHz to 48 kHz hierarchies. (LPCM) CAUTION FLAC files • Pioneer cannot guarantee compatibility • FLAC files may not be playable, with all USB mass storage devices, and depending on the encoder. assumes no responsibility for any loss of...
- Page 19 FITNESS FOR A PARTICULAR PURPOSE ARE registered trademarks owned by Bluetooth SIG, DISCLAIMED. IN NO EVENT SHALL THE Inc. and any use of such marks by Pioneer FOUNDATION OR CONTRIBUTORS BE Corporation is under license. Other trademarks LIABLE FOR ANY DIRECT, INDIRECT,...
- Page 20 Grounding system: Negative type MP3 decoding format: MPEG-1 & 2 Audio Maximum current consumption: 10.0 A Layer 3 Dimensions (W × H × D): WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2 (2 ch audio) Chassis: 178 mm × 50 mm × 97 mm FLAC decoding format: v1.3.0 (Free Nose: 188 mm ×...
- Page 21 Pioneer (HK) Ltd. Pioneer (HK) Ltd. Pioneer India Electronics Pvt. Ltd. https://pioneer-india.in/ <Latin> https://pioneer-latin.com/ Pioneer International Latin America, S.A. http://www.pioneer-mexico.com.mx/ Pioneer Electronics de México S.A. de C.V. <Russia> https://www.pioneer-rus.ru/ Pioneer RUS Limited Liability Company © 2024 PIONEER CORPORATION <OPM_MVHS235BTGS_EG_A> GS...
