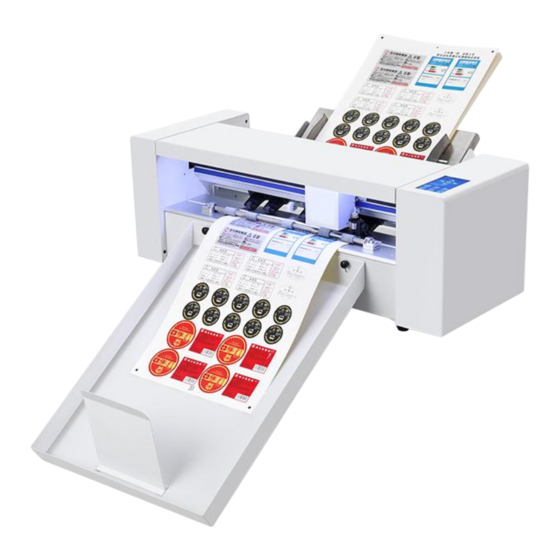

- Page 1 Sheet cutter SF-C350 Fully Automatic Digital Cutter https://sunfung-tech.com Sunfung Technology Corporation Ltd...
-
Page 2: Table Of Contents
1. Thank you for choosing the Sunfung series fully automatic single-sheet digital cutter. Preface To ensure the best performance of the machine, please read this manual carefully before operating it. 2. Although we have tried our best to provide the most detailed information, if you find anything unclear or inaccurate, or if you have any suggestions or comments, please contact us or our distribution network. -
Page 3: Table Of Contents
Table of Contents Preface --------------------------------------------------------------------------------------------- Page 01 Assembly of the machine ---------------------------------------------------------------------- Page 03 Chapter 1 Product Technical Parameters --------------------------------------------------- Page 06 Chapter 2 About the Touch Panel ------------------------------------------------------------ Page 07 2.1 Detailed Functions -------------------------------------------------------------- Page 07-29 Chapter 3 How to Install the Machine Output Plug-in ------------------------------- Page 30-38 3.1 How to Install AIDCut-LABEL-V5.0.5 ---------------------------------------- Page 30-37 3.2 Plug-in Icon Details ------------------------------------------------------------------ Page 38 Chapter 4 How to Operate the Machine ----------------------------------------------------- Page 39... -
Page 4: Assembly Of The Machine
Assembly of the Machine Notice: Please assemble in a clean environment. Avoid direct sunlight. Use a power source with the correct voltage specifications. Ensure that there is sufficient space around the machine. Do not use thinner. ... - Page 5 Assembly procedure： 1.Please take the machine out of the carton, and place it on the table, cut off the fixing cable ties of the cutting head and the fixing foams of the knife holder. Let the press wheels correspond one by one to the steel wheels. 2.
- Page 6 3. Finally, install the part of the Catch tray, fix three M5 screws, and clamp on the board. 4. The machine is assembled, as below.
-
Page 7: Chapter 1 Product Technical Parameters
Chapter 1 Technical Parameters SF-C350 (Step motor) Model Max sheet size 350mm*500mm Max cutting size 340mm*490mm Min cutting size 180mm*200mm Downforce 10-500G 800mm/s Max cutting speed Cutting materials Sticky note, Adhesive paper, Card, Photo Paper, Heat transfer material, non-woven fabric and other non-metallic materials... -
Page 8: Chapter 2 About The Touch Panel
Chapter 2 About the Touch Panel 2.1 Detailed Functions 1. “ ”“ ” Touch icon for left and right direction. In offline working mode, it can control the carriage to move left or right. 2. “ ”“ ” Touch icon for front and rear direction. In offline working mode, it can control the double-row roller to move forward or backward. - Page 9 4. “ ” Touch icon for knife pressure test. Corresponding to the machine's knife pressure test, after setting the knife pressure, move the carriage knife holder to the material and press the "Knife Pressure Test" icon, the machine will make a small test cut.
- Page 10 current speed and pressure “ ”。 6.“ ” Touch icon for settings. Click to enter the internal settings, as shown below: 6.1“ ” Touch icon for material replacement. If different materials cannot be recognized during scanning, you can place a blank paper of the corresponding material on the machine.
- Page 11 Press “ ”or“ ” to return to the main page. 6.2“ ” Touch icon for cutting records. Click to enter the record interface, as shown below:...
- Page 12 Press “ ”or“ ” to return to the main page. 6.3“ ” Touch icon for contour error. Click to enter the debugging interface, as shown below:...
- Page 13 In this interface, automatic error correction and fine-tuning of contour deviation can be done. The automatic error correction function is detailed in the video tutorial. Press “ ”or“ ” to return to the main page. 6.4“ ” Touch icon for image display. Click to view the camera's field of view, which can be used to check if the camera is damaged.
- Page 14 Details on setting the IP address output can be found in the video tutorial. Press “ ”or“ ” to return to the main page. 6.6“ ” Touch icon for language settings. Click to set the machine's English or Chinese language, as shown below:...
- Page 15 Press “ ”or“ ” to return to the main page. 6.7“ ” Touch icon for machine debugging. Click to enter the machine debugging interface, as shown below:...
- Page 16 In this interface, you can debug the machine's left and right movement, roller forward and backward movement, one-click paper feeding, sensor detection, machine reboot, and confirm return to the main interface functions. For detailed function introduction, please refer to the video training tutorial. 6.8“...
- Page 17 Press “ ”or“ ” to return to the main page. 6.8.01 “ ” "Gear Ratio" touch icon, click to set the machine size ratio. It has been calibrated before leaving the factory, and does not need to be adjusted unless necessary.
- Page 18 Press “ ”or“ ” to return to the main page. 6.8.2 “ ” "Limit Setting" touch icon, click to enter the limit setting interface, as shown in the figure below:...
- Page 19 The default limit setting is already enabled. Press “ ”or“ ” to return to the main page.。 6.8.3 “ ” "Camera Settings" touch icon, click to enter the camera settings. The setting interface is shown in the figure below:...
- Page 20 Press “ ”or“ ” to return to the main page. 6.8.3-01 “ ” "Offset Distance Test" touch icon, mainly used to test the position of the camera with respect to the center of the cutter holder. It has been calibrated before leaving the factory and does not need to be adjusted unless necessary.
- Page 21 6.8.3-02 “ ” "Adjust Light Brightness" touch icon, click to enter the setting, mainly used to adjust the brightness of the camera's fill light. For materials with high reflectivity, the camera's fill light brightness can be appropriately reduced to complete the recognition and scanning.
- Page 22 Press “ ”or“ ” to return to the main page. 6.8.3-04 “ ” "Update Light Source Scene" touch icon, click to automatically update the light source value of the current material under the camera. 6.8.3-05 “ ” "Contour Factory Settings" touch icon, click to enter the contour setting, as shown in the figure below: contour deviation...
- Page 23 “ ”or“ ” to return to the main page. 6.8.3-06 “ ” "Scan Mode" touch icon, click to set the machine's edge scanning mode. The default is normal mode, as shown in the figure below: Press “ ”or“ ” to return to the main page.
- Page 24 6.8.3-07 “ ” "Scan Range" touch icon, click to set the machine's edge scanning area. The default is 10X10MM, as shown in the figure below: Press “ ”or“ ” to return to the main page. 6.8.4 " " The machine model selection touch icon can be clicked to set the machine cutting mode.
- Page 25 following figure: Press “ ”or“ ” to return to the main page. 6.8.5 " " The machine feature touch icon is an internal setting of the machine and does not need to be changed. 6.8.6 “ ” The screen brightness touch icon can be clicked to set the display screen...
- Page 26 brightness, as shown in the following figure: Press “ ”or“ ” to return to the main page. 6.8.7 “ ” The paper damping speed touch icon can be clicked to set the machine paper damping speed, as shown in the following figure:...
- Page 27 Press “ ”or“ ” to return to the main page. 6.8.8 “ ” The USB port touch icon can be clicked to set the machine USB port mode. The default setting is the printer mode, as shown in the following figure:...
- Page 28 Press “ ”or“ ” to return to the main page. 6.8.9 “ ” The continuous paper feeding touch icon can be clicked after placing the paper in the paper tray, and the machine will automatically feed the paper continuously to test the machine paper feeding function.
- Page 29 default factory settings. 6.8.11 “ ” The aging touch icon can be clicked to enter the machine aging test. 6.8.12 “ ” The paper retract touch icon can be clicked to set the machine paper retraction method after a scan failure. 6.8.13 “...
- Page 30 8. “ ” The USB file touch icon can be clicked after inserting the USB drive into the machine to select the corresponding cutting file for continuous cutting.
-
Page 31: Chapter 3 How To Install The Machine Output Plug-In
Chapter 3 How to Install the Machine Output Plug-in 3.1 How to Install AIDCut-LABEL-V5.0.5 “ ” Open the "AIDCut-LABEL-V5.0.5" machine output plugin included with the random USB drive, and double-click to install, as shown in the following figure: Select the plugin installation language, and then click Next:... - Page 32 Select the plugin installation type, CorelDRAW/Adobe Illustrator plugin, and then click Next: Enter plugin serial number, then click Next:...
- Page 33 Set the plugin installation location, default to the C drive, it is recommended to install it on drive other than drive, then click Next:...
- Page 34 Directly select the C drive to change to the D drive, and then click Next:...
- Page 35 Please ignore for the first time installation, click OK. The plugin automatically recognizes the CorelDRAW/Adobe Illustrator version installed on the computer, click Install.
- Page 37 At this step, the CorelDRAW/Adobe Illustrator plugin has been installed. Finally, just activate the software and it can be used.
-
Page 39: Plug-In Icon Details
3.2 Plug-in Icon Details " " Add mark. " " Trace Line. " " Cut Contour. " " Cut MODLE. " " Set as TraceLine. " " Auto Copys. " " Add form. " " Cut Quickly. " " Merge common segments. "... -
Page 40: Chapter 4 How To Operate The Machine
Chapter 4 How to Operate the Machine Please refer to the corresponding video tutorial for machine output operation.
