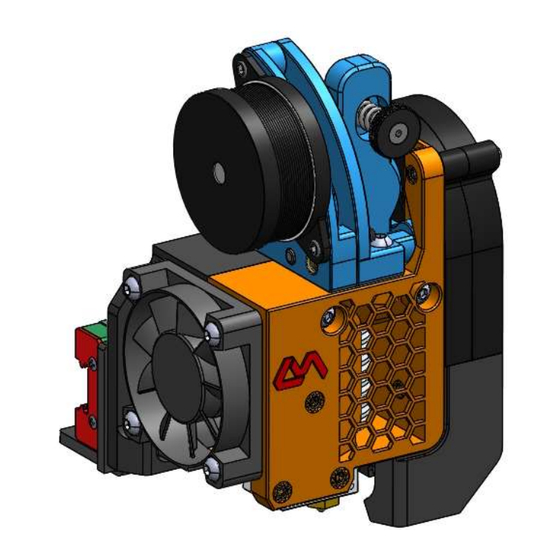

- Page 1 ASSEMBLY INSTRUCTIONS SAILFIN EXTRUDER + V6 KINGROON KP3S PRO Instagram Printables...
-
Page 2: Table Of Contents
1 IDEX BILL OF MATERIALS ..........................3 Sailfin extruder ........................... 3 Commercial components ........................ 3 1.2.1 Optional: ............................4 1.2.2 Version Heat Inserts ....................... 4 3D printed parts ..........................5 1.3.1 Version without heat inserts ....................5 1.3.2 Version with heat inserts ...................... 5 1.3.3 Common parts ........................... -
Page 3: Bill Of Materials
1. BILL OF MATERIALS 1.1 Sailfin extruder You can show all information and steps to do this extruder in this link: https://github.com/CroXY3D/Sailfin-Extruder For this modification you need print this files (link above) Front_Mirror.stl Lever_Mirror.stl Mid_Mirror.stl Rear_Mirror.slt Sailfin extruder BOM ... -
Page 4: Optional
4 units – Screw DIN 7380 M3x12 https://s.click.aliexpress.com/e/_9vJSEJ 6 units – Screw DIN 7380 M3x16 https://s.click.aliexpress.com/e/_9vJSEJ 3 units – Screw DIN 7380 M3x20 https://s.click.aliexpress.com/e/_9vJSEJ 2 units – Screw DIN 7380 M3x25 https://s.click.aliexpress.com/e/_9vJSEJ 4 units – Self-Locking Cable Ties 2,5x100 https://s.click.aliexpress.com/e/_AekMif 1.2.1 Optional: ... -
Page 5: Printed Parts
1.3 3D printed parts 1.3.1 Version without heat inserts 1 unit – Back_sailfin_pro 1 unit – Front_sailfin_pro 1.3.2 Version with heat inserts 1 unit – Back_sailfin_inserts_pro 1 unit – Front_ sailfin_inserts_pro 1.3.3 Common parts 1 unit – Layer_Fan_Sailfin_pro ... -
Page 6: Printing
2. PRINTING The printing part are designed to 0.4 nozzle, Infill should not be less than 20%, recomended 25- The stl are shared in the correct position for best printing without supports The two holes marked in green are covered in the impression for a better quality of the hole, we must remove the material with a small drill (3-3.2 mm) 2.1 Version Heat Insert ... -
Page 7: Assembly
3. ASSEMBLY 3.1 Assembly back case to printer Parts list 1 unit – Back_sailfin_pro 2 units – Screw DIN 7380 M3x8 (Red) 2 units – Screw DIN 7380 M3x12 (Green) 3.2 Back case + Hotend V6 Parts list ... -
Page 8: Front Case
3.3 Front case Parts list 1 unit – Front_sailfin_pro 2 units – Screw DIN 7380 M3x25 3.4 Sailfin extruder Parts list 1unit – Sailfin extruder 2 units – Screw DIN 7380 M3x12 Instagram Printables... -
Page 9: Layer Fan
3.5 Layer fan Parts list 1unit – Layer_fan_sailfin_pro 1 unit – Fan 5015 24V 3 units -- Screw DIN 7380 M3x20 3.6 Back wiring Parts list Self-Locking Cable Ties 2,5x100 mm 4 units – Opcional : 1 m – Cable Sleeve Self Closing PET 13mm NOTE: Fix the hotend fan wiring even if it is not assembled ... -
Page 10: Hotend Fan
3.7 Hotend fan Parts list 1 unit – Fan 4010 24V 4 units – Screw DIN 7380 M3x16 3.8 Fysetc portable input shaper (optional) Parts list 1 unit – Fysetc Portable Input Shaper MiniSB Front Mount.stl 1 unit - 1 unit - Fysetc portable input shaper ... -
Page 11: Inductive Sensor (Optional)
3.9 Inductive sensor (optional) Parts list 1 unit – Inductive_support_pro_inserts (Optional) 1 unit – Inductive sensor M8 mini 2 units - Screw DIN 7380 M3x16 Note: Offset X=-18.40 Y=-30.5 3.10 3Dtouch sensor (optional) Parts list 1 unit – Inductive_support_pro_inserts (Optional) ... -
Page 12: Finishing Touch
3.11 Finishing touch … LOGO Parts list 1 unit – Logo Instagram Printables... -
Page 13: Wiring And Drivers Adjustments
4. WIRING AND DRIVERS ADJUSTMENTS 4.1 Motherboard connections Instagram Printables... -
Page 14: Adjust Extruder Driver Vref
4.2 Adjust extruder driver vref. Motor current : 0.85A RMS Motor peak current: 1.2A Vref. TMC2225: 0.95 V 4.3 Inductive sensor connection Plug inductive wires into the corresponding ports on the mainboard (Z_min or Z_max) S for signal. ... -
Page 15: 3Dtouch Connection
The colors of cables may varies from different bltouch manfacturers. There are 3 pins port on the mainboard: G, 5V, S. Insert the connectors to the 3 pins port accordingly. Here is the cable information of the 3D Touch on Kingroon website: ... -
Page 16: Firmware
5. FIRMWARE 5.1 Sensor type for hotend 5.1.1 Marlin File configuration.h define TEMP_SENSOR_0 5 //LMaker 5.1.2 Klipper sensor_type: ATC Semitec 104GT-2 5.2 Change steps per unit /rotation distance 5.2.1 Marlin File configuration.h #define DEFAULT_AXIS_STEPS_PER_UNIT { 160, 160, 800, 1406 } // 32 microsteps Note: I prefer use 16 microsteps with orbiter, but in motherboard (v1.3) with soldering drivers you need change your drivers in uart mode. -
Page 17: Change Hotend Fan Pin He1
5.3 Change Hotend fan pin HE1 5.3.1 Marlin File Configuration_adv.h #define E0_AUTO_FAN_PIN PB0 //LMaker Fan HE1 5.3.2 Klipper [heater_fan my_nozzle_fan] pin: PB0 heater: extruder heater_temp: 50.0 fan_speed: 1.0 shutdown_speed: 1 HOPE YOU LIKE THIS MOD. ENJOY YOUR PRINTER!! You can buy me a coffee with a donation. Click to danate Instagram Printables...
