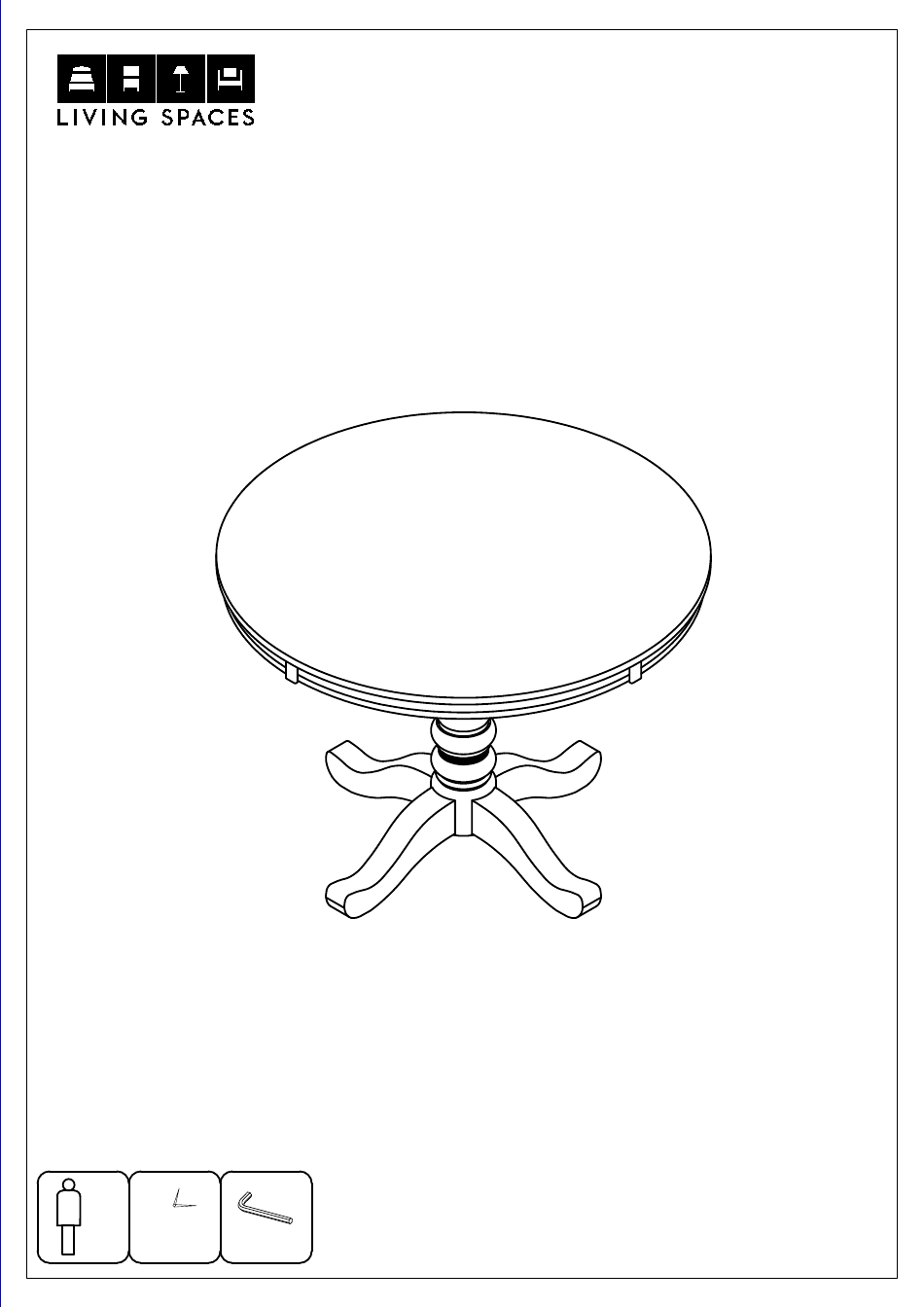

- Page 1 ASSEMBLY INSTRUCTIONS LEELA 42" ROUND DINING TABLE ITEM: D2109-221 SKU: 323806 D2109-222 323807 15 min...
-
Page 2: Cleaning Instructions
PART SKU# IMAGE DESCRIPTION 323806 / 323807 - A TABLE TOP CONNECTOR 323806 / 323807 - B 323806 / 323807 - C POST 323806 / 323807 - D LEGS Hardware list of ORTA 54-72" EXT. DINING TABLE PART SKU# IMAGE DESCRIPTION 323811-1(1) Allen key 60x22x4mm... -
Page 3: Detail View
DETAIL VIEW STEP 1: * Attach the Legs (D) to Post (C) by using Flat Washer (3), Spring Washer (2), Nuts (6) and tighten with SPANNER (5). - Page 4 STEP 2: * Attach the Connector (B) to Post (C) by securing the Flat Washer (3), Lock Washer (2), Bolt (4) tighten with Allen Key (1). STEP 3: * Attach the Connector (B) to Table Top (A) by securing the Flat Washer (3), Lock Washer (2), Bolt (4) tighten with Allen Key (1).
- Page 5 That's it ! You've finished assembling your item. Thank you!
