U U n n i i t t C C o o m m p p o o n n e e n n t t s s
TracKing™ ™
The e1000 is equipped with Thermo King's ConnectedSuite™ wireless
communication platform that offers fleet owners the ability to monitor their
refrigerated units. Cellular, GPS, and Bluetooth® capabilities communicate
with Thermo King's web-based TracKing application, and Bluetooth with the
Thermo King Reefer App. A third party interface offers a gateway for
telematics providers to communicate with the Thermo King unit. The
TracKing system can easily be setup and activated if desired. To learn more
about the TracKing features, contact your Thermo King dealer.
TracKing Components:
• T T K K V V 5 5 M M o o d d u u l l e e : : Located inside the controls section of the unit. The
telematics module with built-in antenna allows for wireless
communication with the e1000 unit. No service is required by the
operator.
• A A G G M M B B a a t t t t e e r r y y : : Located inside the condenser section under the cooling
system expansion tank. This battery is used to power the telematics
system when in unit is turned off. The battery is charged when the unit is
operating. No service is required by the operator.
• 1 1 1 1 0 0 W W S S o o l l a a r r P P a a n n e e l l : : Typically located on cargo box roof. The solar panel
keeps the AGM battery charged when the unit is not in use. No service is
required by the operator other then keeping the panel free of any dirt of
debris.
22

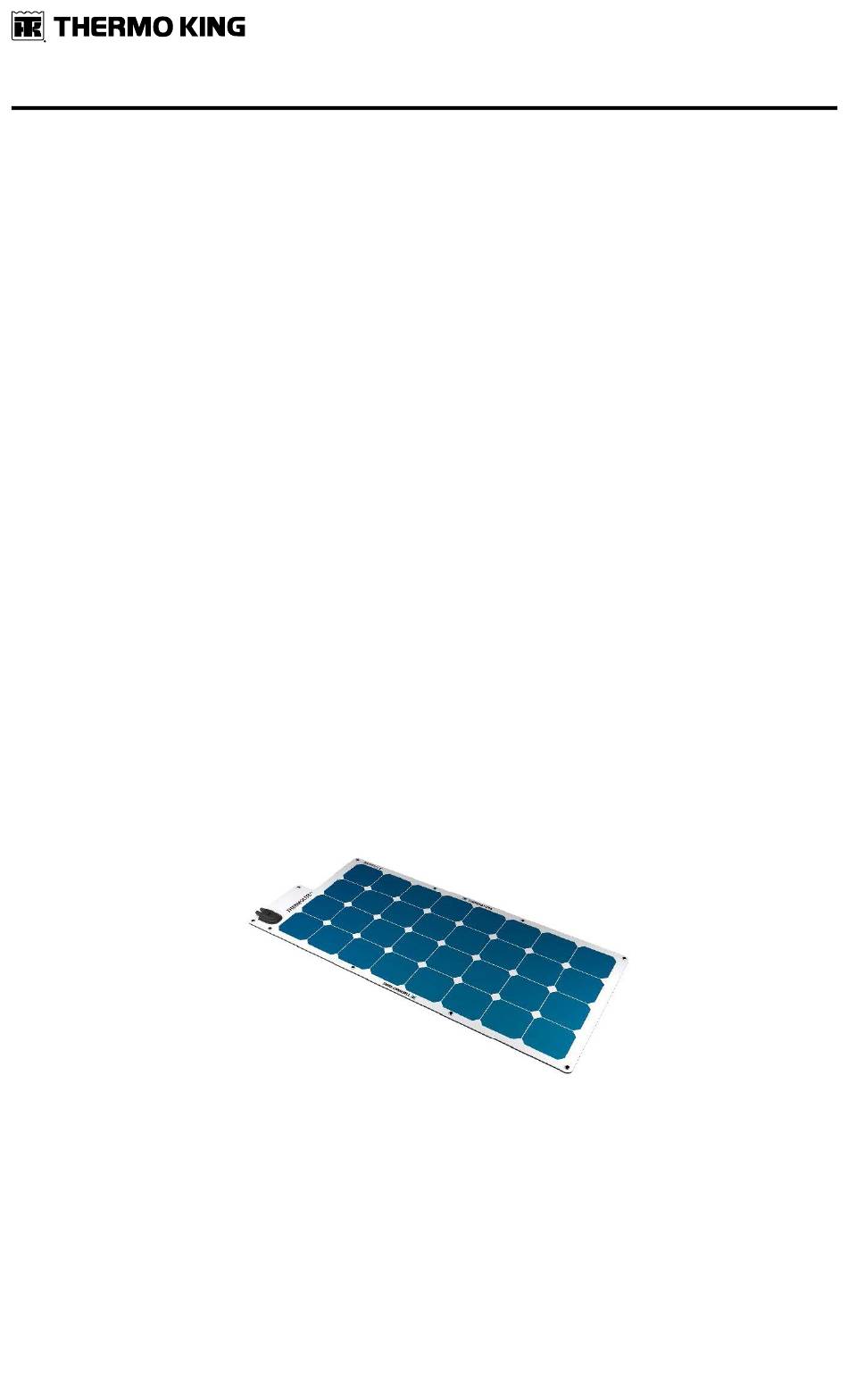

Figure 11. Solar Panel Shown
RCS2036
TK 57141-1-OP-EN
