Related Manuals for Wessex OL12-BD023B
Summary of Contents for Wessex OL12-BD023B

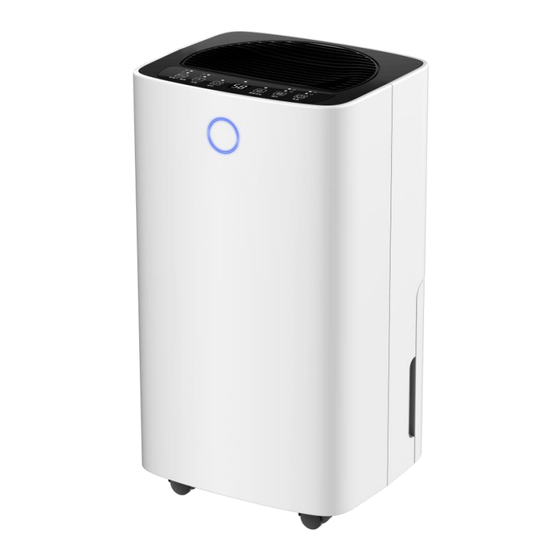

- Page 1 Original User’s Instructions 12 Litre Dehumidifier SKU: 70488/OL12-BD023B READ BEFORE USE PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE...
-
Page 2: Table Of Contents
CONTENT WHAT’S IN THE BOX ------------------------------------------------------------------------------ 3 ⚫ TOOLS REQUIRED ------------------------------------------------------------------------------------- 4 ⚫ SPECIFICATIONS ---------------------------------------------------------------------------------------- 4 ⚫ ⚫ EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS -------------- 5 ⚫ IMPORTANT SAFETY WARNINGS --------------------------------------------------------------- 6 ⚫ PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------------------ 9 ⚫ INSTALLATION AND OPERATING INSTRUCTIONS -------------------------------- 11 CARE AND CLEANING --------------------------------------------------------------------------- 15 ⚫... -
Page 3: What's In The Box
WHAT’S IN THE BOX Drain Hose Dehumidifier If you do not have all these items, please contact: www.toolstation.com/contact Telephone 0808 100 7211 Mobile friendly 0330 333 3303 Email info@toolstation.com... -
Page 4: Tools Required
Adjustable Humidity Level • Child Lock • Water Tank Full Alarm • Internal Water Tank with Drain Hose Attachment TECHNICAL DATA SKU/Model 70488/OL12-BD023B Rated Voltage 220-240V~,50Hz Rated Power 185W 1.0A (30⁰C, 80%RH) Rated Capacity 12L/D (30⁰C, 80%RH) Water Tank Capacity 2 Litre Noise Level ≤36dB (A) -
Page 5: Explanations And Symbols, Cautions And Warnings
EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS Earthing connection The product complies with the applicable European Directives and an evaluation method of conformity for these Directives was done. UK Conformity Assessed This marking indicates that this product should not be disposed with other household wastes. -
Page 6: Important Safety Warnings
IMPORTANT SAFETY WARNINGS • Before using your unit into the mains, visually check that the unit is intact and has not suffered any transit damage. • Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply. - Page 7 • DO NOT allow the mains cable to hang over sharp edges or come in contact with hot surfaces. • DO NOT run the mains cable under carpets, rugs, etc. • Individuals who operate or work in the refrigerant circuit must have the appropriate certification issued by an accredited organization that ensure competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.
- Page 8 failure. • DO NOT use any accessories or attachments with this product other than those supplied or recommended by supplier. • DO NOT use this product for anything other than its intended use. • The Dehumidifier must always be stored and transported upright, otherwise irreparable damage be caused to the compressor;...
-
Page 9: Product Description And Identifications
PRODUCT DESCRIPTION AND IDENTIFICATIONS 1. Air Outlet 2. Control Panel 3. Colour Digital Display 4. Main Body 5. Castors 6. Mains Cable 7. Cooling Element 8. Drain Hose Groove 9. Water Tank 10. Water Gauge 11. Air Filter 12. Drain Hose... - Page 10 CONTROL PANEL 25 26 27 21 22 13. Child Lock Button 14. Fan Speed Button 15. Timer Button 16. LED Display 17. Humidity Set Button 18. Mode Button 19. Power Button 20. Child Lock Indicator 21. High Fan Speed Indicator 22.
-
Page 11: Installation And Operating Instructions
INSTALLATION AND OPERATING INSTRUCTIONS INSTALLATION • Place the unit on a firm, level surface in an area with at least 30cm of free space on all sides to allow for proper air circulation. • Never install the unit where it could be subject to: 1. - Page 12 OPERATING THE DEHUMIDIFIER Insert the mains plug into the nearest available socket. • • The Power On Indicator (26) will illuminate as shown right: POWER Power • Press the Power Button (19) to power the unit up. • The Dehumidifier will power up with a high fan speed and the humidity set to 50%. The High Fan Speed Indicator (21) will illuminate.
- Page 13 Using the Timer • Press the Timer Button (15) to enter the timer mode. • The timer can be set in 1 hour increments, every press of the Timer Button (15) the set time will increase by 1 hour and the time will be displayed on the LED Display (16). •...
- Page 14 Changing Fan Speed Press the Fan Speed Button (14) to select the airflow speed: • Low Fan Speed – the Low Fan Speed Indicator (22) will illuminate. • High Fan Speed – the High Fan Speed Indicator (21) will illuminate. Note: In Continuous drying mode and Sleep mode the airflow speed cannot be adjusted.
-
Page 15: Care And Cleaning
• Replace the Water Tank (9) ensuring that the Drain Hose (12) fits through the Drain Hose Groove (8 – arrowed right) in the tank body. • Run the Drain Hose (12) into a suitable drainage point. CARE AND CLEANING •... -
Page 16: Trouble Shooting
TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: Problem Possible Cause Possible Solution Ensure that the mains plug is No power inserted into a socket and that it is switched on. Not working Water Full Indicator is illuminated Empty the water tank... -
Page 17: Declaration Of Conformity / Performance
DECLARATION OF CONFORMITY / PERFORMANCE Product Code: 70488 Product Description: 12 Litre Dehumidifier 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2. Object of the declaration The object of the declaration described above is in conformity with the relevant Community harmonization legislation: - Electrical Equipment (Safety) Regulations 2016 (LVD 2014/35/EU) -
Page 18: Environmental Information
ENVIRONMENTAL INFORMATION The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. -
Page 19: Guarantee
GUARANTEE Toolstation products deliver reliable service for normal, household or trade use in settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
