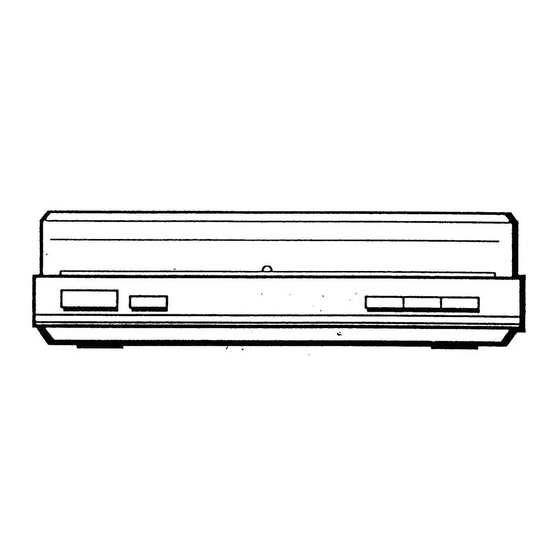

Aiwa PX-E80 Service Manual

@ TYPE. H, U, E, K
SPECIFICATIONS
<Turntable Section> :
Drive system Belt drive system
Motor DC servo motor
Speeds . 33-1/3 and 45 rpm
Wow & flutter 0.25% (WRMS)
S/N ratio 45 dB (DIN-B)
<Tonearm Section>
Type Offset arm
<Cartridge>
Type VM type
Frequency response 20-20,000 Hz
<General>
Output level 200 mV/(2.5 mV sw OFF)
Power requirements PX-E80 U
AC 120 V,60 Hz
PX-E80E
AC 220 V, 50/60 Hz
PX-E80 K
AC 240 V, 50/60 Hz
PX-E80 H
AC 110-120 V/220-240 V
switchable, 50/60 Hz
Power consumption 4W
Dimensions 360 (W) x 96.5 (H) x 350 (D) mm
Weight 2.6 kg
< Stylus > AN-11
@ Design and specifications are subject to change without
not ice.
Printed in Japan
