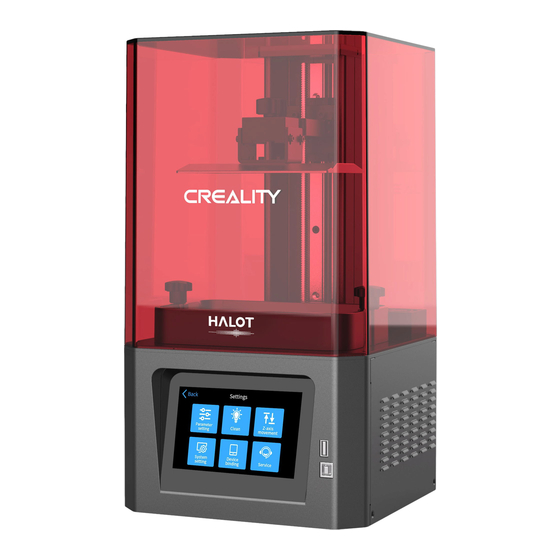

- Page 1 创造现实，成就梦想 Create reality，achieve dreams HALOT-ONE HALOT-ONE 3D Printer User Manual 3D打印机用户使用手册 V1.2...
- Page 3 尊敬的用户： 感谢您选择创想三维的产品。为了您使用方便，请您在使用之前仔细阅读本说明书，并严格按照说明书的指示进行操作。 创想三维团队时刻准备为您提供优质的服务。在使用过程中无论遇到什么问题，请按照说明书结尾所提供的电话、邮箱与我们 进行联系。为了您能够更好地体验我们的产品，您还可以从以下方式获取设备操作知识： 随机使用说明：您可以在U盘内找到相关使用说明及视频。 您还可以登陆创想三维官网(www.cxsw3d.com)寻找相关软硬件、联系方式、设备操作、设备保养等信息。 Firmware Upgrade Please login the official website https://www.creality.com/download, switch the language and select the relevant printer and model and download the required firmware, you can use it after the installation is finished. 固件升级 请您登录官网https://www.cxsw3d.com，点击首页→服务支持→下载所需固件，安装完成后即可使用。...
- Page 4 Users should comply with the laws and regulations of the corresponding countries and regions where the equipment is located (used), abide by professional ethics, pay attention to safety obligations, and strictly prohibit the use of our products or equipment for any illegal purposes. Creality will not be responsible for any violators' legal liability under any 请勿尝试任何使用说明中没有描述的方法来使用本机，避免造成意外的人身伤害和财产损失;...
-
Page 5: Table Of Contents
Contents目录 Introduction 设备简介 01-01 Parameters 设备参数 02-02 Parts List 零部件清单 03-03 Assemble the 3D Printer 组装3D打印机 04-04 Use the 3D Printer 使用3D打印机 05-10 Start Printing 首次打印 11-14 15-16 Control remote printing 远程控制打印 17-17 Wiring Connection电路接线 18-19 Troubleshooting 故障检修... -
Page 6: Introduction 设备简介
1. Introduction 设备简介 Torx head thumb screw Resin vat USB port USB接口 梅花胶头手拧螺丝 料盘 Leveling screw Touch screen Spare square Port USB 调平螺丝 触摸屏 interface 备用方口USB接口 Platform plate Limit sensor Power switch 平台板 限位感应片 电源开关 Power receptacle Air filter Tray fixing screw 电源母座... -
Page 7: Parameters 设备参数
2. Equipment parameters 设备参数 Basic Parameters 基本参数 HALOT-ONE Model | 型号 Software language | 中英切换 English | 中文 Print method | 打印方式 U disk | U盘 X/Y-axis resolution | X、Y分辨率 1620*2560 Z-axis resolution | Z轴精度 0.03mm-0.05mm(layer thickness | 即层厚) Print speed | 打印速度... -
Page 8: Parts List 零部件清单
3. Package Content 零件清单 Resin vat | 料盘 x 1 3D printer | 打印机 x 1 Print platform | 打印平台 x 1 Tool list 工具包清单 Paper funnel x 4 2#,2.5#,3#Screwdriver x 1 U disk x 1 Brush x 1 纸漏斗 2#,2.5#,3#螺丝刀... -
Page 9: Assemble The 3D Printer 组装3D打印机
4. Assemble the 3D Printer 组装3D打印机 Machine body | 主机 x 1 Note: put the plastic cover on the machine body and the installation is completed. Plastic cover | 上盖 x 1 注意：上盖嵌入主机即安装完成... -
Page 10: Use The 3D Printer 使用3D打印机
5. Interface Information 界面信息 Setting 设置 Note: View and set printing parameters,the UI information is only for reference , the actual UI may be different. 注意：查看、设置打印参数，界面仅供参考，实际以UI为准。... - Page 11 6. Interface Information 界面信息 Setting 设置 Note: Check whether the light source is normal，the UI information is only for reference , the actual UI may be different. 注意：检查光源是否正常，界面仅供参考，实际以UI为准。...
- Page 12 7. Level Platform 调平平台 1 2. Loosen the four screws on the connect- 3. After confirming that A4 paper fits 1. To calibrate the printing platform, first raise the platform, loosen the ing plate of prototyping platform, attach evenly with the platform, screw up the fixing screws on the left and right sides of the material trough, and A4 paper tightly to the print screen, press four screws of the platform.
- Page 13 8. Level Platform 调平平台 2 Note: The UI information is only for reference , the actual UI may be different. 注意：界面仅供参考，实际以UI为准。...
- Page 14 9. Load Resin 装料 Pour the UV photosensitive resin into the resin vat. The slot capacity is 140ml/170ml/225ml/285ml. 将3D打印机UV光敏树脂倒入料盘，槽位容量分别：140ml/170ml/225ml/285ml。 Tips: How to change resin: Take out the resin vat slowly, pour out the remaining resin into the container, Tips: Resin may cause skin irritation or an allergic skin reaction. clean the resin vat, pour in new resin,and then install the resin vat to the machine.
- Page 15 10. Release Membrane Replacement 离型膜拆换 a. First, remove the 14 screws at the bottom of thetray and take out the broken release film. Parameters 规格参数 b. Take a new release film, tear off the protective films on both- sides of the release film, and then place the release film bet- ween the two steel rings.
-
Page 16: Start Printing 首次打印
① 3. Click icon ①→Setting slice printing parameters②→ “ ” fi → sliced file ( recommend to set parameters of bottom layer as 5-20). You are welcome to find more details of slicing tutorial on the o cial website www.creality.com). - Page 17 12. Start Printing 首次打印 ① 1. 切片 ② ctb(.ctb) ctb(.ctb) 1. 打开LCD光固化3d打印切片软件，界面左方点击“打开”添加模型文件； 2. 根据模型如需添加支架，点击右上方图标，设置相应参数； ② ① 3. 点击图标①→ 设置切片打印参数② 4. 等待完成切片后→另存切片好的文件。 → 点击切片 （*切片教程详见官网切片视频www.cxsw3d.com)
- Page 18 13. Start Printing 首次打印 ctb(.ctb) 3D objects 2. Print file name Save type preservation cancel Hide Folder USB port 2. Insert the U disk →Select a document 1. Generate cxdlp file，and save the file to U disk →Press the start button 2.
- Page 19 14. Start Printing 首次打印 Time Time 50um Layers: 20/2000 fi fi 3. Printing··· “ ”; 剩余时长 1. 选择文件; 2. 选中需要打印的文件，按下开始键; 3. 正在打印中··· Note: The UI information is only for reference , the actual UI may be different， The machine stores the file being printed by default. 注意：界面仅供参考，实际以UI为准，机器默认存储当前打印文件。...
-
Page 20: Control Remote Printing 远程控制打印
15. Control remote printing 远程控制打印 >> >> >> >> 1.Download 2.Register 3.Log in 4. Add equipment 5. Scan QR Code HALOT-ONE HALOT-ONE >> >> >> HALOT-ONE 6. Device naming 7. Select device 8. check printing status 9. Print Progress... - Page 21 16. Control remote printing 远程控制打印 >> >> >> >> 1.下载 2.注册 3.登录 4.新增设备 5.扫一扫 （机器界面设置→设备绑定→二维码） HALOT-ONE HALOT-ONE >> >> >> HALOT-ONE 6.设备命名 7.选择设备 8.查看打印状态 9.打印进度...
-
Page 22: Wiring Connection电路接线
17.Wiring Connection电路接线 Exhaust fan Z motor driver port UL LED fan port Power Supply port UV LED POWER EN port 排废气风扇接口 直流电源输入接口 Z轴电机驱动接口 灯板散热风扇接口 灯板电源使能 Z ends top Z轴限位开关 USB HOST port 接U盘打印接口 LCD resin panel 打印屏接口 Spare brush firm- ware interface 备用刷固件接口... -
Page 23: Troubleshooting 故障检修
18.Troubleshooting... - Page 24 19. 故障检修 存储卡...
- Page 25 20. FCC Statement FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 26 Notes 笔记...
- Page 28 因每款机型不同，实物与图可能有所差异，请以实物为准，最终解释权归深圳市创想三维科技股份有限公司所有。 SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD. Add:18F, JinXiuHongDu Building, Meilong Blvd., Longhua Dist., Shenzhen, China 518131 Official Website: www.creality.com Tel：+86 755-8523 4565 E-mail: info@creality.com cs@creality.com 深 圳 市 创 想 三 维 科 技 股 份 有 限 公 司...
