Respected user
Fist of all, thank you very much for using our companys
sernies of products. It is cur greatest honor to be able to serve
you. Your recognition and support are our driving force！Please
read this manual carefully before using the diving recorder. The
manual uses pictures and texts, with ilustrations in the text to
explain the cperation of the product in detail and intuitivety.
In addition, due to the different production dates and
batches of the products, the description may be different from
the actual products used, please refer to the actual product.
Note:
1. Carplay and Android Auto supports wired and wireless
connection;
2. After the FM transmitter function is turned on and the AUX
cable is inserted, the device will have no sound. After the FM
function is turned off or the AUX cable is removed, the device
will have sound;
3. Bluetooth is a function of connecting with a mobile phone,
and it does not support audio transmission to car speakers via
Bluetooth.
1
Advertisement
Summary of Contents for XGODY H30
- Page 1 Respected user Fist of all, thank you very much for using our companys sernies of products. It is cur greatest honor to be able to serve you. Your recognition and support are our driving force！Please read this manual carefully before using the diving recorder. The manual uses pictures and texts, with ilustrations in the text to explain the cperation of the product in detail and intuitivety.
- Page 2 The 10.26-inch product supports Carplay, Android Auto, and Mirror Link functions. In the settings, click "Mirror Link", select the mode (Apple Carplay / Android Auto / Apple Airplay / Android Wireless Mirror), and then the device will switch to the corresponding mode.
- Page 3 After the Bluetooth authentication is successfully, and disconnected automatically, the DVR's CarPlay interface will be transmitted automatically. Next time the device will be automatically re-connecting (No need any cooperation if the dvr's bluetooth & wifi is opened) Note: Due to the version problem of iOS system, please do not select to connect the device's WiFi in the mobile phone.
- Page 4 2）Android phone version, please follow below steps : Choose First, please confirm that your phone is Android 11 or higher version. Android phones need to install the Android Auto App in advance (you can download it on Google Store) 1) Open the settings first, find Mirror Link, click "Android Auto" to switch to Android Auto mode, 2) Check whether the Bluetooth and WIFI of DVR are opened, 3) Open the Bluetooth and WiFi of the mobile phone,...
- Page 5 Mirror Link Connection tutorial iPhone： Choose Connection matters: 1. The mobile phone is connected to the device WiFi 2. Open the Apple pull-up menu to find Screen Miroring 3. Click to connect zj-airplay Button description: Volume -, Volume +, back to the main interface Common problem: The copyright of some video content is restricted and screencasting is not supported.
- Page 6 Button description: Volume ,Volume +, back to the main interface Common problem: The copyright of some video content is resticted and srencasting is not supported. Some FAQs： How do I disconnect the CarPlay / Android Auto? Please turn on the WiFi on Apple phone. How to connect again the device if manually disconnect CarPlay / Android Auto? Please click again the phone's Bluetooth to connect again the...
- Page 7 Android auto? There is sound volume + / - on the dvr device, you could adjust the volume. How to connect the vehicle's original audio? After connecting Carplay / Android auto,you could turn on dvr's FM transmittion function, and then turn on the car's FM Radio to adjust and set up the same FM frequency as dvr's FM, then you could transmit the music to the original car audio for listening.
- Page 8 Part 1: Interface description 10. 26 inch display: Remarks: When insert the micro sd card, the device will automatically enter the recording mode. To sure recording normally, please select a card whose speed can be at least reach class10 U1，thanks.
- Page 9 A. Driving recorder Click will enter preview screen of dash cam: B. Replay Click , will enter the local video playback interface 1. Select the video file to play from the right menu and then enter video playback. During playback, click the lock/ delete icon to lock/ delete the playback video file.
- Page 10 C. Voice control (Optional) Support voice control, voice command list: Open the screen, Close screen, Display previous record Post display record, Emergency video, I want to take pictures, Turn on recording, turn off recording. D. Bluetooth Click will enter the Bluetooth Connection interface: 1) Clck the zigzag icon to modity the Bluetooth name 2) Bluetooth on/off, blue is on:...
-
Page 11: Aux Connection
E. FM emission + AUX Connection Click , wil enter FM transmitting Intertace: 1) Audio out choose FM, click +/- to select the frequency band. 2) FM transmitter function connection: first set a frequency, then turn on your car FM, find this frequency, the sound of DVR will be transmitted to the car stereo. -
Page 12: Bluetooth Function
F. Bluetooth audio output function This function requires the vehicle audio to support the Bluetooth function. Operation: Click FM Settings on the home page >>> select BT [Note: After BT is checked, the above FM/AUX/SPK will be invalid] After selecting BT, use the mobile phone connected to Carplay/ Android Auto to connect to the Bluetooth of the car to realize sound synchronization. -
Page 13: System Settings
1. System settings Click , will enter the system setting interface Note: After inserting the rear camera or GPS module, the relevant settings will appear. The rear camera or GPS module is optional buy. wireless app Roadcam control *WiFi will enter settings Click Wifi in Wifi Name: TF765-XXX... - Page 14 How to make time not reset after restart? Open the time and date settings, first set the correct time zone ① (you can search your local time zone on Google), then adjust the correct time ②, and finally click "Confirm" ③. How to change the image effect of the rear camera? After inserting the rear camera, the "Back Camera Mirror"...
- Page 15 Part 3: Product Specifications Allwinner V535 Cortex-A7@1 GHz SOFTWARE Linux DDR32GB FLASH 128MBbytes NOR FLASH Display 10.26 inches , Display resolution: 1600 x 600P CarPlay iPhone Auto Android phone Front 4K ( 3840*2160P, S/25fps ) Camera camera Rear 1080P ( 1920*1080, S/25fps ) camera Voice control Support high-sensitivity voice control in...
- Page 17 (Rear camera is optional buy)
Need help?
Do you have a question about the H30 and is the answer not in the manual?
Questions and answers
Merhaba. Bu üründe Türkçe dil seçeneği yok. Ayrıca android auto bağlıyken telefon görüşmesi yapamıyorum. Ses karşıdan geliyor ama benimki gitmiyor.
Bu üründe sesimin karşıya gitmemesi. cihazın mikrofon arızalı olabilr mi? Yükseltme veya yazılım ile düzelir mi?
The XGODY H30 supports high-sensitivity voice control as an optional function. If your voice is not being transmitted, first check if voice control is enabled and supported on your device. There is no mention of a software upgrade fixing microphone issues. If the microphone is faulty, it may require hardware inspection or replacement.
This answer is automatically generated
@Mr. Anderson

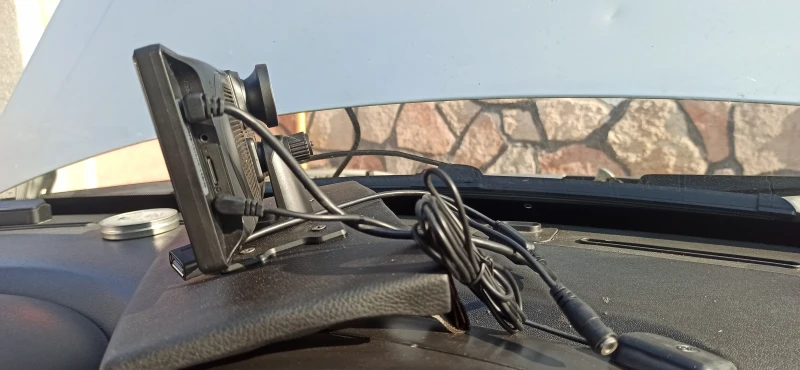

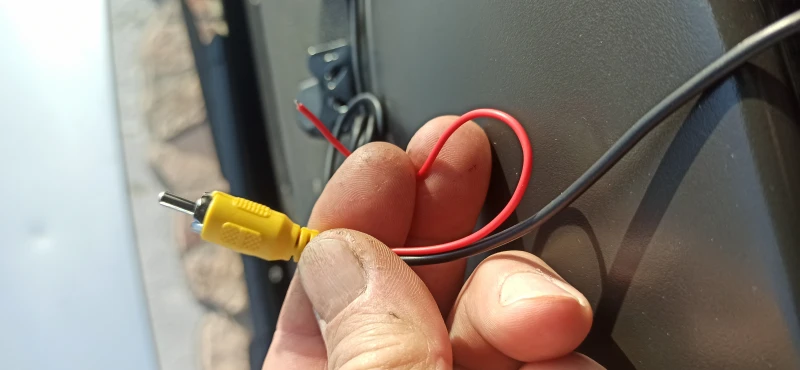

Geri görüş kamerası nereye bağlanıyor? Lütfen acil yardım. Kablo elimde
The rearview camera on the XGODY H30 connects to the Four-stage AHD Rear Recording Camera Interface.
This answer is automatically generated
Girişi nereden?
The input on the XGODY H30 Dash Cam is DC 12V-24V.
This answer is automatically generated
