Service Manual
Created: 15 March 2015

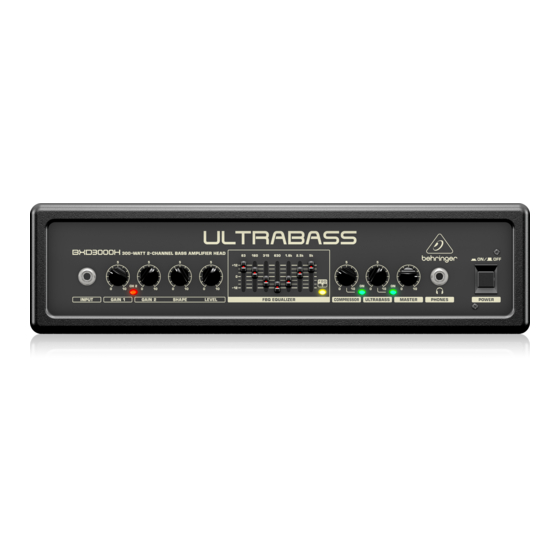

ULTRABASS BXD3000H
Ultra-Lightweight 300-Watt 2-Channel Bass Amplifier
Head with FBQ Spectrum Analyzer, Ultrabass
Processor and Compressor
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PCB Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
© 2015 MUSIC Group IP Ltd. All third party trademarks mentioned belong to their respective owners and are not affiliated with MUSIC Group IP Ltd. All information (including
drawings and diagrams) contained in this document is the property of MUSIC Group IP Ltd., its subsidiaries or content providers, and is protected by intellectual property (copyright,
trademark, patents, etc) laws, international treaty provisions and other laws. Any unauthorized disclosure, use, application, reproduction, modification, lease, sale, transmission or
any other dealings in the information may violate applicable laws and result in civil and/or (where applicable) criminal liabilities and penalties.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ULTRABASS BXD3000H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Behringer ULTRABASS BXD3000H

Summary of Contents for Behringer ULTRABASS BXD3000H

  • Page 1 Service Manual Created: 15 March 2015 ULTRABASS BXD3000H Ultra-Lightweight 300-Watt 2-Channel Bass Amplifier Head with FBQ Spectrum Analyzer, Ultrabass Processor and Compressor Specifications ..............2 PCB Schematic .

  • Page 2: Specifications

    - "Planet Earth" switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving - High-quality components and exceptionally rugged construction ensure long life - Conceived and designed by BEHRINGER Germany...

  • Page 3: Pcb Schematic

    ULTRABASS BXD3000H PCB Schematic Page 3...
  • Page 4 ULTRABASS BXD3000H PCB Schematic Page 4...
  • Page 5 ULTRABASS BXD3000H PCB Schematic Page 5...
  • Page 6 ULTRABASS BXD3000H PCB Schematic Page 6...
  • Page 7 ULTRABASS BXD3000H PCB Schematic Page 7...

  • Page 8: Parts List

    ULTRABASS BXD3000H Parts List Hi Pcb Assemblies Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC A05-AAA04-00102 PCB ASSEMBLY;P0AAA;4;B;HI;AMP 1.0000 PC A05-AC601-00101 PCB ASSEMBLY;P0AC6;1;A;HI;FRONT 1.0000 PC A05-AC602-00101 PCB ASSEMBLY;P0AC6;2;A;HI;REAR Service Assemblies Quantity Unit S.Sku M.Sku Description Reference Designators Notes...
  • Page 9 ULTRABASS BXD3000H Parts List Capacitor Quantity Unit S.Sku M.Sku Description Reference Designators Notes 2.0000 PC CAP E;220uF;4V;PITCH:2mm5;5mm x 11mm;VERTICAL 12.7-15-9mm [P0AC6:01: {2.0}(C9,C21)] *NOT available in DP 1.0000 PC CAP E;100uF;10V;PITCH:2mm5;5mm x 11mm;VERTICAL 12.7-15- [P0AC6:01: {1.0}(C26)] *NOT available in DP 1.0000 PC CAP E;220uF;16V;PITCH:2mm5;6.3mm x 12mm;VERTICAL 12.7-15-...
  • Page 10 ULTRABASS BXD3000H Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 13.0000 PC CAP CER;100nF;50V;X7R;10%;SMT805 [P0AC6:01: {13.0}(C39-C42,C50- *NOT available in DP C52,C55,C61,C65,C74,C78-C79)] 9.0000 PC CAP CER;100nF;50V;X7R;20%;SMT805 [P0AAA:04: {9.0}(C62,C69-C70,C82- *NOT available in DP C83,C90,C104,C113,C127)] 2.0000 PC CAP CER;220nF;50V;10%;SMT805 [P0AC6:01: {2.0}(C33,C71)] *NOT available in DP 4.0000 PC...
  • Page 11 ULTRABASS BXD3000H Parts List Coil Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC R37-31500-04441 B37-31500-04441 COIL;TOROID;CHOKE;WIRE DIA:0mm4;1mH5 [P0AAA:04: {1.0}(TR1)] 2.0000 PC B37-76100-05127 COIL;CHOKE;61uH;P:6MM;T10X6X5 [P0AAA:04: {1.0}(L1)] 3.0000 PC R39-00000-03394 B39-00000-03394 COIL;SMD;BEAD;SMD0805;(BLM21BD751SN1D) [P0AC6:01: {3.0}(L4-L6)] 1.0000 PC R39-26000-21049 B39-26000-21049 COIL;SMD;BEAD;(BLM21AG601S) [P0AAA:04: {1.0}(L11)] 1.0000 PC...
  • Page 12 ULTRABASS BXD3000H Parts List Diode Quantity Unit S.Sku M.Sku Description Reference Designators Notes 6.0000 PC DIODE;SCHOTTKY;SS0540;SOD123;SMD [P0AAA:04: {6.0}(D15-D16,D21-D22,D40-D41)] *NOT available in DP 3.0000 PC DIODE;BAV99;SOT23;SMD [P0AAA:04: {3.0}(D14,D23,D28)] *NOT available in DP 2.0000 PC DIODE;1.5KE200A;DO201AD [P0AAA:04: {2.0}(D1,D3)] *NOT available in DP 22.0000 PC...
  • Page 13 ULTRABASS BXD3000H Parts List Hardware Quantity Unit S.Sku M.Sku Description Reference Designators Notes 2.0000 PC CABLE TIE;NYLON;4in;COLOR: *NOT available in DP 2.0000 PC WIRECLAMP;LUG:4mm4;LENGTH:56mm;OUTER DIA;8mm;PLASTIC *NOT available in DP COVERED STEEL;COLOR:BLK 2.3000 G THERM-GREASE;COLOR:WHT;SPEC.NO:09286 *NOT available in DP 0.6000 G SCREWLOCK;SPEC.NO:01090...
  • Page 14 ULTRABASS BXD3000H Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 5.0000 PC WASHER;PLAIN;INNER DIA:9mm6;OUTER *NOT available in DP DIA:13mm;THICKNESS;0mm5;PLATING:NICKEL 2.0000 PC WASHER;EXTERNAL TEETH;INNER DIA:3mm;OUTER *NOT available in DP DIA:6mm;THICKNESS:0mm5 4.0000 PC WASHER;EXTERNAL TEETH;INNER DIA:4mm;OUTER *NOT available in DP DIA:7mm;THICKNESS;1mm7...
  • Page 15 ULTRABASS BXD3000H Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC S71-20352-50116 C71-20352-50116 IC;DRIVER VOLTAGE-MODE PWM CONTROLLER;KA3525A;DIP [P0AAA:04: {1.0}(IC5)] 1.0000 PC S71-72008-27408 C71-72008-27408 IC;ADTL082ARZ;SO8 [P0AAA:04: {1.0}(IC8)] 1.0000 PC C73-00000-29050 IC;OPAMP;SMD;SOP;8;BA4580RF [P0AAA:04: {1.0}(IC7)] 7.0000 PC S73-58007-40514 C73-31007-40514 IC;OPAMP OPAMP;TL074;SOP;...
  • Page 16 ULTRABASS BXD3000H Parts List Metal Part Quantity Unit S.Sku M.Sku Description Reference Designators Notes 2.0000 PC A60-00200-05213 METAL;SUPPORT PLATE;I00031P;DST.NO:002;DPT.NO:05213;(I00031P- SUPPORT_PLATE-REVB.DWG) 1.0000 PC A60-00200-09275 METAL;HANDLE PLATE;I00033P;DST.NO:002;DPT.NO:09275;(I00033P- HANDLE_PLATE-REVB.DWG) 1.0000 PC A62-00200-05212 METAL;POWER BRACKET;I00028P;DST.NO:002;DPT.NO:05212;(I00028P- POWER_BRACKET-REVB.DWG) 2.0000 PC Q62-00300-10733 A62-00300-10733 METAL;SIDE BRACKET;I00030P;DST.NO:003;DPT.NO:10733;(I00030P- SIDE_BRACKET-REVC.DWG) 1.0000 PC A62-09400-25947 METAL;BOTTOM;FS112B;CHAMPAGNE;DWG.NO:25947;(R14-GX-...
  • Page 17 ULTRABASS BXD3000H Parts List Plastic Part Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC G52-00000-93820 PLASTIC;KNOB;P0A4Q;ABS;INJECTION MOULDING;YS1284A;BLACK;POWER_KNOB;REV:B 7.0000 PC W52-00200-00106 G52-00200-00106 KNOB;POT;BXL450A;W/ INK MARKING;DST.NO:002;DPT.NO:00106;(BXL450A-POTKNOB- REVB.DWG) 7.0000 PC W52-00200-08623 G52-00200-08623 KNOB;FADER;FAD30MMKNOB 1;BLACK;DST.NO:002;DPT.NO:08623;(FADERKNOBBLK1-REVB.DWG) 4.0000 PC W52-00400-05276 G52-00400-05276 KNOB;SWITCH 1;MINI-SERIES;DST.NO:004;DPT.NO:05276;(I00040P- SWITCH_BUTTON1-REVD.DWG) 2.0000 PC...

  • Page 18: Plug Socket

    ULTRABASS BXD3000H Parts List Plug Socket Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC G61-65210-03289 BOX HEADER;POLES:10;2 ROW;STRAIGHT;PITCH:2mm54;SCM-10S [P0AC6:01: {1.0}(X13)] 1.0000 PC G61-75210-05768 CABLE HEADER;POLES:10;2 ROW;IDE;STRAIGHT;PITCH:2mm54;FC- 1.0000 PC G61-85210-08163 TRANSITION PLUG;FLAT CABLE;POLES:10;ROWS:2;STRAIGHT;PITCH:2mm54;BLACK;FD-10P 4.0000 PC W64-01211-03174 G64-01211-03174 PLUG;JACK STEREO 6mm3;STRAIGHT SOLDER;W/O [P0AC6:02: {4.0}(X3-X4,X6-X7)]...
  • Page 19 ULTRABASS BXD3000H Parts List Resistor Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC RESISTOR;METAL;221Kohm;1%;0W1;SMD603 [P0AC6:01: {1.0}(R15)] *NOT available in DP 2.0000 PC RESISTOR;CARBON;0ohm;5%;0W063;SMD603 [P0AAA:04: {2.0}(R59,R62)] *NOT available in DP 8.0000 PC RESISTOR;CARBON;100ohm;5%;0W063;SMD603 [P0AC6:01: {3.0}(R142-R143,R145)] *NOT available in DP 2.0000 PC...
  • Page 20 ULTRABASS BXD3000H Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 8.0000 PC RESISTOR;METAL;4Kohm42;1%;0W063;SMD603 [P0AC6:01: {7.0}(R32,R40,R60,R66,R85,R88,R125)] *NOT available in DP 1.0000 PC RESISTOR;METAL;5Kohm11;1%;0W063;SMD603 [P0AC6:01: {1.0}(R62)] *NOT available in DP 2.0000 PC RESISTOR;METAL;6Kohm34;1%;0W063;SMD603 [P0AC6:01: {2.0}(R37,R42)] *NOT available in DP 3.0000 PC RESISTOR;METAL;8Kohm25;1%;0W063;SMD603...
  • Page 21 ULTRABASS BXD3000H Parts List Quantity Unit S.Sku M.Sku Description Reference Designators Notes 2.0000 PC RESISTOR;CARBON;47Kohm;5%;1W;LEAD WIRE [P0AAA:04: {2.0}(R1,R5)] *NOT available in DP 2.0000 PC RESISTOR;CARBON;0ohm1;5%;2W;LEAD WIRE [P0AAA:04: {2.0}(R2-R3)] *NOT available in DP 2.0000 PC RESISTOR;CARBON;10ohm;5%;2W;LEAD WIRE;F-TYPE [P0AAA:04: {2.0}(R11-R12)] *NOT available in DP 2.0000 PC...
  • Page 22 ULTRABASS BXD3000H Parts List Transistor Quantity Unit S.Sku M.Sku Description Reference Designators Notes 1.0000 PC TRANSISTOR;BD137;TO126 [P0AAA:04: {1.0}(T6)] *NOT available in DP 2.0000 PC TRANSISTOR;MOSFET;IRF640NPBF;INTERSIL;TO220AB [P0AAA:04: {2.0}(T4-T5)] *NOT available in DP 1.0000 PC TRANSISTOR;High Speed;High voltage;MJE13003;TO126 [P0AAA:04: {1.0}(T3)] *NOT available in DP 2.0000 PC...
  • Page 23 ULTRABASS BXD3000H Exploded Drawing Page 23...
  • Page 24 ULTRABASS BXD3000H Exploded Drawing Page 24...
  • Page 25 ULTRABASS BXD3000H Exploded Drawing Page 25...
  • Page 26 ULTRABASS BXD3000H Exploded Drawing Page 26...
  • Page 27 ULTRABASS BXD3000H Exploded Drawing Page 27...
  • Page 28 ULTRABASS BXD3000H Exploded Drawing Page 28...
