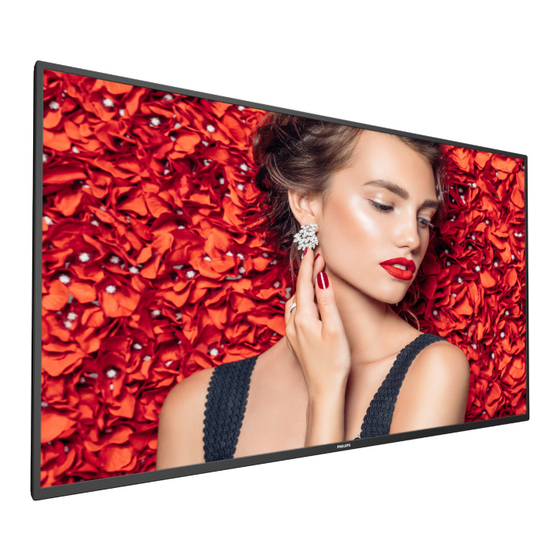

- Page 1 Professional Display Solutions D Line 32BDL4511D User Manual (English) www.philips.com/welcome...
-
Page 2: Table Of Contents
3.3.4. Handling the remote control ..19 10.2. Troubleshooting ..........38 3.3.5. Operating range of the remote control ...........19 11. Technical Specifications ..........39 3.3.6. Using the remote sensor and power Warranty policy for Philips Professional Display indicator ..........20 Solutions .................41 3.4. USB Cover ............21 Index ..................43 Connecting External Equipment ......22... -
Page 3: Safety Instructions
When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. •... - Page 4 32BDL4511D • Only the lifetime of the display stated in this specification is guaranteed if the display is used under the proper operation conditions. IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content.
- Page 5 32BDL4511D ESD Warnings When user close to the monitor may cause the equipment discharge and reboot to the display of main menu. Warning: This equipment is compliant with Class A of EN55032/CISPR 32. In a residential environment this equipment may cause radio interference.
- Page 6 32BDL4511D Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
- Page 7 32BDL4511D Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2.
- Page 8 32BDL4511D China RoHS 根据中国大陆 《电器电子产品有害物质限制使用管理办法》 ， 以下部分列出了本产品中可能包含的有害物质 的名称和含量。 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr (VI)) (PBB) (PBDE) 外壳 液晶显示屏 电路板组件* 电源适配器 电源线/连接线 遥控器 本表格依据SJ/T 11364 的规定编制。 电路板组件包括印刷电路板及其构成的零部件， 如电阻、 电容、 集成电路、 连接器等。 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的限量要求以下。 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572规定的限量要求。...
- Page 9 Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
- Page 10 For more information about E -waste please visit http://www.india.philips.com/about/sustainability/recycling/index.page and to know where you can drop off your waste equipment for recycling in India please contact on below given contact details.
- Page 11 32BDL4511D Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.
-
Page 12: Unpacking And Installation
32BDL4511D Unpacking and Installation 2.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • As this product is high and heavy, the operation of moving the device is recommended to be performed by two technicians. •... - Page 13 32BDL4511D • Please keep the display vertically when moving it. • Place the display vertically and its weight should spread evenly on the surface. • Please keep vertically, no bending and torsion during moving the display.
-
Page 14: Package Contents
IR Sensor Cable * The supplied power cord varies depending on destination. • USB cover • Cable Clip x 3PCS • Philips logo plate Power Cord RS232 Cable RS232 Daisy Chain Cable IR Sensor Cable USB Cover Cable Clip x 3PCS Philips logo plate * Differences according to regions. -
Page 15: Mounting On A Wall
32BDL4511D 2.4. Mounting on a Wall To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use a mounting interface that complies with TUV-GS and /or UL1678 standard in North America. Protective Sheet VESA Grid Table... -
Page 16: Mounting In Portrait Orientation
32BDL4511D 2.5. Mounting in Portrait Orientation This display can be installed in portrait orientation. Rotate the display 90 degrees Clockwise. The “ ” logo should be on the left side when facing the display. 90° 90° 2.5.1. How to remove the logo 1. -
Page 17: Parts And Functions
32BDL4511D Parts and Functions 3.1. Control Panel [ ] button [MENU] button Press this button to turn the display On or turn the Return to the previous menu while the OSD menu is On. display to standby mode. This button can also be used to activate the OSD menu when the OSD menu is Off. -
Page 18: Input/Output Terminals
32BDL4511D 3.2. Input/Output Terminals AUDIO OUT RJ45 USB 2.0 Service Port PC LINE IN IR-OUT IR-IN RS232 RS232 HDMI 1 IN HDMI 2 IN HDMI OUT DVI-I IN DP IN DP OUT 4 5 6 7 8 AC IN USB SERVICE PORT AC power input from the wall outlet. -
Page 19: Remote Control
32BDL4511D 3.3. Remote Control ] POWER button Turn the power On. 3.3.1. General functions Turn the power Off. [PLAY] buttons Control playback of media files. ] HOME button Access the OSD menu. ] SOURCE button Choose input source. Press [ ] or [ ] button to choose HDMI 1... -
Page 20: Id Remote Control
32BDL4511D 3.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the Set the remote control ID if you intend to use this remote ID Mode. The red LED lights up. control on several different displays. -
Page 21: Inserting The Batteries In The Remote Control
32BDL4511D 3.3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Insert batteries with the correct polarity (+) and (-). 3. -
Page 22: Using The Remote Sensor And Power Indicator
32BDL4511D 3.3.6. Using the remote sensor and power indicator 1. Push down the lens to have better remote control performance and make it easy to observe the power status. 2. Pull up the lens before mounting the display for video wall application. 3. -
Page 23: Usb Cover
32BDL4511D 3.4. USB Cover • Use the USB cover and screws to cover the USB stick. 1. Install the USB stick. 2. Install the USB cover. 3. Use the screw in accessory to fix the USB cover. • Maximum USB stick size recommended: 20(W)x10(H)x60(L) mm... -
Page 24: Connecting External Equipment
32BDL4511D Connecting External Equipment 4.1. Connecting External Equipment (DVD/VCR/VCD) 4.1.1. Using HDMI video input RS232 RS232 HDMI 1 IN HDMI 2 IN DVI-I [HDMI IN] HDMI Out DVD / VCR / VCD 4.2. Connecting a PC 4.2.1. Using DVI input [PC LINE IN] PC LINE IN RS232... -
Page 25: Using Dp Input
32BDL4511D 4.2.3. Using DP input RS232 RS232 DVI-I DP IN [DP IN] DP Out 4.3. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 4.3.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2. -
Page 26: Ir Pass-Through Connection
32BDL4511D 4.5. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] (DVD / VCR / VCD) Remote Control 4.6. Wire-connecting to Network INTERNET ROUTER [RJ-45] [RJ-45] Network Settings: 1. Switch the router on and enable its DHCP setting. 2. -
Page 27: Operation
32BDL4511D Operation 1 / 2 NOTE: The control button described in this section is mainly on the remote control unless specified otherwise. 5.1. Play multimedia files from USB device Return aaa1 aaa2 aaa3 1. Connect your USB device to the USB port on the display. AUDIO OUT xxx1 xxx2... -
Page 28: Osd Menu
32BDL4511D OSD Menu 6.2. OSD Menu Overview An overview of the On-Screen Display (OSD) structure is 6.2.1. Picture menu shown below. You can use it as a reference for further adjustment of your display. Brightness Picture 6.1. Navigating the OSD Menu Contrast Sharpness Screen... -
Page 29: Screen Menu
32BDL4511D Smart Picture Clock Phase PQ setting Improves focus, clarity and image stability by increasing or decreasing this setting. {Standard} / {Highbright} / {Warm}. NOTE: VGA input only. Smart Power Zoom mode Smart Power control is not relative to brightness control: PC mode: {Full} / {4:3} / {1:1} / {16:9}/ {21:9}/ {Custom}. -
Page 30: Audio Menu
Choose to turn on or off the wake on LAN function. Mute Choose from : {Off} / { On} Turn the mute function on/off. Light sensor (require Philips accessory CRD41 External Sensor Box) Speaker Choose to turn on or off backlight adjustment according to Turn the internal speaker on/off. -
Page 31: Configuration2 Menu
32BDL4511D Human sensor (require Philips accessory CRD41 External The options are: {1 - 60} seconds. Sensor Box) Logo This function will turn the backlight On when it senses the Choose to enable or disable the picture of Logo when presence of human and turn it off after a specified period of turning on your display. -
Page 32: Option Menu
32BDL4511D • {Lock All} / {Lock all but Volume} / {Lock all but Power} Monitor information / {Lock all except PWR & VOL}- Lock the remote control function of this display. To unlock, press and hold the [ Model name XXXX ] INFO button on the remote control for 6 (six) seconds. - Page 33 32BDL4511D Example: 2 x 2 screen matrix (4 displays) date of daylight saving, the clock should be adjusted 1 hour H monitors = 2 displays forward at 2 o’clock. At the end date of daylight saving, the V monitors = 2 displays clock should be adjusted 1 hour backward at 2 o’clock.
- Page 34 32BDL4511D scheduler, it will go to the corresponding source {Source} - Press [ ] or [ ] button to select the input • according to the current time. source. {On Time} - Press [ ] or [ ] button to adjust and the •...
-
Page 35: Supported Media Formats
32BDL4511D Supported Media Formats USB Multimedia Formats Video format Video Codec Resolution Bit Rate MPEG1/2 1080P@30fps 40Mbps H.264 1080P@30fps 50Mbps WMV3 1080P@30fps 40Mbps Motion JPEG 640x480@30fps 40Mbps Audio format Audio Codec Sampling Rate Channel Bit Rate MPEG1/2 Layer1 16KHz-48KHz Up to 2 32Kbps-448Kbps MPEG1/2 Layer2 16KHz-48KHz Up to 2... -
Page 36: Input Mode
32BDL4511D Input Mode Timing support: Item Resolution H.Freq. (KHz) V.Freq. (Hz) 720×400 @70Hz DOS 31.469 70.087 640×480 @60Hz DMT 31.469 59.94 640×480 @67Hz MAC 66.667 640×480 @72Hz DMT 37.861 72.809 640×480 @75Hz DMT 37.5 800×600 @56Hz DMT 35.156 56.25 800×600 @60Hz DMT 37.879 60.317 800×600 @72Hz DMT... -
Page 37: Pixel Defect Policy
However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- &... -
Page 38: Dark Dot Defects
Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table. -
Page 39: Cleaning And Troubleshooting
32BDL4511D HOW TO AVOID MURA Although we can not guarantee the complete eradication of Mura every time, in general the appearance of Mura can be minimized by these methods: • Lower the backlight brightness • Use a screen saver • Reduce the ambient temperature around the unit 10. -
Page 40: Troubleshooting
32BDL4511D 10.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of 2. Make sure the power switch is the display is not switched on. switched on. -
Page 41: Technical Specifications
32BDL4511D 11. Technical Specifications Display: Item Specifications Screen Size (Active Area) 80 cm / 31.5 inch Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.36375 (H) x 0.36375 (V) [mm] Displayable colors 8 bits+FRC, 16.7M colors Brightness (typical) 400 cd/m2 Contrast ratio (typical) - Page 42 32BDL4511D General: Item Specifications Power Input 100 - 240V~, 50/60Hz Power Consumption (Max) 70 W Power Consumption (typ.) 36 W Power Consumption (Standby & Off) <0.5 W Dimensions [W x H x D] 726.5 x 425.4 x 69.1 mm Weight 5.7 Kg Gross Weight 7.8 Kg...
-
Page 43: Warranty Policy For Philips Professional Display Solutions
LIMITED WARRANTY In the unlikely event the product requires service, we will arrange for your Philips product to be serviced free-of-charge within the warranty period, provided that the product was used in accordance with the user manual (e.g. in the intended environment). - Page 44 Warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow their warranty statement. Standard warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow the local warranty statement.
-
Page 45: Index
Pixel Defect Policy 35 Play multimedia files from USB device 25 Remote Control 17 Safety Instructions 1 Supported Media Formats 33 Technical Specifications 39 Unpacking 10 Unpacking and Installation 10 USB Cover 21 Warranty policy for Philips Professional Display Solutions... - Page 46 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.
