Samsung SolarCell Remote Instructions

ENG

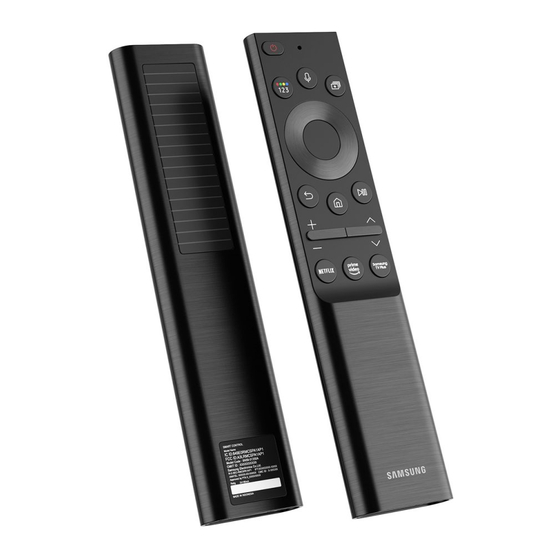

About the Samsung SolarCell Remote (Samsung Smart Remote)
Expose to light when the remote
is not in use. This will extend the
remote's operating time.
USB port (C-type) for charging
Used for quick charging. The LED on the front will light
when charging. When the battery is fully charged, the
LED will turn off.
• The USB Cable is not provided.
Fire or explosion may occur, resulting in damage to the remote control or personal injury.
• Do not apply shock to the remote control.
• Be careful not to let foreign substances such as metal, liquid, or dust come in contact with the charging terminal of the
remote control.
• When the remote control is damaged or you smell smoke or burning fumes, immediately stop operation and then repair it at
the Samsung service centre.
• Do not arbitrarily disassemble the remote control.
• Be careful not to let infants or pets suck or bite the remote control. Fire or explosion may occur, resulting in damage to the
remote control or personal injury.
Solar Cell
Button
Press to turn the TV on or off.
-00
For The Frame model, When watching TV, press to switch to Art mode. In Art mode, press to switch to the
(Power)
Home screen. Press and hold to turn off the TV completely.
Used as MIC when using voice recognition with the remote control.
1 MIC / LED
• Do not impact the MIC hole or use a sharp object to poke into the hole.
Runs Voice Assistant. Press and hold the button, say a command, and then release the button to run Voice
Assistant.
(Voice Assistant)
• The supported Voice Assistant's languages and features may differ by geographical area.
1
You can access Setting menu / virtual numeric pad / Colour buttons / Option pad / SmartThings directly.
• Accessing the SmartThings app using this button may not be supported, depending on the model.
• Use this button to access additional options that are specific to the feature in use.
(Settings / Number /
• Press to bring up the virtual numeric pad on the screen. Use the numeric keypad to enter numeric
Colour button)
2
3
2 Directional button
Moves the focus and changes the values seen on the TV's menu.
(up, down, left, right)
Selects or runs a focused item. When pressed while you are watching a broadcast programme, detailed
3 Select
programme information appears.
Press to return to the previous menu. When pressed for 1 second or more, the running function is
(Return)
terminated. When pressed while you are watching a programme, the previous channel appears.
Press to switch to the Home Screen.
(Smart Hub)
When pressed, the playback controls appear. Using these controls, you can control the media content that
4
is playing.
(Play/pause)
To use Game Bar, press and hold the button in Game Mode.
• Game Bar may not be supported depending on the model or geographical area.
Move the button up or down to adjust the volume. To mute the sound, press the button. When pressed for 2
seconds or more, the Accessibility Shortcuts appears.
(Volume)
• AD/SUBT. is included in the Accessibility Shortcuts.
•
Move the button up or down to change the channel. To see the EPG or Channel List screen, press the
button. (The EPG or Channel List screen appears depending on the geographical area.)
(Channel)
• When pressed for 1 second or more, the EPG or Channel List screen appears.
Press each button to run its function. (These buttons may vary depending on the geographical area.)
4 Launch app button
• Available apps may differ depending on the geographical area or contents provider.
If the Samsung Smart Remote does not pair to the TV automatically, point it at the front of the TV, and then
+ (Pairing)
press and hold the
– Use the Samsung Smart Remote less than 6 m from the TV. The usable distance may vary with the wireless environmental conditions.
– The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
– The Universal Remote function operates normally only when you use the Samsung Smart Remote that comes with the TV.
– It is recommended to use an original Samsung charger. Otherwise, it may cause performance degradation or failure of the product. In this
case, the warranty service is not applicable.
– When the remote control does not work due to low battery, charge it by using the USB-C type port.
– If the orientation of the remote control is incorrect, some TV models may display an alert asking users to hold it correctly. To turn off the
alert, access Remote Grip Sensor (
Saving > Remote Grip Sensor)
Description
values. Select numbers and then select Done or Enter Number to enter a numeric value. Use to
change the channel, enter a PIN, ZIP code and etc.
may not be present, depending on the model.
and buttons simultaneously for 3 seconds or more.
> (left directional button) > Settings > All Settings > General & Privacy > Power and Energy
