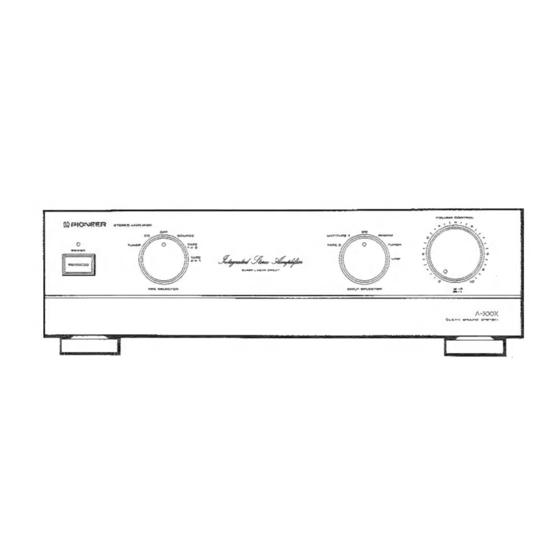

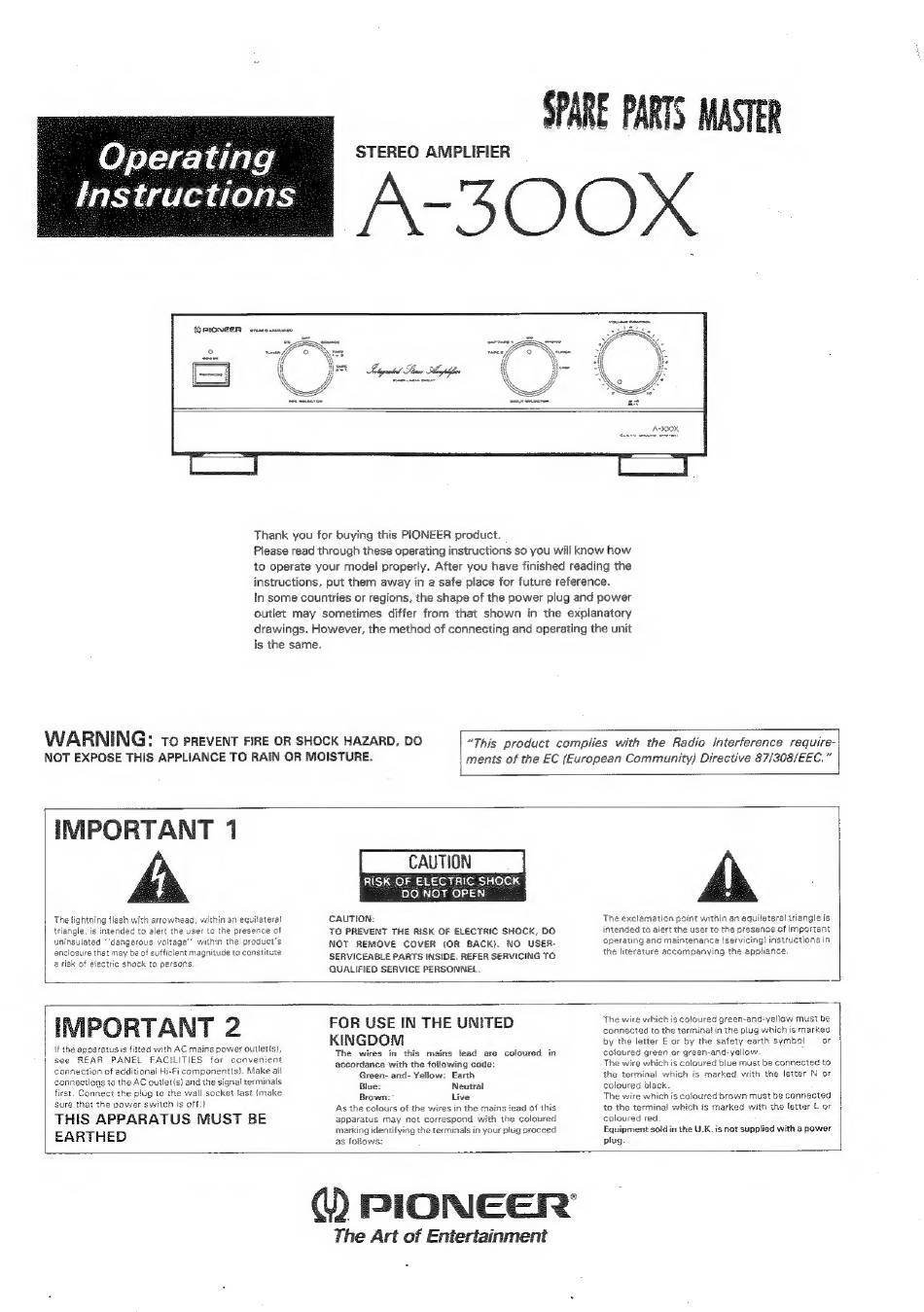

Pioneer A-300X Operating Instructions Manual

A-300X
Operating
akyidi le elexs
(OPIONCER erence wunmen
Thank you for buying this PIONEER product.
Please read through these operating instructions so you will know how
to operate your model properly. After you have finished reading the
instructions, put them away in a safe place for future reference.
In some countries or regions, the shape of the power plug and power
outlet may sometimes differ from that shown in the explanatory
drawings. However, the method of connecting and operating the unit
is the same.
WARNING: to pRevENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
"This product complies with the Radio Interference require-
| ments of the EC (European Community) Directive 87/308/EEC."
IMPORTANT 1
The tightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user to the presence of
usinguleted "dangerous valtage'' within the product's
enclosure that may be of sufficient magnitude to constitute
2 risk of electric shock to persons,
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK}. NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
The exclamation point within an equilateral triangle is
intended to aiert the user to the presence of important
operating and maintenance iservicing} instructions in
the literature accompanying the appliance,
IMPORTANT 2
If the epparatusis fitted with AC mains power outlets),
see REAR PANEL FACILITIES for convenient
connection of additional Hi-Fi component(s). Make all
cennectiogs to the AC outiet{s} and the signal terminals.
first. Connect the plug to the wall socket last (make
sure that the power switch is off.)
THIS APPARATUS MUST BE
EARTHED
FOR USE IN THE UNITED
KINGDOM
The wires in this mains lead are coloured in
accordance with the following code:
Green- and- Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains fead of this
apparatus may not correspond with the coloured
marking identifying the terminals in your plug proceed
as follows:
The wire which is coloured green-and-yellow must be
connected to the terminal in the plug which is markea
by the letter E or by the safety earth symbol or j
coloured green or green-and-yellow
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black,
The wire which is coloured brown must be connected
to the terminal which is marked with the letter Lor |
coloured red
Equipment sold in the U.K. is not supplied with a power
plug.
The Art of Entertainment
