Summary of Contents for Violectric HPA V222

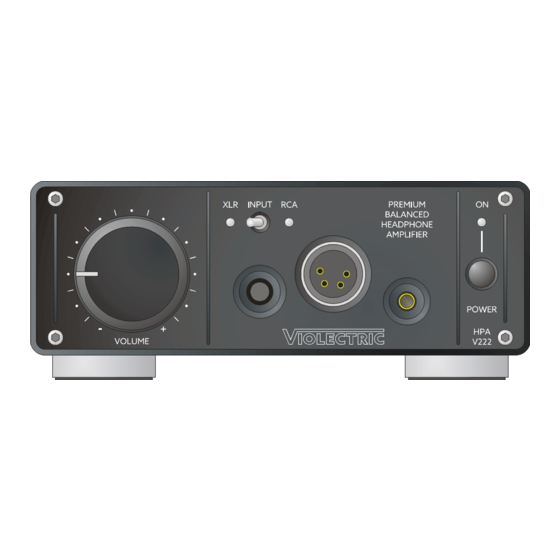

- Page 1 HEADPHONE AMPLIFIER Violectric HPA V222 USER´s MANUAL...
- Page 2 User´s Manual HPA V222, July 2022, F. Reim...
-
Page 3: Table Of Contents
About PRE-GAIN Headphone Outputs Protective Measures Things to Know Disposal Technical Data Dismantling, Jumper Settings Warranty CAUTION !! THE HIGH OUTPUT LEVELS ACHIEVABLE WITH THIS UNIT MAY DAMAGE YOUR HEARING OR THE HEADPHONES User´s Manual HPA V222, July 2022, F. Reim... -
Page 4: About
People electronic GmbH or contractors in the company's vicinity. Lake People - and by association put high emphasis on domestic manufacturing. As well, all component suppliers are chosen in order to achieve the main part of added value inland. User´s Manual HPA V222, July 2022, F. Reim... - Page 5 LAKE PEOPLE electronic GmbH Turmstrasse 7a D-78467 Konstanz Fon +49 (0) 7531 73678 Fax +49 (0) 7531 74998 Mail: info@lake-people.de www.violectric.de www.violectric.com www.lake-people.de www.lake-people.com User´s Manual HPA V222, July 2022, F. Reim...
-
Page 6: Safety Instructions
WHITE PROTECTIVE EARTH GREEN+YELLOW GREEN U.K. Mains Plug Warning: A moulded mains plug that has been cut off from the cord is unsafe. Discard the mains plug at a suitable disposal facility. User´s Manual HPA V222, July 2022, F. Reim... - Page 7 User´s Manual HPA V222, July 2022, F. Reim...
-
Page 8: The Earth / Grounding Concept
The Earth / Grounding Concept User´s Manual HPA V222, July 2022, F. Reim... - Page 9 Please note that with jumpers not in the ex-works position EMC emission might occur, for which the user is responsible only! So, only change these settings when you know what you are doing! User´s Manual HPA V222, July 2022, F. Reim...
-
Page 10: General
GENERAL INFORMATION VIOLECTRIC HPA V222 contains a high-grade stereo balanced Headphone Amplifier designed to drive low-, medium- and high-Z loads (16...600 ohms) as usually represented by high-quality headphones. Because of its four built-in amplifiers and both front mounted balanced headphone sockets (4-pin XLR and 4.4 mm Pentaconn) it is a real balanced amplifier and the balanced connectors are not only a convenience feature. -
Page 11: Operation: Case, Power Supply, Fuse
THE CASE of VIOLECTRIC HPA V222 is made of 4 mm Aluminum and a thick 5 mm aluminum front panel. This choice of material ensures high mechanical stability and resistance whilst maintaining a high optical and haptic quality. - Page 12 GROUND AND PROTECTIVE EARTH The case of VIOLECTRIC HPA V222 is connected to protective earth. POWER SUPPLY Mains power is provided via a three-pin IEC/CEE socket and mating "cold-appliance" mains cord with Schuko-type plug for units purchased in middle Europe.
-
Page 13: Block Circuitry
Block circuitry VIOLECTRIC HPA V222 User´s Manual HPA V222, July 2022, F. Reim... -
Page 14: Operation: Inputs, Amplifiers, Volume
They are labelled as "UNBAL IN L/R” and "BAL IN LEFT/RIGHT". The input impedance on all analogue inputs is 10 kohms. Maximum input level should not exceed +21 dBu. It is reduced to +3 dBu when PRE-GAIN +18 dB is engaged. User´s Manual HPA V222, July 2022, F. Reim... - Page 15 2 x eight transistors per channel. Because of the true balanced operation VIOLECTRIC HPA V222 houses no less than four of those! The channels are physically separated from each other to ensure optimum crosstalk rejection.
-
Page 16: About Pre-Gain
Too loud ? Too soft ? The PRE-GAIN method The VIOLECTRIC HPA V222 is specially designed to drive headphones. To do so it is placed between up to two analogue sources and the headphones. - Page 17 PRE-GAIN WE CALL THE SOLUTION TO THIS PROBLEM A single amp of HPA V222 has only little gain (gain = +2 dB = factor 1,25). In case a balanced headphone is connected two amps are active with a combined gain of +8 dB (factor 2,5).
- Page 18 Ex-factory, all switches are set to their lowest position - i. e. 0 dB PRE-GAIN - which should be sufficient for most applications. User´s Manual HPA V222, July 2022, F. Reim...
-
Page 19: Headphone Outputs
S (Sleeve) Ground THE UNBALANCED HEADPHONE CONNECTOR The HPA V222 offers a Unbalanced Headphone Socket: stereophonic headphone Left channel output, equipped with a Ring Right channel 6.3 mm (1/4") TRS jack Sleeve socket. User´s Manual HPA V222, July 2022, F. Reim... -
Page 20: Protective Measures
PROTECTIVE MEASURES: To ensure error-free operation and not to harm your valuable headphones in a comprehensive way your VIOLECTRIC HPA V222 is equipped with some protective circuits: During powering on there is a five second delay to protect your headphones from possibly unwholesome noises. After the time the headphone outputs are switched to the amp. - Page 21 Due to the large number of op-amp types offered, it is possible to pick an optimum type for any specific application. Why does PRE-GAIN make sense? Two extreme examples (with the HPA V222 with +2 dB gain (factor 1,25), volume control set to full): 1st example: The (pre-) amplifier provides 8 V output voltage, whereas the headphone requires only 2 V for 100 dB sound pressure level.
- Page 22 Meanwhile it is often replaced by electronic circuitry, often exhibiting essential disadvantages concerning dynamic range, noise and distortion. User´s Manual HPA V222, July 2022, F. Reim...
- Page 23 Since there is no known technical specification, we define the load (voice coil impedance) as 50 Ohms. With HPA V222 having an output impedance of < 0,5 ohms in balanced mode and < 0.25 Ohms in unbalanced mode this results in a damping factor of 100 (balanced) and a damping factor of 200 (unbalanced).
- Page 24 (95 % of all headphone amps in the market are operated with these or even lower supply voltages). Due to the high supply voltage and the balanced operation mode of HPA V222 you will benefit from far over two times more output voltage swing capability compared to single ended amps with “standard”...
-
Page 25: Disposal
The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. User´s Manual HPA V222, July 2022, F. Reim... -
Page 26: Technical Data
2700 16,5 1600 Supply Voltage: 230 V AC / 115 VAC max. 15 VA Case, Front, Back: Aluminium Case Dimensions: 170x54x228 mm / 6,7x2,1x9,0” (WxHxD) Overall Dimensions: 170x65x252 mm / 6,7x2,5x9,9” (WxHxD) User´s Manual HPA V222, July 2022, F. Reim... -
Page 27: Dismantling, Jumper Settings
Dismantling Screw off two upper screws from the front panel Screw off two upper from the back panel Lift the upper case and make your settings Assemble the unit in opposite order User´s Manual HPA V222, July 2022, F. Reim... -
Page 28: Warranty
We will grant a quick repair and quick return of the unit. In case of a warranty repair we will reship free of charge. Please denote here the serial number and the date of purchase: Serial Number Date of Purchase User´s Manual HPA V222, July 2022, F. Reim...
