Translated from Chinese (Simplified) to English - www.onlinedoctranslator.com
Thank you very much for purchasing a Panasonic product.
-
Please read this instruction manual carefully before use to ensure correct and safe use of this product.
-
Please be sure to read the "Safety Precautions" and "Important Information" (pages 2 – 5)
carefully before use.
-
Please keep the warranty certificate and this instruction manual properly for future use.
-
Panasonic assumes no responsibility for improper use of this product or failure to
follow instructions.
Scan QR code
Follow the official WeChat platform of Panasonic Service
Z50P300_MX-H2201_20221231.indd 1
National standard: GB 4706.1-2005
Enterprise Standard: Q/XMJS 032-2019
Table of contents
Safety Precautions
Important information
Intelligent altitude recognition
Part name and description
Control Panel Instructions
Instructions
Fully automatic menu recommended recipes
Recommended recipes in manual mode
Cleaning method
Troubleshooting
Replacement parts
Specification
warranty certificate
Online customer service
One-click repair and installation report
Service progress query
Get new product information
user's Guide

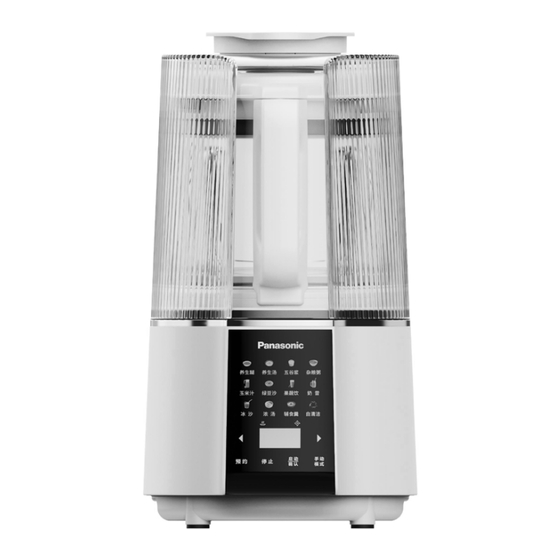

Heated wall breaking machine
MX-H2201
model :
GB 4706.19-2008
GB 4706.30-2008
(Household use)
page number
2
5
5
6
7
10
11
12
14
15
16
16
18
2023/1/5 11:02:02
Advertisement
Related Manuals for Panasonic MX-H2201
Summary of Contents for Panasonic MX-H2201
- Page 1 Please be sure to read the "Safety Precautions" and "Important Information" (pages 2 – 5) carefully before use. Please keep the warranty certificate and this instruction manual properly for future use. Panasonic assumes no responsibility for improper use of this product or failure to follow instructions. Scan QR code...
-
Page 2: Safety Precautions
To avoid the risk of electric shock, fire, smoke, burns or injury due to short circuit. ● Please do not disassemble, repair or modify this product by yourself. → Please consult your dealer or Panasonic Customer Service Center. ● Never allow infants or children to play with packaging materials.(May cause suffocation.) ●... - Page 3 ● ● Other abnormalities or failures occur. → Please unplug the power plug immediately and contact Panasonic Customer Service Center for inspection or repair. ● Before cleaning this product, please turn off the power and unplug the power plug, and dry the power plug and power socket before using it again.
- Page 4 ● Do not move this product by holding the power cord. ● Do not place any objects on this product or insert any objects into the bottom/ gaps of the product. ● Do not use this product in the following places. ●...
- Page 5 ● When using this product, please refer to the usage time and operating time in the specification sheet. (“Specifications” on page 16) ● After use, be sure to clean this product, especially food contact surfaces. (“Cleaning Method” on page 14) ●...
- Page 6 Part name and description Part Name Before using this product for the first time or if it has not been used for a long time, please clean all parts. (Follow cleaning instructions on page 13.) Silencer valve upper cover silencer valve Silencer valve lower cover Silencer valve sealing ring Silent cover...
-
Page 7: Control Panel Instructions
control Panel Control Panel Instructions Common functions function name How to operate Start/OK Used to determine the set temperature, time, or start the product to start running. stop Touch to return to the initial screen. hour Touch: adjust temperature, speed, between. - Page 8 Custom functions function name How to operate manual mode In standby mode, touch " ” key to enter manual mode. ① Touch “ "or" ” to set the temperature. After the setting is completed, press " "key. ● Optional temperatures: --, 37℃, 60℃, 80℃, 100℃ can be selected and cycled.
- Page 9 No heating function function name How to operate Fruit and vegetable drinks " Add ingredients, tap " " or " " to select the menu, tap " to Milk start making. sand Has heating function function name How to operate Automatic menu with "heating"...
- Page 10 Instructions 1. Cut the ingredients into pieces within 5cm. ● Cut the meat into strips and remove the tendons. ● When making fruit and vegetable drinks, ingredients with seeds need to be removed nuclear. 2. Please refer to the recipe, measure the ingredients in order and put them into the glass in the cup.
- Page 11 Fully automatic menu recommended recipes menu Ingredients & recipes Ingredients: 35 g black rice, 35 g japonica rice, 5 g red dates (about 2 pcs), ice 20 g sugar, 20 g peanuts, 550 g water. Method: Wash the rice, remove the pits from the health paste jujubes, prepare all the ingredients, and put them into a glass In the glass, select the health paste menu.
- Page 12 Fully automatic menu recommended recipes menu Ingredients & recipes Ingredients: 190 g avocado, 125 g vanilla ice cream, 210 mL milk. Method: Peel and core the avocado, cut into 3-5 cm pieces and place in a glass milkshake Cup, then put ice cream and milk and select milkshake menu. ●...
- Page 13 <Ingredients Preparation> ● Harder ingredients: Cut into 2 cm cubes, such as carrots, pumpkins, potatoes, etc. ● Soft ingredients: Cut into 3-5 cm cubes, such as bananas, dragon fruit, etc. ● Stem and leafy vegetables: cut into 3-5 cm pieces. ●...
- Page 14 Cleaning method ● Please turn off the power and unplug it before cleaning. ● Please clean this product before first use and after each use. ● Be sure to wait until the product has cooled before cleaning. ● Before cleaning, remove all removable parts. ●...
-
Page 15: Troubleshooting
● Before arranging repairs, please check the following items. Troubleshooting code solutions Possible cause analysis ◇ Circuit board failure, product internal connection ◇ Please send it to an after-sales outlet for repair Line failure ◇ ◇ The food pieces are too big or too many are placed, Cut the ingredients in the glass into small pieces as much as possible Motor overload protection chunks, and appropriate amounts... - Page 16 Replacement parts Part Name Part Number VE98P330 Silencer valve upper cover VE94P330 Silencer valve lower cover VE28P330 Silencer valve sealing ring VE33P330 cup lid VE29P330 Cup lid sealing ring glass VE01P330 VB46P330 Silent cover Specification 220 V 50 Hz power supply Heating: 800 W / Stirring: 450 W rated power speed control...
- Page 17 Name and content of harmful substances in products Harmful Substance Part Name lead polybrominated polybrominated di cadmium Hexavalent chromium (Pb) (Hg) (Cd) (Cr(VI)) biphenyl Phenyl ether (PBB) (PBDE) ○ ○ ○ ○ ○ ○ plastic parts ○ ○ ○ ○ ○...
-
Page 18: Warranty
The warranty (free repair) for Panasonic products within the warranty period starts from the date of purchase. 1. Products within the warranty period can only be repaired at Panasonic-certified repair shops: when repairing, please present this warranty certificate and purchase invoice. - Page 19 Memo Z50P300_MX-H2201_20221231.indd 19 2023/1/5 11:02:31...
- Page 20 Panasonic Customer Service Center: 4008-811-315 Manufacturer: Xiamen Jiansong Electric Co., Ltd. No. 17, Chuangxin Road, Torch Park, Torch High-tech Zone, Xiamen Country of Origin: China © Panasonic Manufacturing (Xiamen) Co., Ltd. 2023 Printed in China VZ50P330 LT0123J0 Release year and month: January 2023 Z50P300_MX-H2201_20221231.indd 20...
