Kit Instructions
NCR 7895 Scanner/Scale Shroud and Adapter Plate
7357-K895
Issue A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7895 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NCR 7895

Summary of Contents for NCR 7895

  • Page 1 Kit Instructions NCR 7895 Scanner/Scale Shroud and Adapter Plate 7357-K895 Issue A...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Software screen images are representative, and in some cases, may not match a customer’s installed software exactly.

  • Page 3: Revision Record

    Revision Record Issue Date Remarks July 2021 First Issue...

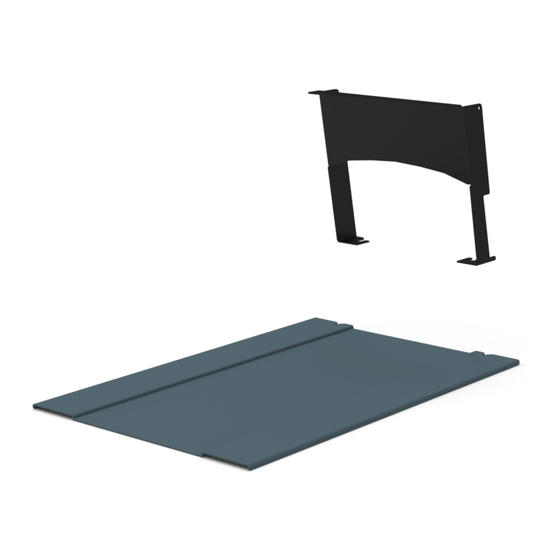

  • Page 5 NCR 7895 Scanner/Scale Shroud and Adapter Plate This publication provides procedure for installing an NCR 7895 Scanner/Scale Shroud and Adapter Plate to the NCR FastLane SelfServ™ Checkout (7357) R6LN Plus. Part Number Description 497-0529907 7895 Tower Shroud and Adapter Plate Kit 497-0528941 MP7000 Secondary Base Plate...

  • Page 6: Installation Procedure

    NCR 7895 Scanner/Scale Shroud and Adapter Plate Installation Procedure To install the NCR 7895 Scanner/Scale Shroud and Adapter Plate, follow these steps: 1. Shut down the NCR FastLane SelfServ™ Checkout software and hardware systems. 2. Remove the Terminal Display by doing the following: a.
  • Page 7 NCR 7895 Scanner/Scale Shroud and Adapter Plate c. Lift and tilt the Display forward, as shown in the image below. d. Disconnect the Display cables. 3. Open the Core Door. 4. Remove the Scanner Top by sliding it forward, as shown in the image below.
  • Page 8 5. Loosen the two (2) screws on the bottom of the Tower Frame and remove the existing Tower Shroud. 6. Install the 7895 Scanner/Scale Shroud and tighten both screws, as shown in the image below. 7. Install the Adapter Plate on the Scanner Bucket, as shown in the image below.
  • Page 9 NCR 7895 Scanner/Scale Shroud and Adapter Plate 8. Install the NCR 7895 Scanner/Scale by doing the following: a. Connect all cables to the designated ports on the NCR 7895 Scanner/Scale.
  • Page 10 NCR 7895 Scanner/Scale Shroud and Adapter Plate b. Place the Scanner/Scale in the Scanner bucket. c. Lower the Scale Plate.
  • Page 11 NCR 7895 Scanner/Scale Shroud and Adapter Plate d. Install the Scanner Top by sliding it toward the Tower Frame. e. Connect cables to designated ports on the Display. 9. Install the Terminal Display to the Tower Frame, by doing the following: a.
  • Page 12 NCR 7895 Scanner/Scale Shroud and Adapter Plate 10. Secure the Terminal Display to the Tower Frame using two (2) screws. 11. Ensure that the devices are working properly by powering up the NCR FastLane SelfServ™ Checkout software and hardware systems.
