- Page 1 DH-B6 ELECTRIC BIKE USER MANUAL...
- Page 2 USER MANUAL PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE RIDING Scan QR Code Or Enter URL for Online Installation Video https://www.youtube.com/watch?v=knh2mrZEFfY...
- Page 3 1、 This manual was written to help you understand the proper use and maintenance of the Hidoes line of Electric electric bike. 2、 It is important to understand the functions and features of the new Hidoes before operating it as it will allow you to enjoy it from every ride.
-
Page 4: Table Of Contents
CONTENT Product & Component Display ······································································· 1~2 Product Parameters ···················································································· 3 Products & Accessories ··············································································· 4 Product Installation ···················································································· 5~9 Power On & Unlock···················································································· 10 Safe Driving Warning ················································································· 11~12 Battery & Charging ··················································································· 13~15 Cleaning&Storage&Disposal at End-of-Life························································16~17 Error Code ····························································································· 18 Troubleshooting ·······················································································... -
Page 5: Product & Component Display

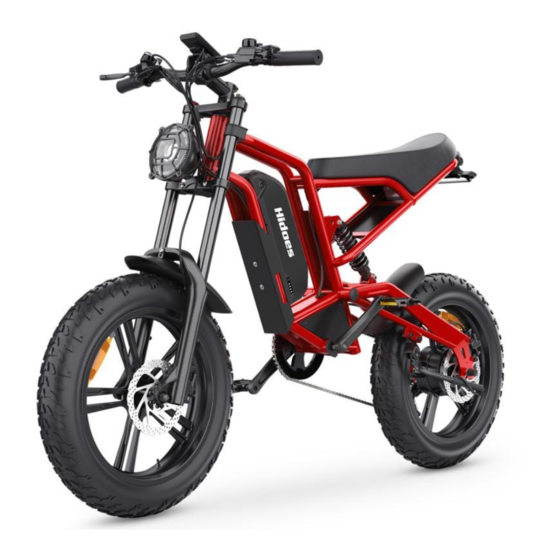

Product & Component Display 01:E-Bike display 08:Front fork 15:Motor 02:Handle 09:ON/OFF switch 16:Rear wheel 03:Gear lever 10:Charging port 17:Rear fender 04:Brake 11:Battery box 18:Rear shock absorber 05:Headlights 12:Pedal 19:License plate frame 06:Front fender 13:Rear derailleur guard 20:Tail lights 07:Front wheel 14:Rear Derailleur 21:Saddle... - Page 6 Product & Component Display 01:Brake lever 06:Lamp Button 11: Gear button 02:Acceleration control gear 07:Battery level 12:Brake lever 03:Power on button 08:Speed 13:Throttle 04:Settings 09:Gear 14: Handle 05:Reduction control gear/assisted model 10:Total mileage...
-
Page 7: Product Parameters
Product Parameters Model HD-B6 Tire Size 20 inch(20" x 4.0" Fat Tire) Battery 48V/15Ah Tyre Type Off-road Air tires Power 1200W Charging time 6~8 hours Display Screen Color Frame Material iron&Aluminum alloy Max Speed 50KM/H Net Weight 43KG Range 35-40KM Gross Weight 50.5KG Max Load... -
Page 8: Products & Accessories
Products & Accessories SERIAL NUMBER ITEM QUANTITY Charger Toolkit pump Instructions bicycle bell... -
Page 9: Product Installation
Product Installation Remove the screws under Remove the electric bike Align holes the rear shock absorber from the packaging box Place the handlebars into the Remove the four screws Use the tool to install the corresponding lock mouth from the rod screws and tighten them... - Page 10 Tighten the screws on the back Use a tool to tighten the four Remove the screws in the of the meter to secure the screws at the lock opening to center of the front fork meter secure the handlebars Use a tool to tighten the screws Remove the nut from the Align the front fender with to secure the front fender into...
- Page 11 Lift the body and align the Put the front fork on the Insert the bearing screws into front fork with the bearing bearing screw and find the the corresponding holes in screws on the front wheels matching nut the front tire Attach the nut to the Install the nut on the other side Find the rear taillight kit...
- Page 12 Insert the taillight connector Insert the tail light screws into Use tools to tighten the into the hole on the taillight the corresponding holes taillight screws By turning the right pedal Each pedal comes with an "L" Install the battery box in clockwise and the left pedal sticker or "R"...
- Page 13 When instrument Hold down the power button Turn on the battery box display lights up, it is for 3-5 seconds switch successfully turned on Turn the half handle on the Assembly completed right hand side to start the e-bike...
-
Page 14: Power On & Unlock
Power On & Unlock The display is equipped with five buttons on the corresponding operating unit power on/off ,plus ,minus ,light and toggle Long press to power on/off the display. If you do not use the electric bike for more than 10 minutes, the meter will automatically shut down. -
Page 15: Safe Driving Warning
Lower your risk of getting knee injuries by 32% with knee pod5. SAFETY FIRST If you are uncertain about any part of his manual, please bring your Hidoes and this manual to a local bike shop for professional inspection,assembly and instructions. - Page 16 Riding at night or in bad weather can be dangerous. Do not lend your Hidoes to someone who is unfamiliar with operating the bike. If you do choose to lend your Hidoes to anyone, make sure that they read and understand the instructions in this manual.
-
Page 17: Battery & Charging
Battery & Charging BATTERY Do not charge indoors. - Do not turn on and operate the electric bike while charging. - Keep the battery away from children, pets or direct heat. - Do not expose the battery to high temperature and pressure. - Please use the charger included with the electric bike for charging. - Page 18 Battery & Charging First Charge It is important to fully charge the battery before your first use of the electric bike. Your electric bike’s battery comes with these built-in features: 1. Balanced charging protection: During charging, the battery automatically balances the voltage among the internal cells to protect each cell.
- Page 19 Battery Maintenance Do not store the battery in a location that exceeds the temperature range of 20℃-25℃/68F-77F. Do not pierce the battery. Refer to local laws and regulations on battery recycling and/or disposal. If maintained properly, a battery can continue to perform at optimal levels well even powering your bike for many miles.
-
Page 20: Cleaning&Storage&Disposal At End-Of-Life
Storage Here are some tips on how to store your Hidoes E-Bike. Before storing the bike, charge the battery fully to prevent over-discharge due to lack of use. Even if you have not been using your E-Bike for more than one month, you should discharge and charge the battery at east once a month. - Page 21 The chemicals inside the battery are chemical pollutants. We recommend that all Hidoes products be disposed of as a whole or through an e-waste recycling center, program, or facility.
-
Page 22: Error Code
Error Code Error Code Fault Diagnostic Step Solution E001 Controller failure Controller failure Replace controller The instrument cannot receive the signal from the controller. E002 Communication fail Check whether the green line of the controller is connected Replace Instrument properly. Check whether the motor wires are connected properly or If there is no problem with each circuit, the E003... -
Page 23: Troubleshooting
Troubleshooting Malfunction Possible Cause Possible Solution 1.Under-charged battery. 1.Charge battery. Follow battery care procedures. 2.Battery no longer serviceable. 2.Have battery checked. Replace if faulty. Pedal assistance not working 3.Battery charger faulty. 3.Have charger checked. Replace if faulty. 4.Motor electrics or switches damaged / faulty. 4.Seek diagnosis and repair from authorised service centre. - Page 24 Malfunction Possible Cause Possible Solution 1.Pedal bearings too tight. 1.Adjust. 2.Bottom bracket bearings too tight. 2.Adjust. Grinding noise when pedalling 3.Rear wheel not straight. 3.Align so chain is straight. 4.Chain too tight. 4.Adjust. 5.Derailleur dirty. 5.Clean and lubricate. 1.Pads worn. 1.Replace.
- Page 25 Malfunction Possible Cause Possible Solution Motor "clicks" / has reduced 1.Under-charged battery. 1.Charge battery. Follow battery care procedures. power and / or shuts off 2.Motor internal fault. 2.Replace. 1.Blown fuse. 1.Replace. No power when pedal 2.Loose connectors / wiring damage. 2.Check connectors / wiring.
-
Page 26: Maintenance Schedule
Maintenance Schedule Check Before *Check Clean / Adjust / Tighten / Component / Condition Every Ride Periodically Lubricate Replace as Required Tyre Pressure Tyre Wear / Damage Brake Adjustment Handlebar Tightness Controls and Display Seat Post Tightness Fasteners / Mounting Hardware Brake Pads / Shoes Brake Cable Wear Chain... - Page 27 Derailleur Wheel Spoke Tension Wheel Trueness Wheel Bearings Bottom Bracket (Crank) Bearings * Every 5 to 10 rides depending on ride length and conditions.
-
Page 28: After Sales
We hope these videos will help you better understand and use our product. If you still have questions or concerns after watching the videos, please feel free to contact our customer service team, and we will be happy to assist you. Thank you again for your purchase and support! Wishing you a pleasant user experience! https://www.Hidoes.com https://www.youtube.com/@Hidoes... -
Page 29: Limited Warranty
11. Defects or damages from improper storage, exposure to moisture or dampness, modifications, connections, repairs (except as carried out by Hidoes or its authorised centres), misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of Hidoes, including damage caused by dropping, blown fuses, liquid entering the interior of the product. -
Page 30: Warranty Card
Serial number Model Invoice Number Battery serial number Name Distributor Contact Note Shenzhen Tianshengle Robot Co., Ltd. Address: Room505, 5th Floor, Liuwei Business Center, Yangmei Longjing Road, Longgang District, Shenzhen city, China WhatsApp: +8613612953725 Customer support: support@hidoes.com Official website: www.Hidoes.com... - Page 31 DH-B6...
