V) PIONEER'
The Art of Entertainment

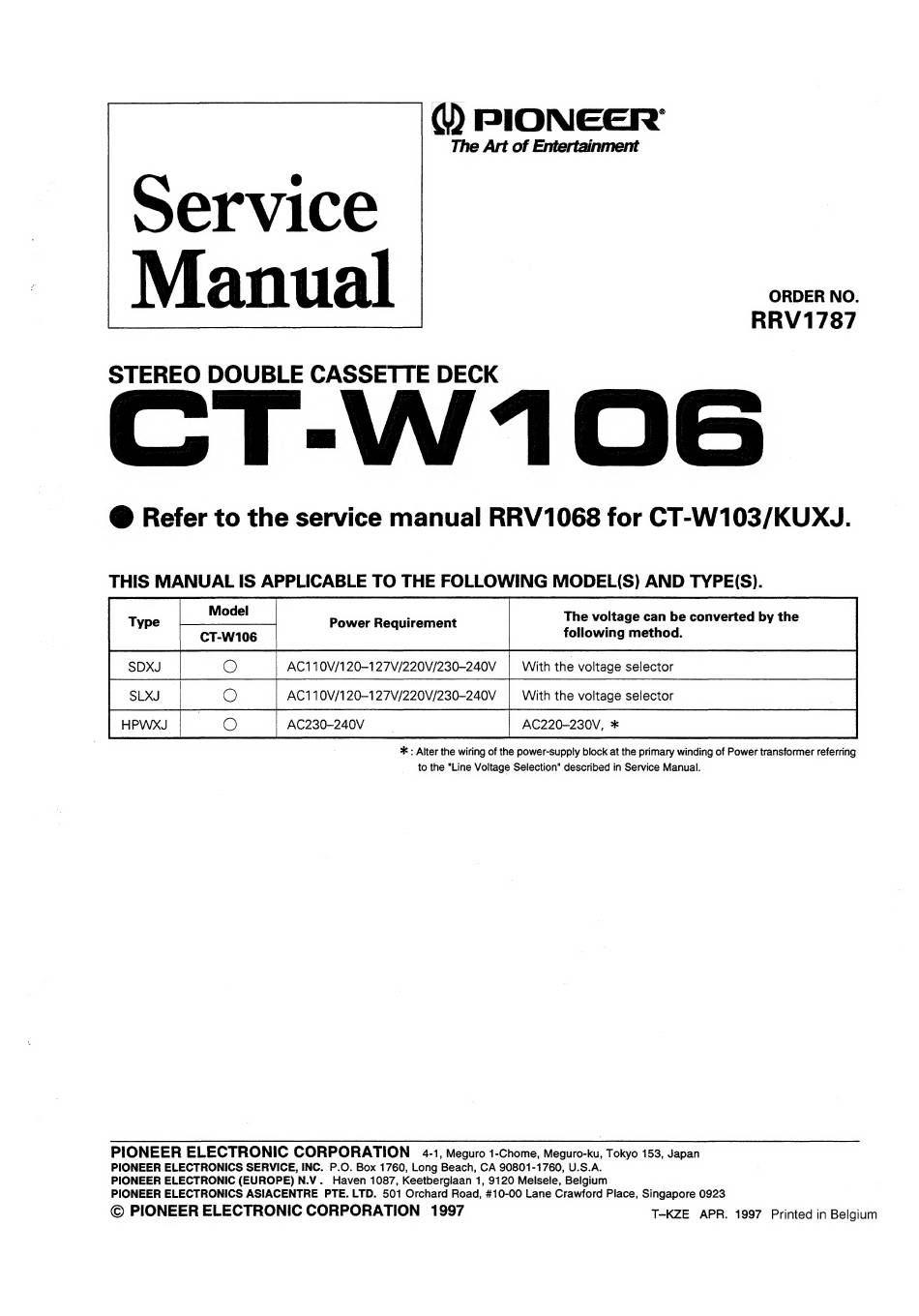

Service
Manual
STEREO DOUBLE CASSETTE DECK
CT-W106
@ Refer to the service manual RRV1068 for CT-W103/KUXJ.
ORDER NO.
RRV1787
THIS ae IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type
Power Requirement
The voltage can be converted by the
a
following method.
| sDxs |
=
AC110V/120-127V/220V/230-240V
With the voltage selector
SLXJ
<i
AC110V/120-127V/220V/230-240V
With the voltage selector
Tnewa
| O_ | aczao-2a0v
ACI20-230,
* : Alter the wiring of the power-supply block at the primary winding of Power transformer referring
_
to the "Line Voltage Selection" described in Service Manual.
PIONEER ELECTRONIC CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V.
Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE
PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923
© PIONEER ELECTRONIC CORPORATION
1997
T-KZE
APR. 1997 Printed in Belgium
