Keychron Q10 Pro - Bluetooth Mechanical Keyboard Manual

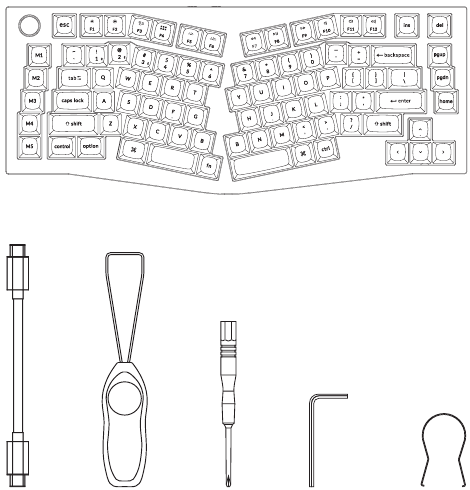

Fully Assembled Version

Keyboard

1x Fully Assembled Keyboard

Including

1x Aluminum Case
1x PCB
1x PC Plate
1x Sound Absorbing Foam
1xCase Foam
14x Gaskets (11 Installed and 3 in the Box)
5 Sets x Stabilizers
1 Set x Keycaps (PBT Double-shot)
1 Set x Switches

Cable

1x Type-C to Type-C Cable
1x Type-A to Type-C Adapter

Tools

1x Switch Puller
1x Keycap Puller
1x Screwdriver
1x Hex Key

Barebone Version

Keyboard Kit

1x Keyboard Kit (Without Keycaps & Switches)

Including

1x Aluminum Case
1x PCB
1x PC Plate
1x Sound Absorbing Foam
1x Case Foam
14x Gaskets (11 Installed and 3 in the Box)
5 Sets x Stabilizers

Cable

1x Type-C to Type-C Cable
1x Type-A to Type-C Adapter

Tools

1x Switch Puller
1x Keycap Puller
1x Screwdriver
1x Hex Key

Quick Start Guide

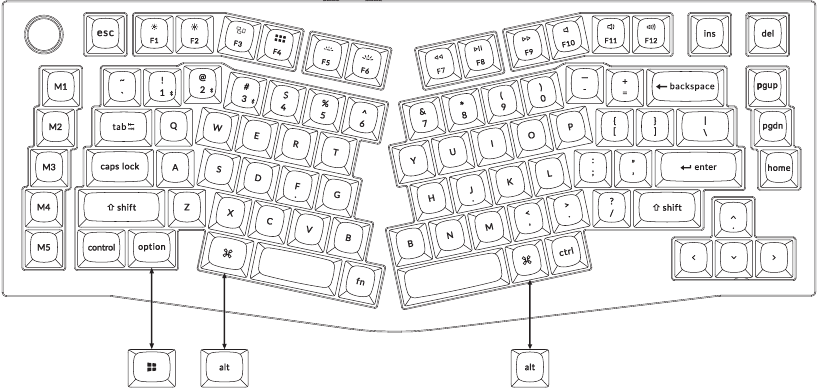

If you are a Windows user, please find the appropriate keycaps in the box, then follow the instructions below to find and replace the following keycaps.

Mac / Windows

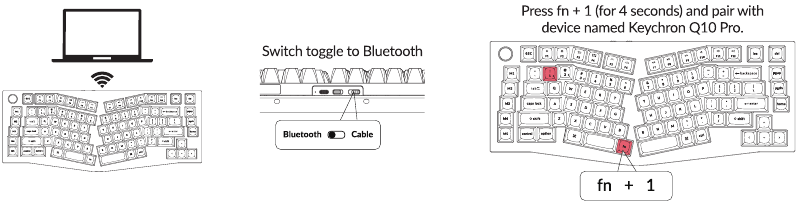

Connect Bluetooth

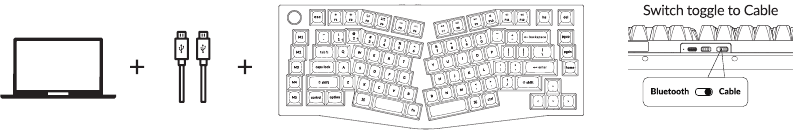

Connect Cable

The VIA Key Remapping Software

Please visit caniusevia.com to download the latest VIA software to remap the keys. If the VIA software cannot recognize your keyboard, please reach out to our support to get the instruction. (VIA on y works when the keyboard is connected by wire to the computer.)

The Layers

There are four ayers of key settings on the keyboard. The layer O and layer 1 are for the Mac system. The layer 2 and layer 3 are for the Windows system.

If your system toggle is switched to Mac, then the ayer 0 will be activated.

If your system toggle is switched to Windows, then the ayer 2 will be activated. Remember that if you are using it in Windows mode, please make changes to the layer 2 instead of the top layer (the layer 0). This is a common mistake people are making.

The Backlight

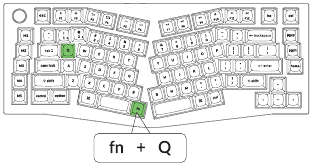

Press fn + Q to change the lighting effect

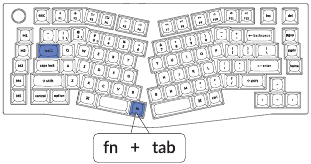

Press fn + tab to turn the backlight on/off

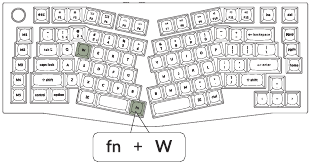

Adjust The Backlight Brightness

Press fn + W to increase the backlight brightness

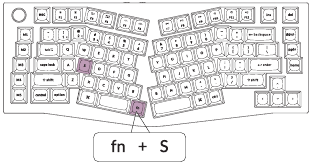

Press fn + S to decrease the backlight brightness

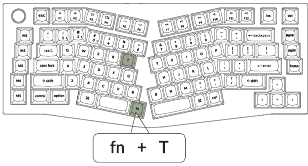

Adjust The Backlight Speed

Press fn + T to increase the light effect speed

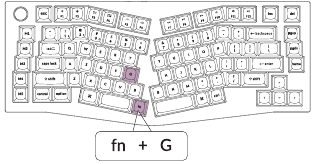

Press fn + G to decrease the light effect speed

Watch The Building Tutorial OnOurWebsite

If you are building the keyboard for the first time, we highly recommend you watch the building tutorial video on our website first, then start building the keyboard yourself.

Factory Reset

Troubleshooting?
Don't know what's going on with the keyboard?

1. Plug in the power cable and switch the keyboard to Cable mode.
2. Factory reset the keyboard by pressing fn + J + Z (for 4 seconds).
3. Download the right firmware and QMK Toolbox from our website.
4. Switch the keyboard to OFF mode and remove the spacebar keycap to find the reset button on the PCB.
5. Hold the reset key first, then switch the keyboard to Cable mode. Release the reset key, and the keyboard will now enter DFIJ mode.
6. Flash the firmware with the QMK Toolbox.
7. Factory reset the keyboard again by pressing fn + J + Z (for 4 seconds).

* Step by step guide can be found on our website.

SPECIFICATIONS

Number of keys: 89
Switch type: Mechanical
Battery: 4000mAh
Bluetooth working time (RGB): Up to 100 hours (Lowest brightness)
Charging time: Around 5 hours
Charging port: USB Type C
Mode: Bluetooth / Wired
Bluetooth operating distance: Within 10 meters (open space)
Name of Bluetooth device: Keychron Q10 Pro

Operating environment: -10 to 50C
Technical specifications can be subjected to change without notice, we apologize for any inconvenience caused.

OVERVIEW

1. Bluetooth indicator
2. BT OFF Cable (Mode Toggle Switch)
3. Win/Android Mac/iOS (OS Toggle Switch)
4. Charging port

DEFAULT KEY LAYOUT

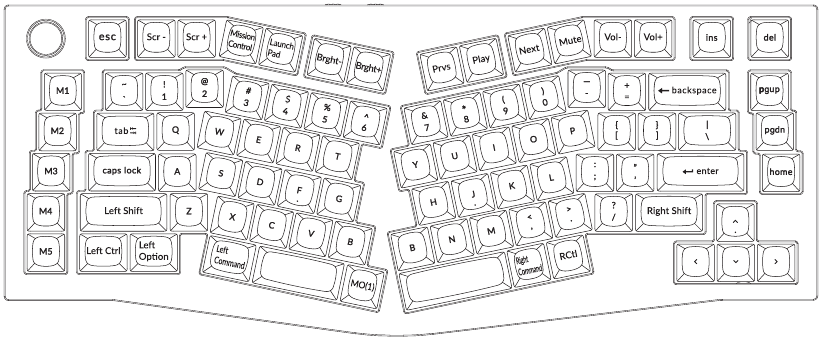

LAYER 0: This layer will be activated when your keyboard's system toggle is switched to Mac.

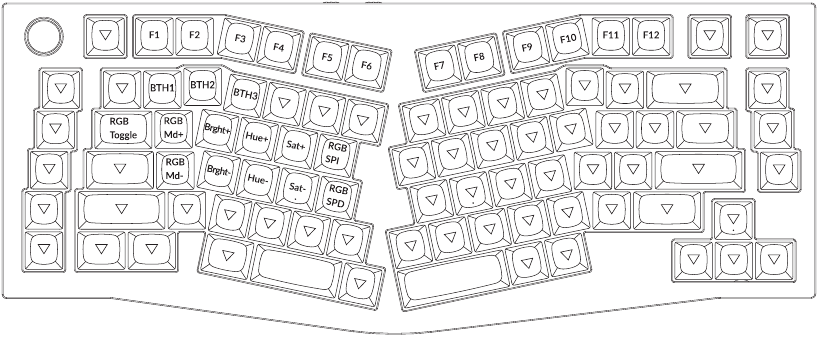

LAYER 1: This layer will be activated when your keyboard's system toggle is switched to Mac and press the fn/MO(1) key.

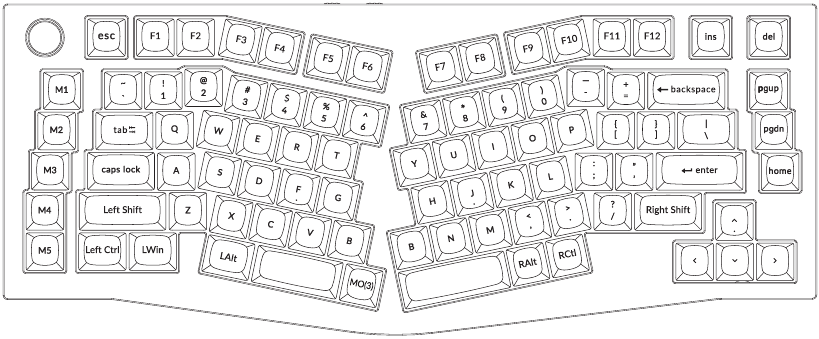

LAYER 2: This layer will be activated when your keyboard's system toggle is switched to Windows.

LWin Left Windows LAIt = Left Alt RAIt = Right Alt RCtl = Right Ctrl

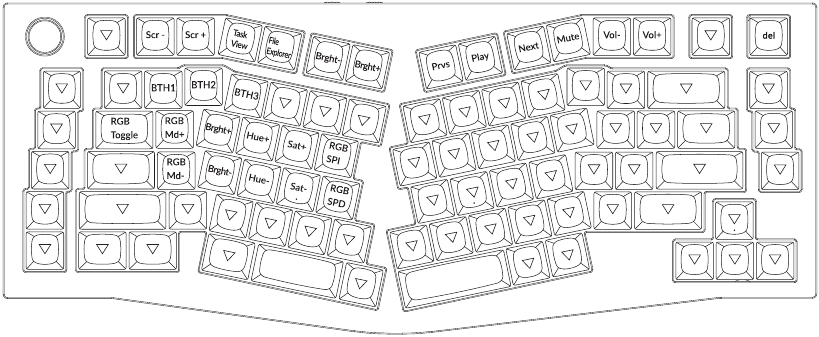

LAYER 3: This layer will be activated when your keyboard's system toggle is switched to Windows and press the fn/MO(3) key.

KEY DESCRIPTION

LED STATUS OVERVIEW

FUNCTION DESCRIPTION: CHARGING

Plug the cable into a USB port and plug the other end into the keyboard port. Charging Indicator:
A red light will stay on while charging; Fully charged in around 5 hours, a green battery indicator will appear.

*The Keychron keyboard is compatible with all USB ports. Please use a 5V 1A adapter or USB 3.0 for the best performance. The Keychron Q10 Pro can be charged in Bluetooth/on/off mode.
** This product supports up to 5V charging voltage and 1A charging current. We are not responsible for any problems caused by improper charging.

BLUETOOTH / WIRED MODE (MODE TOGGLE SWITCH)

WIRED MODE

1. Switch the toggle switch to the Cable option (it only works when a USB cable is plugged in).
2. Connect our cable with your PC and keyboard.
3. Backlighting will be turned on.
   *Under Wired Mode, keyboard will not enter into Battery Saver Mode.

BLUETOOTH MODE

1. Switch the toggle switch to the Bluetooth option.
2. Back lighting will be turned on.
3. Hold "fn+1" key for 4 seconds to activate Bluetooth pairing (the Bluetooth indicator fast flashes for 3 minutes to detect pairing).
4. Search for the Bluetooth device "Keychron Q10 Pro" on your device and connect it (the Bluetooth indicator goes off after successful pairing).

Note: This keyboard supports pairing up to 3 devices simultaneously via key combination "fn" + "1" / "fn" + "2 "/ fn + "3".

*The Bluetooth indicator will continue to flash for 3 minutes.
**Slow or failed connections may exist due to different Bluetooth versions, please make sure all the settings are correct.

SWITCH BLUETOOTH DEVICES
Short press key combination "fn" + "1" / "fn" + "2 "/ fn + "3" to switch to other device.

RECONNECT:

1. Switch the keyboard to the Bluetooth option to activate the keyboard.
2. The Bluetooth indicator flashes for 4 seconds and automatically pairs with the last paired device.
3. If the Bluetooth indicator is off, press any button to enter the connection again.
   * The keyboard must have been paired with the device to perform this function.

TURN OFF THE KEYBOARD
Switch the keyboard to the OFF option.

BACKLIGHT SETTING

• Short press key combination "fn" + "tab" to turn the backlight on/off.
• Short press key combination "fn" + "Q" / "fn" + "A" to switch between different types of lighting effects.

OS TOGGLE SWITCH

1. MAC/iOS
   Switch the toggle to Mac/iOS when the keyboard is connected to a Mac or iOS operating system.
2. WINDOWS/ANDROID
   Switch the toggle to Windows/Android when the keyboard is connected to a Windows or Android operating system.
   *When using the Windows/Android mode, keys are used for "Windows" and "Alt" functions.
3. INPUT METHOD SWITCH
   For iOS: Input method switch: Ctrl + Space
   Caps Lock: Caps (Enable Keyboard>Caps Lock Language Switch)
   For Android: Input method switch: Shift + Space

NOTE: Functions of certain multimedia key may be disabled due to compatibility, versions, brands and drivers of Windows/Android OS.We also recommend not to switch OS frequently as it may impact keyboard operations.

TROUBLESHOOTING

If unable to pair keyboard to device, confirm that the device you're trying to pair with is Bluetooth-capable. If so, restart the device and try pairing it with the keyboard again.

Note: On a Windows computer, a new Bluetooth connection will sometimes require additional software updates a process that may still be ongoing after a message appears indicating a successful completion. Wait at least 20 minutes after pairing to make sure all updates are completed before restarting the computer.

Confirm that the device is configured to accept Bluetooth connections (Windows) and supports an external keyboard (HID profile).

Go to Bluetooth Devices > Open Settings and select the following:
Allow Bluetooth devices to find this computer
Allow Bluetooth devices to connect to this computer
Alert me when a Bluetooth device wants to connect

My keyboard isn't working.
For the computer/smartphone:
Go to your device Bluetooth settings>Select the keyboard and remove/delete/unpair it.
Then restart your device.
For the keyboard: Turn the keyboard off and back on. Then reconnect it to your device.

Bluetooth connection is interrupted even within 10 meters.
Check if the keyboard is resting on a metal surface that can interfere with the Bluetooth

Third-party input tools are not compatible with the keyboard.
Due to compatibility, versions, brands and drivers of Windows/Android OS, functions of third party input tools may be affected while using the keyboard. Please make sure your operating system and drivers are up to date.

Certain multimedia keys or function keys do not work.
Functions of certain multimedia keys may be disabled due to compatibility, versions, brands, and drivers of devices.

*Multimedia keys:

Function keys:

Safety Precaution

Keep the product, accessories and packaging parts out of the reach of children to prevent any accidents and choking hazards. Always keep the product dry to avoid corrosion. Do not expose the product to extreme temperatures below -10C(5F) or above 50C(131F) to preserve the lifespan of the keyboard.
