- Page 1 Revision 1.0...
-
Page 2: Table Of Contents
Spectre 4 & Aevum Limited Edition Assembly Manual Table of Contents Introduction ..............................2 Features ................................2 Design & Engineering ...........................3 Manufacturing & Quality ..........................3 Specifications ..............................4 Table of Fasteners & Panels ........................6 Warranty ................................ 8 Assembly Manual ............................9 Step 1: Install Legs onto Distribution Plate. -
Page 3: Introduction

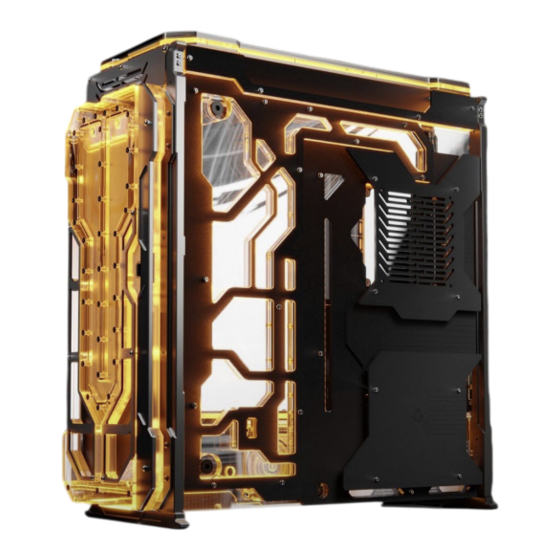

Spectre 4 is the ultimate extreme water-cooling case with more water-cooling features than any case on the market. It continues the famous Singularity Computers water-cooling integration via a distribution plate which makes up the rear wall of the case. It has a PowerBoard which removes the need for cable management while integrating many features. -
Page 4: Design & Engineering
• Internal drain port. Design & Engineering We are all experienced system builders at Singularity Computers having built high end water- cooled systems for over 15 years. Our approach to product development begins with a need for our own builds and so the origin is always function. We then build ideas around this function and the aesthetics and everything else follows. -
Page 5: Specifications
Spectre 4 & Aevum Limited Edition Assembly Manual Specifications Water-cooling Integration Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop. (+ Front distribution plate for Aevum) Ports: x8 G1/4” BSPP. 1x Fill Port. 2x Drain Ports. Pump: (Not included): Compatible with all D5 pumps. - Page 6 Spectre 4 & Aevum Limited Edition Assembly Manual Maximum GPU Height 170mm in standard orientation, unlimited in vertical orientation. Maximum CPU Cooler Height 170mm. Maximum PSU Length 240mm with a large amount of space for cables. Front Panel I/O No Front I/O. Vertical GPU Mount Vertical GPU mounting brackets with PCIE 4.0 Riser Cable.
-
Page 7: Table Of Fasteners & Panels
Spectre 4 & Aevum Limited Edition Assembly Manual Table of Fasteners & Panels Panels Name Legs B1 B2 Feet PSU Front Mount PSU Rear Mount PSU Top Shroud PSU Front Shroud PSU Side Shroud PSU Bottom Shroud I1 I2 Top Supports J1 J2 Corner Panels K1 K2... - Page 8 Spectre 4 & Aevum Limited Edition Assembly Manual Fasteners Panel Fastener Quantity Feet M6 x 20mm Legs M6 x 20mm PSU Shroud to Case M6 x 20mm M4 x 8mm I/O Panel to Case Stand Off M4 x 13mm M4 x 12mm Side Panel Window Stand Off 18.5mm M4 Top Supports...
-
Page 9: Warranty
That they did not occur after the item was shipped from the Singularity Computers Factory or Retailer. If there are more than 5 marks which are beyond 5mm in length and visible when facing perpendicular to the surface. -
Page 10: Assembly Manual
Spectre 4 & Aevum Limited Edition Assembly Manual Assembly Manual Assembly Note Spectre is built from thick and strong CNC Machined aluminum components with tight tolerances. There is no flex in the metal parts like there is on other cases. Due to this we have had to build tolerances into all the mounting holes on Spectre Integra. -
Page 11: Step 2: Attach Feet To Bottom Legs
Spectre 4 & Aevum Limited Edition Assembly Manual Step 2: Attach Feet to Bottom Legs. Attach the Feet (B1) (B2) to the bottom of the Legs using x2 M6 20mm Fasteners. Fastener locations are marked in the diagram below. Before installing the fasteners, you will need to remove the protective covers from the feet, these can be pulled off by hand and they will need to be replaced again afterwards. -
Page 12: Step 3: Psu Shroud Assembly
Spectre 4 & Aevum Limited Edition Assembly Manual Step 3: PSU Shroud Assembly. Note: For Aevum the PSU shroud looks different and there is a screen mounted onto the side but the assembly process is similar. Attach the Vertical GPU Mount with Riser Cable to the PSU Top Shroud(E) using 2x M4 12mm Fasteners. -
Page 13: Step 4: Attach Psu Shroud To Distribution Plate
Spectre 4 & Aevum Limited Edition Assembly Manual Step 4: Attach PSU Shroud to Distribution Plate. Attach the assembled PSU Shroud to the Distribution Plate using 4x M6 20mm Fasteners. Do not over tighten fasteners on acrylic. Revision 1.0 Page | 12... -
Page 14: Step 5: Attach Top Supports To Legs
Spectre 4 & Aevum Limited Edition Assembly Manual Step 5: Attach Top Supports to Legs. Attach the Top Supports (I1) (I2) to the top of the Legs using 4x M4 20mm Fasteners. Revision 1.0 Page | 13... -
Page 15: Step 6: Attach The Top Panel
Spectre 4 & Aevum Limited Edition Assembly Manual Step 6: Attach the Top Panel. The Top Panel comes pre-assembled so first you will need to completely disassemble it by removing all fasteners. Attach the Top Radiator Panel (L1) to the Top Supports (I1) and (I2) using 6x M4 6mm Fasteners. -
Page 16: Step 7: Attach The Front Panel
Spectre 4 & Aevum Limited Edition Assembly Manual Step 7: Attach the Front Panel . The Front Panel comes pre-assembled so first you will need to completely disassemble it by removing all fasteners. Then attach the Then attach the Front Radiator Front Radiator Mount (K2) to the Spacer (M2) using... - Page 17 Spectre 4 & Aevum Limited Edition Assembly Manual Spectre 4 Aevum Elite (Spectre 4 Aevum only) Spectre 4 Aevum Elite comes fully assembled, to install it and to install radiators you will need to separate the distribution plate from the Radiator Mounting Panel by undoing the fasteners marked in the diagrams beside.
-
Page 18: Step 8: Attach Rear I/O & Vertical Gpu Bracket
Spectre 4 & Aevum Limited Edition Assembly Manual Power Button The Power Button comes pre- installed with the cable attached but the cable will need to be plugged into the PowerBoard. Step 8: Attach Rear I/O & Vertical GPU Bracket. Attach the rear IO to the case using 3x M4 8mm Fasteners and 2x M4 13mm Stand Offs. -
Page 19: Drives & Rear Fans Installation
Spectre 4 & Aevum Limited Edition Assembly Manual Drives & Rear Fans Installation The drives and rear fan can be installed by removing the rear covers from the distribution plate. Rear 140mm Fan Mounting Mount the rear 140mm fan using 4x 35mm M4 x4, the cover and dust filter need to be mounted at the same time and the stand offs which came installed on the distribution plate can be removed. -
Page 20: Side Panel Window Installation
Spectre 4 & Aevum Limited Edition Assembly Manual Side Panel Window Installation Install the Side Panel Window using 4x M4 12mm Fasteners. Dust Filters There are dust filters on all fan locations. Spectre 4 Aevum Elite Dust Filter Revision 1.0 Page | 19... -
Page 21: Filling & Draining The Loop
Spectre 4 & Aevum Limited Edition Assembly Manual Filling & Draining the Loop Filling the Loop To fill the loop, we strongly recommend a long fill tube. We use a 90-degree fitting with a barb fitting and a 200mm length of soft tube. This prevents spilling and helps to remove the air faster. -
Page 22: Liquid Cooling System Layout
Spectre 4 & Aevum Limited Edition Assembly Manual Liquid Cooling System Layout Revision 1.0 Page | 21...
