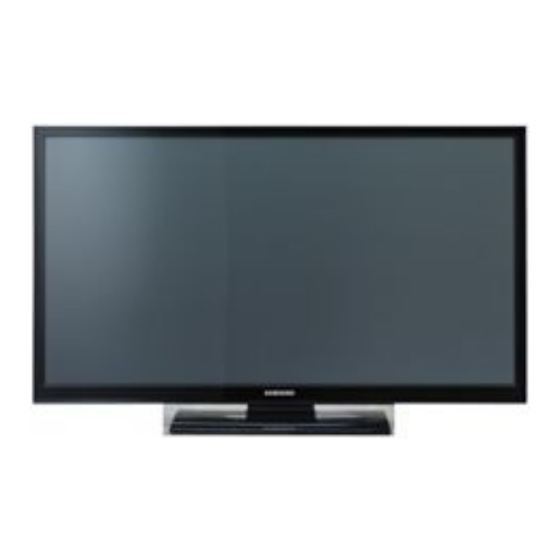

Samsung PS43E450A1WXZG Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SERVICE
Plasma TV
PS43E450A1W
Plasma TV
Chassis
Model Code
MANUAL
1. Precaution
2. Product Specification
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
F5AA
PS43E450A1WXZG
Contents

Advertisement

Table of Contents
loading

Related Manuals for Samsung PS43E450A1WXZG

Summary of Contents for Samsung PS43E450A1WXZG

  • Page 1 Plasma TV Chassis F5AA Model Code PS43E450A1WXZG SERVICE MANUAL Plasma TV Contents 1. Precaution 2. Product Specification 3. Disassembly and Reassembly 4. Troubleshooting 5. Wiring Diagram PS43E450A1W...

  • Page 2: Table Of Contents

    Contents Contents Precaution............................1 − 1 1.1. Safety Precautions ........................1 − 1 1.2. Servicing Precautions ....................... 1 − 3 1.3. Static Electricity Precautions...................... 1 − 4 1.4. Installation Precautions ......................1 − 5 Product Specification ......................... 2 − 1 2.1.
  • Page 3 Contents 5.1. Overall Wiring ........................5 − 1 5.1.1. Pin Connection ......................5 − 3...

  • Page 4: Precaution

    1. Precaution 1. Precaution To avoid possible damage, electric shocks or exposure to radiation, follow the instructions below with regard to safety, installation, service and ESD. 1.1. Safety Precautions 1) Make sure all protective devices are properly installed including non-metallic handles and compartment covers when installing or re-installing the chassis or chassis assemblies.
  • Page 5 1. Precaution 7) Some TV chassis are shipped with an additional secondary grounding system. The secondary system is adjacent to the AC power line. These two grounding systems are separated in the circuit using an unbreakable/unchangeable insulation material. 8) When any parts, material or wiring appear overheated or damaged, replace them with new regular ones immediately. When any damage or overheating is detected, correct this immediately and make a regular check of possible errors.

  • Page 6: Servicing Precautions

    1. Precaution 1.2. Servicing Precautions WARNING First carefully read the “Safety Instruction” in this service manual. When there is a conflict between the service and the safety instructions, follow the safety instruction at all times. Any electrolytic capacitor with the wrong polarity will explode. 1) The service instructions are printed on the cabinet, and should be followed by any service personnel.

  • Page 7: Static Electricity Precautions

    1. Precaution 1.3. Static Electricity Precautions 1) Some semi-conductive (“solid state”) devices are vulnerable to static electricity. These devices are known as ESD. ESD includes the integrated circuit and the field effect transistor. To avoid any materials damage from electrostatic shock, follow the instructions described below.

  • Page 8: Installation Precautions

    1. Precaution 1.4. Installation Precautions 1) For safety reasons a minimum of two people are required to carry this product. 2) Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock. 3) Do not place the product in areas with poor ventilation such as a bookshelf or closet.

  • Page 9: Product Specification

    2. Product Specification 2. Product Specification 2.1. Model Comparison Inch PE450 Front View Front Color Steam Mold Without Stand 1011.8 x 622.4 x 56.0 mm 43" Dimensions With Stand 1011.8 x 675.9 x 262.0 mm W x D x H Without Stand 1187.8 x 706.6 x 56.0 mm (inch)
  • Page 10 2. Product Specification 16.0 kg Without Stand 43" With Stand 20.3 kg Weight (lbs) Without Stand 22.5 kg 51" With Stand 26.8 kg Feature Zero Black Panel / ConnectShare...

  • Page 11: Feature & Specifications

    2. Product Specification 2.2. Feature & Specifications ■ Features • Digital-TV, RF, 2-HDMI, 1-Component(AV), 1-USB2.0, Optical • Brightness : 1500 cd/m2 • Contrast Ratio : 1000000:1 • 3D (PE490), AllShare, Content P*43E450 P*43E490 Model P*51E450 P*51E490 PDP Panel Clear Image Panel Horizontal : 60 kHz ~ 73 kHz (Automatic) Scanning Frequency Vertical : 47 Hz ~ 63 Hz (Automatic)
  • Page 12 2. Product Specification ■ 43” Specification Model P*43D450 P*43E450 With Stand 39.8 x 27.5 x 12 inches 39.8 x 26.6 x 12 inches Dimensions (W x H x D) Without Stand 39.8 x 24.5 x 2.2 inches 39.8 x 24.5 x 2.2 inches With Stand 41.8 lbs 41.8 lbs...
  • Page 13 2. Product Specification ■ 51” Specification Model P*51D490 P*51E490 With Stand 46.7 x 30.8 x 12 inches 46.7 x 30.8 x 12 inches Dimensions (W x H x D) Without Stand 46.7 x 27.8 x 2.2 inches 46.7 x 27.8 x 2.2 inches With Stand 56.2 lbs 56.2 lbs...

  • Page 14: Specifications Analysis

    2. Product Specification 2.3. Specifications Analysis Model P*43D450 P*43E450 Design PDP TV PDP TV Display Type Buil-In Tuner 1024 x 768 1024 x 768 Resolution Basic PDP Module Screen Size 43 inches 43 inches 16:9 16:9 Picture Ratio Brightness 1,500 Cd/m2 1,500 Cd/m2 10000:1 10000:1...
  • Page 15 2. Product Specification Sub Woofer Optical Speaker/Stand Built-in Speaker Built-in Speaker...
  • Page 16 2. Product Specification P*51D490 P*51E490 Model Design Display Type PDP TV PDP TV Buil-In Tuner 1365 x 768 1024 x 768 Resolution Basic PDP Module Screen Size 51 inches 51 inches Picture Ratio 16:9 16:9 Brightness 1,500 Cd/m2 1,500 Cd/m2 10000:1 10000:1 Picture...
  • Page 17 2. Product Specification Built-in Speaker Built-in Speaker Speaker/Stand O : Supported, X : Not Supported NOTE For the power supply and power consumption, refer to the label attached to the product.

  • Page 18: Accessories

    Remark Ferrite Core 3301-002049 Power Cord 3903-000456 Batteries (AAA x 2) 4301-000103 Remote Control AA59-00602A Cleaning Cloth BN63-01798B Samsung Service Center Owner`s Instructions BN68-03998C Guide Stand BN61-08051A Stand P-BASE BN96-22005B Stand P-BASE Stand + Guide Stand Screw 4EA(M4XL12 ) 6003-001782...

  • Page 19: Sold Separately

    2. Product Specification 2.4.2. Sold Separately Accessories Item Item code Remark RS232 Cable HDMI HDMI-DVI Audio Samsung Service Center Component Composite (AV) Coaxial (RF)

  • Page 20: What Is 3D Tv

    2. Product Specification 2.5. 3D TV 2.5.1. What is 3D TV A system that display 3D images artificially • How ? Using binocular time display • 1) Left eye recognizes left image, right eye recognizes right image. 2) Human eyes be far away each other 65mm horizontally.

  • Page 21: Format

    2. Product Specification 2.5.3. 3D Format ■ 3D Format : There are several 3D formats existing on how to merge Left and Right images . Input Format Input images explanation notes source 1. HDMI 1.4 standard format Inserting Blink Active Space between •...
  • Page 22 2. Product Specification Extract Left and Right images a rtificially from normal 2D contents input and show it in 3D. (a function 2D → 3D of TV) When watching 3D TV (input is 3D source) , if a viewer feels tired of watching 3D TV, a viewer can change the TV into 2D.
  • Page 23 2. Product Specification 2.6. Content Press the CONTENT button to select Watch TV, My Downloads, Source. Each screen will be displayed. Watch TV Guide Schedule Manager Channel List Channel Manager My Downloads Videos Photos Music Source Use to select TV or other external input sources such as DVD / Blu-ray players / cable box / STB satellite receiver / AllShare connected to the TV.Music...

  • Page 24: All Share

    • Supporting The Total End to End Solution for using Home Digital Media - Product Connection : By using “Samsung Wired/Wireless AP”, we support “Zero Config WiFi Connection between Samsung Products (One foot Connection) - Contents Making : Making picture and movie by Samsung HHP, Camera, Camcoder - Contents Saving : Saving Contents automatically to Samsung BD-HDD, PC by Auto Back Up - Contents Control : Sellecting and Operating Saving Contents by Samsung Premium Remocon , HHP, Tab.
  • Page 25 2. Product Specification One Foot Connection Connect Samsung AP and Samsung Products by closed position automatically TV Total Search Contents Function • Support the “Total Search Cotents” in the Allshare devices DLNA Search : Search contents TV which supports Standard DLNA searching function ※...

  • Page 26: Disassembly And Reassembly

    3. Disassembly and Reassembly 3. Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the PDP TV. WARNING This PDP TV contains electrostatically sensitive devices. Use caution when handling these components. 3.1. Overall Disassembly and Reassembly CAUTION •...
  • Page 27 3. Disassembly and Reassembly Description Description Photo Screw <Rear view of 51"> 6003–001782 <Rear view of 51"> M4 * L12 Remove the screws of Rear-Cover. 6003–001782 M4 * L12 6003–000337 <Rear view of 43"> M4 * L10 6003–001782 M4 * L12 6003–000337 <Rear view of 51">...
  • Page 28 3. Disassembly and Reassembly Description Description Photo Screw Lift up and remove the Rear-Cover. <Rear view of 43"> <Rear view of 51"> Remove the screws of Main Board. CAUTION Disconnect all connectors prior to removing boards. 6001–002606 M3 * L10 6003–001439 M4 * L8 <PN450>...
  • Page 29 3. Disassembly and Reassembly Description Description Photo Screw Remove the screws of SMPS. Remove the SMPS. CAUTION Align board under tab when re-installing. 6001–002606 M3 * L10 6003–001439 M4 * L8 Remove the peakers. (R/L) Remove the screw of Bluetooth Module. 6001–002606 <Rear view of 51">...
  • Page 30 3. Disassembly and Reassembly Description Description Photo Screw Remove the screws of the Front-Cover. 6003–001782 <Rear view of 43"> M4 * L12 6003–001782 <Rear view of 51"> M4 * L12 10. Pinch the Function PBA between your fingers and gentle pull away from front cover clip.

  • Page 31: Troubleshooting

    4. Troubleshooting 4. Troubleshooting 4.1. Troubleshooting 4.1.1. First Checklist for Troubleshooting 1) Check the various cable connections first. • Check to see if there is a burnt or damaged cable. • Check to see if there is a disconnected or loose cable connection. •...

  • Page 32: Checkpoints By Error Mode

    4. Troubleshooting 4.1.2. Checkpoints by Error Mode ■ No Power • The LEDs on the front panel do not work when connecting the power cord. Symptom • The SMPS relay does not work when connecting the power cord. The unit appears to be dead. •...
  • Page 33 4. Troubleshooting P owe r indica tor LED is on? Che ck AC powe r conne ction. Ye s Conne ct the ca ble be twe e n Are the S MP S CN801 a nd Ma in CN201 CN801 a nd CN201 conne ctor. conne cte d? Ye s Is th e Fus e (F8 01S ) of the S MP S P owe r...
  • Page 34 4. Troubleshooting ■ No Video Audio is normal but no picture is displayed on the screen. Symptom • The output voltage of the Main SMPS. • Major Checklist This may happen when the LVDS cable connecting the Main Board and the Panel is •...
  • Page 35 4. Troubleshooting Che ck the LED ope ra tion of Logic Boa rd whitch is norma lly ope ra ting? Re place the Logic Boa rd. (Norma l : Blink once a s e cond) Ye s Che ck the LVDS conne ctor. Che ck / Re pla ce the LVDS Ca ble .
  • Page 36 4. Troubleshooting ■ No Sound Video is normal but there is no sound. Symptom • When the speaker connectors are disconnected or damaged. • When the sound processing part of the Main Board is not functioning. • Major Checklist Speaker defect. •...

  • Page 37: Analog Part Troubleshooting

    4. Troubleshooting Is the ca ble conne ction be twe e n Conne ct the ca ble prope rly or Main boa rd a nd the s pe a ke r re place the ca ble, if ne ce s s a ry. prope rly conne cte d? Ye s Is th e output volta ge of S MP S norma l?
  • Page 38 4. Troubleshooting Gray Level H-sync 16 Gra y P a tte rn 16 Gra y Wa ve Form Che ck the LED ope ra tion of Logic Boa rd Re place the Logic Boa rd. whitch is norma lly ope ra ting? Che ck the output of LVDS .
  • Page 39 4. Troubleshooting <LVDS Output>...

  • Page 40: Digital Part Troubleshooting

    4. Troubleshooting 4.1.4. Digital Part Troubleshooting 1) It is difficult to check digital video signal because of too fast and small signal. 2) Check digital video signal, Use H-sync, V-sync and Clock for basic. 3) Each digital video ICs connected with data line, H-sync, V-sync and Clock line. 4) Check H-sync period, V-sync period, Clock period.
  • Page 41 4. Troubleshooting <PC Input (V-sync, H-sync, R/G/B)> <LVDS Output>...

  • Page 42: Faults And Corrective Actions

    4. Troubleshooting 4.1.5. Faults and Corrective Actions Symptom Related Image Causes and Countermeasures Address buffer defect A blank vertical cell (block) • appears on the screen. Replace the corresponding upper/lower • buffers. COF defect (burnt) • • Replace the module. A green screen appears when •...
  • Page 43 4. Troubleshooting Symptom Related Image Causes and Countermeasures The SMPS voltage is incorrect. A vertical green line appears on • the screen. Adjust the SMPS voltage according • to the voltage printed on the module label. X-Main board defect Dim screen (blurred in red) •...

  • Page 44: Operating Logic Led

    4. Troubleshooting 4.1.6. Operating Logic LED ■ Normal • LED ON/OFF for 0.5s P owe r ON Logic ON S e que nce (P OS ) Norma l Toggling (e ve ry 32 Vs ync) -. NT : 534 ms -.

  • Page 45: Adjust Smps Voltage When Change Smps

    4. Troubleshooting 4.1.7. Adjust SMPS Voltage when change SMPS VS_VR VA_TP VA_VR • T.P : Test Point • V.R : Variable Resistor...

  • Page 46: Factory Mode Adjustments

    4. Troubleshooting 4.2. Factory Mode Adjustments 4.2.1. Entering Factory Mode ■ To enter ‘Service Mode’ Press the remote-control keys in this sequence. • If you do not have Factory remote-control. • If you have Factory remote-control. Factory...
  • Page 47 4. Troubleshooting • If you don’t have Factory remote control, can’t control some menu. Option Control Expert ADC/WB Advanced T-MST9AUSC-XXX T-MST9AUSS-XXX E-Manual : X9ATSCA-000X EDID SUCCESS HDCP : SUCCESS CALIB : AV / COM / PC / HDMI / Option : XXXX XXXX XXXX X FactoryCS : 0xxxxxxxxx Onboot : xxx SDAL-XXX...

  • Page 48: Factory Data

    4. Troubleshooting 4.2.2. Factory Data ■ Option Menu Data Remark Factory Reset Type 43DHHcD Local set Bagic Model PE490 SVC Model TUNER Ch table NONE Front Color T-R-BLK ■ Control Menu Data Remark EDID EDID ON/OFF EDID WRITE ALL EDID WRITE PC EDID WRITE HDMI EDID WRITE HDMI1 EDID WRITE HDMI2...
  • Page 49 4. Troubleshooting Menu Data Remark Power Indicator Support Info+fatory BD Wise Support Info+fatory Data Service Support Info+fatory IIC BUS STOP Info+fatory OTA Duration Test Alternate Del OTN Server Type operating OTN Test Server OTN Support OTN Reset OTN Duration OTN Fail Test Visual Test Disable Info+fatory...
  • Page 50 4. Troubleshooting Menu Data Remark Y5 Ref Info+fatory Y6 Ref Info+fatory Y7 Ref Info+fatory Cb0 Ref Info+fatory Cb1 Ref Info+fatory Cb2 Ref Info+fatory Cb3 Ref Info+fatory Cb4 Ref Info+fatory Cb5 Ref Info+fatory Cb6 Ref Info+fatory Cb7 Ref Info+fatory Cr0 Ref Info+fatory Cr1 Ref Info+fatory...
  • Page 51 4. Troubleshooting Menu Data Remark Cr5 TH Info+fatory Cr6 TH Info+fatory Cr7 TH Info+fatory 2nd mips Info+fatory 2nd mips count Info+fatory Region PnP Language Info+fatory PC Auto Ident Enable OTP Lock … Auto Power MEMORY KEY SENSITIVITY FANET OTA Support WIFI REGION e-Pop Default OPTION_SWU...
  • Page 52 4. Troubleshooting Menu Data Remark Hotel Option Hospitality Mode Power On Menu OSD Operation Music Mode External Source Eco Solution Cloning Shop Option Shop Mode Exhibition Mode Asia Option Info+fatory China HD Info+fatory NT Conversion Info+fatory Sepco 120Hz Info+fatory Unbalance Info+fatory FMTransmitter Support Info+fatory...
  • Page 53 4. Troubleshooting Menu Data Remark BTSC Mono Prescale Info+fatory BTSC stereo Prescale Info+fatory SAP Prescale Info+fatory A2 Ident High Thld Info+fatory A2 Ident Low Thld Info+fatory Carrier2 Amp High Thld Info+fatory Carrier2 Amp Low Thld Info+fatory Carrier2 SNR High THR Info+fatory Carrier2 SNR Low THR Info+fatory...
  • Page 54 4. Troubleshooting Menu Data Remark HDMI FLT CNT LOS 100ms Info+fatory UNSTABLE BAN CNT 3500ms Info+fatory HDMI Err Cnt Info+fatory HDMI ROBIN Info+fatory HDMI Callback Info+fatory HDMI CTS Thld Info+fatory HDMI CTS Cnt1 Info+fatory TMDS_EQ2_Boost Info+fatory TMDS_EQ2_Gain Info+fatory TMDS_PLL_Loop Info+fatory TMDS_CPREG_BLEED Info+fatory HDMI EQ...
  • Page 55 4. Troubleshooting ■ SVC Menu Data Remark Test Pattern Pattern Sel … LOGIC Pattern Sel LOGIC Level Sel Panel Auto Setting Failure Info+fatory PANEL DISPLAY TIME LOGIC USB D/L Tuner Status T-CON USB Download Failure T-CON CheckSum Tuner Margin CAM Wain Time TS Clock delay SUBMICOM UPGRADE BT ADDRESS...
  • Page 56 4. Troubleshooting ■ Expert Menu Data Remark N/D ADJ Source … ■ ADC/WB Menu Data Remark AV Calibration Comp Calibraion PC Calibration HDMI Calibration ADC Target 1st_AV_Low 1st_AV_High 1st_AV_Delta 1st_COMP_Y_Low 1st_COMP_Cb_Low 1st_COMP_Cr_Low 1st_COMP_Y_High 1st_COMP_Cb_High 1st_COMP_Cr_High 1st_COMP_Delta 1st_PC_Low 1st_PC_High 1004 1st_PC_Delta 2nd_ACH_Low 2nd_ACH_High 2nd_PC_Low...
  • Page 57 4. Troubleshooting Menu Data Remark White Balance Sub Brightness R-Offset G-Offset B-Offset Sub Contrast R-Gain G-Gain B-Gain Movie R-Offset … Movie B-Offset … Movie R-Gain … Movie B-Gain …...
  • Page 58 4. Troubleshooting ■ Advanced Menu Data Remark Picture_2D Sub Setting Gamma 0.95 Natural Gamma Pwm Max PWM Min Pwm Mid Contrast Dimming 7.5 IRE NTSC 7.5 IRE Offset Comp Phase Led Peak OnOff Dither Bypass D Motion Light Dynamic Contrast EPA Standard Standard Contrast Standard Brightness...
  • Page 59 4. Troubleshooting Menu Data Remark M_Sub_Gamma HDMI Black Level WRHue WRSat WYHue WYSat WGHue WGSat WCHue WCSat WBHue WBSat WMHue WMSat ARHue ARSat AYHue AYSat AGHue AGSat ACHUE ACSat ABHue ABSat AMHue AMSat VDEC AGC mode AGC manual gain Ifcomptype Ifcompsel Saturain Cb/Cr Secam Filter Sel...
  • Page 60 4. Troubleshooting Menu Data Remark Post_H2 Post_H3 Post_H4 Post_v1 Post_v2 Post_H2 Overshoot Post_H2 Undershoot Post_H3 Overshoot Post_H3 undershoot Core Gain1 CoreGain2 D_Tot_Gain S_Tot_Gain ColorMapping A_Red_R A_Red_G A_Red_B A_Green_R A_Green_G A_Green_B A_Blue_R A_Blue_G A_Blue_B A_Yellow_R A_Yellow_G A_Yellow_B A_Cyan_R A_Cyan_G A_Cyan_B A_Magenta_R A_Magenta_G A_Magenta_B N_Red_R...
  • Page 61 4. Troubleshooting Menu Data Remark N_Yellow_R N_Yellow_G N_Yellow_B N_Cyan_R N_Cyan_G N_Cyan_B N_Magenta_R N_Magenta_G N_Magenta_B Enhance BLE_Gain D Sub Color D Skin Hue D Skin Sat S Sub Color S Skin Hue S Skin Sat M Sub Color M Skin Hue M Skin Sat Sub Tint CE_Normal_Left_Gain...
  • Page 62 4. Troubleshooting Menu Data Remark RF PAL DK RF PAL I RF PAL M RF PAL n RF SECAM BG RF SECAM DK RF SECAM L RF NT 358 RF NT 443 AV PAL AV PAL M AV PAL N AV SECAM AV NT 358 AV NT 443...
  • Page 63 4. Troubleshooting Menu Data Remark 3D_Dynamic Contrast EPA_3D 3D Contrast 3D Brightness 3D Standard Sharpness 3D Standard Color 3D Standard Tint 3D Standard Backlight WB Movie_3D 3D_W/B Movie On/Off 3D_Model 3D_Color Tone 3D_Msub Brightness 3D_Msub Contrast 3D_C_Rgain 3D_C_Bgain 3D_C_Roffset 3D_C_boffset 3D_N_Rgain 3D_N_Bgain 3D_N_Roffset...
  • Page 64 4. Troubleshooting Menu Data Remark 3D_WGSat 3D_WCHue 3D_WCSat 3D_WBHue 3D_WBSat 3D_WMHue 3D_WMSat 3D_ARHue 3D_ARSat 3D_AYHue 3D_AYSat 3D_AGHue 3D_AGSat 3D_ACHUE 3D_ACSat 3D_ABHue 3D_ABSat 3D_AMHue 3D_AMSat ColorMapping_3D 3D_A_Red_R 3D_A_Red_G 3D_A_Red_B 3D_A_Green_R 3D_A_Green_G 3D_A_Green_B 3D_A_Blue_R 3D_A_Blue_G 3D_A_Blue_B 3D_A_Yellow_R 3D_A_Yellow_G 3D_A_Yellow_B 3D_A_Cyan_R 3D_A_Cyan_G 3D_A_Cyan_B 3D_A_Magenta_R 3D_A_Magenta_G 3D_A_Magenta_B...
  • Page 65 4. Troubleshooting Menu Data Remark 3D_N_Green_R 3D_N_Green_G 3D_N_Green_B 3D_N_Blue_R 3D_N_Blue_G 3D_N_Blue_B 3D_N_Yellow_R 3D_N_Yellow_G 3D_N_Yellow_B 3D_N_Cyan_R 3D_N_Cyan_G 3D_N_Cyan_B 3D_N_Magenta_R 3D_N_Magenta_G 3D_N_Magenta_B Sharpness_3D 3D_Post_H1 3D_Post_H2 3D_Post_H3 3D_Post_H4 3D_Post_v1 3D_Post_v2 3D_Post_H2 Overshoot 3D_Post_H2 Undershoot 3D_Post_H3 Overshoot 3D_Post_H3 undershoot 3D_Core Gain1 3D_CoreGain2 3D_D_Tot_Gain 3D_S_Tot_Gain Enhance_3D 3D_BLE_Gain 3D_D Sub Color...
  • Page 66 4. Troubleshooting Menu Data Remark 3D_CE_Normal_Left_Gain 3D_CE_Normal_Right_Gain 3D_CE_Normal_Offset 3D_CE_Special_Left_Gain 3D_CE_Special_Right_Gain 3D_CE_Special_Offset 3D_CE_S_Left_gain 3D_CE_S_Right_Gain 3D_CE_S_Normal_Offset 3D Setting LED_BT_IR BTPairDis_Ho BTPairDis_sh BTTransDis BTSlaveDelay48 BTSlaveDelay50 BTSlaveDelay60 BTEmiDel_48 BTEmiDel_50 BTEmiDel_60 BTGlsDUTY IREmiDel_48 IREmiDel_50 IREmiDel_60 IREmiMask IRMASKPRD IREmiNum SlavDelay48 SlavDelay50 SlavDelay60 PDP_BT_IR BTPairDis_Ho_PDP BTPairDis_sh_PDP BTTransDis_PDP BTSlaveDelay48_D BTSlaveDelay50_D BTSlaveDelay60_D...
  • Page 67 4. Troubleshooting Menu Data Remark IREmiDel_50_R IREmiDel_60_R BTGlsDUTY_R BTEmiDel_48_M BTEmiDel_50_M BTEmiDel_60_M BTGlsDUTY_M IREmiMask_PDP IRMASKPRD_PDP IREmiNum_PDP SlavDelay48_PDP SlavDelay50_PDP SlavDelay60_PDP Duty PDuty192 PDuty200 PDuty240_Dyn PDuty210_Mov Glmit_LBT0 Glmit_LBT1 Glmit_LBT2 Glmit_LBT3 Glmit_LLT0 Glmit_LLT1 Glmit_LLT2 Glmit_LLT3 DCCX1 DCCX2 DCCX3 DCCY1 DCCY2 DCCH1 DCCH2 DCCH3 DCCV1 DCCV2 Temp Read Time_HOT...
  • Page 68 4. Troubleshooting Menu Data Remark delta Effect Depth_Min Depth_Max Viewp_Min_2D3D Viewp_Max_2D3D Viewpoint_Min viewpoint_Max Debug Debug DccMode DccSele0_0 DccSele0_1 DccSele0_2 DccSele0_3 DccSele0_4 DccSele0_5 DccSele0_6 DccSele0_7 PosiSel_0_0 PosiSel_0_1 PosiSel_0_2 PosiSel_0_3 PosiSel_0_4 PosiSel_0_5 PosiSel_0_6 PosiSel_0_7 PosiSel_0_8 PosiSel_0_9 PosiSel_0_10 PosiSel_0_11 Bypass IREmiMask IRMASKPRD IREmiNum SlavDelay48 SlavDelay50 SlavDelay60...
  • Page 69 4. Troubleshooting Menu Data Remark BTSlaveDelay60_D BTGlsDUTY_D BTEmiDel_48_S BTEmiDel_50_S BTEmiDel_60_S BTGlsDUTY_S IREmiDel_48_R IREmiDel_50_R IREmiDel_60_R BTGlsDUTY_R BTEmiDel_48_M BTEmiDel_50_M BTEmiDel_60_M BTGlsDUTY_M IREmiMask_PDP IRMASKPRD_PDP IREmiNum_PDP SlavDelay48_PDP SlavDelay50_PDP SlavDelay60_PDP Duty PDuty192 PDuty200 PDuty240_Dyn PDuty210_Mov Glmit_LBT0 Glmit_LBT1 Glmit_LBT2 Glmit_LBT3 Glmit_LLT0 Glmit_LLT1 Glmit_LLT2 Glmit_LLT3 DCCX1 DCCX2 DCCX3 DCCY1 DCCY2...
  • Page 70 4. Troubleshooting Menu Data Remark DCCV1 DCCV2 Temp Read Time_HOT Time_Cold Temp_ST Temp_TH delta Effect Depth_Min Depth_Max Viewp_Min_2D3D Viewp_Max_2D3D Viewpoint_Min viewpoint_Max Debug Debug DccMode DccSele0_0 DccSele0_1 DccSele0_2 DccSele0_3 DccSele0_4 DccSele0_5 DccSele0_6 DccSele0_7 PosiSel_0_0 PosiSel_0_1 PosiSel_0_2 PosiSel_0_3 PosiSel_0_4 PosiSel_0_5 PosiSel_0_6 PosiSel_0_7 PosiSel_0_8 PosiSel_0_9 PosiSel_0_10...

  • Page 71: Service Adjustment

    4. Troubleshooting 4.3. Service Adjustment - You must perform Calibration in the Lattice Pattern before adjusting the White Balance. ■ White Balance - Calibration • Factory ADC / WB AV Calibration Comp Calibration PC Calibration HDMI Calibration ■ Color Calibration •...
  • Page 72 4. Troubleshooting • Method of Color Calibration (AV) 1) Apply the NTSC/PAL Lattice (N0. 3) pattern signal to the AV IN 1 port. 2) Press the Source key to switch to “AV1” mode. 3) Enter Service mode. 4) Select the “ADC” menu. 5) Select the “AV Calibration”...
  • Page 73 4. Troubleshooting • Method of Color Calibration (HDMI) 1) Apply the 720p Lattice (N0. 6) pattern signal to the HDMI1/DVI IN port. 2) Press the Source key to switch to “HDMI1” mode. 3) Enter Service mode. 4) Select the “ADC” menu. 5) Select the “HDMI Calibration”...

  • Page 74: Software Upgrade

    Installing the latest version is recommended. ■ By USB Insert a USB drive containing the firmware upgrade downloaded from samsung.com into the TV. Please be careful to not disconnect the power or remove the USB drive while upgrades are being applied.
  • Page 75 4. Troubleshooting ■ By Online Upgrades the software using the Internet. • First, configure your network. For detailed procedures on using the Network Setting. Refer to the ‘Setting the Network’ instructions. • If The internet connection doesn’t operate properly, connection can be broken, please retry downloading. If the problem still happens, download by USB and upgrade.

  • Page 76: Rs-232C

    4. Troubleshooting 4.5. RS-232C 1. To RS232C control • Port : COM# (Serial) • Bit rate : 38400 • Data Bit : 8 bit • Parity : None • Stop Bits : 1 • Flow Control : None 2. Description of RS232C Name Full Name Carrier Detect...

  • Page 77: Av Control Code

    4. Troubleshooting 4.6. AV Control Code Control Item Cmd1 Cmd2 Cmd3 Value General Power Power 0x00 0x00 0x00 0x00 0x01 0x02 Volume Direct 0x01 0x00 0x00 (0~100) 0x01 0x00 Down 0x02 0x00 Mute 0x02 0x00 0x00 0x00 Direct 0x04 Continuous 0x01 0x00 0x03...
  • Page 78 4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value BackLight(CellLight) 0~20 0x01 0x00 (0~20) Contrast 0~100 0x02 0x00 (0~100) Brightness 0~100 0x03 0x00 (0~100) Sharpness 0~100 0x04 0x00 (0~100) Color 0~10 0x05 0x00 (0~100) Tint 0x06 0x00 (0~100) Black Tone 0x07 0x00 0x00 Advanced Settings...
  • Page 79 4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value Ticker 0x03 Picture Option Color Tone Cool 0x0a 0x00 0x00 Normal 0x01 Warm1 0x02 Warm2 0x03 Digital Noise Filter 0x02 0x00 0x01 Medium 0x02 High 0x03 Auto 0x04 Auto Visualization 0x05 MPEG Noise Filter 0x03 0x00 0x01...
  • Page 80 4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value 3D Mode 0x0b 0x0c 0x00 0x00 2D->3D 0x01 Side By Side 0x02 Top Bottom 0x03 Line By Line 0x04 Vertical Line 0x05 Checker BD 0x06 Frame Sequence 0x07 3D → 2D 0x01 0x00 0x01 3D View Point...
  • Page 81 4. Troubleshooting Control Item Cmd1 Cmd2 Cmd3 Value 0x01 Night 0x02 Speaker Select TV Speaker 0x07 0x00 0x00 External Speaker 0x01 Sound Select Main 0x08 0x00 0x00 0x01 Sound Reset Sound Reset 0x09 0x00 0x00 3D Audio 0x0a 0x00 0x00 0x01 Medium 0x02...

  • Page 82: Rear Cover Dimension

    4. Troubleshooting 4.7. Rear Cover Dimension PE450/490 43" COVER-REAR Dimension (POWER) PE450/490 51" COVER-REAR Dimension (POWER)

  • Page 83: Wiring Diagram

    5. Wiring Diagram 5. Wiring Diagram 5.1. Overall Wiring ■ 43" HD CN5505 CN4003 CN5012 CN5504 Buffe r CN804 CN4002 CN5009 S MP S CN5503 CN 4005 CN4000 CN800S CN801 XY - DRIVE CNxx CN5500 CN5010 CN5011 CN5501 CN5002 CN201 CN302 CN2023 CN2022...
  • Page 84 5. Wiring Diagram ■ 51" HD CN5505 CN4005 CN5504 CN5006 Buffe r CN804 CN4001 CN5400 S MP S CN5503 CN4007 CN800S CN801 XY-DRIVE CN5500 CN5402 CN5403 CN5501 CN5007 CN201 CN302 CN2023 CN4004 CN2022 LOGIC BOARD MAIN BOARD CNxx CN5502 CN1201 CN2010 CN2011 CN1602_HD...
  • Page 85 5. Wiring Diagram 5.1.1. Pin Connection CN801 (SMPS) ↔ CN201 (Main Board) Pin No. (SMPS) Signal (SMPS) Pin No. (Main Board) Signal (Main Board) PS-ON SW_POWER STBY A5V_PW DGND D15V B15VS_PW DGND DGND D5.3V B5V_PW D5.3V B5V_PW DGND D15V B15V_PW D15V B15V_PW D5.3V...
  • Page 86 5. Wiring Diagram E490 (3) CN1201 (Main Board) ↔ CN1 (FUNCTION) Pin No. (Main Board) Signal (Main Board) Pin No. (FUNCTION) Signal (FUNCTION) FRAME_SUNC_IN USB_BT_DM KEY1 FRAME_SUNC_OUT A3.3V KEY2 BT_WAKE USB_BT_DP POWER_DET CN302 (Main Board) ↔ SPEAKER Pin No. (Main Board) Signal (Main Board) R+_OUT R-_OUT...
  • Page 87 5. Wiring Diagram 43" (5) CN2023 (Logic Board) ↔ CN1602 (Main Board) 2D Only Pin No. Signal Pin No. Signal Pin No. Signal Pin No. Signal RIGHT(4)+ RIGHT(0)- UART Tx RIGHT(4)- RIGHT(3)+ RIGHT(3)- RightCLK+ RightCLK- UART Rx RIGHT(2)+ RIGHT(2)- 3D_SYNC RIGHT(1)+ RIGHT(1)- PDP_GO...
  • Page 88 Exploded Views and Parts List 1. PS43E450A1WXZG Exploded View...
  • Page 89 Exploded Views and Parts List Parts List Parent Lvl. Loc. Material Code Description & Specification SNA Qty. BN90-03738B F001A BN96-21988K ASSY COVER P-FRONT; PE450 43,EUROPE,PC CH BN96-21988K BN61-07970B HOLDER-BOSS BOTTOM; PE490 43",ABS,BLACK,H BN96-21988K AB326 BN61-04661A BRACKET-STOPPER; L650,SK-5,T0.4,Plating,H BN91-08864A U001A BN96-22081A ASSY PDP MODULE P;...
  • Page 90 Exploded Views and Parts List 2. Electrical Parts List Level Loc. Part Code Description & Specification Qty. SA/SNA PS43E450A1WXZG (TD02) S001A BN90-03560D ASSY STAND;PE450/490 43/51 SG03 BN61-08051A GUIDE-STAND;43PE430,PC,V2,BK0007,G/F 20% 0103-007285 RESIN-PC;MW32020GFU,K032202GFV,BK0007,V2 SB04A BN96-22005B ASSY STAND P-BASE;PE450 43/51,ABS+PMMA,H T0524 6902-000518 BAG PE;HDPE/NITRON/HDPE,T0.015/T0.05(DOU BN63-04755G COVER-SHEET;42PC450,PE,T0.05,W250mm,200M...
  • Page 91 Exploded Views and Parts List Level Loc. Part Code Description & Specification Qty. SA/SNA T0139 BN65-00003A CLAMPER BAG;42C7,LDPE,HB,BLK BN91-08761F ASSY SHIELD;PE450 43 6001-002670 SCREW-MACHINE;BH,+,M3,L6,Ni PLT,SWRCH18A M0081 6003-000337 SCREW-TAPTYPE;BH,+,S,M4,L10,ZPC(BLK),SWR M0081 6003-001439 SCREW-TAPTYPE;BH,+,S,M4,L8,ZPC(WHT),SWRC SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR BN63-09126A COVER-AV;PD490 43",ABS,HB,BLK(BK0020) 0103-004609 RESIN-ABS;HF-0680U,K21294,BK0007,1.5mm H BN81-06605A A/S-TAPE-FILAMENT;ELMATIT,T0.1,W20,L5000 CB25A BN96-16790A...
  • Page 92 Exploded Views and Parts List Level Loc. Part Code Description & Specification Qty. SA/SNA ...4 1201-003183 IC-AUDIO AMP;DRV612,HTSSOP,14P,5x4.4mm,D ...4 1201-003333 IC-POWER AMP;NTP-7412S,MLF,48P,7x7mm,DUA ...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, ...4 1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 ...4 T0087 1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 ...4 T0087 1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 ...4 T0087 1203-006136...
  • Page 93 Exploded Views and Parts List Level Loc. Part Code Description & Specification Qty. SA/SNA ...4 2007-001333 R-CHIP;18Kohm,5%,1/16W,TP,1005 ...4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 ...4 HDR8 2007-007095 R-CHIP;390ohm,5%,1/16W,TP,1005 ...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 ...4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 ...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 ...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 ...4 2007-007352 R-CHIP;130Kohm,1%,1/10W,TP,1608 ...4 2007-007463 R-CHIP;1.1Kohm,1%,1/16W,TP,1005...
  • Page 94 Exploded Views and Parts List Level Loc. Part Code Description & Specification Qty. SA/SNA ...4 VC37 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 ...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 ...4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,0.5 ...4 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 ...4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 ...4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,2012 ...4 HDC11 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 ...4 AD480 2203-006824...
  • Page 95 BN81-02321A BAG-AIR;LIGHT FLEX PLASTIK,PE WHITE,L120 ACCE1 BN92-09941U ASSY ACCESSORY;PE450 BN68-04067A LABEL-STICKER;PE4A,PE4B,EDC,PET,T0.05,60 ACCE4 BN96-22074B ASSY ACCESSORY-MANUAL;PE450 6902-000476 BAG PE;LDPE,T0.03,W250,L350,TRP,Recycle, BN68-00514K MANUAL FLYER-WARRANTY CARD;comm,Samsung, BN68-03019A LEAFLET-01,SAFETY GUIDE;ALL,SAMSUNG,28LE BN68-03943U LEAFLET-02,FICHE PDP4;ALL,SAMSUNG,ENG,EU BN68-03998C MANUAL USERS-02;PE450,SAMSUNG,ENG/DEU/FR BN68-04147C MANUAL FLYER-01,STAND GUIDE;PE450(43~51) ACCE2 BN96-22077E ASSY ACCESSORY-CABLE;PE450 T0121 3301-002049 CORE-FERRITE;33.6X30.5,3500...
  • Page 96 Exploded Views and Parts List Level Loc. Part Code Description & Specification Qty. SA/SNA SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,9.2 T0524 6902-000341 BAG PE;LDPE,T0.05,L90,W70,TRP,,,PE MARK REMO2 AA59-00602A REMOCON;TM1240,44Key,3V,Europe,E6000 M9889 BN63-01798B CLOTH-CLEAN;CLOTH,180,200,sea blue,ToC T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, BN92-09958A ASSY LABEL;PE450 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05,...
