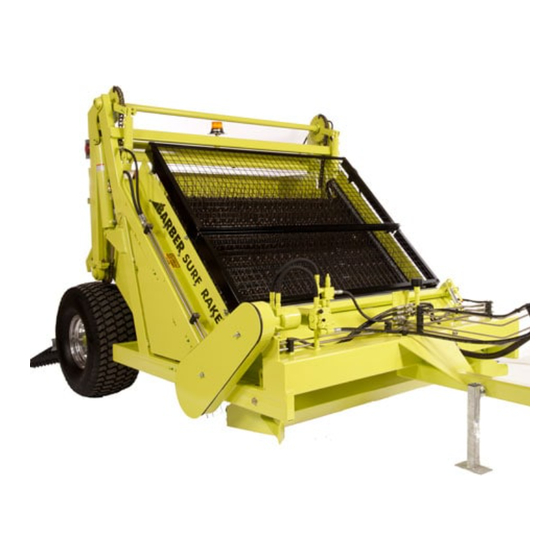

SURF RAKE
INSTRUCTION & PARTS
MANUAL
MODEL 600HD
___________________
MACHINE SERIAL NUMBER
CATALOG 600HDS617800221
61780 0221

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SURF RAKE 600HD and is the answer not in the manual?

Questions and answers

Related Manuals for Barber SURF RAKE 600HD

Summary of Contents for Barber SURF RAKE 600HD

  • Page 1 ® SURF RAKE INSTRUCTION & PARTS MANUAL MODEL 600HD ___________________ MACHINE SERIAL NUMBER CATALOG 600HDS617800221 61780 0221...
  • Page 2 ® Never replace any components of the Surf Rake with one which is not manufactured by H. Barber & Sons, Inc., or listed in this manual as a proper replacement part. 61780 0221...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SURF RAKE ® MODEL 600HD Page ® SECTION 1 – SURF RAKE SYSTEMS AND COMPONENTS ........1-1 SECTION 2 – ATTACHING TO TOWING VEHICLE ........2-1 ® SECTION 3 – OPERATING THE SURF RAKE ........3-1 SECTION 4 – MAINTENANCE ........4-1 SECTION 5 –...
  • Page 4 BARBER SURF RAKE ® MODEL 600HD SECTION 1 - SURF RAKE COMPONENTS ® ® This instruction manual describes the different systems and components that make up the Surf Rake . This manual includes a maintenance, lubrication and parts ordering section. It is important that anyone operating ®...
  • Page 5 CHAIN CASE The conveyor belt is driven by the hydraulic motor which transfers power to the drive chain and the drive sprockets located inside the chain case. Drive chain should be adjusted so that there is approximately 1/4"(6.35mm) slack but no more than 1"(25.4mm) slack midpoint between the sprockets. Adjustment is made by loosening the two bolts that fasten the motor mount to the front tank motor bracket and tightening the adjusting bolt, which will move the motor and attached front sprocket assembly forward.
  • Page 6 HYDRAULIC RESERVOIR The reservoir tank is located across the front of the frame. It supplies hydraulic fluid to the hydraulic pump and conveyor belt drive motor. It has a magnetic drain on the bottom for changing the hydraulic fluid. There is a sight gage for inspecting hydraulic fluid level on the side of the tank. BREATHER CAP The breather cap on top of the reservoir is pressurized to keep out contaminants and keep fumes from entering the atmosphere.
  • Page 7 BUCKET LIFTING CYLINDERS The two large cylinders raise the lift arms and bucket to its dumping position. BUCKET TRIPPING CYLINDERS After the hopper is raised and positioned, two small cylinders are used to trip the hopper and remove the debris. The dump chains, sprockets and small cylinders trip the bucket after it is raised.

  • Page 8: Section 2 - Attaching To Towing Vehicle

    BARBER SURF RAKE MODEL 600HD ® SECTION 2 - ATTACHING TO TOWING VEHICLE ATTACH DRAWBAR Install the supplied draw bar onto the tractor's lower 3-point hitch arms, securing it on each end with the supplied hitch bar snap pins. ®...
  • Page 9 pin. Fold the jack stand arm up to keep it away from the working area as shown in ® Figure 6. The Surf Rake is now ready for operation. See Figure 6. TRACTOR ENGINE in operation, the tractor engine should be kept at an RPM that will result in a 540- While RPM PTO speed.

  • Page 10: Section 3 - Operating The Surf Rake

    ® BARBER SURF RAKE MODEL 600HD ® SECTION 3 – OPERATING THE SURF RAKE OPERATION ® Do not allow individuals to operate the Surf Rake without first receiving personalized training and ensuring that they have read this manual. ® Before each operation of the Surf Rake , make a careful visual inspection of the machine.
  • Page 11 ® START UP Pull the Surf Rake into position on the beach area to be cleaned. Put the tractor in gear. Engage the PTO and adjust the engine to a 540-RPM PTO setting. With the tractor ® ® moving and the belt turning, lower the Surf Rake into the sand.
  • Page 12 OPERATING HINTS ® following general rules should be followed to attain maximum efficiency from your Surf Rake ® ® If your Surf Rake is picking up too much sand: If your Surf Rake is not removing enough debris: 1. Lower moldboard 1.

  • Page 13: Section 4 - Maintenance

    Sons, Inc. Do not replace any component of the Surf Rake with one that is not manufactured by Barber or listed in this manual as a proper replacement part. LUBRICATION GREASE FITTINGS Lubricate all grease fittings every 40 hours of operation. (See Maintenance and Lubrication Chart - Section 5) BUCKET CHAINS should be sprayed with penetrating oil twice a year.
  • Page 14 BARBER SURF RAKE MAINTENANCE ADJUSTMENTS ® DAILY ADJUSTMENT CHECK There are four basic component checks for proper adjustment to ensure that ® your Surf Rake is operating to the efficiency for which it was designed. The four adjustments work together and should be checked each time the machine is used.
  • Page 15 This will result in sand ® being removed along with the debris. At no time should the Barber Surf Rake pick up sand.
  • Page 16 REMOVE SIDE SHIELDS The side shields are slotted so that they can be lifted off the frame once the bolts that attach them to the frame are loosened (four bolts) or removed (two bolts). There are three 3/8” bolts on each side, which secure each guard. The top set of bolts has no hidden nuts and loosens with either a 9/16”...
  • Page 17 It is important to make a note of the bearing location on the top shaft to ensure correct placement of the new bearings. Measure the distance from the edges of the bearings to the ends of the shaft and to the edge of the sprockets.
  • Page 18 HYDRAULIC COMPONENTS BUCKET MANIFOLD The bucket manifold, a sequence valve, runs the two functions of the bucket. It both raises and trips the bucket. It is centrally located on the upper cross tube. CYLINDERS The large and small cylinders are of similar design. They are single acting cylinders. Hydraulic pressure from the towing vehicle raises the cylinders and the weight of the bucket and gravity lowers them.
  • Page 19 REMOVAL AND REPLACEMENT OF 504FH TINES (SIFTING BELT) TOOLS RECOMMENDED: Safety support is REQUIRED! 3/8” ratchet, 6” socket extension and 1/2” socket (6 point) or a 1/2” combination wrench. The tines are secured on the retaining bar by a spacer washer and a locknut. Loosen off the retaining washer and nut and remove the old tine.
  • Page 20 REMOVAL AND REPLACEMENT OF CHANNEL STUDS 560B05095S (SIFTING BELT). TOOLS RECOMMENDED: Channel Stud Replacement Tool 504CM02, 5/8” socket or ratcheting wrench, hammer, punch, oil. The Bucket Safety Support is REQUIRED when working at the rear of the conveyor with the bucket elevated! When the top of a channel stud has broken off from use, the stud must be replaced.
  • Page 21 Barber SURF RAKE ® Model 600HD Maintenance & Lubrication Schedule Every 8 Hours or Every Day: · Wash Machine After Use Every 40 Hours or Every Week: Lubricate the following: Chart Ref. # Barber Part # Description (Quantity) 549AS08 8” Roller Assemblies (4)

  • Page 22: Section 5 - Lubrication Chart

    MAINTENANCE AND LUBRICATION CHART GREASE EVERY 40 HOURS OR EVERY WEEK - BOTH SIDES INSPECT AND ADJUST EVERY 40 HOURS OR EVERY WEEK INSPECT AND MAINTAIN EVERY 200 HOURS OR BIMONTHLY INSPECT AND MAINTAIN EVERY 500 HRS OR EVERY YEAR INSPECT AND MAINTAIN EVERY 1000 HRS OR EVERY THREE YEARS 18 PSI 61780 0221...

  • Page 23: Section 6 - Parts Catalog And Ordering

    ® BARBER SURF RAKE MODEL 600HD SECTION 6 – PARTS CATALOG AND ORDERING When Ordering Parts, please have the following information available: ® 1. Model and serial number of your SURF RAKE 2. Part number, description and page number 3. Shipping and billing address 4.
  • Page 24 CONVEYOR ITEM PART NUMBER DESCRIPTION 600HDS 05/21 504FH TINE 510HA CHANNEL A WITH STUDS AND WASHERS 510HB CHANNEL B WITH STUDS AND WASHERS 504AH BELT 504DK OFFSET CHAIN, COMPLETE (BOTH SIDES) 504G CAPSCREW 560W06S WASHER 560W06H SPACER, SILVER 504H LOCKNUT 560N05LS LOCKNUT 560W05S...
  • Page 25 CONVEYOR ITEM PART NUMBER DESCRIPTION 600HD 504F-1 TINE 516A RETAINING BAR A TO IDENTIFY NOTE HOLE AND DIVOT SPACING 516B RETAINING BAR B TO IDENTIFY NOTE HOLE AND DIVOT SPACING BACKING STRIP A (IDENTIFIED BY MATCHING HOLE PATTERN TO RETAINING BAR A) 512A BACKING STRIP B (IDENTIFIED BY MATCHING HOLE PATTERN TO RETAINING BAR B) 512B...
  • Page 26 MOLDBOARD & SHIELDS ITEM PART NUMBER DESCRIPTION 600HDS “S” BELT STANDARD 522JT TURNBUCKLE 522JT1 509D BOLT 509C FLAT WASHER 509FA LOCK NUT 522AS01 MOLDBOARD 522F MOLDBOARD FLAP 542DB STONE GUARD FLAP HOLD DOWN 514G FLAT WASHER 522G MOLDBOARD FLAP HOLD DOWN 542AS01 (R/L) SIDE GUARD (LEFT SHOWN) 514D...
  • Page 27 MOLDBOARD & SHIELDS ITEM PART NUMBER DESCRIPTION 600HDS “S” BELT HYDRAULIC (OPTION) 514G FLAT WASHER 542DA STONE GUARD FLAP 509D BOLT 509C FLAT WASTER 509FA LOCK NUT 522AS02 MOLDBOARD, HYDRUALIC OPERATED 522F MOLDBOARD FLAP 542DB STONE GUARD FLAP HOLD DOWN 530CM06 560C02150 COTTER PIN...
  • Page 28 MOLDBOARD & SHIELDS ITEM PART NUMBER DESCRIPTION 600HD SOLID BELT 522JT TURNBUCKLE 522JT1 509D BOLT 509C FLAT WASHER 509FA LOCK NUT 522AS01 MOLDBOARD SKID SHOE 524D CAPSCREW 524G LOCK WASHER 523R HEX NUT 542AS01 (R/L) SIDE GUARD 514D CAPSCREW 509H LOCK WASHER 509J HEX NUT...
  • Page 29 MOLDBOARD & SHIELDS ITEM PART NUMBER DESCRIPTION 600HD SOLID BELT HYDRAULIC (OPTION) 542BU05 TAKE UP GUARD 560B05125 CAPSCREW 509D BOLT 509C FLAT WASHER 509FA LOCK NUT 522AS02 MOLDBOARD SKID SHOE 524D CAPSCREW 524G LOCK WASHER 523R HEX NUT 542AS01 (R/L) SIDE GUARD 514D CAPSCREW...

  • Page 30: Drive Mechanism

    DRIVE MECHANISM ITEM PART NUMBER DESCRIPTION 600HDS 503KK RETAINING RING 503JJ BEARING 503LL GREASE FITTING 503AA SPROCKET 503CAP GREASE COVER SHAFT 503J 595AS01 SPROCKET AND SHAFT ASSEMBLY 509H LOCK WASHER 560B06250 CAPSCREW 549AS08 SEE IDLER ROLLER ASSEMBLY PAGE 540G TAKE UP BOLT 503VV BEARING 503AS01...

  • Page 31: Chain Case

    CHAIN CASE ITEM PART NUMBER DESCRIPTION 600HDS A518 CHAIN CASE ASSEMBLY 518C COVER PLATE 518D GASKET 518AA WING NUT 603E SPROCKET 603D BUSHING 503X 503W12 SPROCKET 503WHK 503MMC CHAIN 503NN-1 HALF LINK 503NN-2 CONNECTING LINK 518K CAPSCREW 523R HEX NUT 503WB BUSHING 603GG...

  • Page 32: Hitch

    HITCH ITEM PART NUMBER DESCRIPTION 600HDS 540C1001 HOSE CLAMP, DOUBLE 608HX HOSE CLAMP ½” 645HBB HOSE CLAMP 1” A552-1 HITCH PIN WITH COTTER 552D HITCH PIN COTTER 552C DRAW BAR SNAP PIN DRAW BAR WITH SNAP PINS IS EITHER CATEGORY 1 OR 2 552CAT2 DEPENDING ON TRACTOR 553AS02...

  • Page 33: Hydraulic Manifold Lift

    HYDRAULIC MANIFOLD LIFT ITEM PART NUMBER DESCRIPTION 600HDS 0117 540A1001 QUICK DISCONNECT, MALE 545HD-13 QUICK DISCONNECT COVER 540H10050 HOSE 540B1001 TUBE 540E1003 ELBOW 540B1002 TUBE 540A0803 ADAPTER 540H080645 HOSE 540V006 MANIFOLD ASSEMBLY 560W04 WASHER 545JJF CYLINDER 540E0803 ELBOW 524X CAPSCREW 524S WASHER 540H08060...

  • Page 34: Hydraulic Lift

    HYDRAULIC LIFT ITEM PART NUMBER DESCRIPTION 600HDS 540A1001 QUICK DISCONNECT, MALE 540T0602 540B0602 TUBE, LEFT 540A0809 QUICK DISCONNECT, MALE 545HD-13 QUICK DISCONNECT COVER 540H10045 HOSE 540B1001 TUBE 540C1001 HOSE CLAMP, DOUBLE 540B1002 TUBE, LEFT 540B1003 TUBE, RIGHT 540T1001 540H06026 HOSE 545JJHP REPLACEMENT SEAL KIT PER CYLINDER 545JJH...

  • Page 35: Hydraulic Drive With Manifold

    HYDRAULIC DRIVE WITH MANIFOLD ITEM PART NUMBER DESCRIPTION 600HDS 0118 645HA PUMP 540A1205 ADAPTER 540A1003 ADAPTER 540E1202 ELBOW 540H08105 HOSE 540V015 CONTROL MANIFOLD, REVERSING & FLOW 540H08024 HOSE 645HF MOTOR 645HF-1 MOUNTING BRACKET 504J CAPSCREW 540A0801 ADAPTER 503Q LOCK WASHER 560B06100 CAPSCREW 509H...
  • Page 36 HYDRAULIC DRIVE ITEM PART NUMBER DESCRIPTION 600HDS 0818 645HA PUMP 560B06125 CAPSCREW 645HC REDUCER BUSHING 545R STREET ELBOW 540H08105 HOSE 645HDD FLOW CPNTROL 540H08024 HOSE 645HF MOTOR 645HF-1 MOUNTING BRACKET 504J CAPSCREW 540T0803 503Q LOCK WASHER 560B06100 CAPSCREW 509H LOCK WASHER 545B FILTER BASE 545C...

  • Page 37: Lift Arm And Trip Mechanism

    LIFT ARM AND TRIP MECHANISM ITEM PART NUMBER DESCRIPTION 600HDS TIE BAR 523S SET COLLAR 524M LIFT ARM ASSEMBLY 523AS01 SPROCKET (RIGHT SHOWN) 508RG GREASE NIPPLE 545NN-1 523EHD 522JT2 COTTER PIN 545JJH HYDRAULIC CYLINDER 545NN 502P COTTER PIN 545JJF HYDRAULIC CYLINDER 545JJFP PACKING FOR 545JJF 545JJHP...

  • Page 38: Bucket And Chain, 3 Cu. Yd. Hopper

    CONNECTING LINK 525ZP CHAIN ASSEMBLY (ONE SIDE) SEE BELOW 525AS01 BUCKET 503NN-4PF CONNECTING LINK* SEE BELOW *ONLY USE BARBER CHAIN AND LINKS! 20,000 LB MINIMUM TENSILE! CORROSION PROTECTED ON CHAIN AND PINS SUBSTITUTE CHAINS ARE A SAFETY HAZARD! 6-10 61780 0221...

  • Page 39: Hub, Wheel, Tire, Brakes

    HUB, WHEEL, TIRE, BRAKES ITEM PART NUMBER DESCRIPTION 600HDS 527GF-10A SPINDLE WITHOUT FLANGE 527GF-11 RACE, STAINLESS SLEEVE 527GF-6A GREASE SEAL 3.38” OD 527GF-1 HUB BEARING, LARGE 527GF-8 RACE, LARGE 527GF-12 DRUM WITH RACES, BEARINGS AND SEAL 527GF-9 RACE, SMALL 527GF-2 HUB BEARING, SMALL 527GF-5 WASHER...

  • Page 40: Hub, Wheel, Tire

    HUB, WHEEL, TIRE ITEM PART NUMBER DESCRIPTION 600HDS 527GF-10A SPINDLE WITHOUT FLANGE 527GF-11 RACE, STAINLESS SLEEVE 527GF-6A GREASE SEAL 3.38” OD 527GF-1 HUB BEARING, LARGE 527GF-8 RACE, LARGE 527GF HUB WITH RACES 527GF-9 RACE, SMALL 527GF-2 HUB BEARING, SMALL 527GF-5 WASHER 527GF-3 CASTLE NUT AND RETAINER...

  • Page 41: Roller Assembly

    ROLLER ASSEMBLY ITEM PART NUMBER DESCRIPTION 600HDS 549CM02 SNAP RING, LARGE INTERNAL 549FM01 FRONT COVER PLATE 549CM03 SNAP RING, SMALL EXTERNAL 527GF-2 ROLLER BEARING 527GF-9 RACE 549TB01A ROLLER 549CM01 SEAL 549FM02 REAR COVER PLATE 549AS01 PIN AND BASE ASSEMBLY 549CM05 SHIM 503CAP GREASE COVER...

  • Page 42: Idler Roller Assembly

    IDLER ROLLER ASSEMBLY ITEM PART NUMBER DESCRIPTION 600HDS 549CM02 SNAP RING, LARGE INTERNAL 549FM01 FRONT COVER PLAET 549CM03 SNAP RING, SMALL EXTERNAL 527GF-2 ROLLER BEARING 527GF-9 RACE 549CM08 ROLLER 549CM01 SEAL 549FM02 REAR COVER PLATE 549AS01 PIN AND BASE ASSEMBLY 549CM05 SHIM 503CAP...

  • Page 43: Hydraulic Return

    HYDRAULIC RETURN ITEM PART NUMBER DESCRIPTION 600HDS 061219 540E0401 ELBOW 540A0404 ADAPTER 540T0402 MALE RUN TEE 540C0802 CLAMP, VINYL COATED 560B05075 CAPSCREW 524S FLAT WASHER 524Y LOCKWASHER 524X CAPSCREW 540T1201 540R1202 ADAPTER 540A0612 ADAPTER 540TB04000 NYLON TUBE, 30 FT. 540TB06000 NYLON TUBE, 3 FT.

  • Page 44: Caster Assembly (Option)

    OPTIONAL CASTER ASSEMBLY ITEM PART NUMBER DESCRIPTION 600HDS 251A FORK ASSEMBLY 251B WASHER 509FA LOCK NUT 251C BOLT 251D WASHER 251E SPACER TUBE 251F ROLLER BEARING AND RACE 560B08100 BOLT 524G LOCK WASHER 251G WHEEL FLANGE AND TIRE ASSEMBLY 251H 251ASY CASTER ASSEMBLY COMPLETE 251JASY...

  • Page 45: Finisher (Option)

    OPTIONAL FINISHER ITEM PART NUMBER DESCRIPTION 600HDS 522JT2 COTTER PIN 530FB01 HOLD DOWN BAR 530AS06 FINISHING PLATE 530CM02 FINISHER (RIGHT OUTSIDE) 530CM05 FINISHER (RIGHT INSIDE) 530CM03 FINISHER (CENTER) 530CM04 FINISHER (LEFT INSIDE) 530CM01 FINISHER (LEFT OUTSIDE) 560B05150 BOLT 524S WASHER 560N05L 530CM07 560B05150...

  • Page 46: Auto Finisher (Option)

    OPTIONAL AUTO FINISHER ITEM PART NUMBER DESCRIPTION 600HDS 530AS17 ARM ASSEMBLY 530FB01 HOLD DOWN BAR 530AS06 FINISHING PLATE 530CM02 FINISHER (RIGHT OUTSIDE) 530CM05 FINISHER (RIGHT INSIDE) 530CM03 FINISHER (CENTER) 530CM04 FINISHER (LEFT INSIDE) 530CM01 FINISHER (LEFT OUTSIDE) 560B05150 BOLT 524S WASHER 560N05L 530CM07...
  • Page 47 OPTIONAL FINISHER HYDRAULICS ITEM PART NUMBER DESCRIPTION 600HDS 540A0809 QUICK DISCONNECT, MALE 540R08032 RESTRICTOR 545HD-13 QUICK DISCONNECT COVER 540H06050 HOSE 540B0601 TUBE 540C1001A HOSE CLAMP 540E0602 ELBOW 540B0602 TUBE, LEFT 540H06130 HOSE 545JJHP REPLACEMENT SEAL KIT 545JJH CYLINDER 540E0601 ELBOW, 90 DEGREES FOR 2X5 CYLINDER 540R0806 ADAPTER 6-17a...

  • Page 48: Auto Finisher Hydraulics (Option)

    OPTIONAL AUTO FINISHER HYDRAULICS ITEM PART NUMBER DESCRIPTION 600HDS 540T0804 STREET TEE 540V007 SEQUENCE VALVE 540A0611 ADAPTER 540H06025 HOSE 540R4500236 ORIFICE PLATE 540V004 SHUT OFF VALVE 540A0602 ADAPTER 540C1001A HOSE CLAMP 540B0602 TUBE, LEFT 540H06130 HOSE 545JJHP REPLACEMENT SEAL KIT 545JJH CYLINDER 540A0404...

  • Page 49: Hydraulic Multiplier (Option)

    OPTIONAL HYDRAULIC MULTIPLIER ITEM PART NUMBER DESCRIPTION 600HDS 540AS01 ASSEMBLY KIT COMPLETE – SINGLE ACTING MULTIPLIER 540AS03 ASSEMBLY KIT COMPLETE – DOUBLE ACTING MULTIPLIER (NOT SHOWN) 545HDB QUICK DISCONNECT, FEMALE 540A0804 ADAPTER 540V040 VALVE BODY – SINGLE ACTING MULTIPLIER 540V008 VALVE BODY –...

  • Page 50: Lighting (Option)

    OPTIONAL LIGHTING ITEM PART NUMBER DESCRIPTION 061219 600HDS 565CM32 STOP, TURN, TAIL LIGHT 565CM33 STOP, TURN, TAIL LIGHT 565CM34 HARNESS, LEFT 565CM35 HARNESS, RIGHT 565CM06 SEVEN WAY PLUG, ROUND 565BU04L LEFT LIGHT BRACKET 565BU04R RIGHT LIGHT BRACKET 560B04100 CAPSCREW 560W04 FLAT WASHER 560N04L LOCKNUT...

  • Page 51: Hydraulic Moldboard (Option)

    OPTIONAL HYDRAULIC MOLDBOARD ITEM PART NUMBER DESCRIPTION 600HDS 540A0809 QUICK DISCONNECT, MALE 540R08032 ORIFICE DISC 545HD-13 QUICK DISCONNECT COVER 540H06050 HOSE 540B0601 TUBE 540T0602 540H06035 HOSE 545JJH CYLINDER 540C1001 HOSE CLAMP 540R0806 ADAPTER 530CM07 522JT2 COTTER PIN 522AS02 MOLDBOARD 530CM06 560C02150 COTTER PIN 545JJHP...

  • Page 52: Chicago Rake (Option)

    OPTIONAL CHICAGO RAKE ITEM PART NUMBER DESCRIPTION 600HDS 540A0809 QUICK DISCONNECT, MALE 540R08032 RESTRICTOR 545HD-13 QUICK DISCONNECT COVER 540H06050 HOSE 540B0601 TUBE 540C1001 HOSE CLAMP 540B0602 TUBE, LEFT 540B0603 TUBE, RIGHT 540H06130 HOSE 540T0602 530CUPMC19408 CYLINDER 540A0609 ADAPTER 540E0601 ELBOW, 90 DEGREE 530CUH06035 HOSE 540B0604...

  • Page 53: Manual Grease System (Option)

    MANUAL GREASE SYSTEM ITEM PART NUMBER DESCRIPTION 600HDS 532AS10 MANUAL AUTO GREASE UNIT 532CM08 RESEVOIR O-RING 532AS10E COVER ASSEMBLY 532AS10D HANDLE ASSEMBLY 532AS10F SEAL 532AS10C STAINLESS ROD 532AS10G COLLAR 532CM03 INJECTOR CARTRIDGE 503CAP GREASE CAP 524X CAPSCREW 524S FLAT WASHER 560N05L LOCKNUT 532TB06...

  • Page 54: Pintle Attachment (Option)

    OPTIONAL PINTLE ATTACHMENT ITEM PART NUMBER DESCRIPTION 600HDS 552AS01 STANDARD PINTLE ATTACHMENT 552AS01L EXTENDED STANDARD PINTLE ATTACHMENT 552AS01E EUROPEAN PINTLE ATTACHMENT 552AS01A AUSTRALIAN PINTLE ATTACHMENT 560B16600 CAPSCREW 502N FLAT WASHER 405F LOCK WASHER 405G HEX NUT STANDARD AND EXTENDED STANDARD PINTLE ADAPTER 506B09250 CAPSCREW 503R...
