Air conditioner
User manual
AC***BN6DCH
• Thank you for purchasing this Samsung air conditioner.
• Before operating this unit, please read this manual carefully and retain it for future reference.
DB68-11306A-00_IB_CAC Universal 360_AA_EN.indd 1
DB68-11306A-00_IB_CAC Universal 360_AA_EN.indd 1
2021-09-03 오전 8:52:39
2021-09-03 오전 8:52:39
Advertisement
Table of Contents
Related Manuals for Samsung AC BN6DCH Series
Summary of Contents for Samsung AC BN6DCH Series
- Page 1 Air conditioner User manual AC***BN6DCH • Thank you for purchasing this Samsung air conditioner. • Before operating this unit, please read this manual carefully and retain it for future reference. DB68-11306A-00_IB_CAC Universal 360_AA_EN.indd 1 DB68-11306A-00_IB_CAC Universal 360_AA_EN.indd 1 2021-09-03 오전 8:52:39...
- Page 2 Contents Safety Information Safety Information At a Glance Indoor Unit Overview Operation Features Operating temperature and humidity Cleaning and Maintenance Cleaning and Maintaining Cleaning the indoor unit exterior • Disassembling the air filter Cleaning the air filter • Reassembling the air filter Periodical maintenance Troubleshooting ENERGY STAR qualified model only...
-
Page 3: Safety Information
Safety Information California Proposition 65 Warning (US) WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. Before using your new air conditioner, please read this manual thoroughly to ensure that you know how to safely and efficiently operate the extensive features and functions of your new appliance. Because the following operating instructions cover various models, the characteristics of your air conditioner may differ slightly from those described in this manual. - Page 4 Safety Information Do not install this appliance near a heater, inflammable material. Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops). Do not install this appliance in a location where gas may leak. •...
- Page 5 FOR USING WARNING If the appliance is flooded, please contact your nearest service centre. • Failing to do so may result in electric shock or fire. If the appliance generates a strange noise, a burning smell or smoke, cut-off the power supply immediately and contact the nearest service center.
- Page 6 • Since this may be dangerous due to a lack of oxygen, open a window at least once an hour. Do not use means to accelerate the defrost operation or to clean, other than those recommended by Samsung. Do not pierce or burn.
- Page 7 During transportation of the indoor unit, the pipe lines shall be covered with brackets for protection. Do not move the product with holding the pipe lines. • It may cause gas leakage. Do not install the product in a ship or a vehicle (such as a campervan). •...
-
Page 8: For Cleaning
Safety Information FOR CLEANING WARNING Do not clean the appliance by spraying water directly onto it. Do not use benzene, thinner, alcohol or acetone to clean the appliance. • This may result in discoloration, deformation, damage, electric shock or fire. Before cleaning or performing maintenance, cut-off the power supply and wait until the fan stops. -
Page 9: Indoor Unit Overview

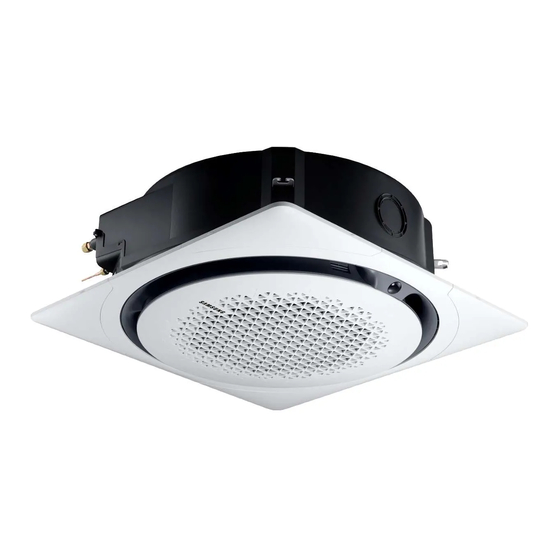

Indoor Unit Overview Circular panel Square panel 01 Display NOTE • For the AR-KH0** wireless remote control, the air flow direction indications appear on its display, too. • By using the AR-KH0** wireless remote control, you can turn on or turn off the air flow direction indications that appear on the indoor unit display. -
Page 10: Operation Features
Operation Features Operation Features Operating temperature and humidity OPERATIONAL TEMPERATURE INDOOR MODEL MODE HUMIDITY INDOOR OUTDOOR 64℉ to 90℉ 0℉ to 122℉ Cool 80% or less (18℃ to 32℃) (-18℃ to 50℃) AC018BN6DCH 86℉ or less -13℉ to 75℉ Heat AC024BN6DCH (30℃... -
Page 11: Cleaning And Maintaining
Cleaning and Maintaining Cleaning the indoor unit exterior Wipe the surface of the unit with a slightly wet or dry cloth when needed. Wipe off dirt from odd-shaped areas by using a soft brush. CAUTION • Do not use alkaline detergent, sulphuric acid, hydrochloric acid, or organic solvents (such as thinner, kerosene, and acetone) to clean the surfaces. - Page 12 Cleaning and Maintaining Cleaning the air filter NOTE • Clean the air filter once every two weeks. • Spray water or use a vacuum cleaner to remove dust. • After removing dust, dry the air filter completely. – Avoid direct sunlight. Failure to do so may deform the air filter. Reassembling the air filter •...
-
Page 13: Periodical Maintenance
Periodical maintenance Requires qualified Unit Maintenance item Interval technicians Clean the air filter. At least once a month Clean the condensate drain pan. Once a year Required Indoor Clean up the heat exchange. Once a year Required unit Clean the condensate drain pipe. Once every 4 months Required Replace the remote control batteries. -
Page 14: Troubleshooting
Cleaning and Maintaining Troubleshooting Refer to the following chart if the air conditioner operates abnormally. This may save time and unnecessary expense. Problem Solution The air conditioner • Because of the protective mechanism, the appliance does not start operating does not operate immediately to keep the unit from overloading. - Page 15 Problem Solution • Check whether the Auto or Dry mode is running. In these modes, the air The fan speed does conditioner controls the fan speed automatically, and you cannot change the not change. fan speed. • Check whether the batteries are discharged. Replace the batteries with new ones. The wireless remote •...
- Page 16 Cleaning and Maintaining Problem Solution • In the Cool mode, cool air does not come out if the set temperature is higher than the current temperature. – AR-EH0**, AR-EC0** remote control: Press the Temperature button repeatedly until the set temperature (minimum: 64℉(18℃)) is set to lower than the current temperature.
- Page 17 Problem Solution • In certain conditions (especially, when the outdoor temperature is lower than 68℉(20℃)), a hissing, rumbling, or splashing sound may be heard while the refrigerant is circulating through the air conditioner. This is a normal The air conditioner operation.
- Page 18 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT AMERICA 888-699-6067 (Samsung HVAC) www.samsunghvac.com DB68-11306A-00_IB_CAC Universal 360_AA_EN.indd 18 DB68-11306A-00_IB_CAC Universal 360_AA_EN.indd 18 2021-09-03 오전 8:52:42 2021-09-03 오전 8:52:42...
